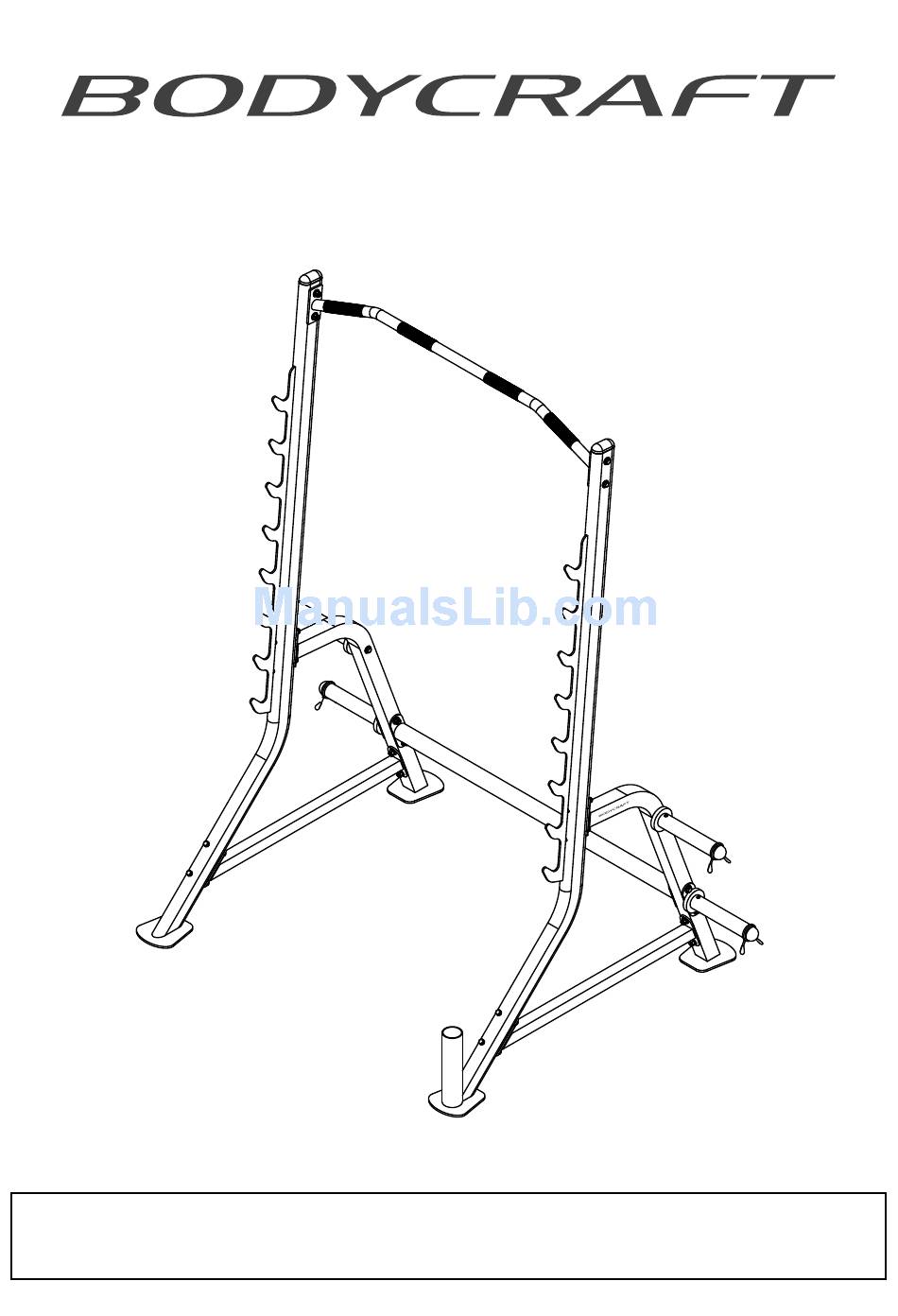

- Page 1 SQUAT RACK SYSTEM OWNER'S MANUAL MB1308 Recreation Supply Inc. F460 P.O. BOX 181 Model No. BODYCRAFT Sunbury, OH 43074 is a division of Recreation Supply...
- Page 2 5. Keep your hands away from moving parts other than the designated handles. 6. Exercise with care to avoid injury. 7. If you are unsure about the proper use of the BODYCRAFT Squat Rack system call your local BODYCRAFT dealer or our customer service department.
-
Page 3: Recommended Tools
Gym Placement Planner WALL 47.3" HEIGHT 71.5" 82.1" Important Notes and Tips: Recommended Tools for Assembly 1. Do not tighten any bolts until instructed. 2. Two people are reguired for the safe assembly of the gym. Ratchet 3. Use silicone lubricant on guide rods prior to weight 9/16"... - Page 4 OVERVIEW...
-
Page 5: Parts List
PARTS LIST NO. DESCRIPTION QTY. UPRIGHT FRAME - RIGHT UPRIGHT FRAME - LEFT REAR UPRIGHT FRAME - RIGHT REAR UPRIGHT FRAME - LEFT CHIN UP BAR REAR CONNECTOR FRAME CONNECTOR LOWER WEIGHT HOLDER UPPER WEIGHT HOLDER OLYMPIC ADAPTER SLEEVE 40 X 80mm OVAL CAP PLUG 2"... - Page 6 STEP 1 Assemble Upright Frame TO EASE THE ASSEMBLY PROCESS. DO NOT TIGHTEN ANY BOLTS UNTIL INSTRUCTED. 1. Loosely assemble Rear Connector (4) to the Right & Left Rear Upright Frame (2R & 2L) with two Lower Weight Holders (6), using four 3/8"...
- Page 7 STEP 2 Assemble Upright Frame 1. Using a rubber mallet, install the two 40 X 80mm Oval Cap Plugs (10) to the Right and Left Upright Frame (1R & 1L). 2. Loosely assemble two Frame Connectors (5) to the Right and Left Upright Frame (1R &...
- Page 8 STEP 3 Assemble Top Frame 1. Loosely assemble Chin Up Bar (3) to the Right and Left Upright Frame (1R & 1L) using four 3/8" X 2-1/2" Hex Bolts (16), eight 3/8" Washers (19), and four 3/8" Nylon Nuts (21).
- Page 9 STEP 4 Assemble Olympic Adapter Sleeve 1. Attach and tighten Upper Weight Holder (7) to the Right & Left Rear Upright Frame (2R & 2L) using one 3/8" X 1" Hex Threaded Bolt (17), one 3/8" Washer (19), and one 1" Plug. 2.
- Page 10 SAFETY SPOTTER OPTION 1. If you have purchased the optional F461 Safety Spotters, please tilt the top back slightly to attach and remove the Rght and Left Safety Spotters (8R & 8L) to the gun rack.
- Page 11 Enjoy many years of a Fit Lifestyle. Thank you for purchasing the BODYCRAFT Squat Rack System! If you have questions or comments, please contact your BodyCraft dealer or contact BODYCRAFT directly at 800-990-5556 or info@bodycraft.com. Please REGISTER your BODYCRAFT at www.bodycraft.com...
