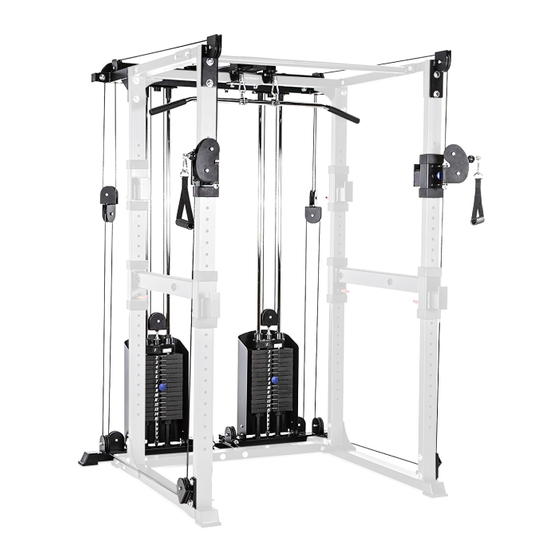

- Page 1 Assembly Instructions max. 360 kg ~ 180 Min. 87.5 kg L 164 | W 150 | H 211 BCF438.01.01 Art. No. BC-F438 Cable Pull F438...
- Page 2 F438...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Cable Adjustment STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 In terms of innovation and technology, it is one of the highest quality fitness equipment for home use. Bodycraft multi gyms, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses and rehabilitation exercises to workout for complex sports like golf, tennis or badminton.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
164.1 cm 150.1 cm x 211.4 cm Article weight (gross, incl. packaging) approx.: 94.8 kg Article weight (net, excl. packaging) approx.: 87.5 kg Transmission ratio: Cable material: Steel Cover material: Plastic Weight per weight block: 90 kg Maximum user weight: 360 kg F438... -
Page 7: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. F438... -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
(217) PULLEY (219) TOP FRAME (220) STACK CONNECTOR PLATE PULLEY CONNECTOR PULLEY BRACKET SPACER HOLDER PLATE X 2pcs X 2pcs X 4pcs X 2pcs (221) TOP (222) WEIGHT (223) SELECTOR PLATE PLATE ROD X 2pcs X 2pcs X 38pcs F438... -
Page 12: Assembly
Mount the left & right Pulley Connector Plate (215L & 216R) to the outside of the front upright (4) using a total of 1/2” X 4” Hex Bolts (254), eight 1/2” Larger Washers (266) and four 1/2” Nylon Nuts (268). Tighten all bolts and nuts. F438... - Page 14 Mount the Connector Top Frame (203) to the Rear Top Frame (6) along with the Link Plate (207) using a total of two 3/8” X 2-3/4” Hex Bolts (256), four 1/2“ Larger Washers (266) and two 1/2” Nylon Nuts (268). Tighten all bolts and nuts. F438...
- Page 15 Step 3: Assemble the connector rear top frame Place two 45 X 75mm End Caps (235) on the ends of the Connector Rear Stabilizer (201) and mount the Connector Rear Stabilizer (201) to the Rear Stabilizer (1) using two 1/2” X 3-3/4” Hex Bolts (255) and two 1/2”...
- Page 16 Rear Top Frame (202) along with the Stopper (246) using a total of four 5/16” X 5/8” Hex Socken Dome Bolts (260) and two 3/8” X 5/8” Hex Socken Dome Bolts (259). Insert the Selector Pin (241) in one of the selector holes of the Weight Plates (222). 10. Tighten the bolts. F438...
- Page 18 Pulley (233) using each one 3/8” X 1-3/4” Hex Bolt (257) and one 3/8” Nylon Nut (269). Guide the cable downwards to point T5 and through a Double Pulley Block (214). Fix the cable along with one Pulley (233) using one 3/8” X 1-3/4” Hex Bolt (257) and one 3/8” Nylon Nut (269). F438...
- Page 19 Guide the cable along the points T6 and T7. Fix the cable to the points along with each one Pulley (233) using each one 3/8” X 1-3/4” Hex Bolt (257) and one 3/8” Nylon Nut (269). Guide the cable downwards to point T8 and screw the Pulley Block (213) at least 1/3 into the slot on the weight block and tighten the nut (270).
- Page 20 Pulley (233) using each one 3/8” X 1-3/4” Hex Bolt (257) and one 3/8” Nylon Nut (269). Guide the cable upwards to point L7 and screw the Bolt-End of the cable into the slot of the Pulley Height Adjuster (212R). Repeat the steps for the other side. Tighten all bolts and nuts. F438...
- Page 22 Fix the Ankle Strap (227) an the Curl Bar (206) to the Low Cable (229) using one Snap Hook (240). NOTICE Alternatively, a Chain (225) can be attached between two snap hooks (240) for extension. Finally, make sure that all bolts and nuts are tightened securely. F438...
-
Page 23: Cable Adjustment
Cable Adjustment The cables should be tensioned so that the top weight plate is just resting on the other weight plates. As soon as the top weight plate does not rest on the other weight plates, the cable should be extended. -
Page 24: Troubleshooting, Care And Maintenance
If damaged, replace the defective part Weight hanging in Cable tensioned too tight Readjust cable tension the air Cable without tension Cable too loose Readjust cable tension Squeaking & cracking Screw connections loosened Check screw connections noises or too tight F438... -
Page 25: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 26: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels F438... -
Page 27: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / cable pull Model Name: Cable Pull for F430 Article Number: BC-F438... -
Page 28: Parts List
LOW CABLE (5980mm) 5/16" X 1/4" HEX SOCKEN DOME BOLT 1" X 200mm L HAND GRIP M5 X 15mm TAPPING SCREW SLEEVE 5/16" X 1/4" INNER HEX SCREW 1-1/4 X 130" HAND GRIP M6 X 6mm L INNER HEX SCREW F438... - Page 29 1/2" SMALLER WASHER 1/2" LARGER WASHER 5/16" WASHER 1/2" NYLON NUT 3/8" NYLON NUT 1/2" NUT HEX WRENCH HOOK PLATE...
-
Page 30: Exploded Drawing
Exploded Drawing F438... -
Page 31: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 32 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. F438...
-
Page 33: Contact
