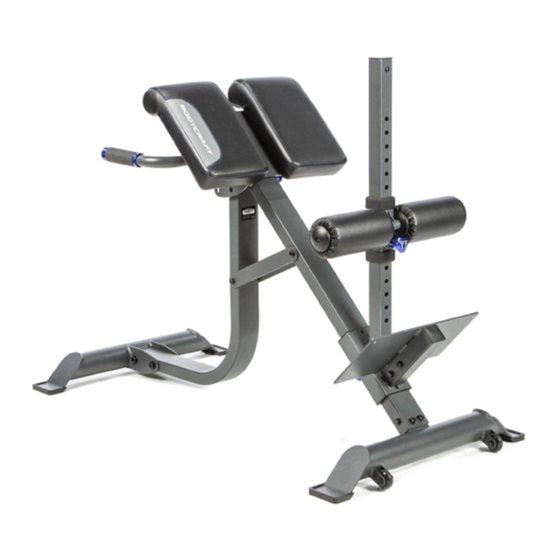

Hyper Extension/Roman Chair
Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
F770
To see in
FULL COLOR
& additional information,
scan this QR code.

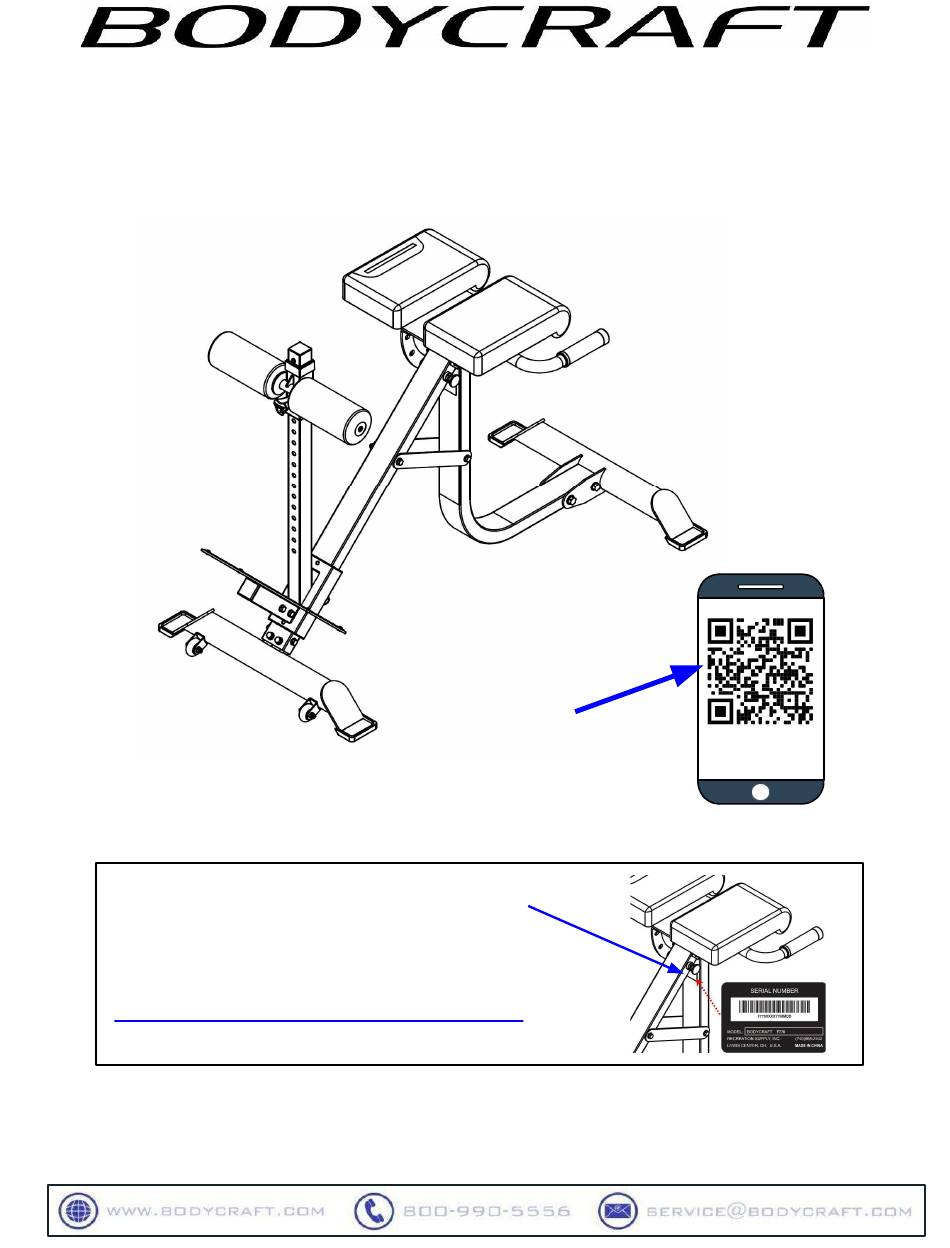

Owner's Manual
1
Open your Camera
App and point it at
the QR Code
F770 v1.2
Advertisement
Table of Contents
Related Manuals for BodyCraft F770
Summary of Contents for BodyCraft F770
- Page 1 QR Code scan this QR code. Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at: https://www.bodycraft.com/product-registration/ Owner’s Manual F770 v1.2...
- Page 2 This page intentionally left blank...
- Page 3 Your BODYCRAFT machine has all the quality and design elements to make your workout extremely efficient and comfortable. Your new unit is a serious strength training machine that will keep you motivated, challenged and within reach of your fitness goals.
-
Page 4: Table Of Contents
Table of Contents NOTE: When you have downloaded the Owner’s Manual into a PDF reader, go directly to the desired page by touching any words in this Table of Contents. Page Page Product Safety Information Product Safety ……………………………………………………………... Important Notes, Recommended Tools & Cleaners …………………….. Product Overview Machine Dimensions &... -
Page 5: Product Safety
It is imperative that you retain these Assembly Instructions and be sure all warning labels are legible and intact. Replacement Assembly Instructions and labels are available from BODYCRAFT. If you are unsure about the proper use of the BODYCRAFT strength machine call your local BODYCRAFT dealer or our Customer Service Department. Contact BODYCRAFT at 800-990-5556 or support@bodycraft.com... -
Page 6: Important Notes, Recommended Tools & Cleaners
Important Notes, Recommended Tools & Cleaners - F770 Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. -
Page 7: Machine Dimensions & Hip Pads Placement Options
Machine Dimensions & Hip Pads Placement Options Overall Dimensions 28.5" W x 53.5" D x 35.6" H Hip pads assembled at Narrow Gap Hip pads assembled at Wide Gap with a total of 2.4” between pads with a total of 3.5” between hip pads. -
Page 8: Machine Adjustments & Transportation Wheels
Machine Adjustments & Transportation Wheels 0° Flat 22.5° Incline 45° Incline Dual transportation wheels in back of machine make the moving process very EASY! Simply, step over the Front Stabilizer Frame, lift up on the handlebars and roll machine to desired location. -
Page 9: Assembly Parts & Hardware Lists
F770-003-ASM Frame, Main - Assembly Frame, Upright Adjusting for Leg Rollers - F770-004-ASM Assembly F770-005-ASM Frame, Adjusting for Leg Rollers - Assembly F770-006-ASM Frame, Foot Platform - Assembly F770-007-ASM Frame, Hip Pads Support - Assembly F770-008-ASM Frame, Handlebar - Assembly... - Page 10 Assembly Hardware Part # Assembly Hardware Q'ty Bolt, Recessed Hex Head 5/16″ x 1-1/4″ L - F770-031 BLACK F770-034 Screw, Phillips Head 1/4″ x 1/2″ - BLACK F770-035 Bolt, Hex Head 1/2″ x 4-1/4″ L - BLACK F770-036 Bolt, Hex Head 1/2″ x 4-3/4″ L - BLACK F770-037 Bolt, Hex Head 3/8″...
-
Page 11: Product Assembly Instructions, Steps 1A - 4B
Product Assembly Please DO NOT Fully Tighten TEP 1a: Front Stabilizer Bolts until STEP 2d Attach the Frame, Front Support - Assembly (2-ASM) to the Frame, Front Stabilizer - Assembly (10-ASM) using: ● Two BOLTS, Hex Head 1/2" x 4-1/4" (35) ●... - Page 12 Product Assembly Please DO NOT Fully Tighten Bolts until STEP 2d TEP 2a: Upright Frame Loosen the Pull-Pin, Locking Knob (28), sliding the Frame, Upright Adjusting for Leg Roller - Assembly (4-ASM) onto the Frame, Main - Assembly (3-ASM) about half way up. Then release the Pull-Pin, Locking Knob (28) into the desired hole.
- Page 13 Product Assembly TEP 2c: Support Braces Attach the Support Brace (9) to both the Frame, Main - Assembly (3-ASM) & Frame, Front Support - Assembly (2-ASM), on both right / left sides using: ● Two BOLTS, Hex Head 3/8" x 4-1/8" (43) ●...
- Page 14 Product Assembly TEP 3a: Upholstered Foam Rollers Slide the Cap, Inner w/ Large Hole (18) then the Roller, Upholstered Foam (17), with the Washer, Flat Large (53), followed by the Cap, Outer End w/ Small Hole (19) for both the right & left sides onto the Frame, Adjusting for Leg Rollers - Assembly (5-ASM), secured by: Recommended Tools: ●...
- Page 15 Product Assembly TEP 3d: Foot Platform Frame Attach the Frame, Foot Platform - Assembly (6-ASM) to the Frame, Upright Adjusting for Leg Roller - Assembly (4-ASM) using: ● Two BOLTS, Hex Head 3/8" x 2-5/8" (39) 15 ft-lbs ● Four WASHERS, Flat 3/8" (+/- 2 lbs) (48) ●...
-
Page 16: Product Assembly Instructions, Decision Point - Hip Pads
Wide Gap at 3.5" (between the pads) using the outer holes during assembly. It comes down to personal comfort while doing variety of exercise on the F770 Hyper Extension / Roman Chair. * See below examples before continuing on to STEP 4c of the assembly process. -
Page 17: Product Assembly Instructions Steps 4C - 4E
Product Assembly TEP 4c: Hip Pads Attach Hip Pad (11) on the right side & Hip Pad (14) on the left side to the Frame, Hip Pads Support - Assembly (7-ASM) using: ● Four BOLTS, Hex Head 3/8" x 1-1/2" (37) ●... -
Page 18: Detailed Parts Lists
Detailed Parts List - F770 1 of 2 Part # Detailed Parts list F770-001 Frame, Back Stabilizer F770-002 Frame, Front Support F770-003 Frame, Main Frame, Upright Adjusting for Leg F770-004 Rollers F770-005 Frame, Adjusting for Leg Rollers F770-006 Frame, Foot Platform... - Page 19 Detailed Parts List - F770 2 of 2 Part # Detailed Parts list F770-029 Sleeve, Inner Sliding F770-030 Sleeve, Outer Sliding Bolt, Recessed Hex Head 5/16″ x 1-1/4″ L F770-031 - BLACK Bolt, Hex Button Head M6 x 8mm L -...
-
Page 20: Parts Exploded View
Parts Exploded View 53 19 45 48... -
Page 21: Information Needed Prior To Contacting Customer Support
Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue? -
Page 22: Product Warranty
If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts. Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic evidence of the damaged part(s) prior to replacement.) Serial number is required. -
Page 23: Product Warranty Registration
The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to BODYCRAFT within 30 days from the date of equipment installation.
