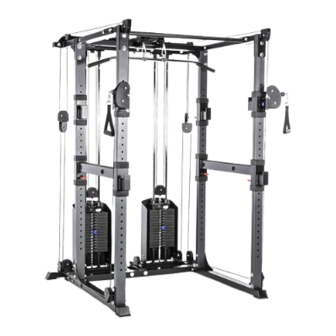

BodyCraft F438 RFT Assembly Instructions Manual
Hide thumbs
Also See for F438 RFT:
- Owner's manual (32 pages) ,
- Assembly instructions manual (36 pages)
Related Manuals for BodyCraft F438 RFT
Summary of Contents for BodyCraft F438 RFT
- Page 1 Assembly Instructions ~ 210 Min. 214 / 259 kg L 164 | W 151 | H 212 SEBR6254.01.03 SKU: SEBR6254 BodyCraft F438 RFT TF TF-...
- Page 2 F438...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly Cable Adjustment STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 Please note that this particular equipment is a supplementary and optional accessory for the BodyCraft F430 power cage. The power cage is not included in the scope of delivery and must be purchased separately. This cable pull attachment is not compatible with any other machines.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data NOTICE The following technical data are only valid for the cable pull attachment F438. If the data for the F430 is needed, please refer to the manual of the F430 where the respective data is included. Weight and Dimensions Package dimensions (L x W x H) and weight (gross, incl. -
Page 7: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. NOTICE To enable the assembly of the F438 cable pull attachment, a few parts of the already mounted power cage must be removed and remounted. - Page 14 Step 2: Assembly of the Connector Top Frame Insert two plugs (234) into the ends of the connector top frame (203). Mount the connector top frame (203) to the rear top frame (6) along with the link plate (207) using a total of two hex bolts (256), four larger washers (266) and two nylon nuts (268). Tighten all bolts and nuts.
- Page 15 Step 3: Assembly of the Connector Rear Top Frame Attach two end caps (235) to the connector rear stabilizer (201) and mount the connector rear stabilizer (201) to the rear stabilizer (1) using two hex bolts (255) and two larger washers (266). Mount the left and right top cable connector (208L &...
- Page 16 Step 4: Assembly of the Weight Stacks ࣑ ATTENTION It is recommended to mount one weight stack at a time. If you have 19 weight plates per weight stack, do not install the stack spacers (220) (fig. 1&2). Insert two plastic guide rod holders (248) into the respective slots of the connector rear stabilizer (201).
- Page 18 Step 5: Assembly of the Rotating Pulley Holders Mount the top frame pulley brackets (219) to the connector top frame (203) using a total of two hex bolts (252), four smaller washers (265) and two nylon nuts (268). Mount the rotating pulley holders (218) to the left and right pulley height adjusters (211L &...
- Page 19 Guide the cable up and over T6 and T7 (202). Mount the pulleys (233) with one hex bolt (257) and one nylon nut (269) each. Guide the cable down and under T8 (214) and screw the pulley block (214) at least 1/3 into the slot on the weight stack and tighten the nut (270).
- Page 20 Step 7: Assembly of the Lower Cables NOTICE The cables and pulleys must be mounted simultaneously. Insert the ball end of the low cable (229) through the pulley holder on the connector rear stabilizer (201) and under L1. Mount one pulley (233) with one hex bolt (257) and one nylon nut (268).
- Page 22 Step 8: Assembly of the Weight Panels and Accessories Mount two weight panels (224) to the connector rear stabilizer (201) using a total of eight hex socken dome bolts (261) and eight washers (267). Attach the lat bar (205) to the snap hook of the top cable (228). Attch two handles (226) to the top cables (228) at the height adjusters (211L &...
-
Page 23: Cable Adjustment
Cable Adjustment The cables should be tensioned so that the top weight plate is just resting on the other weight plates. As soon as the top weight plate does not rest on the other weight plates, the cable should be extended. -
Page 24: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 25: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 26: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 27: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / multi gym Model Name: F438 RFT Attachment for F430 SKU: SEBR6254... -
Page 28: Parts List
Parts List Name Qty. Name Qty. CONNECTOR REAR STABILIZER PULLEY 90mm CONNECTOR REAR TOP FRAME 45 X 75mm PLUG CONNECTOR TOP FRAME 45 X 75mm END CAP GUIDE ROD 45 X 75mm HOLLOW BUSHING LAT BAR CONNECTOR PLATE CURL BAR HOOK PLATE LINK PLATE COLLAR... - Page 29 1/2" SMALLER WASHER 1/2" LARGER WASHER 5/16" WASHER 1/2" NYLON NUT 3/8" NYLON NUT 1/2" NUT HEX WRENCH HOOK PLATE...
-
Page 30: Exploded Drawing
Exploded Drawing F438... -
Page 31: Warranty
WARRANTY Training equipment from BodyCraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 32 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 33: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 34 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 80 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.Private customers order via the 25 web shops in the respective national language or have their desired equpiment assembled on...
