POWER RACK STRENGTH TRAINING SYSTEM
INSTRUCTION MANUAL

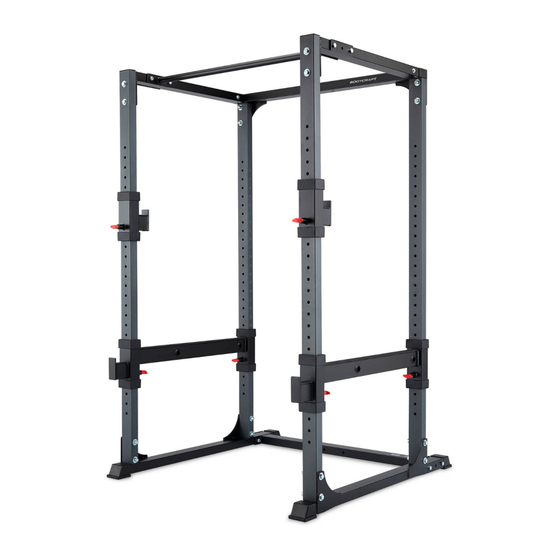

MODEL : F430 POWER RACK
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
7699 Green Meadows Drive
Lewis Center, OH 43035
7180V3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BodyCraft F430
Summary of Contents for BodyCraft F430
-
Page 1: Instruction Manual
Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge. -
Page 2: Before You Begin
BODYCRAFT POWER RACK. Keep this manual for future reference. If you have additional questions, please call your local BODYCRAFT dealer or our customer service department at 800-990-5556 Monday through Friday, 9 a.m. until 5 p.m. Eastern Time. -
Page 3: Exploded View
EXPLODED VIEW... - Page 4 PARTS CHART NO. DESCRIPTION QTY. TUBE REAR STABILIZER RIGHT BASE FRAME LEFT BASE FRAME FRONT UPRIGHT 78.2"(1987mm) REAR UPRIGHT 76.5"(1942mm) ----- -- welded tube on top end REAR TOP FRAME TOP FRAME CHIN UP BAR SAFETY ARM BAR CATCH BACKING PLATE 45mm X 75mm CAP 45mm X 75mm PLUG 45mm X 75mm SLIDER...
- Page 5 STEP 1 ASSEMBLY INSTRUCTIONS Do NOT tighten any bolts until instructed. 1. Attach Rear Stabilizer (1) to Right Base Frame (3) and Left Base Frame (2) using four 1/2" X 4" Hex Bolts (17), four Washers (21) and four 1/2" Nylon Nut (23). Backing plates that are welded to the Base Frames should be on the outside of machine.
- Page 6 STEP 2 ASSEMBLY INSTRUCTIONS 1. Attach Top Frames (7) to Rear Top Frame (6), using three 3/8" X 3/4" Hex Bolts (19) and three Washers (22). Attach Top Frames (7) to Front Upright (4) using two 1/2" X 2 3/4" Hex Bolts (18), four Washers (21) and 1/2"...
- Page 7 Make certain all bolts are tightened securely. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the Bodycraft Power Rack Home Gym. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
