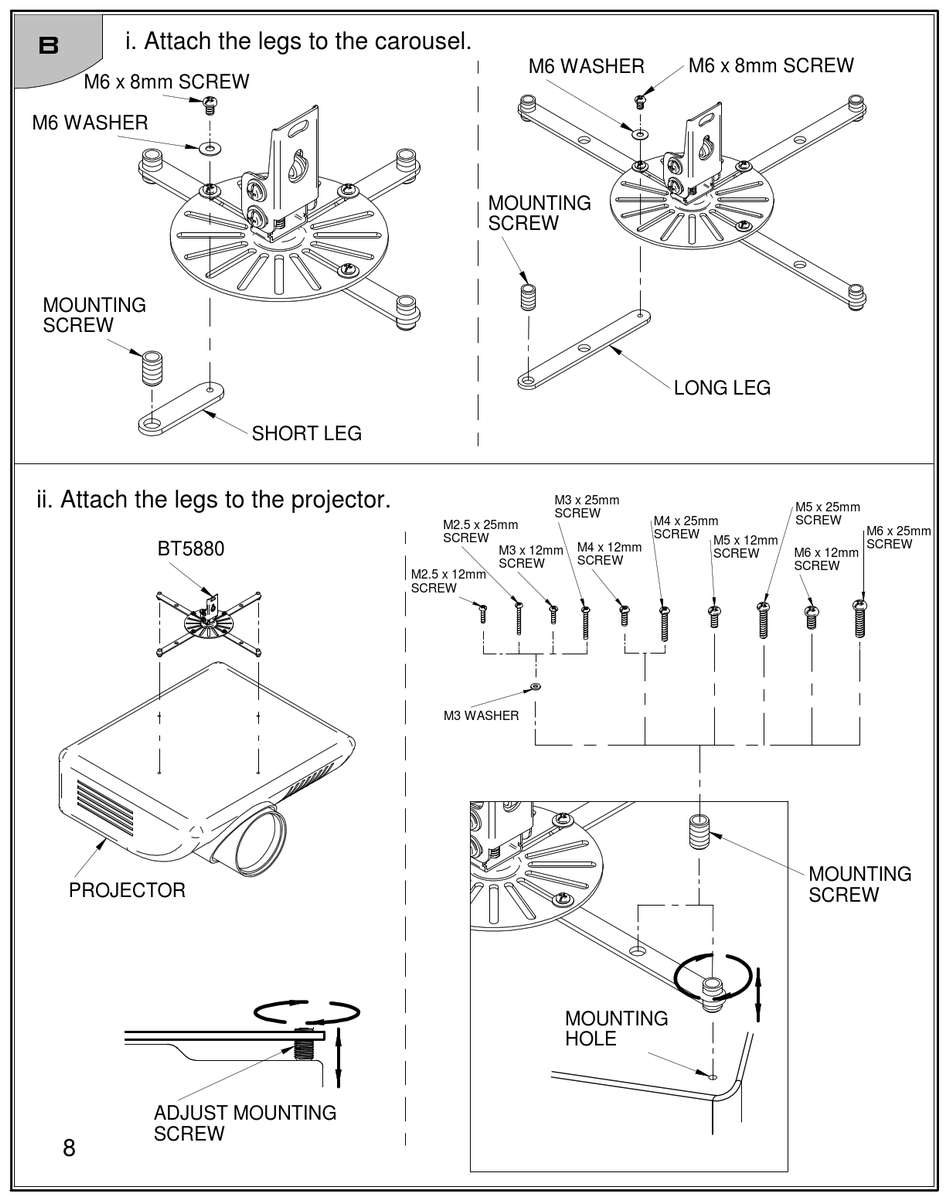

i. Attach the legs to the carousel.
M6 x 8mm SCREW
M6 WASHER
MOUNTING
SCREW
ii. Attach the legs to the projector.
BT5880
PROJECTOR
ADJUST MOUNTING
SCREW
8
SHORT LEG
M2.5 x 12mm
SCREW
M6 WASHER
MOUNTING
SCREW
M3 x 25mm
SCREW
M2.5 x 25mm
SCREW
M4 x 12mm
M3 x 12mm
SCREW
SCREW
M3 WASHER
MOUNTING
HOLE
M6 x 8mm SCREW
LONG LEG
M5 x 25mm
SCREW
M4 x 25mm
SCREW
M5 x 12mm
M6 x 12mm
SCREW
SCREW
MOUNTING
SCREW
M6 x 25mm
SCREW
