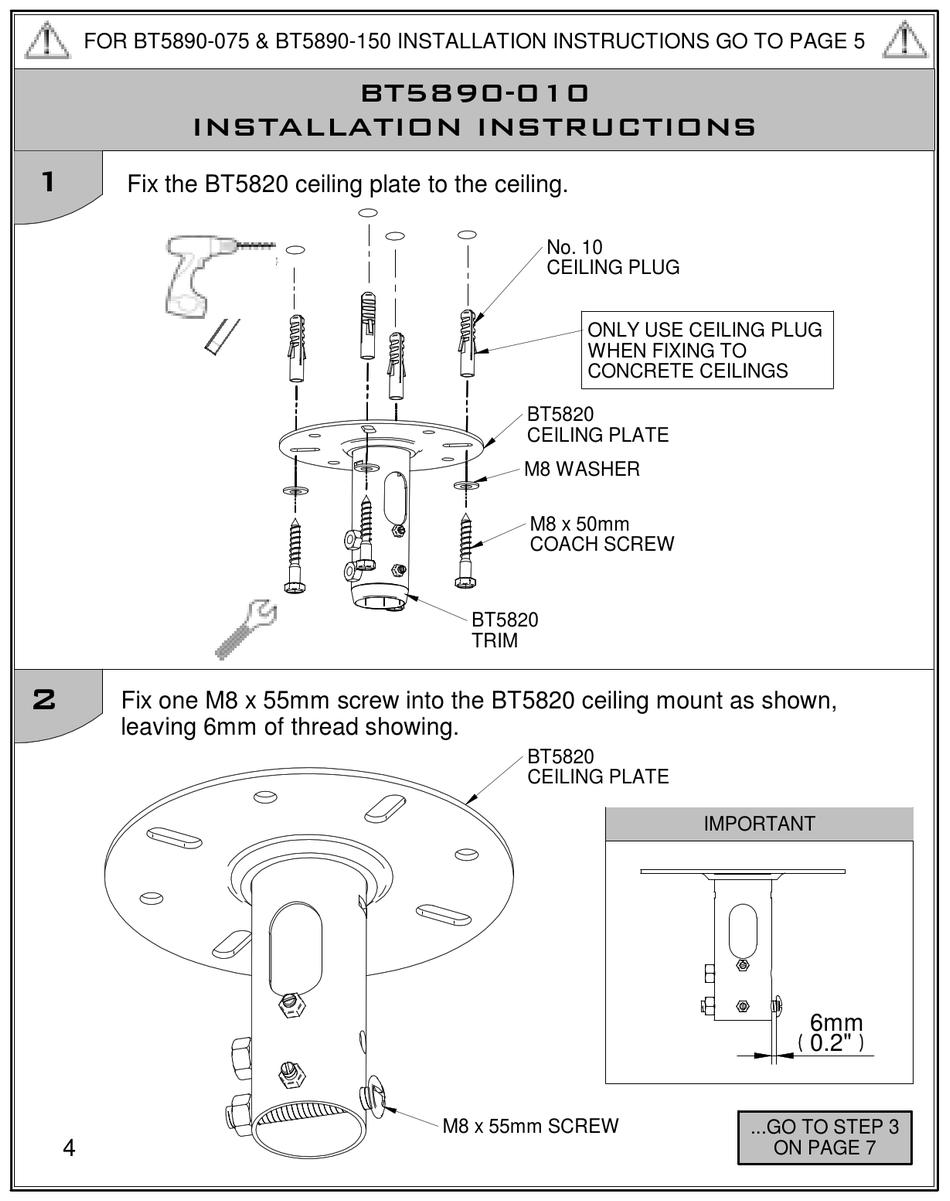

FOR BT5890-075 & BT5890-150 INSTALLATION INSTRUCTIONS GO TO PAGE 5
$
Fix the BT5820 ceiling plate to the ceiling.
%
Fix one M8 x 55mm screw into the BT5820 ceiling mount as shown,
leaving 6mm of thread showing.
4
!"# #$#
No. 10
CEILING PLUG
ONLY USE CEILING PLUG
WHEN FIXING TO
CONCRETE CEILINGS
BT5820
CEILING PLATE
M8 WASHER
M8 x 50mm
COACH SCREW
BT5820
TRIM
BT5820
CEILING PLATE
M8 x 55mm SCREW
IMPORTANT
6mm
0.2"
...GO TO STEP 3
ON PAGE 7
