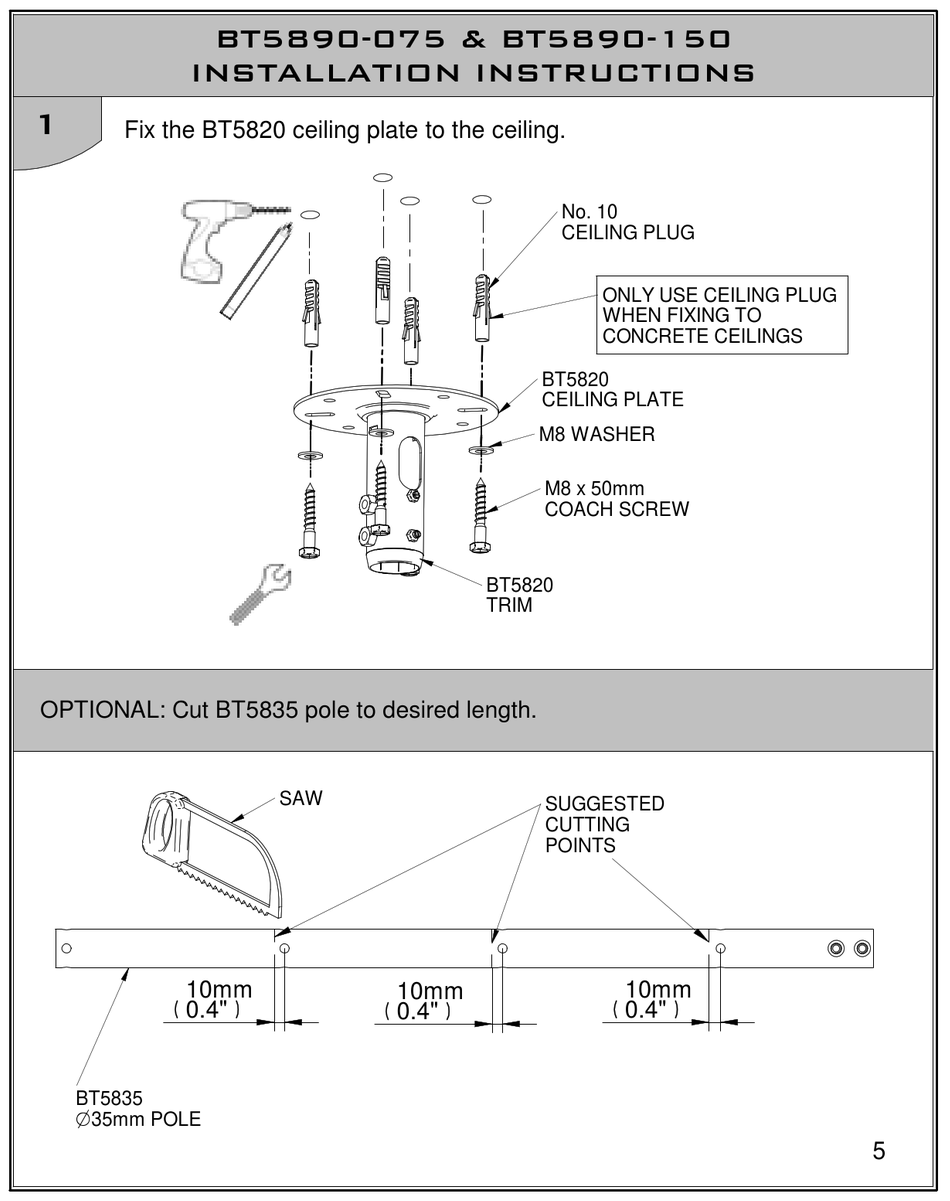

Fix the BT5820 ceiling plate to the ceiling.
OPTIONAL: Cut BT5835 pole to desired length.
10mm
0.4"
BT5835
35mm POLE
!"# #&
SAW
10mm
0.4"
'
!"# $ #
No. 10
CEILING PLUG
ONLY USE CEILING PLUG
WHEN FIXING TO
CONCRETE CEILINGS
BT5820
CEILING PLATE
M8 WASHER
M8 x 50mm
COACH SCREW
BT5820
TRIM
SUGGESTED
CUTTING
POINTS
10mm
0.4"
