In-back/Out-back Cooling Kit for FK11/FB11 and FK12/FB12
Installation Guide
7. Ensure that the air intake and exhaust vents at the back of the cabinet are not obstructed.
96 (3.8)
154 (6.1)
1209 (47.6)
4X 73 (2.8)
69 (2.7)

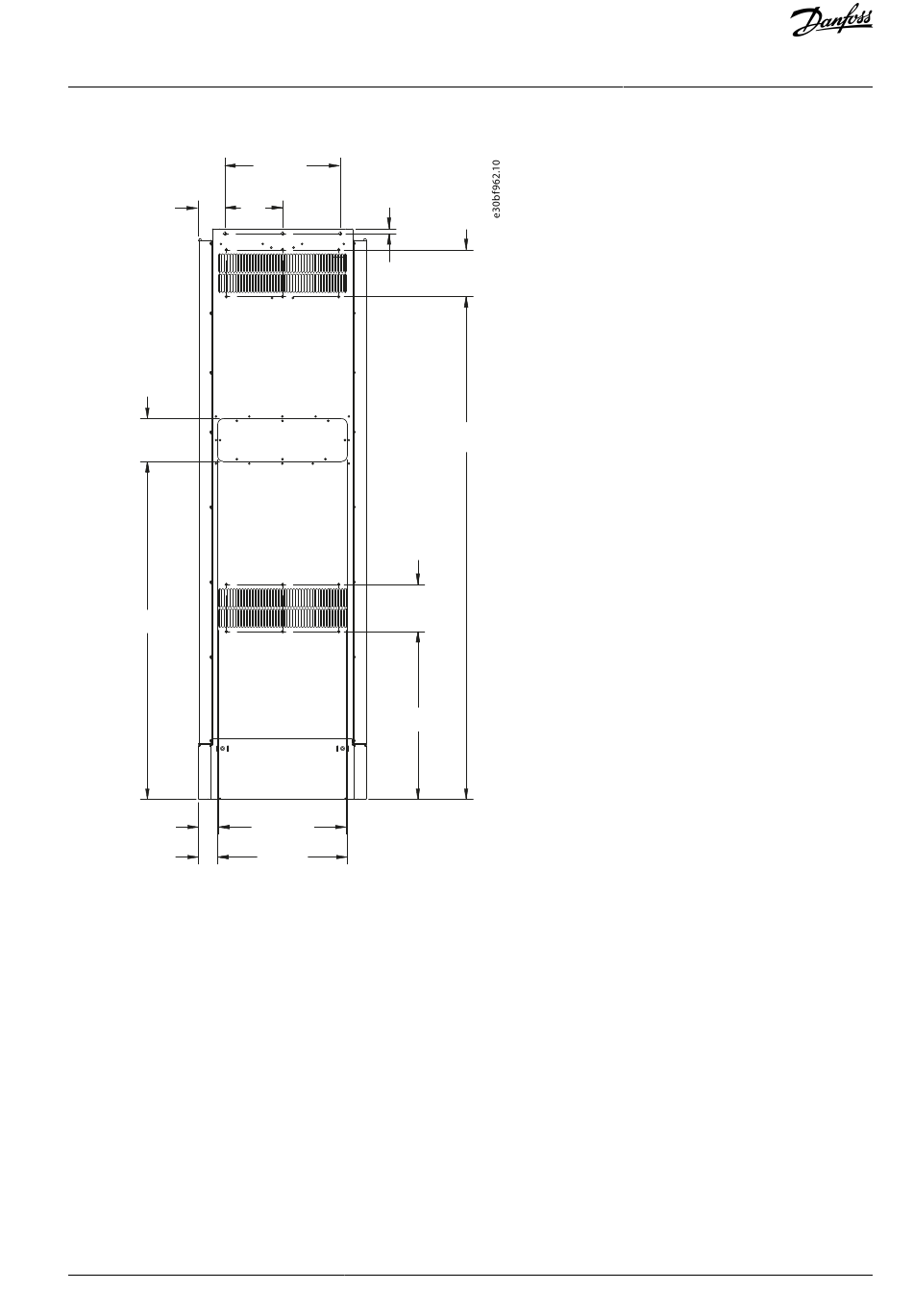

Illustration 7: Back Vents in FK11/FB11 Frequency Converter
Danfoss A/S © 2022.08
412 (16.2)
18 (0.7)
206
(8.1)
168 (6.6)
601 (23.7)
4X 457 (18.0)
464 (18.3)
168 (6.6)
1800 (70.9)
