Tall Pedestal Kit for FK11/FB11 and FK12/FB12
Installation Guide
2.3 Lifting the Frequency Converter
LIFTING PRECAUTIONS
The frequency converter is heavy. Failure to follow local safety regulations for lifting heavy weights can cause death, personal
injury, or property damage.
-
Ensure that the lifting equipment is in proper working condition.
-
Check the weight of the frequency converter and verify that the lifting equipment can safely lift the weight.
-
Always lift the frequency converter using the dedicated eye bolts at the top of the frequency converter. To avoid bending
the eye bolts, use a bar. Maximum diameter of bar: 20 mm (0.8 in).
-
Ensure that the angle from the top of the frequency converter to the lifting cable is 60° or greater.
-
Test lift the frequency converter approximately 610 mm (24 in) to verify the proper center of gravity lift point. Reposition the
lifting point if the frequency converter is not level.
-
Never walk under suspended loads.
2.4 Securing the Pedestal to the Floor
The pedestal must be secured to the floor using 6 bolts before installing the frequency converter.
1.
Access the mounting holes by removing the front panel of the pedestal.
2. Set the pedestal on the floor and secure using 6 bolts through the mounting holes. Refer to
Illustration 2: Pedestal-to-Floor Mounting Points
2.5 Attaching the Frequency Converter
After the pedestal is secured to the floor, use the following steps to attach the frequency converter to the pedestal.
TOP SUPPORT REQUIRED
After attaching the pedestal to the frequency converter, secure the top of the frequency converter to prevent it from tipping. The
frequency converter can cause serious personal injury if it is not secured.
1. Lift the frequency converter and position it on the pedestal.
2.
Slide the 2 bolts in the rear of the pedestal into the 2 slotted holes in the rear of the cabinet.
Position the frequency converter by adjusting the rear bolts up or down.
3.
Loosely secure the frequency converter with 2 M10 nylon-insert lock nuts and locking brackets.
See Illustration 3.
4 | Danfoss A/S © 2022.03
W A R N I N G
W A R N I N G
Installation

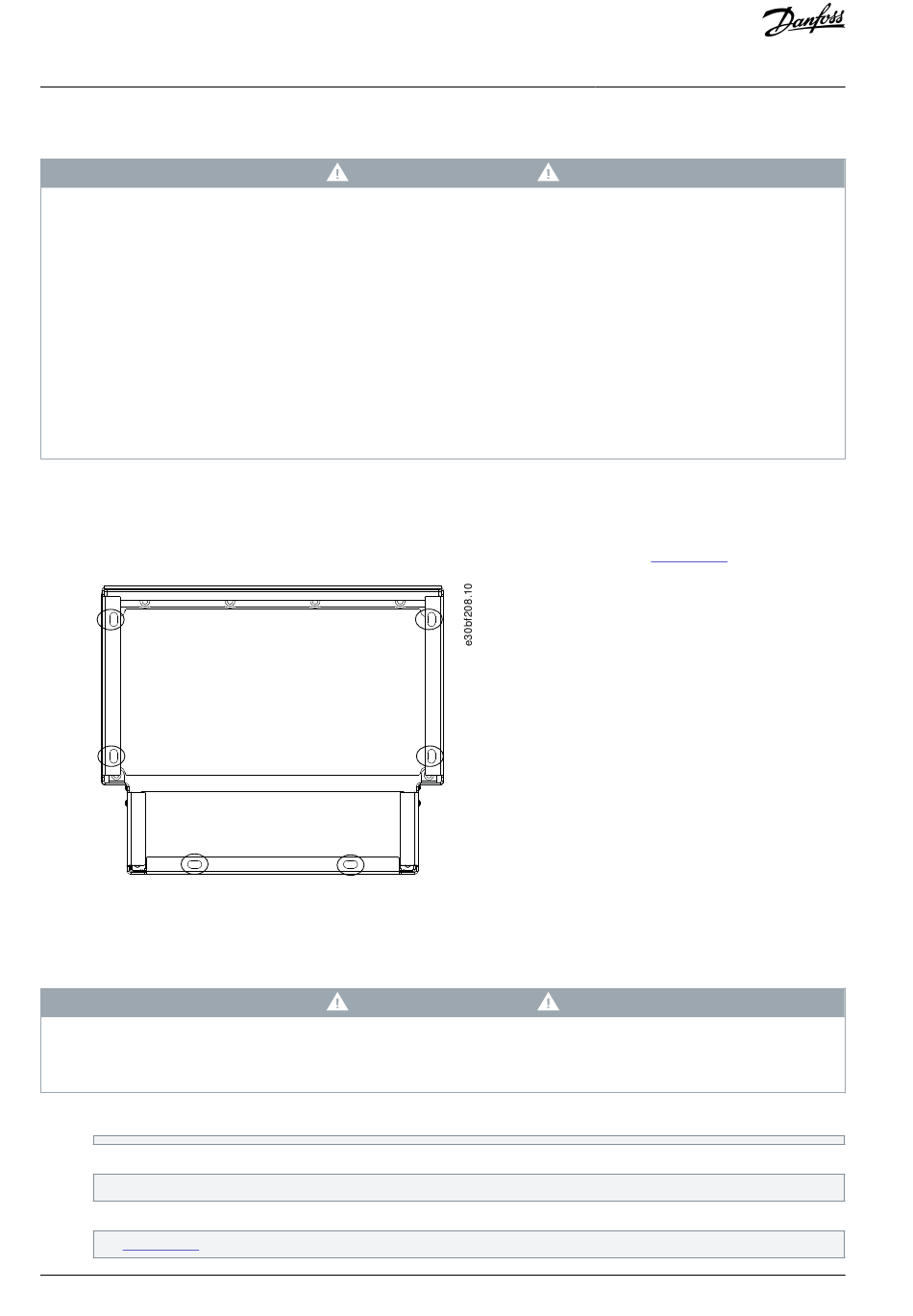

Illustration 2.
AN361529835714en-000101 / 136R0257
