OSP Home Furnishings SIERRA SRA08 Assembly Instructions

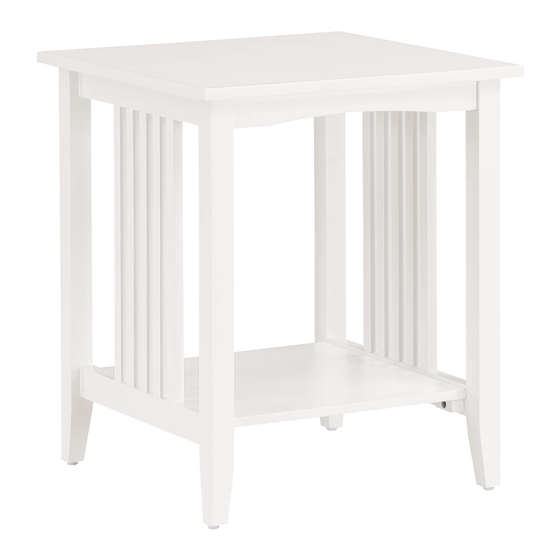

Side table

August, 2019

SRA08

SIERRA SIDE TABLE

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the SIERRA SRA08 and is the answer not in the manual?

Page 1 August, 2019 SRA08 SIERRA SIDE TABLE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Top Panel (1 PC) (B) Shelf (1 PC) (C) Side Frame (2 PCS) (D) Crossbar (2 PCS) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 30mm 8 PCS Cam Screw 6.5 x 35mm 4 PCS Cam Nut 15 x 12.5mm 4 PCS Allen Wrench...
Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLTS (1). STEP 2 DO NOT FULLY TIGHTEN BOLTS (1).
Page 5 STEP 3 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS (1) USING ALLEN WRENCH (4). FULLY TIGHTEN ALL CAM SCREWS (2) AND CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
