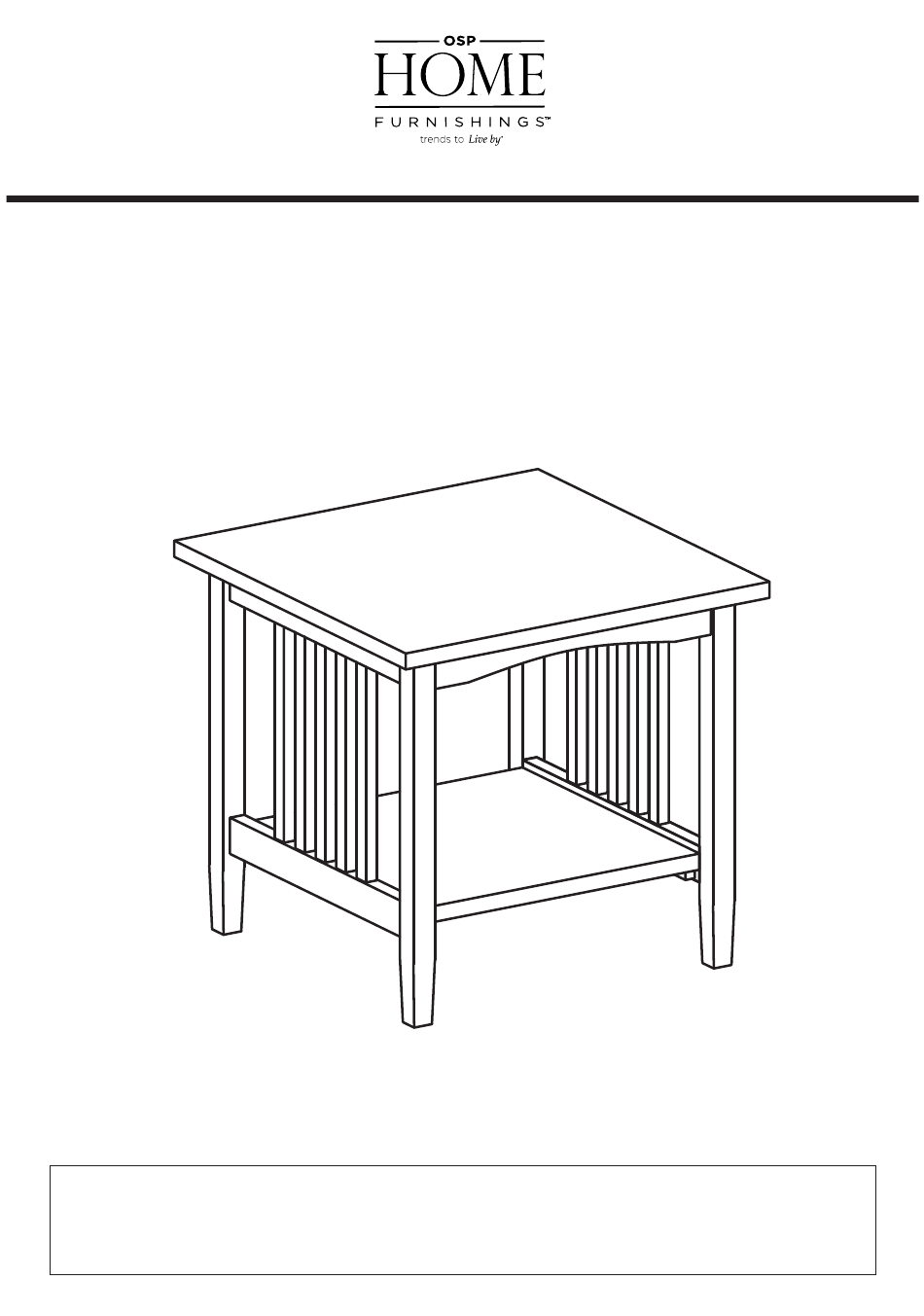

SRA09
SIERRA END TABLE

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIERRA SRA09 and is the answer not in the manual?

Questions and answers

Related Manuals for OSP Home Furnishings SIERRA SRA09

Summary of Contents for OSP Home Furnishings SIERRA SRA09

  • Page 1 October, 2019 SRA09 SIERRA END TABLE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
  • Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
  • Page 3 3. Rename all English discriptions to French discriptions. PARTS (A) Top Panel (1 PC) (B) Shelf (1 PC) (C) Side Frame (2 PCS) (D) Crossbar (2 PCS) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 30mm 8 PCS Cam Screw 6.5 x 35mm 4 PCS Cam Nut...
  • Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLTS. FULLY TIGHTEN CAM SCREWS (2) AND CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED.) STEP 2 DO NOT FULLY TIGHTEN BOLTS. FULLY TIGHTEN CAM SCREWS (2) AND CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED.)
  • Page 5 STEP 3 TURN TO THE UPRIGHT POSITION, APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN BOLTS USING ALLEN WRENCH (4). FULLY TIGHTEN CAM SCREWS (2) AND CAM NUTS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED.)
