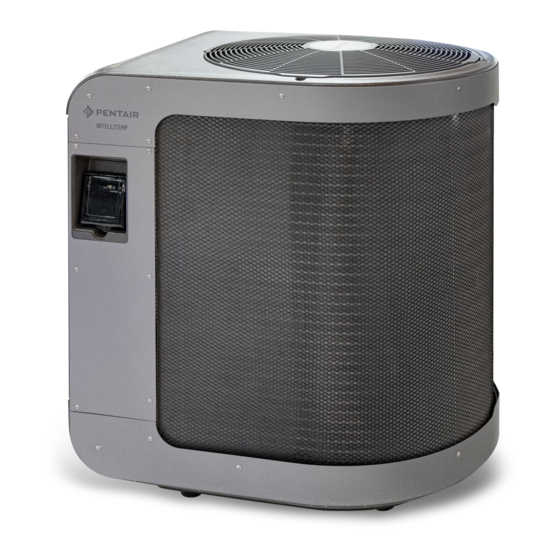

INTELLITEMP
Variable Flow technology embedded
INSTALLATION AND OPERATING MANUAL
IMPORTANT SAFETY INSTRUCTIONS,
PLEASE READ AND FOLLOW ALL THE INSTRUCTIONS,
KEEP THESE INSTRUCTIONS
PENTAIR AQUATIC SYSTEMS
(Rev. 01/06/2023)
Download the manual available in EN / FR / NL / DE / IT / ES / PO on www.pentairpooleurope.com
i =
R32
EN
Pentair Temp
ITTP-5M-V
ITTP-6M-V
ITTP-8T-V
Advertisement
Table of Contents
Related Manuals for Pentair INTELLITEMP ITTP-5M-V
Summary of Contents for Pentair INTELLITEMP ITTP-5M-V
- Page 1 ITTP-6M-V IMPORTANT SAFETY INSTRUCTIONS, ITTP-8T-V PLEASE READ AND FOLLOW ALL THE INSTRUCTIONS, KEEP THESE INSTRUCTIONS PENTAIR AQUATIC SYSTEMS (Rev. 01/06/2023) Download the manual available in EN / FR / NL / DE / IT / ES / PO on www.pentairpooleurope.com...
-
Page 2: Table Of Contents
SWIMMING POOL INTELLITEMP VERTICAL HEAT PUMP Pentair thanks you for your trust and for purchasing the Pentair IntelliTemp, the full inverter swimming pool vertical heat pump with variable flow inside. In this manual, the heat pump is referred to as HP. -
Page 3: Important Warnings And Safety Instructions
IMPORTANT WARNINGS AND SAFETY INSTRUCTIONS This symbol indicates that the device uses R32, This symbol indicates that a maintenance technician must a coolant featuring a low combustion speed. handle this equipment according to the operating manual. This symbol indicates that the operating manual should be read attentively prior to use. -
Page 4: Table Of Characteristics
TABLE OF CHARACTERISTICS INTELLITEMP 5M-V INTELLITEMP 6M-V INTELLITEMP 8T-V Models ITTP-5M-V ITTP-6M-V ITTP-8T-V SCOP according to EN 17645 Classification according to EN 17645 Recommended basin size 15-85 m 85-105 m 105-160 m (May to September with tarpaulin) Air 26°C / Water 26°C / 80%RH Heating Capacity 15,8 kW 18,5 kW... -
Page 5: Delivery - Transport, General Description P
Manufacturer’ s plate Access hatch to electrical connections Pressure gauge IntelliTemp™- V 6M ITTP-6M-V QC Passed MADE IN CHINA Pentair International Sarl S/N 1234ABCD1234ABCD1234ABCD01 Mfg Year Avenue de Sévelin 20 SCAN 230V 50Hz~ / IPX4 / 2400 W Nov-2019 CH-1004 Lausanne... -
Page 6: Installation (Site, Type Of Support, Necessary Free Space)
INSTALLATION (SITE, TYPE OF SUPPORT, NECESSARY FREE SPACE) – Install the HP outdoors at more than 3.5 meters from the pool, as per applicable laws (in France NF C 15 100). – Place the HP on a surface that is stable, solid (able to bear the weight of the device) and level (prepare a concrete base if necessary, see below dimensions adviced). -
Page 7: Dimensions, Hydraulic Connections P
DIMENSIONS : DIMENSIONS : INTELLITEMP IntelliTemp™- V 6M ITTP-6M-V QC Passed MADE IN CHINA Pentair International Sarl S/N 1234ABCD1234ABCD1234ABCD01 Mfg Year SCAN Avenue de Sévelin 20 230V 50Hz~ / IPX4 / 2400 W Nov-2019 CH-1004 Lausanne 316 mm 695 mm... -
Page 8: Electrical Connections P
ELECTRICAL CONNECTIONS: Connection of the power supply: – Prior to undertaking any intervention inside the HP, it is imperative to disconnect the power supply from the HP: there is a risk of electrocution that can cause damages, severe injuries, and even death. –... -
Page 9: Immersion, Start Up P
Heating priority: The filtration pump can be connected to the HP to force the filtration to operate if the water is not at the desired temperature. Prior to this connection, a “dry contact” (normally open relay or connector) with a 230V AC coil should be provided. Electrical connections: –... -
Page 10: Wifi Connection, Use P
(water, gas...), the distance between the two must be greater than 20 cm. Electrical connections (power supply, remote control (RS-485) as an option) Note: It is possible to control your HP via a dry contact (switch) or the Pentair RS-485 bus. 1: Remove the access hatch by unscrewing the four screws... - Page 11 Filtration pump Inlet - General power supply relay outlet relay outlet 230 V ~ 50 Hz 380 V ~ 50 Hz Pilot remotely the HP trough Pentair’ s automation devices: ON / OFF RS-485 Dry contact input Connection bus (remote ON-OFF) (Modbus card option) Pentair (IntelliPool, Speedeo...)
- Page 12 Make sure the heat pump can receive a WiFi signal. Take a recent smartphone, activate Bluetooth. - On Apple and Android store, download the Pentair Temp App then create your account by following the steps. - Scan the QR code located behind the access hatch to connect your IntelliTemp. You can now control your heat pump remotely.
-
Page 13: Regulation (Electronic Control Unit)
REGULATION (ELECTRONIC CONTROL UNIT) Selected mode Rotating fan P1-P2 relays for 10:43 10:43 activated swimming pool pump 2020 2021 2022 Water flow Compressor Date Year Month am/pm detected operating Time 10:43 10:43 Selected energy mode Timer 1 ON 9 45 18 00 Timer 1 OFF Timer 2 ON... -
Page 14: Table Of The Different States Of The Display
OPERATING MODES - ECO-SILENCE heating or cooling mode: the most economical and silent. The HP varies the component speed to maintain an optimum sounds level and yield. Use of 30% to 60% of the power. The COP and sound level are prioritised, the fan works at min. speed and the compressor runs to optimise the COP. - SMART heating or cooling mode: the most intelligent mode adapts to your requirements and to the environment. -
Page 15: Maintenance P
MAINTENANCE – Prior to undertaking any maintenance operation on the HP, it is imperative to disconnect the power supply from the HP: there is a risk of electrocution that can cause damages, severe injuries, and even death. Maintenance operations are to be conducted by a qualified technician. Cleaning (must be conducted by a qualified technician at least once yearly): –... -
Page 16: Circuit Diagrams
CIRCUIT DIAGRAMS ITTP-5M-V / ITTP-6M-V ITTP-8T-V... -
Page 17: Recycling The Hp - Detailed Information Concerning Internal Components P
RECYCLING THE HP When your HP reaches the end of its lifespan and you do not wish to keep it, do not throw it out with household waste. The HP must be brought to a selective recycling point for its reuse or recycling. It contains potentially hazardous substances that may harm the environment and that must, during recycling, be eliminated or neutralised. - Page 18 © 2023 Pentair. Todos los derechos reservados. Ave. de Sévelin 20, CH-1004 - LAUSANNE, Svizzera Tutti i marchi e i loghi Pentair indicati sono di proprietà di Pentair. Marchi e loghi di terze parti, registrati e non, sono di proprietà dei rispettivi titolari.
