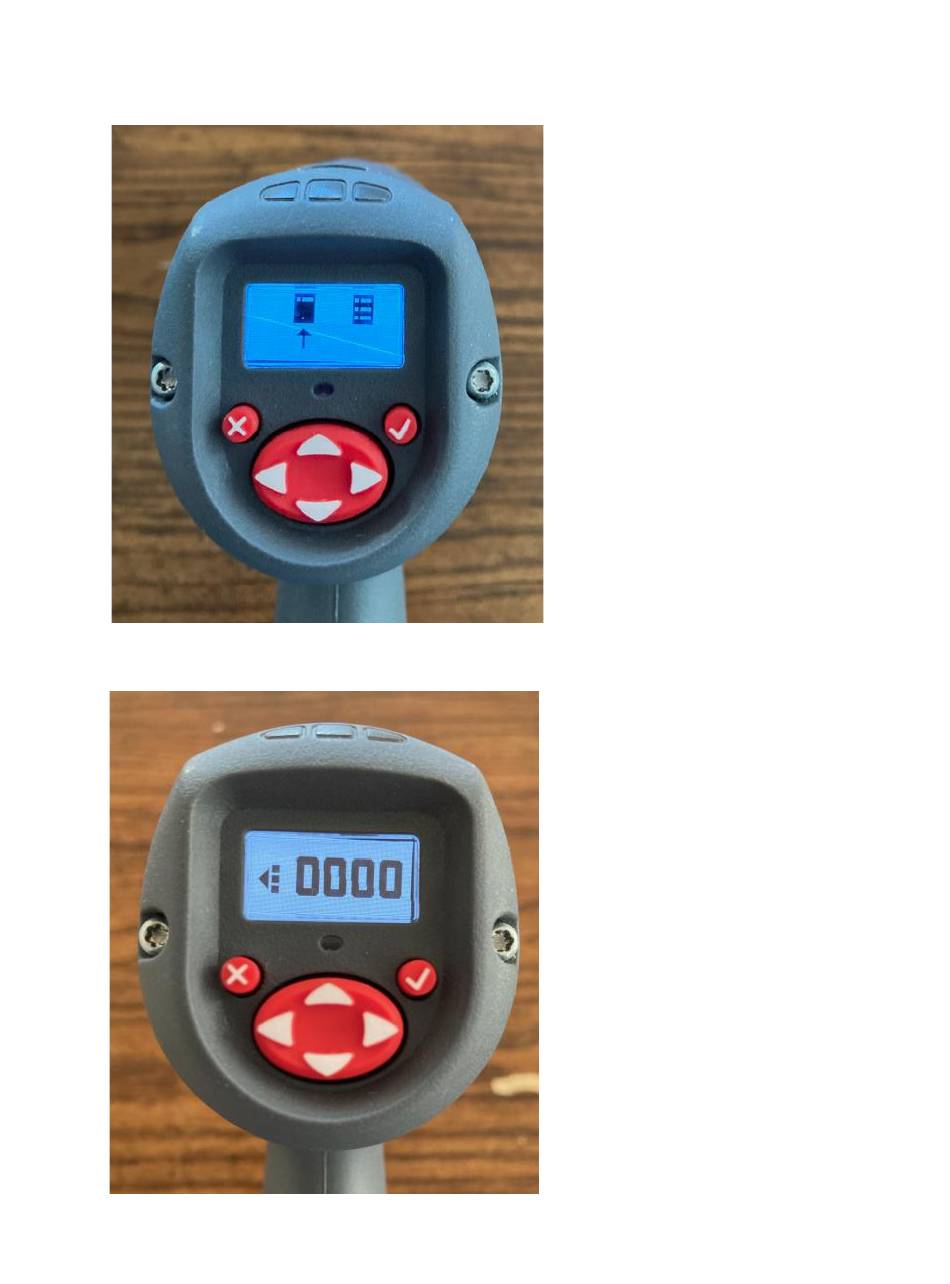

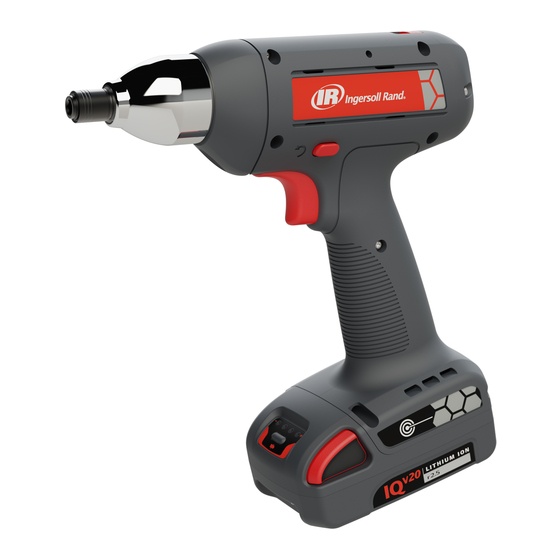

Programming a QX Connect Series Tool from the Keypad
1. Plug in the battery and navigate to the Mode Selection Screen (Basic or Normal).
2. Press the check button to get to the Password screen (0000).
3. Press the check button to enter the edit screen.

Advertisement

loading
Need help?

Need help?

Do you have a question about the QX Connect Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingersoll-Rand QX Connect Series

Summary of Contents for Ingersoll-Rand QX Connect Series

  • Page 1 Programming a QX Connect Series Tool from the Keypad 1. Plug in the battery and navigate to the Mode Selection Screen (Basic or Normal). 2. Press the check button to get to the Password screen (0000). 3. Press the check button to enter the edit screen.
  • Page 2 4. Use the left/right arrows to move the cursor under each digit. Use the up/down arrows to change each digit. 5. Once the Password is entered, the edit mode is exited. 6. Press the left arrow button to get to the Mode Selection edit screen. a.
  • Page 3 8. Press the check button to exit the edit mode. 9. Press the down arrow to navigate to the Pset selection screen. This is where you will select which Pset you want to program.
  • Page 4 10. Press the check button to enter to the edit screen. 11. Use the arrow keys to select the Pset you want to edit. 12. Press the check button to exit the edit screen. 13. Press the left arrow button to get to the Password screen. 14.
  • Page 5 17. Press the left arrow to navigate to the settings screens. 18. Press the up arrow to navigate to the Strategy screen (Angle or Torque). 19. Press the check button to enter the edit mode. 20. Use the left/right arrow keys to make the strategy selection. 21.
  • Page 6 24. Use the left/right arrow keys to make the Direction selection. 25. Press the check button to exit the edit mode. 26. Press the up arrow to navigate to the Units selection screen. 27. Press the check button to enter the edit mode. 28.
  • Page 7 33. Press the check button to exit the edit mode. 34. Press the down arrow 4 times to navigate to the Target screen. 35. Press the check button to enter the edit mode. 36. Use the left/right and up/down arrow keys to enter the Target Torque or Angle. 37.
  • Page 8 41. Press the check button to exit the edit mode. 42. Press the down arrow to navigate to the Low Torque Limit screen. 43. Press the check button to enter the edit mode. 44. Use the left/right and up/down arrow keys to enter the Low Torque Limit. 45.
  • Page 9 48. Use the left/right and up/down arrow keys to enter the High Angle Limit. 49. Press the check button to exit the edit mode. 50. Press the down arrow to navigate to the Low Angle Limit screen. 51. Press the check button to enter the edit mode. 52.
  • Page 10 56. Use the left/right and up/down arrow keys to enter the Torque Threshold for Counting Angle. 57. Press the check button to exit the edit mode. 58. Press the down arrow button to navigate to the Freespeed setting screen. 59. Press the check button to enter the edit mode. 60.
  • Page 11 64. Use the left/right and up/down arrow keys to enter the Torque Shiftdown Point. 65. Press the check button to exit the edit mode. 66. Press the down arrow button to navigate to the Shiftdown Speed setting screen. 67. Press the check button to enter the edit mode. 68.
  • Page 12 72. Use the left/right and up/down arrow keys to enter the Batch Count. 73. Press the check button to exit the edit mode. 74. Press the down arrow button to navigate to the Save screen. 75. Press the check button to save the changes or the x button to cancel.
