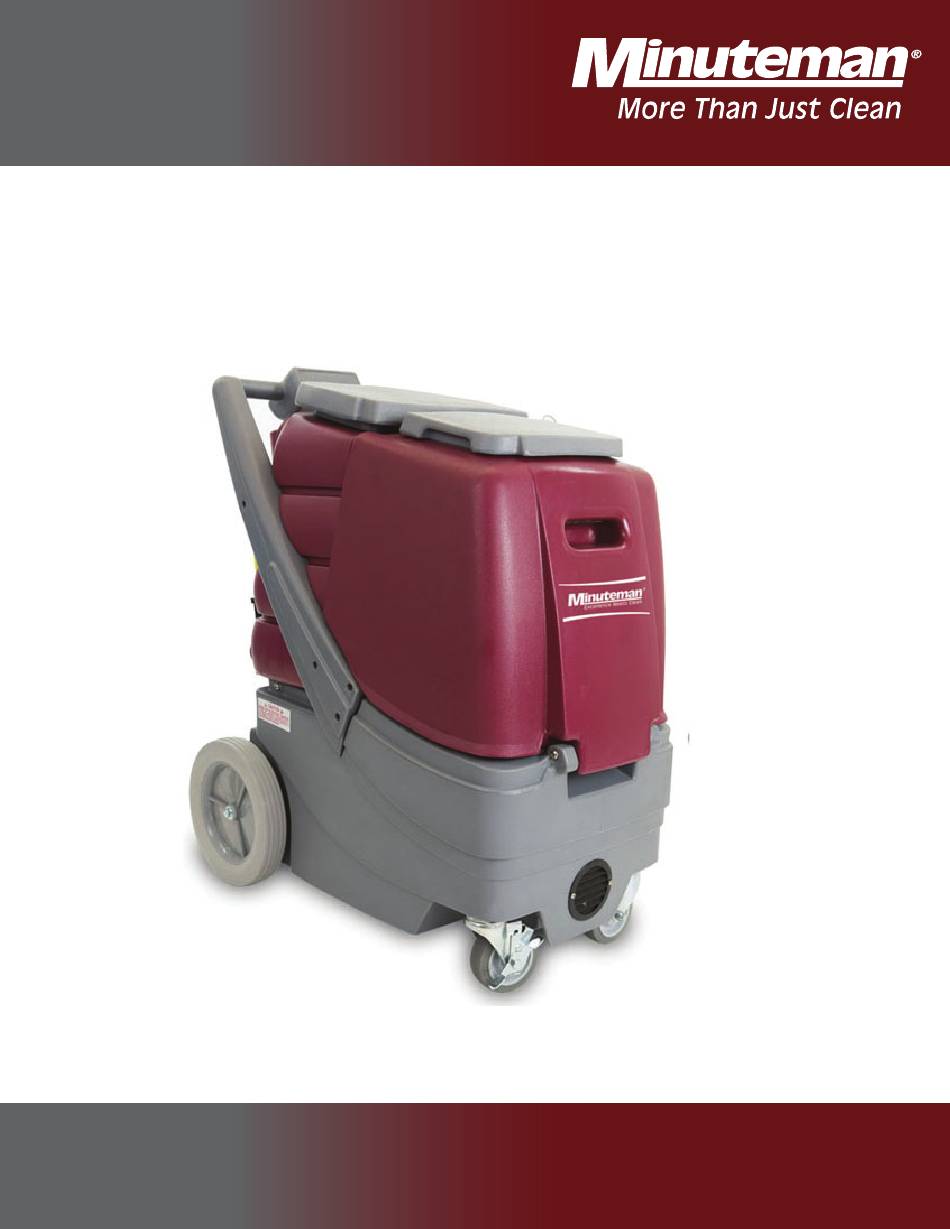

- Page 1 Parts and Instruction Manual R100H Rush Carpet Extractor Minuteman International, Inc. A Member of the Hako Group 988756 Rev C 06/23...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model R100H (115V and 220V) Rush 100 Models 12 gallon 11 gallon Single 3-stage 100 psi sure 117” Polyethylene ¼” aluminum 10” non-marking 4” locking 35”H x 31”L x 18”W 19”W 1000 W 15’ less Steel R100H Rush Carpet Extractor 988756 Rev C 06/23 Page 2... -
Page 3: Table Of Contents
Table of Contents TECHNICAL SPECIFICATIONS ......................2 INSPECTION ............................4 SAFETY INSTRUCTIONS ........................5 GROUNDING ............................7 MAINTENANCE ............................ 8 MACHINE OVERVIEW ........................10 ACCESSORY HEATER ........................11 CLEANING CARPET .......................... 14 CLEANING UPHOLSTERY ......................... 15 UPPER ASSEMBLY ..........................16 UPPER ASSEMBLY BOM ......................... -
Page 4: Inspection
INSPECTION UNPACKING YOUR NEW R100 : When your package is delivered, check the carton carefully for signs of rough handling. If your R100 is damaged, notify the carrier immediately and request an inspection. Be sure to keep the carton, packing inserts, packing lists and carrier’s receipt until the inspector has verified your claim. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND INSTRUCTIONS WILL VOID THE WARRANTY. WARNING! The machine was designed for use on carpet cleaning applications as per instructions and recommendations written in this manual. Any deviation from its proper use or purpose and the consequential damage that may occur is the sole responsibility of the end user. - Page 6 All repairs must be done by an authorized MINUTEMAN repair station. Do not use replacement parts other than original MINUTEMAN parts. Do not allow your spray stream to remain in one fixed location as surface damage may occur. Check that all spray nozzles are securely fastened. Loose nozzles could be ejected from equipment at high speeds.
-
Page 7: Grounding
GROUNDING This piece of equipment must be grounded. Should an electrical malfunction occur, grounding provides a path of least resistance for electrical current- reducing the risk of electric shock. This piece of equipment is furnished with a cord that has a grounding conductor and grounding plug. The grounded plug must only be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 8: Maintenance
MAINTENANCE This R100H has been engineered and built to require minimum maintenance. But like any machine, it does require some care to keep it in optimum working condition. Careful attention to these maintenance instructions will give you maximum operating performance and life expectancy of the machine. CAUTION: Disconnect the power cord from the outlet before doing any clean up or maintenance on the machine Keep the machine clean. - Page 9 CORD STORAGE: While not in use, storage can be accomplished by winding cord around handle assy. Cord should be completely unwound during operation. CORD SAFETY Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing Do not use with damaged cord or plug.
-
Page 10: Machine Overview
MACHINE OVERVIEW 6. Solution line Q.D.- Pressurized connection 1. Handle- Used to maneuver and position the R100H. for solution line. Contains switch box (for switchbox, see #12). 7. Male twist lock pigtail- Connects to 50ft 2. Recovery tank and lid- Tank collects recovered power cord. -
Page 11: Accessory Heater
ACCESSORY HEATER 6. HANDLE- Used to hold and transport the heater 1. INLET QUICK DISCONNECT AND HOSE- 7. MOUNTING FEET- Used to engage the mount- Connects to machine’s outlet. ing brackets on an R100H extractor and secure 2. POWER SWITCH. the heater. - Page 12 How to use an accessory heater: 1. Fill the solution tank of your R100H extractor with sufficient water or solution for the task at hand. Do not use water over 130 degrees F. Mount the Heater by lining up the two “legs” (#7 on page ) to the two mounting brackets on the rear of the machine (#11 on page 3.
- Page 13 5. Connect the power cord on the heater to the female twistlock plug located on the rear of the R100H. 6. Connect your 50ft power cord to the twist lock pigtail on the back of the machine (#7 on page Plug the cord into a 15amp circuit.
-
Page 14: Cleaning Carpet
CLEANING CARPET 1. Using a dedicated dry vacuum, pre-vacuum the space to be cleaned to remove as much dirt as possible. Do not use the extractor to dry vacuum as it does not have a dry filter. 2. Pre-spray the carpet 3. -
Page 15: Cleaning Upholstery
CLEANING UPHOLSTERY Cleaning upholstery with success requires a good knowledge of the type of fabric to be worked on. Look for the cleaning instruction label sewn on the underside of the furniture for the recommended method of cleaning the fabric. If it calls for dry cleaning, do not attempt to clean with the wet extraction method. -
Page 16: Upper Assembly
UPPER ASSEMBLY 11 12 13 14 15 *NOT R100H SHOWN* FRONT UPPER MINUTEMAN 8-8-16 DECAL PART#H13699 R100H Rush Carpet Extractor 988756 Rev C 06/23 Page 16... -
Page 17: Upper Assembly Bom
UPPER ASSEMBLY BOM BILL OF MATERIAL ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION F11787-MM SOLUTION TANK C02315 LOCKWASHER, #10 INT. STR, SS F11788-MM RECOVERY TANK C00264 NUT, 10-32 F11791-MM LID, SOLUTION TANK C11141 SCREW, ALLEN HEAD, 10-24 X 1.25 IN E11124 GASKET, RECOVERY TANK... -
Page 18: Lower Assembly
LOWER ASSEMBLY R100H BASE 8-9-16 R100H Rush Carpet Extractor 988756 Rev C 06/23 Page 18... -
Page 19: Lower Assembly Bom
LOWER ASSEMBLY BOM BILL OF MATERIAL ITEM PART NO. DESCRIPTION ITEM PART NO. QTY DESCRIPTION J13152 DOUBLE GRIP HOSE CLAMP A00061 3/8 BARB X 1/4FP, BRASS J11863 HOSE, 3 IN H02564-2 LABEL, CAUTION, MOTOR HOUS- J00639 SCREW CLAMP, 1.63 - 2.43IN. C11165, SCREW, #8 X 1 IN, PAN, BLACK J00618... -
Page 20: Heater
HEATER R100H Rush Carpet Extractor 988756 Rev C 06/23 Page 20... -
Page 21: Heater Bom
HEATER BOM BILL OF MATERIAL - 702HR-MM ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION 90 DEGREE ELBOW, .25" MP X D11254 COVER, THERMOSTAT .25" FP A00102 QUICK DISCONNECT, .25" F, .25" D13725 THERMOSTAT BASE FP, BRASS A00104 QD, .25"... -
Page 22: Wiring
WIRING R100H Rush Carpet Extractor 988756 Rev C 06/23 Page 22... -
Page 23: Troubleshooting
TROUBLESHOOTING ELECTRICAL SYSTEM PROBLEM SOLUTION NO ELECTRICAL POWER 1. Defective power cord. 2. House or building circuit breaker tripped POWER IS INTERMITTENT TO ONE OR ALL MO- 1. Faulty electrical cable. TORS 2. Defective switches. 3. Loose terminal or discolored terminal connections. VACUUM SYSTEM PROBLEM SOLUTION... - Page 24 “More Than Just Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 988756 Rev C 06/23...
