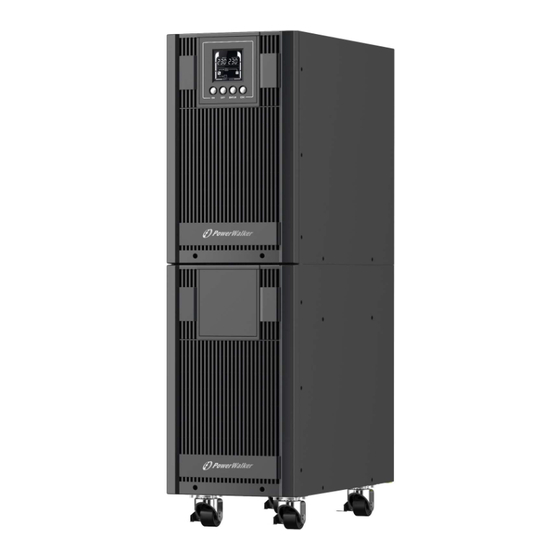

PowerWalker VFI 6000 AT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PowerWalker
User Manual
VFI 6-10K AT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFI 6000 AT and is the answer not in the manual?

Questions and answers

Related Manuals for PowerWalker VFI 6000 AT

Summary of Contents for PowerWalker VFI 6000 AT

  • Page 1 PowerWalker User Manual VFI 6-10K AT...

  • Page 2: Table Of Contents

    CONTENT： 1. Safety .......................1 1.1. Installation ....................1 1.2. Operation ....................2 1.3. Maintenance, Servicing and Faults .............2 1.4. Transport ....................3 1.5. Storage .......................3 1.6. Standards ....................3 2. Description of Commonly Used Symbols ............4 3. Introduction .....................4 3.1. Feature .......................6 3.2. Electrical Specifications ................6 3.3.
  • Page 3 9.3. Intelligent slot .................... 31 10. Software Installation ..................32...

  • Page 4: Safety

    1. Safety Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1.1. Installation This is permanently connected equipment, and it must be installed by qualified  maintenance personnel. Condensation may occur if the UPS is moved directly from a cold to a warm ...

  • Page 5: Operation

    1.2. Operation Do not disconnect the main cable on the UPS or the building wiring terminals  during operation since this would remove the protective earth from the UPS and all connected loads. The UPS output terminal block may still be electrically lived even if the UPS is ...

  • Page 6: Transport

    Do not attempt to dispose of batteries by burning them. It could cause explosion.  The UPS may be connected to external battery package. Proper disposal of  batteries is required. Refer to your local codes for disposal requirements. Do not open or destroy batteries. Effluent electrolyte can cause injury to the skin ...

  • Page 7: Description Of Commonly Used Symbols

    2. Description of Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: Symbol and Explanation Symbol Explanation Symbol Explanation Alert you to pay Caution of high special attention voltage...
  • Page 8 Model NO. Type Model NO. Type Extended Standard backup time " L" Model: Extended backup time. 6K/10K 6KL/10KL Fig.3-1 The rear view of 6K(L)/10K(L) * EPO Port can be set to a ROO port in setting configuration EPO: Enable Power-Off in emergency from a remote location. ROO: Power ON/OFF from a remote location.

  • Page 9: Feature

    3.1. Feature This series UPS is a new generation of UPS, which provides the outstanding reliability, and most cost-performance ratio in the industrial. Following benefit the product has: True online double-conversion technology with high power density, frequency  independence and generator compatibility. High input power factor ≥0.99,overall high efficiency ≥92%,save power and ...

  • Page 10: Operating Environment

    Output Power Rating 6kVA/5.4kW 10kVA/9kW Voltage* 208/220/230/240Vac Synchronized50/60×(1±10%)Hz @Line mode Frequency 50/60×(1±0.1%)Hz @Battery mode Wave Form sine Load Type PF 0.5~1, lagging ≤ 4% @ full linear load THDV ≤5% @ full nonlinear load In Line mode: 10 min 105%~110% 5 min 110%~130% 10s>...

  • Page 11: Dimensions And Weights

    3.4. Dimensions and Weights Model NO. Dimensions W×H×D(mm) Net Weight (kg) 6K(192Vdc) 196*702*412 6K(240Vdc) 196*702*412 6KL(192Vdc/240Vdc) 196*342*412 10K(192Vdc) 196*702*412 63.5 10K(240Vdc) 196*702*412 75.7 10KL(192Vdc/240Vdc) 196*342*412 16.4...

  • Page 12: Installation

    4. Installation The system must be installed and wired only by qualified electricians in accordance with applicable safety regulations! For safety, please cut off the mains power switch before installation! When installing the electrical wiring, please note the nominal amperage of your incoming feeder.
  • Page 13 4.2.2. Installation Use cable cross section and protective device specification ： Model 6K(L) 10K(L) Protective earthing conductor 6mm² 10 mm² Min cross section (UL1015 10AWG) (UL1015 8AWG) Input L, N 6mm² 10 mm² Min conductor cross section (UL1015 10AWG) (UL1015 8AWG) Input breaker 40A/250Vac 63A/250Vac...
  • Page 14 No matter the UPS is connected to the mains power or not, the output of the UPS may be electrically live. The parts inside the unit may still have hazardous voltage after turning off the UPS. To make the UPS have no output, turn off the UPS, and cut off the mains power supply, wait the UPS shut down completely, finally cut off the battery connection.
  • Page 15 INPUT OUTPUT Output N Input L Output L Input N Input Ground Output Ground Fig.4-2 Input and output Terminal Block wiring diagram It is requested to use the accessorial terminal splices which can be compacted on the wires tightly, to ensure the connection between the wires and the terminal block is reliable.

  • Page 16: External Battery Pack Connecting Procedure

    4.3. External Battery Pack Connecting Procedure 1. The nominal DC voltage of external battery pack is 192Vdc. To achieve longer backup time, it is possible to connect multi-battery packs, but the principle of "same voltage, same type" should be strictly followed. 2.

  • Page 17: Operation

    Fig.4-3Enable the EPO status Fig.4-4 Disable the EPO status To recover to normal status, first EPO connector should be closed (Fig.4-4),and press button OFF more than 1 second to clear EPO status, then UPS would stop alarm and recover to Bypass model. And UPS needs be turned on by manual operation.

  • Page 18: Lcd Operation

    In setting mode, press this button to confirm selection, or press this button for long time to exit setting mode and saving changes. Press this button to scroll up in the LCD menu. In setting mode, press this button to display next selection, or press this button for long time to exit setting mode without saving changes.
  • Page 19 When the input voltage is within voltage regulation ECO mode range, will bypass voltage to output for energy saving. When the input voltage is within bypass voltage range, Bypass mode UPS will bypass voltage to output. When input frequency is within 40Hz to 70Hz, the UPS can be Converter mode constant...
  • Page 20 The UPS is warning because of Warning mode overload. The UPS goes to fault mode Fault mode because output is short. LCD displays 6 pages in total ： Left: AC INPUT(Voltage)V 1(default) Right: OUTPUT(Voltage) V Left: Backup Time(min) Right: Battery voltage(v)
  • Page 21 Left: Battery capacity percentage(%) Right: Battery voltage(v) Left: VA load percentage(%) Right: OUTPUT XXX VA Left: W load percent(%) Right: OUTPUT XXX W Left: INPUT(Frequency) Hz Right: OUTPUT(Frequency)
  • Page 22 LCD SETTING CONFIGURATION There are 5 UPS settings that can be configured by the user. 1、Press and hold the “ENTER” button for 5 seconds to activate the setting mode. The first configuration parameter will be displayed on the LCD screen. Note: The manual settings programming mode can ONLY be invoked while UPS is in Bypass mode or Standby mode.
  • Page 23 ECO mode 0%: ECO mode disabled. When selected, mode allowed(default) 10%: ECO mode enabled. When selected, ECO mode is activated when the input voltage is within +/-10% of setting output voltage 15%: ECO mode enabled. When selected, ECO mode is activated when the input voltage is within +/-15% of setting output voltage DIS: Bypass output disabled.
  • Page 24 EPO/ROO*** EPO: Enable function, selected, user can Power-Off in emergency from remote location.(default) ROO: Enable function, selected, user power ON/OFF from remote location. You may set the number of battery package in 07 setting as [0bP]~ [AbP] Number**** [1bP] is the default setting for long-run model You can choose the 1(default)/2/4A Charge...
  • Page 25 Site wiring fault alarm ENA: Site wiring fault alarm enabled. If selected, UPS will give site wiring fault alarm when line and neutral wiring reverse. (default) DIS: Site wiring fault alarm disabled. If selected, UPS will not give any alarm when line and neutral wiring reverse.
  • Page 26 Short circuit restart ENA: Short circuit restart enabled. If selected, UPS will auto restart after short circuit fault. DIS: Short circuit restart disabled. If selected, UPS will not auto restart after short circuit fault. (default) Left parameter: Set the acceptable Bypass low voltage for bypass.
  • Page 27 Automatic battery tests automatic battery tests period period. Setting range is from 0 to 45days and the default value is 7days. STD: battery type Ext. Bat standard.UPS will calculate Type battery capacity and discharge time.(default) CUS: battery type customed.UPS can’t calculate battery capacity and discharge time.

  • Page 28: Special Function

    ****) 1. UPS cannot detect the numbers of external battery automatically, so manual input from user is necessary. 2. For standard models, this setting is disabled. 3.For long run models, the default number is 1. 6. Special Function The series UPS has some special functions, which could satisfy some special application of user.
  • Page 29 Battery mode and the load is supplied continuously. The great virtue is the output frequency is fixed, which is required by some very sensitive loads. But the disadvantage is the load capacity of UPS should be derated to 60% in converter mode. Set the function ：...

  • Page 30: Trouble Shooting

    7. Trouble Shooting If the UPS system does not operate correctly, first check the operating information on the LCD display. Please attempt to solve the problem using the table below. If the problem still persists, consult your dealer. 7.1. Trouble Shooting According to Warning Indication Warning Problem...

  • Page 31: Trouble Shooting According To Fault Indication

    Amb NTC The ambient temperature Check the environment abnormal is too high ventilation Over Inside temperature of UPS Check the ventilation of UPS Temperature is too high and the ambient temperature Fuse open Input fuse break Check the input fuse status 7.2.

  • Page 32: Trouble Shooting In Else Cases

    Output soft Output Soft start fail Consult dealer fail Output Volt Output Volt low Consult dealer Output volt Output volt high Consult dealer high 7.3. Trouble Shooting in Else Cases Problem Possible cause Remedy No indication, no warning tone even Check the building wiring and input though system is No input voltage...

  • Page 33: Battery Maintenance

    8. Battery Maintenance Battery replacement should be performed by qualified personnel. This series UPS only requires minimal maintenance. The battery used for  standard models are value regulated sealed lead-acid maintenance free battery. These models require minimal repairs. The only requirement is to charge the UPS regularly in order to maximize the expected life of the battery.

  • Page 34: Communication Port

    9. Communication Port 9.1. USB Interface The USB port is compliance with USB 1.1 protocol for its communication software. 9.2. RS232 Interface The RS232 port is available for UPS monitoring, control, and firmware updates. 9.3. Intelligent slot This series is equipped with an intelligent slot for other optional card to achieve remote management of the UPS through internet / intranet.
  • Page 35 Help Cotent About Logout Installation procedure: Download Power Master from the website: https://powerwalker.com/software/#powermaster Double-click the file and follow the installation steps. When your computer restarts, the Power Master software will appear as a blue icon located in the system tray.
