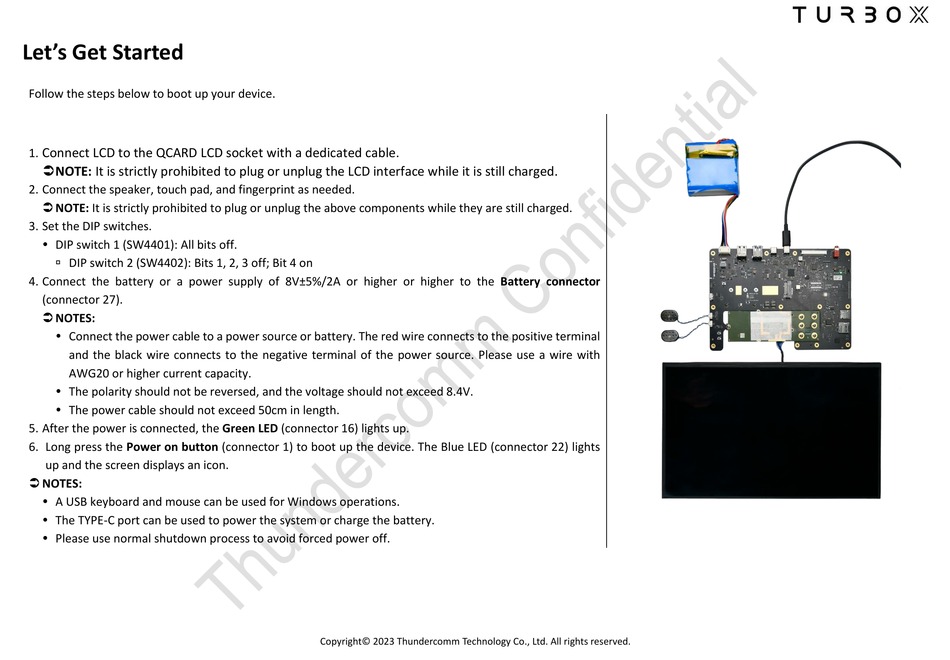

Let's Get Started

Follow the steps below to boot up your device.
Connect LCD to the QCARD LCD socket with a dedicated cable.
1.
 NOTE: It is strictly prohibited to plug or unplug the LCD interface while it is still charged.
2. Connect the speaker, touch pad, and fingerprint as needed.
 NOTE: It is strictly prohibited to plug or unplug the above components while they are still charged.
3. Set the DIP switches.
 DIP switch 1 (SW4401): All bits off.
 DIP switch 2 (SW4402): Bits 1, 2, 3 off; Bit 4 on
4. Connect the battery or a power supply of 8V±5%/2A or higher or higher to the Battery connector
(connector 27).
 NOTES:
 Connect the power cable to a power source or battery. The red wire connects to the positive terminal
and the black wire connects to the negative terminal of the power source. Please use a wire with
AWG20 or higher current capacity.
 The polarity should not be reversed, and the voltage should not exceed 8.4V.
 The power cable should not exceed 50cm in length.
5. After the power is connected, the Green LED (connector 16) lights up.
6. Long press the Power on button (connector 1) to boot up the device. The Blue LED (connector 22) lights
up and the screen displays an icon.
 NOTES:
 A USB keyboard and mouse can be used for Windows operations.
 The TYPE-C port can be used to power the system or charge the battery.
 Please use normal shutdown process to avoid forced power off.
