Woodward Atlas-II 8273-552 Installation And Operation Manual

Digital control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Released
Product Manual 26415
(Revision G, 1/2019)
Original Instructions

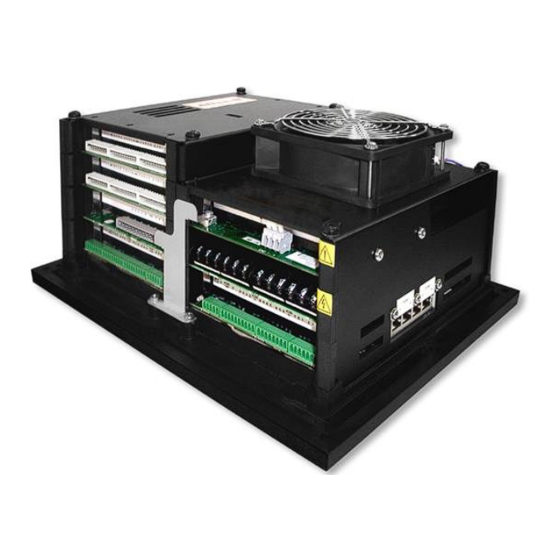

Atlas-II™ Digital Control
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlas-II 8273-552 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodward Atlas-II 8273-552

Summary of Contents for Woodward Atlas-II 8273-552

  • Page 1 Released Product Manual 26415 (Revision G, 1/2019) Original Instructions Atlas-II™ Digital Control Installation and Operation Manual...
  • Page 2 Revisions— A bold, black line alongside the text identifies changes in this publication since the last revision. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodw ard is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.

  • Page 3: Table Of Contents

    General Enclosure Application Information ..................24 Input Power ............................28 Maintenance............................. 30 Application Guidelines........................30 3. P ....................34 HAPTER OWER UPPLY OARD General Description .......................... 34 Troubleshooting Guide ........................35 4. S CPU A5200 B ................37 HAPTER MART OARD General Description .......................... 37 Woodward...
  • Page 4 A..........................114 PPENDIX ..................114 CRONYMS AND LOSSARY OF ERMS Acronyms ............................114 B..........................116 PPENDIX ........................116 IRING IAGRAMS C. F ......................121 PPENDIX LASH ODES ........................124 EVISION ISTORY ..........................125 ECLARATIONS The following are trademarks of Woodward, Inc.: Atlas-II AtlasPC DSLC Woodward Woodward...
  • Page 5 Figure 5-6. Wiring Example–4–20 mA Input Interface ................69 Figure 5-7. Wiring Example–RTD Input Interface ................70 Figure 5-8. Wiring Example–Analog Output Interface ................71 Figure 6-1. Terminal Block Covers ..................... 75 Figure 6-2. PowerSense Board Connections ..................76 Figure 6-3. PowerSense Board Block Diagram ................... 77 Woodward...
  • Page 6 Table 9-8. Profibus—Siemens RS-485 Bus Connector / Plastic ............106 Table 9-9. Profibus—Siemens RS-485 Bus Connector / Metal ............106 Table 9-10. I/O Connector Pinout ..................... 107 Table 9-11. Allen-Bradley Flex I/O ....................108 Table 9-12. Automation Direct Terminator I/O ................... 108 Woodward...
  • Page 7 Released Manual 26415 Atlas-II Digital Control Table C-1. SmartCore CPU A5200 Failure Codes ................121 Table C-2 Analog Combo Failure Codes ..................121 Table C-3. PowerSense Failure Codes..................... 121 Table C-4. DLE Failure Codes ......................122 Woodward...

  • Page 8: Warnings And Notices

    Be prepared to make an emergency shutdown when starting the engine, turbine, or other type of prime mover, to protect against runaway or overspeed with possible personal injury, loss of life, or property damage. Start-up Woodward...

  • Page 9: Electrostatic Discharge Awareness

    Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

  • Page 10: Regulatory Compliance

    Provisions shall be made to prevent the power input from being exceeded by transient disturbances of more than 40% of the rated voltage Wiring must be in accordance with North American Class I, Division 2, or European Zone 2, Category 3 wiring methods as applicable, and in accordance with the authority having jurisdiction. Woodward...
  • Page 11 Installation of the Atlas-II control in a metal enclosure, as intended, will also prevent performance degradation. The Atlas-II Actuator and Analog outputs are intended to drive loads that are isolated from protective earth, like actuators and meters. Woodward...
  • Page 12 Adding an isolator between the Atlas-II and its analog loads will solve this issue. Alternatively adding clamping circuitry, like Metal Oxide Varistors (MOV) or Transient Voltage Suppression (TVS) diodes, from chassis to signal lines at both ends will also solve this issue. (See the appropriate sections for more details.) Woodward...

  • Page 13: Chapter 1. General Information

    Atlas-II Digital Control Chapter 1. General Information Information This manual describes the Woodward Atlas-II Digital Control. It provides a variety of useful information for the user ranging from simple basic descriptions to detailed information on wiring, specifications, and functionality. Included are: ...

  • Page 14: Control Versions

    PC/104 Stack. If real power sensing is required in the application, a PowerSense module is stacked above the SmartCore module and also spans both bus stacks. If a PowerSense module is not specified, then an additional Analog I/O module can be substituted. Figure 1-1 shows a “maximum” example configuration (5 levels high). Woodward...

  • Page 15: Figure 1-1. Atlas-Ii, Example Module Layout

    Released Manual 26415 Atlas-II Digital Control Figure 1-1. Atlas-II, Example Module Layout Woodward...

  • Page 16: Figure 1-2A. Physical Dimensions

    Released Manual 26415 Atlas-II Digital Control Figure 1-2a. Physical Dimensions Woodward...

  • Page 17: Figure 1-2B. Physical Dimensions

    Released Manual 26415 Atlas-II Digital Control Figure 1-2b. Physical Dimensions Woodward...

  • Page 18: Control Accessories

    Manual 26415 Atlas-II Digital Control Control Accessories The Atlas-II digital control platform is designed to interface with several Woodward service tools and commercial software products. Available tools are listed below with a brief description of their functionality:  Monitor GAP—An Ethernet connection to the control allows on-line GAP monitoring, debug, and tunable configuration.

  • Page 19: Chapter 2. Installation

    This equipment is intended to be installed in a metal cabinet or enclosure to provide protection against the entry of dust or water and to protect against mechanical impact. For ATEX compliance, a minimum ingress protection rating of IP54 is required for the enclosure. Woodward...

  • Page 20: Environmental Specifications

    In order to meet Zone 2 European Group IIC, the Atlas-II Control must be mounted in an enclosure that meets or exceeds IP 54. Altitude The Atlas-II Control Platform is designed to operate up to 3000m / 9800 feet. Woodward...

  • Page 21: Figure 2-1. Screw Connection Terminal Block Used On A5200 Smartcore Board

    Torque range for screws of Screw Connection Terminal Blocks: 0.22–0.25 N·m (1.95–2.21 lb-in). Screwdriver blade: 0.4 X 2.5 mm (0.016 X 0.10 inch) Screwdriver available as Woodward PN 8992-005 Figure 2-1. Screw Connection Terminal Block Used on A5200 SmartCore Board Method #1 Method #2...

  • Page 22: Figure 2-3. Wiring Fixed Terminal

    All AC wiring for voltages and currents is done with fixed screw barrier blocks rather than pluggable terminal blocks. The fixed screw barrier blocks accept wires terminated into terminal lugs for #6 screws. Figure 2-4. Fixed Terminals Woodward...
  • Page 23 Atlas-II or entry into its metal enclosure should be AC coupled to earth through a capacitor. (A 1000 pF, 500 V capacitor is typically sufficient. The intent is to provide a low impedance path to earth for the shield at frequencies of 150 kHz and higher.) Woodward...

  • Page 24: Non-Marine Enclosure Application Information

    Installations with severe electromagnetic interference (EMI) may require additional shielding precautions, such as wire run in conduit or double shielding. Contact Woodward for more information. Shields from the control to its loads or inputs can be directly grounded to earth at both ends, if the cable length is sufficiently short to prevent ground loop current in the shield (e.g.

  • Page 25: Marine Enclosure Application Information

    The cabinet must provide a shield termination point for cables as they enter the enclosure. Shielded I/O must be AC or DC terminated directly to the cabinet (earth ground) at the entry to the cabinet, as well as at the Atlas-II shield pins. Woodward...

  • Page 26: General Enclosure Application Information

     Power  AC mains PT & CT monitoring area  Light Industrial EMC compliant equipment area  Monitor/kybd/pointing device (HMI if applicable)  Other equipment area  Maintain a minimum or 6” of separation between equipment type areas Woodward...

  • Page 27: Figure 2-5. Descriptions Of Main Cabinet Cabling Options

    Filter with a 20 dB filter. Cabinet Cabinet Cabinet Atlas-II Atlas-II Atlas-II Field Iterim Field Field Device Device Device Device Interim Device: Isolator, Relay Box, FTM, etc. Field Device: Actuator, Valve, Sensor, Meter, Profibus Head, etc. Figure 2-5. Descriptions of Main Cabinet Cabling Options Woodward...
  • Page 28  If over braided (two shields), directly ground over braid shield to cabinet—directly connect inner braids at field device termination point. The inner braid must have at least one point directly grounded to earth.  If single shield, ground the shield to the cabinet and/or shield pin at both ends. Woodward...
  • Page 29 Do not let other cables within 305 mm (12 inches) of unshielded cables if they are parallel for greater than 610 mm (24 inches).  Do not let other cables within 150 mm (6 inches) of unshielded cables if they are parallel for less than 610 mm (24 inches). Woodward...

  • Page 30: Input Power

    Significant inrush currents are possible when current is applied to the Atlas-II control. The magnitude of the inrush current depends on the power source impedance, so Woodward cannot specify the maximum inrush current. Time-delay fuses or circuit breakers must be used to avoid nuisance trips.
  • Page 31 0.16 volts. The resulting supply voltage from the example must be greater than 18.16 volts. *** A fuse or circuit breaker shall not interrupt the protective earth conductor. Woodward...

  • Page 32: Maintenance

    Supply Maintenance The only part of the Atlas-II control system that may require user maintenance is the cooling fan (Woodward part number 1886-439). In the event that the fan must be replaced, please use the following procedure to remove a faulty fan from the chassis: ...
  • Page 33 Serial port cables are shielded and should be terminated directly at the Atlas-II end and the cabinet entry/exit point. Take care with the shield termination at the field device end. Woodward...
  • Page 34 Ethernet port cables are shielded. Cable shields are terminated directly at the Atlas-II end and the cabinet entry/exit point. An Ethernet Field Termination Module (FTM), available from Woodward, may be used to break the shield path between the field device and the Atlas-II.
  • Page 35  Note: Due to the identical design of the two CAN ports and the potential for similar cables, labeling is important to ensure that the user can easily identify which network is connected to the CAN connectors. Woodward...

  • Page 36: Chapter 3. Power Supply Board

    B, C, and D, Zone 2, Group IIC, or non-hazardous locations only. Wiring must be in accordance with Class I, Division 2 or Zone 2 wiring methods and in accordance with the authority having jurisdiction. 855-741B 02-11-21 Figure 3-1. Atlas-II Power Supply Board (601-1008) Woodward...

  • Page 37: Troubleshooting Guide

    Troubleshooting Guide Power Supply Checks The following is a troubleshooting guide for checking areas, which may present difficulties. If these checks are made prior to contacting Woodward for technical assistance, system problems can be more quickly and accurately assessed. ...

  • Page 38: Figure 3-2. Discrete Output Wiring Example

    Chapter 7 contains a relay module that can be used with these discrete outputs. Shielding of relay (discrete) output wires inside the metal enclosure is required for Marine Type Approval installation applications. Relay outputs do not normally require shielding for other installations, but may be shielded if desired. Woodward...

  • Page 39: Chapter 4. Smartcore Cpu A5200 Board

    Analog input and output circuits are 4–20 mA. The actuator driver outputs may be configured as either 4–20 mA or 20–220 mA. The user serial ports are configurable as RS-232, RS-422, or RS-485. Figure 4-1. SmartCore CPU A5200 board, Connectors Woodward...
  • Page 40 (24) Discrete inputs  (2) Speed Sensor Inputs (MPU / Proximity), 16 bit minimum resolution  (6) Analog inputs have 16 bit resolution  (4) Analog outputs have 15 bit resolution  (2) Actuator outputs with 15 bit resolution Woodward...

  • Page 41: Figure 4-2. Block Diagram-Atlas-Ii Smartcore Cpu A5200 Board

    Network Configuration. Ethernet port #1 can be re-configured for the customer network as desired. See the on-site Network Administrator to define an appropriate I/P address configuration for port #1. Please note that each Ethernet port is required to be on a separate domain. Woodward...
  • Page 42 Ethernet #4 = 192.168.130.22, Subnet Mask = 255.255.255.0 Network Configuration Utility (AppManager) Woodward's AppManager software can be used to load GAP Control software, monitor diagnostic faults, and configure Network settings. The AppManager utility can be downloaded from www.woodward.com/software. A PC to Atlas-II connection must be made using an Ethernet cable and Ethernet port #1.

  • Page 43: Figure 4-3. Smartcore Cpu A5200 Communications Ports (Sio1, Sio2)

    Pin 1 – RS-232 Receive Pin 2 – RS-232 Transmit Pin 3 – Signal Ground Pin 4 – Not Used Pin 5 – Signal Ground Pin 6 – Not Used Connector Shell – Chassis EARTH Figure 4-4. CPU Service Port (mini-DIN6F) Woodward...

  • Page 44: Figure 4-5. Can Communication Ports

    CAN Communication Ports Two CAN ports (5 pin pluggable connectors, screw down) are available for communication with Woodward Valves and other CAN devices. A maximum of 15 Woodward valves configured for operation in the 10 ms rate group may be used.
  • Page 45 Input frequency (max) 25 000 Hz Resolution Dependent on frequency, 16 bit minimum at maximum speed Less than ±0.08% full scale from –40 to +85 °C internal temperature Accuracy Shielded cable is required when connecting to the Digital Speed Sensor Inputs. Woodward...

  • Page 46: Figure 4-7. Mpu Minimum Input Magnitude In Vrms

    MPU/PROX(+) terminal block input is shorted to MPU/PROX (–). MPU Minimum Input Magnitude 1000 10000 100000 Frequency (Hz) Figure 4-7. MPU Minimum Input Magnitude in Vrms To convert to V peak to peak, multiply by 2.828. Woodward...

  • Page 47: Figure 4-8. Mpu Maximum Input Magnitude In Vrms

    Typ Impedance Phase at 14.6 Vrms Input Typ Impedance Phase at 1 Vrms Input 10000 3066 2427 2001 1718 1553 1503 1498 1470 26 25 1216 1000 1000 10000 100000 Frequency (Hz) Figure 4-8. MPU Typical Input Impedance Magnitude and Phase Woodward...
  • Page 48 Shielded cable is required when connecting to the Analog Inputs.  Loop power for the analog inputs is NOT available.  Only 4–20 mA inputs are supported. This is a change from the previous SmartCore module that allowed both current and voltage inputs. Woodward...
  • Page 49 0.45% of full scale, 0.13 mA (4-20 mA range) 1.00 mA (20-200 mA range) Readbacks Actuator source and return currents Dither Current 25 Hz, fixed duty cycle, software variable amplitude Shielded cable is required when connecting to the Actuator Outputs. Woodward...

  • Page 50: Smartcore Cpu A5200 Board Operation

    For safety purposes, it is also not recommended that the speed sensing device sense speed from a gear coupled to a generator or mechanical drive side of a system’s rotor coupling. Woodward...

  • Page 51: Figure 4-9. Wiring Example-Mpu Interface To The Smartcore Board

    If the proximity probe inputs are used, the corresponding MPU inputs must be jumpered as shown. Speed Sensor Input Software Configuration Limitations  (TxMxR)/60 must be < 25 000 Hz T = gear teeth M = (overspeed test limit setting x 1.2) R = gear ratio Woodward...

  • Page 52: Figure 4-11A. Wiring Example-4-20 Ma Input Interface To The Smartcore Cpu A5200 Board

    All 4-20 mA inputs have an input impedance of 211 Ω.  Loop power is NOT provided by the Atlas control, it must be sourced externally. External loop powered transducers must be individually protected with a 100 mA fuse on each channel. Woodward...

  • Page 53: Figure 4-12. Wiring Example-Analog Output Interface To The Smartcore Cpu A5200 Board

    Beware of Analog and Actuator output connections to non-isolated field devices that are located greater than 30 meters away from the Atlas-II Control. Ground potentials between different locations can be severe enough under certain EMC/Surge events to cause control malfunction. Woodward...

  • Page 54: Figure 4-13. Wiring Example-Actuator Output Interface To The Smartcore Cpu A5200 Board

    Beware of Analog and Actuator output connections to non-isolated field devices that are located greater than 30 meters away from the Atlas-II Control. Ground potentials between different locations can be severe enough under certain EMC/Surge events to cause control malfunction. Woodward...

  • Page 55: Figure 4-14. Wiring Example-Discrete Input Interface To The Smartcore Cpu A5200 Board

    Events such as large transient pulses near the unused cable can cause them to momentarily toggle.  Marine Type Approval installations require Discrete Input cabling inside the cabinet to be shielded if it leaves the cabinet. Woodward...

  • Page 56: Figure 4-15. Serial #1-Rs-232 Pinouts

    Device Figure 4-15. Serial #1–RS-232 Pinouts Serial #1 - RS-422 Atlas RS 422 Transceiver 422R 422T Twisted Pairs 422R 422T RS 422 Device SIG GND Isolated Jumpers to use optional termination resistor Isolated Ground Figure 4-16. Serial #1–RS-422 Pinouts Woodward...

  • Page 57: Figure 4-17. Serial #1-Rs-485 Pinouts

    RS 485 Device SIG GND Isolated Jumpers to use optional termination resistor Isolated Ground Figure 4-17. Serial #1–RS-485 Pinouts Serial #2 - RS-232 Atlas Isolated RS 232C Isolated Transceiver Ground Twisted RS 232 Pair Device Figure 4-18. Serial #2–RS-232 Pinouts Woodward...

  • Page 58: Figure 4-19. Serial #2-Rs-422 Pinouts

    Isolated Ground Figure 4-19. Serial #2–RS-422 Pinouts Serial #2 - RS-485 Atlas RS 485 Transceiver Twisted Pair RS 485 Device SIG GND Isolated Jumpers to use optional termination resistor Isolated Ground Figure 4-20. Serial #2–RS-485 Pinouts Woodward...

  • Page 59: Figure 4-21. Wiring Example-Rs-232 Interface To The Smartcore Cpu A5200 Board

    **Shield to be hard grounded at 1 end only and optionally AC coupled at other devices. 31JAN08 Figure 4-23. Wiring Example–RS-485 Interface to the SmartCore CPU A5200 Board Figure 4-24. Wiring Example–Alternate Multipoint Wiring (without a separate signal ground wire for the SmartCore CPU A5200 board) Woodward...
  • Page 60 LED remains on or blinks. If the test is successful, the LED goes off. If the fault LED on a board is illuminated after the diagnostics and initialization have been completed, the SmartCore CPU A5200 board may be faulty. Woodward...
  • Page 61 Check the wiring. Look for a loose connection at the terminal blocks and disconnected or misconnected cables.  Check the software configuration to ensure that the input is configured properly. After verifying all of the above, the Atlas-II should be returned for service. Woodward...
  • Page 62 Check the load resistance, ensure that it is less than the specification limit for the output current.  Check to ensure that the load wiring is isolated.  Check the wiring, look for a loose connection at the terminal blocks and disconnected or misconnected cables. Woodward...
  • Page 63 Check the software configuration to ensure that the input is configured properly.  Check that the cable is shielded and the shield is properly grounded per the shields and grounding section in Chapter 2. After verifying all of the above, the Atlas-II should be returned for service. Woodward...

  • Page 64: Chapter 5. Analog Combo Board

    First 11 analog inputs are isolated as a group, from the other inputs, and from control common  Last 4 analog inputs are isolated as a group, from the other inputs, and from control common  A cold junction measurement is provided on the board 855-740 02-2-22 Figure 5-1. Atlas-II Analog Combo Board Connections Woodward...

  • Page 65: Specifications

    –96 dB typical for analog inputs –110 dB minimum for thermocouple inputs –120 dB typical for thermocouple inputs Input common mode range: ±11 V minimum Safe input common mode volt: ±40 V minimum 103 Ω (±1%) for 4–20 mA inputs Input impedance: Woodward...
  • Page 66 Open wire detection provided for thermocouples Isolation All input channels are isolated from the rest of the Atlas-II platform to 500 Vac, however they are not isolated from each other. The inputs are differential, with a high impedance between channels. Woodward...
  • Page 67 1.04 Terminal block wiring must use multi-stranded wires to provide best results. Due to the clamping action of the spring-loaded terminal blocks, lower level signals (like TC and RTD inputs) are susceptible to glitches when using single “solid-core” wiring. Woodward...

  • Page 68: Figure 5-3. Minimum Mpu Voltage

    Isolation voltage 500 Vac, each channel is isolated from all other channels, and from the Atlas-II platform Resolution dependent on frequency, 13 bit minimum at maximum speed less than ±0.08% of full scale from –40 to +85 °C internal temperature Accuracy 10000 15000 20000 25000 30000 Frequency (Hz) Figure 5-3. Minimum MPU Voltage Woodward...

  • Page 69: Analog Combo Board Operation

    (reducing speed sensing resolution) and have coupling gear backlash, resulting in less than optimum speed control. For safety purposes, it is also not recommended that the speed sensing device sense speed from a gear coupled to a generator or mechanical drive side of a system’s rotor coupling. Woodward...

  • Page 70: Figure 5-4. Wiring Example-Mpu Interface To The Analog Combo Board

    The last 4 analog inputs are also isolated as a group from control common, earth ground, and the first 11 analog inputs. For a 4–20 mA input signal, the Analog Combo board uses a 100 Ω resistor across the input. Woodward...

  • Page 71: Figure 5-5A. Wiring Example-Analog Input Interface

    Input #1 (-) Loop Power Figure 5-5b. Wiring Example–Analog Input Interface with External Loop Power Atlas 4-20 mA Transducer Loop Powered Analog Input #12 Figure 5-6. Wiring Example–4–20 mA Input Interface (to the Analog Combo Board for inputs 12–15) Woodward...

  • Page 72: Figure 5-7. Wiring Example-Rtd Input Interface

    The thermocouple and cold junction input units (°C or °F) should be consistent in the application software. 4–20 mA Inputs  All 4–20 mA inputs have an impedance of 100 Ω.  No loop power is provided. External loop powered transducers must be individually protected with a 100 mA fuse on each channel. Woodward...

  • Page 73: Figure 5-8. Wiring Example-Analog Output Interface

    Number of LED Flashes Failure Microprocessor failure Bus, address, any unexpected exception error Failure during EE test or erasing Kernel software Watchdog count error Failure during CPU Internal RAM test Dual port RAM error Table 5-1 Analog Combo Failure Woodward...

  • Page 74: Troubleshooting Guide

    If the input is reading high, check that the power is not connected across the input directly.  Check the software configuration to ensure that the input is configured properly. Ensure that the proper RTD or thermocouple type is selected, if applicable. After verifying all of the above, the Atlas-II should be returned for service. Woodward...
  • Page 75 Disconnect the field wiring and connect a resistor across the output. If the output is correct across the resistor, there is a problem with the field wiring.  Check the software configuration to ensure that the input is configured properly. After verifying all of the above, the Atlas-II should be returned for service. Woodward...

  • Page 76: General Description

    Possible serious personal injury or death could result. HIGH VOLTAGE—Before disconnecting the secondary terminals of the current transformer or the connections of the current transformer at the control, ensure that the transformer is short-circuited. Woodward...

  • Page 77: Figure 6-1. Terminal Block Covers

    These inputs and outputs are provided with 500 V of dielectric isolation from chassis ground. In addition, these inputs/outputs are isolated from safety extra-low voltage (SELV) circuits (such as serial communication, PC/104 circuits) by optoisolators or transformers provided with double insulation and 3 kVac of dielectric isolation. Woodward...

  • Page 78: Figure 6-2. Powersense Board Connections

    Released Manual 26415 Atlas-II Digital Control Figure 6-2. PowerSense Board Connections Woodward...

  • Page 79: Figure 6-3. Powersense Board Block Diagram

    Inputs(6) Hold converter volatile memory 12-bit 8-channel Isolation Isolation Sample & AC Inputs(3) Serial A/D circuits circuits Hold converter Speed bias Speed bias Output circuitry Voltage bias Voltage Bias Circuitry Output VIS-002 01-4-26 Figure 6-3. PowerSense Board Block Diagram Woodward...
  • Page 80 < 0.5% or 30.0 mV –40 to +85 °C TempDrift (0–5 V range and PWM) Any 40 °C change Typical (1σ): < 0.1% or 5.0 mV < 0.1% or 5.0 mV Max (3σ): < 0.2% or 10.0 mV < 0.2% or 10.0 mV Woodward...
  • Page 81 Options: 4–20 mA, ±1V, ±3V, ±9V; software and wiring selectable. Both the GAP block field and the wiring must be changed to switch between current and voltage outputs. Only the GAP block field must be changed to switch between the voltage outputs. Woodward...

  • Page 82: Powersense Board Operation

    SYNCHRO.SYNC_DIS is <TRUE>. 3) Enable the PTCT_ATL.SMPL_TYPE by tuning to <TRUE>. 4) Delay 200 ms. 5) After the 200 ms delay, tune the SYNCHRO.SYNC_DIS to <FALSE>. Please see the GAP help for further details on the remaining functionality of these blocks. Woodward...
  • Page 83 The terminal block screws should be torqued to 8 – 10 lb-in (0.9038782 - 1.129848 Nm).  Marine Type Approval installations require cabling to be shielded if it leaves the cabinet. PT wires may be shielded as a single group and the shield may be conduit or similar. Woodward...

  • Page 84: Figure 6-4. Wiring Example-Wye Connected System

    Released Manual 26415 Atlas-II Digital Control AtlasPC PH A PH B PH C Load Bus PH A PH B PH C VIS-152a 01-4-26 Figure 6-4. Wiring Example–Wye Connected System (PT Interface wired L-N to the PowerSense Board) Woodward...

  • Page 85: Figure 6-5. Wiring Example-Wye Connected System

    Load Bus PH A PH B PH C VIS-152b 01-4-26 Figure 6-5. Wiring Example–Wye Connected System (Wired L-N to PowerSense with potential transformers used to step the voltage down to a level within the capability of the PowerSense inputs) Woodward...

  • Page 86: Figure 6-6. Example Wiring-Wye Connected System

    VIS-152c 01-4-26 Figure 6-6. Example Wiring–Wye Connected System (Wired L-L to PowerSense with potential transformers used to step the voltage down to a level within the capability of the PowerSense inputs; the ground on the b-phase input is optional.) Woodward...

  • Page 87: Figure 6-7. Wiring Example-Delta Connected System

    Released Manual 26415 Atlas-II Digital Control AtlasPC PH A PH B PH C Load Bus PH A PH B PH C VIS-152d 01-4-26 Figure 6-7. Wiring Example–Delta Connected System (PT Interface wired L-L to the PowerSense Board) Woodward...

  • Page 88: Figure 6-8. Wiring Example-Delta Connected System

    VIS-152-e 01-4-26 Figure 6-8. Wiring Example–Delta Connected System (Wired L-L to PowerSense with potential transformers used to step the voltage down to a level within the capability of the PowerSense inputs; the ground on the B-phase input is optional.) Woodward...
  • Page 89 The terminal block screws should be torqued to 8–10 lb-in (0.9–1.1 Nm).  Marine Type Approval installations require cabling to be shielded if it leaves the cabinet. CT wires may be shielded as a group and the shield may be conduit or similar. Woodward...

  • Page 90: Power Calculations

    PowerSense should also be Delta connected (line-to-line). The “Y” or “delta” configuration applies to the entire set of PT and CTs, it is not possible to configure the PTs for “Y”, and the CTs for “delta”, or vice versa. Woodward...

  • Page 91: Figure 6-9. Wiring Example-Ct Interface To The Powersense Board

    Released Manual 26415 Atlas-II Digital Control AtlasPC PH A PH B PH C Load Bus PH A PH B PH C VIS-152f 01-4-26 CT grounds optional Figure 6-9. Wiring Example–CT Interface to the PowerSense Board Woodward...

  • Page 92: Figure 6-10. Wiring Example-Ct Interface To The Powersense Board

    Released Manual 26415 Atlas-II Digital Control AtlasPC PH A PH B PH C Load Bus PH A PH B PH C VIS-152g 01-4-26 CT grounds optional Figure 6-10. Wiring Example–CT Interface to the PowerSense Board Woodward...

  • Page 93: Figure 6-11. Wiring Example-Speed Bias Output Interface

    The output cannot be used as a voltage output and a current output at the same time. Atlas +15 Vdc (isol) 4-20 mA interface to speed control (isol) Figure 6-11. Wiring Example–Speed Bias Output Interface (to the PowerSense Board configured for 4–20 mA) Woodward...

  • Page 94: Figure 6-12. Wiring Example-Speed Bias Output Interface

    The output does not contain fault detection. If it is necessary to detect failures, then the device that is driven by the analog output, for example an actuator driver, must contain reference failure detection.  The output cannot be used as a voltage output and a current output, at the same time. Woodward...

  • Page 95: Figure 6-13. Wiring Example-Voltage Bias Output Interface

    Figure 6-13. Wiring Example–Voltage Bias Output Interface (to the PowerSense Board configured for 4–20 mA) Atlas ±1, ±3, ±9, interface to voltage regulator (isol) Figure 6-14. Wiring Example–Voltage Bias Output Interface (to the PowerSense Board configured for ±1 V, ±3 V, or ±9 V) Woodward...

  • Page 96: Figure 6-15. Wiring Example-Lon Interface To The Powersense Board

     The LON channel is DSLC/MSLC and EGCP-3 compatible. It may only be used with specified Woodward equipment. Fault Detection (Board Hardware) Each PowerSense board has a red fault LED that is turned on when the system is reset. During initialization of a board, which occurs after every CPU reset, the CPU turns the Fault LED on.

  • Page 97: Troubleshooting Guide

    After verifying all of the above, the Atlas-II should be returned for service. HIGH VOLTAGE—Before disconnecting the secondary terminals of the current transformer or the connections of the current transformer at the control, ensure that the transformer is short-circuited. Woodward...
  • Page 98 The cable length should not exceed the maximum allowed cable length.  Check to make sure that termination networks are installed on the ends of the network.  Check the software configuration. After verifying all of the above, the Atlas-II should be returned for service. Woodward...

  • Page 99: Chapter 7. 12-Channel Relay Module

    The Atlas system has 12 relay drivers on the power supply board. For customers that do not wish to wire their own discrete relays, Woodward can provide an integrated 12-channel relay module with cable harness that is certified for use in ordinary, hazardous, and marine locations.

  • Page 100: Relay Information

    Atlas power supply board. Refer to the following plant wiring diagram and the power supply chapter of this manual for more details. Woodward...

  • Page 101: Figure 7-2. 12-Channel Relay Module Wiring Diagram

    Released Manual 26415 Atlas-II Digital Control Figure 7-2. 12-Channel Relay Module Wiring Diagram Woodward...

  • Page 102: Dle Serial Communication Board

    The Atlas system can be provided with a DLE serial communications board. The DLE board has six ports—three RS-422 ports for communication with Honeywell pressure transducer modules, and three RS-485 ports for use with Woodward LQ series and EM series drivers. All ports are special purpose and are not designed for general communication functions.

  • Page 103: Figure 8-2. Terminator Locations

    The wiring must be one continuous cable between nodes, and must meet the requirements of EIA RS- 485 for 500 kbps except that Woodward recommends that the maximum cable lengths be cut in half because typical prime mover installations have high levels of electrical interference.
  • Page 104 Some users may not use both the RS-422 and RS-485 ports in their application. In this case, one LED will stay on all the time. This only signifies that one side of the board is not being used. It is not a failure unless a flash code appears. Woodward...

  • Page 105: Application Developer Information

    The information below is aimed at programmers using the GAP programming tool provided by Woodward. Application developers must use version 3.04 or later of the GAP programming tool when using a DLE board.

  • Page 106: Pc104 Profibus Interface

    Slave Interface and Modules  Device Memory Maps and Scaling (Manuals)  Woodward Interface Tools Hardware for End Users Profibus Module The Profibus hardware module used on the Atlas-II control system is a PC/104 form factor ApplicomIO PC104-DPIO board, equipped with one Profibus port, capable of handling Profibus-DP (Distributed Peripherals) protocol in both Master (Class1, Class2) and Slave modes up to 12Mbps.
  • Page 107 1.37 dB/100 ft @ 16.0 MHz (~4.49 dB/100 m) 3.75 dB/100 ft @ 100 MHz (~12.30 dB/100 m) 6.52 dB/100 ft @ 300 MHz (~21.39 dB/100 m) Standard Lengths: 1000, 2000, and 3600 ft (~305, 610, and 1097 m) Woodward...
  • Page 108 12 Mbits/s Shielding: Metal case with internal shld clamp Bus Termination: Terminating resistor slide switch Cable Ports: (2) for daisy chain use Cable Connection: 4 Internal screw terminal blocks Dim (WxHxD): 15 mm x 57 mm x 39 mm Woodward...
  • Page 109 The Atlas-II control system can control Profibus slave modules from many different manufacturers. With the exception of Woodward-manufactured devices, Woodward makes no expressed or implied statement of suitability of these devices. It is the user’s responsibility to ensure EMC compliance of their system, if necessary, by using distributed modules that are CE compliant.
  • Page 110 Power Supply T1K-01DC Power Supply T1H-PBC Profibus Interface T1K-08ND3 Discrete Input (Sink) T1K-16ND3 Discrete Input (Sink) T1K-16TD1 Discrete Output T1K-08TRS Discrete Output (Relay) T1F-16AD-1 Analog Input (Current) T1F-16DA-1 Analog Output (Current) T1F-14THM Thermocouple Input T1K-08B-1 Terminal Base T1K-16B-1 Terminal Base Woodward...

  • Page 111: Software For Application Developers

    GAP programming tool provided by Woodward. The information provided here covers the basics. For more detail, refer to Woodward software manual 26336, Woodward VxWorks Real Time Operating System. The information in this section is intended for customers that create their own GAP programs for the Atlas-II platform and who are using a Profibus network.

  • Page 112: Chapter 10. Product Support And Service Options

     An Authorized Independent Service Facility (AISF) provides authorized service that includes repairs, repair parts, and warranty service on Woodward's behalf. Service (not new unit sales) is an AISF's primary mission. A current list of Woodward Business Partners is available at www.woodward.com/directory.

  • Page 113: Returning Equipment For Repair

    All repair work carries the standard Woodward service warranty (Woodward Product and Service Warranty 5-01-1205) on replaced parts and labor.

  • Page 114: Replacement Parts

     The unit serial number, which is also on the nameplate Engineering Services Woodward offers various Engineering Services for our products. For these services, you can contact us by telephone, by email, or through the Woodward website.  Technical Support ...

  • Page 115: Technical Assistance

    Atlas-II Digital Control Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General...

  • Page 116: Ppendix A

    Random Access Memory Rate Group. Defines how often software is executed. Resistance Temperature Device Receive Data Line SRAM Static Random Access Memory SSTP Shielded-Shielded Twisted Pair (or Double Shielded Ethernet Cables) Total Harmonic Distortion Transmit Data Line Voltage-to-Current converter Woodward...
  • Page 117 Serial Port - A connection for RS-232, RS-422, or RS-485. Speed Sensor Input An MPU or proximity probe input on the SmartCore CPU A5200 board, and a MPU only input on the Analog Combo board. Woodward...

  • Page 118: Ppendix B

    Released Manual 26415 Atlas-II Digital Control Appendix B. Wiring Diagrams Figure B-1. SmartCore CPU A5200 board Connections Woodward...

  • Page 119: Figure B-2. Analog Combo Board Connections

    Released Manual 26415 Atlas-II Digital Control 855-740 02-2-22 Figure B-2. Analog Combo Board Connections Woodward...

  • Page 120: Figure B-3. Powersense Board Connections

    Released Manual 26415 Atlas-II Digital Control Figure B-3. PowerSense Board Connections Woodward...

  • Page 121: Figure B-4. 12-Channel Relay Module Connections

    Released Manual 26415 Atlas-II Digital Control Figure B-4. 12-Channel Relay Module Connections Woodward...

  • Page 122: Figure B-5. Dle Connections

    Released Manual 26415 Atlas-II Digital Control BOTTOM 855-766 02-8-20 Figure B-5. DLE Connections Woodward...

  • Page 123: Appendix C. Flash Codes

    10 System Error 11 Board Identification Error 12 TPU RAM failure 13 Dual Port RAM test failure 14 QSM or ADC Initialization failure 15 Self-test status failure 20 Invalid A/D converter selected 21 QSPI timeout 24 ADC auto calibration time-out Woodward...
  • Page 124 D 1 RAM test fail (this test is done only at boot and application start) D 2 exception error D 3 dual port test fail (this test is done only at boot and application start) D 3 module watchdog timeout D 7 kernel watchdog timeout Woodward...

  • Page 125: Figure D-1. Board Address Numbers

    All board addresses are factory configured. When a DLE board is used, its address will always be 10. Up to (2) Profibus modules may be used. Profibus communication board(s) are configured differently and do not have the same type of board number. Woodward...

  • Page 126: Revision History

    Replaced EMC Directive, ATEX Directive, American Bureau of Shipping, and Det Norske Veritas in the Regulatory Compliance section  Replaced Figure 3-2  Added New Warning box to middle of Pg. 36  Replaced Declaration Changes in Revision F—  Clarified third Features bullet (page 69) Woodward...

  • Page 127: Declarations

    Released Manual 26415 Atlas-II Digital Control Declarations Woodward...
  • Page 128 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.
