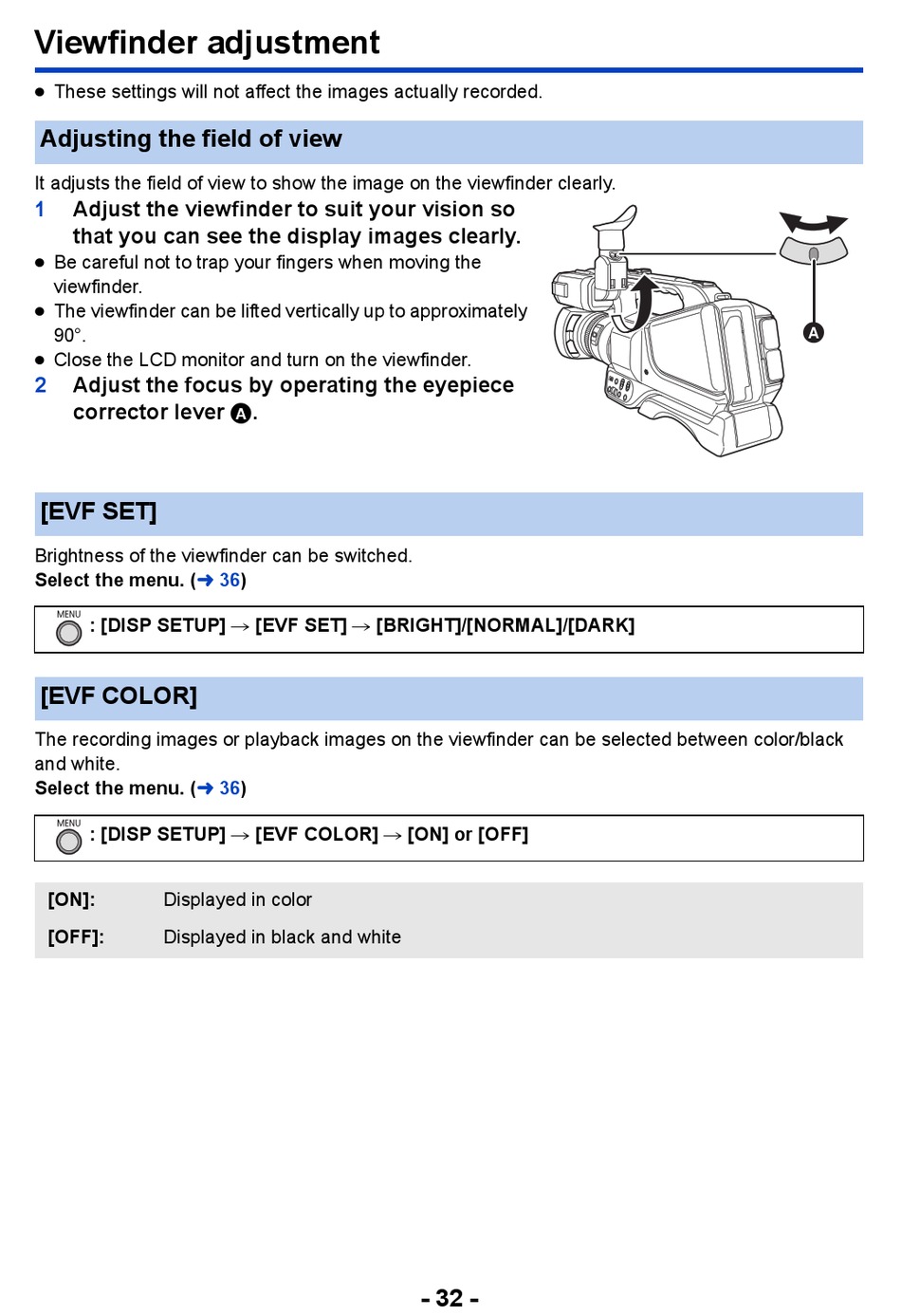

Viewfinder Adjustment - Panasonic HC-MDH3 Owner's Manual

Viewfinder adjustment

≥ These settings will not affect the images actually recorded.
Adjusting the field of view
It adjusts the field of view to show the image on the viewfinder clearly.
1 Adjust the viewfinder to suit your vision so
that you can see the display images clearly.
≥ Be careful not to trap your fingers when moving the
viewfinder.
≥ The viewfinder can be lifted vertically up to approximately
90o.
≥ Close the LCD monitor and turn on the viewfinder.
2 Adjust the focus by operating the eyepiece
corrector lever A.
[EVF SET]
Brightness of the viewfinder can be switched.
Select the menu. (l
MENU
: [DISP SETUP] # [EVF SET] # [BRIGHT]/[NORMAL]/[DARK]
[EVF COLOR]
The recording images or playback images on the viewfinder can be selected between color/black
and white.
Select the menu. (l
MENU
: [DISP SETUP] # [EVF COLOR] # [ON] or [OFF]
[ON]: Displayed in color
[OFF]: Displayed in black and white
36)
36)
- 32 -

