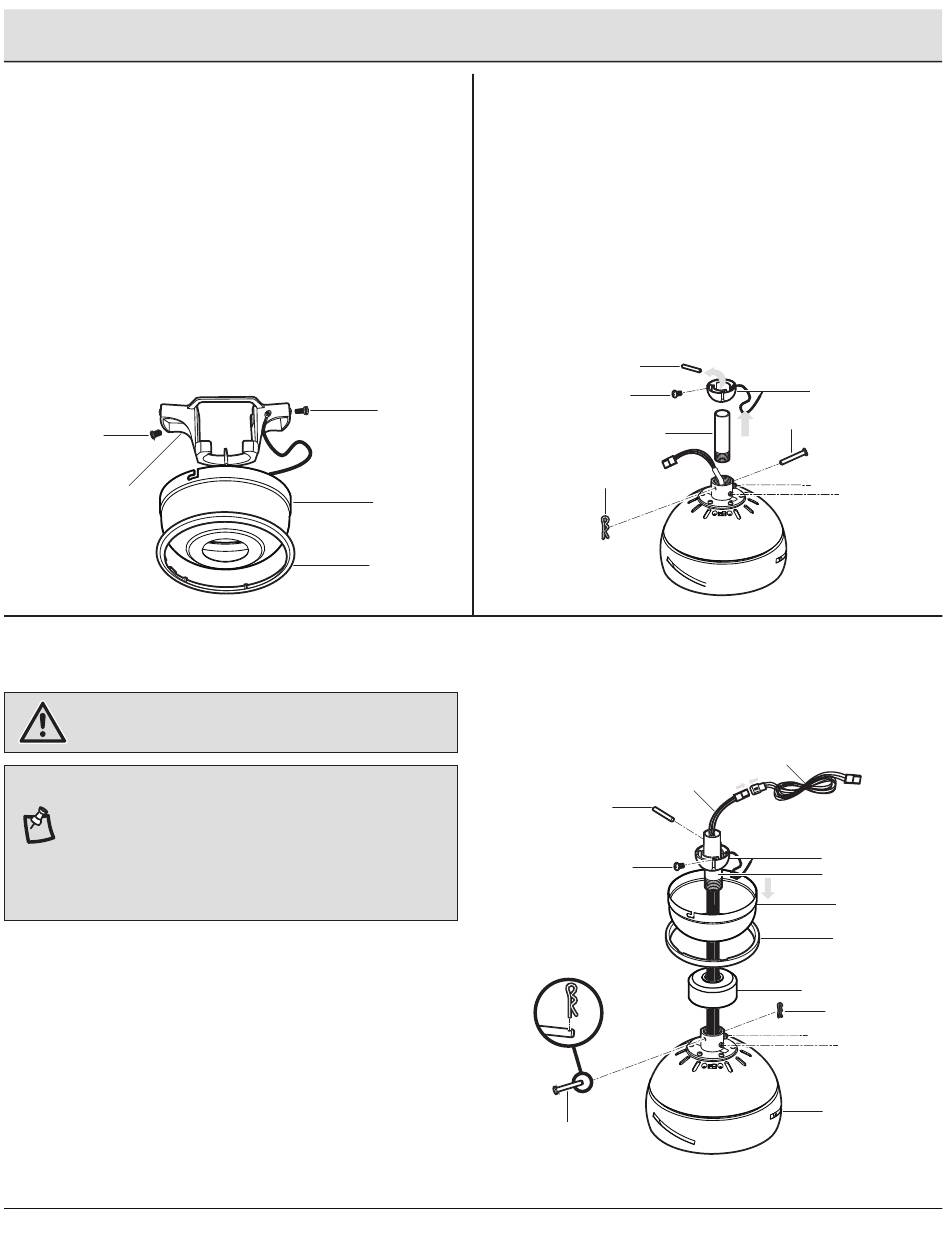

Assembly — Standard Ceiling Mounting
1
Preparing the canopy
□
Remove the canopy ring (B) from the canopy (C).
□
Remove the two non-slotted canopy mounting screws
with lock washer (BB) from the canopy (C), and loosen
the slotted canopy mounting screws with lock washer
(BB) on the canopy (C).
□
Remove the canopy (C) from the mounting bracket (A)
by turning the canopy counterclockwise.
BB
A
3
Assembling the fan
WARNING: Failure to properly install the cotter pin (EE)
could result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (PP), lower the hanger ball
(PP) and remove the pin (FF). Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation.
Be sure to snap together the 3-PIN connectors, the male plug
(RR) from the fan and female plug from the extension cord (MM).
□
Carefully feed the motor wires up through the
downrod (QQ). Thread the downrod (QQ) into the
collar.
□
Align the holes and replace the clevis pin (DD) and
cotter pin (EE). Tighten the two collar setscrews (HH).
□
Slip coupling cover (F), canopy ring (B), and canopy
(C) onto the downrod (QQ).
2
Preparing the motor
□
Remove the cotter pin (EE) and clevis pin (DD), and
loosen the two collar setscrews (HH) from the motor
collar.
□
Take out the setscrew (GG) located in the hanger ball
(PP), lower the hanger ball (PP) and remove the cross
pin (FF). Remove the hanger ball (PP) from the hanger
ball/downrod assembly (E).
BB
C
B
□
Carefully reinstall the hanger ball (PP) onto the
downrod (QQ). Being sure that the cross pin (FF) is in
the correct position, the setscrew (GG) is tightened
and wires are not twisted.
9
FF
GG
E
EE
RR
FF
GG
DD
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
PP
DD
HH
HH
MM
PP
QQ
C
B
F
EE
HH
HH
G
