Assembly — Installing the Light Kit

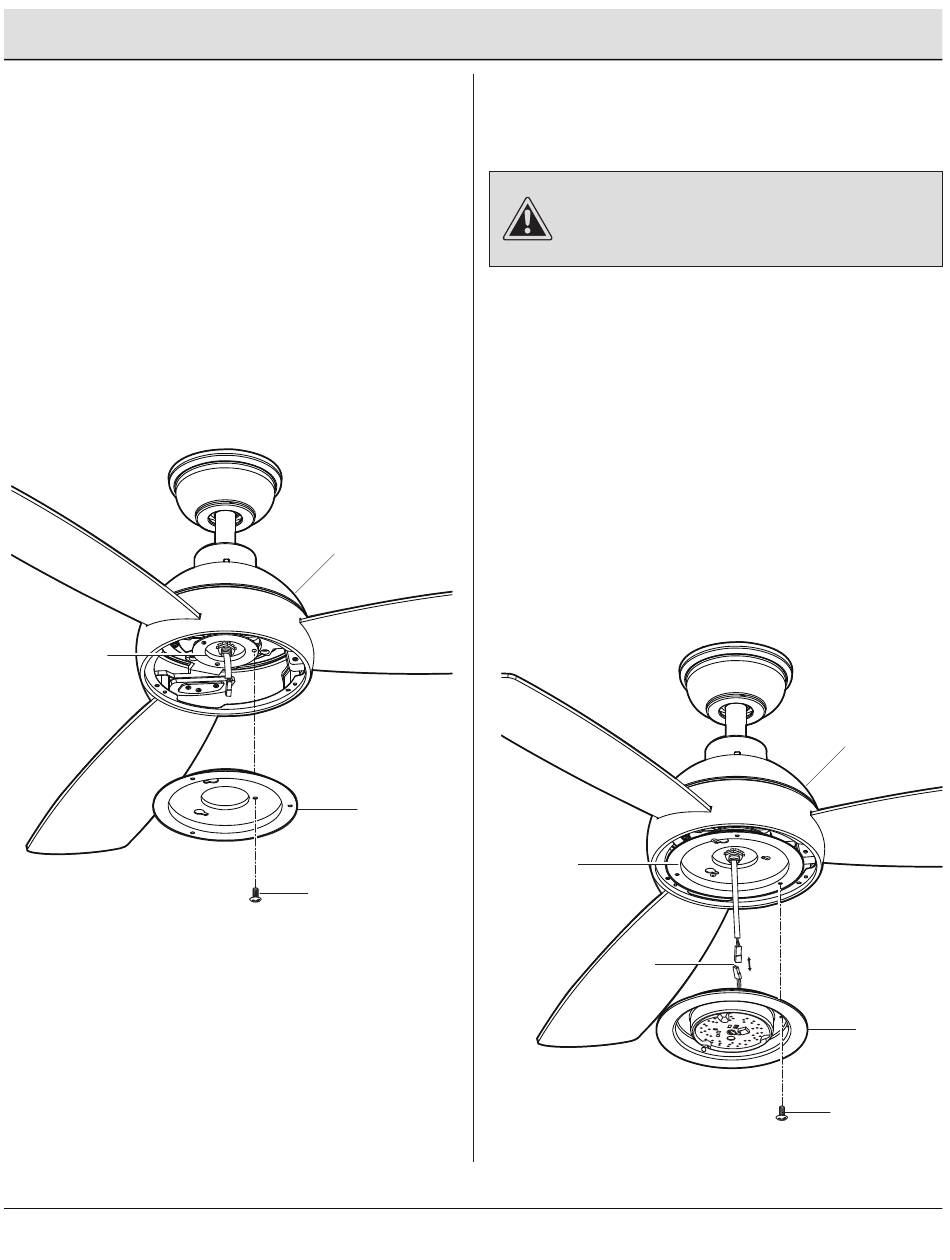

Attaching the light kit mounting
10
plate to the mounting ring
□
Remove one of the three light kit mounting plate
screws (JJ) from the mounting ring (UU) and loosen
the other two screws. (Do not remove.)
□
Place the key holes in the light kit mounting plate (J)
over the two screws (JJ) previously loosened from
the mounting ring (UU). Turn the light kit mounting
plate (J) until the light kit mounting plate (J) locks in
place at the narrow section of the key holes.
□
Securely tighten the two light kit mounting plate
screws (JJ) previously loosened and the one (JJ)
previously removed.
UU
11
G
J
JJ
16
Attaching the light kit to
the light kit mounting plate
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□
Remove one of the three light kit mounting screws
(KK) from the light kit mounting plate (J) and loosen
the other two screws (KK). (Do not remove.)
□
While holding the 20W LED light kit (K) under the fan
motor assembly (G), make the 2-pin wire connections
(VV) :
- White to white
- Black to black
□
Place the key holes in the 20W LED light kit (K) over
the two mounting screws (KK) previously loosened
from the light kit mounting plate (J). Turn the 20W
LED light kit (K) until the 20W LED light kit (K) locks in
place at the narrow section of the key holes. Secure
by tightening the two light kit mounting screws (KK)
previously loosened and the one previously removed.
