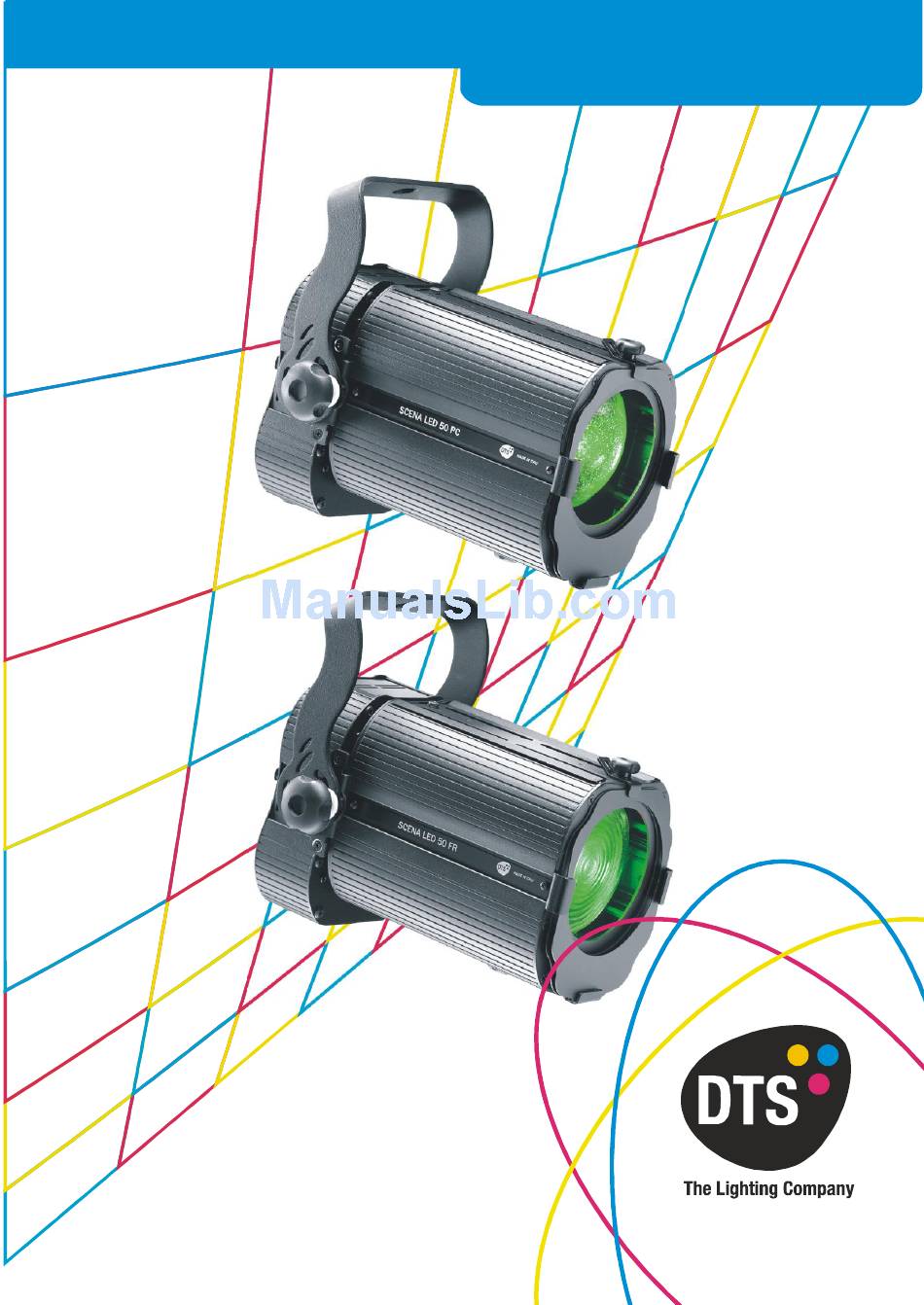

User's Manual rel. 1.0 GB
D.T.S. Illuminazione s.r.l. – ITALY
http://www.dts-lighting.it/
SCENA LED 80 FC
SCENA LED 80 PC FC
SCENA LED 80 FR FC
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCENA LED 80 PC FC and is the answer not in the manual?

Questions and answers

Related Manuals for DTS SCENA LED 80 PC FC

Summary of Contents for DTS SCENA LED 80 PC FC

  • Page 1 SCENA LED 80 FC SCENA LED 80 PC FC SCENA LED 80 FR FC User’s Manual rel. 1.0 GB D.T.S. Illuminazione s.r.l. – ITALY http://www.dts-lighting.it/ Made in Italy...
  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................

  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS YOU CAN PLACE THE UNIT ON NORMALLY FLAMMABLE SURFACES THIS SYMBOL INDICATES THE MINIMUM LED 30 cm DISTANCE TO BE KEPT BETWEEN THE UNIT AND THE ILLUMINATED OBJECTS...

  • Page 5: 4- Technical Features

    Full Colour (RGBW) LED featuring 4 LED channels (Red / Green / Blue / White); 3660 Total Lumens. The unit in available in two models: SCENA LED 80 PC FC, featuring a Ø 90 mm PC lens, and a long excursion 10°-76° linear zoom with high-efficiency optical system, enabling it to be used as a PC Beam or a very wide Wash (4245 Lux / 2 m).

  • Page 6: 5- Accessories

    DIMENSIONS 5- ACCESSORIES As standard 1 x User’s Manual 1 x POWERCON male cable connector (D.T.S. Code 0520P014) 1 x XLR 5 pins male cable connector (D.T.S. Code 0508B028) 1 x XLR 5 pins female cable connector (D.T.S. Code 0508B027) 1 x Filterframe for SCENA COMPACT *Black finish (D.T.S.

  • Page 7: 6- Important Safety Information

    6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: It is permissible to place the unit on normally flammable surfaces. Suitable for mounting on normally flammable materials surfaces greater than 200°C with some combustion time lag. Minimum distance from the closest illuminable surface: 30 cm. Replace any blown or damaged fuses only with those of identical value (2AT).

  • Page 8: 7- Input / Output Connections

    7- INPUT / OUTPUT CONNECTIONS DISPLAY PANEL DMX INPUT XLR 5 Pins Male Panel Connector DMX OUTPUT XLR 5 Pins Female Panel Connector FUSE 2AT MAINS AC MAINS AC INPUT OUTPUT 90-260V, 90-260V, 50/60 Hz 50/60 Hz MAX 16A...

  • Page 9: 8- Dmx Signal Connection

    8- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis.

  • Page 10: Dmx Addresses

    8.1 DMX addresses SCENA LED 80 FC can be controlled with 10 DMX channels (Default). In order to use the unit in 10 DMX channels mode, set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “10” Projector 2 A011 Projector 3...

  • Page 11: 10- Display Functions

    10- DISPLAY FUNCTIONS DISPLAY FUNCTIONS The SCENA LED 80 FC display panel shows all the available functions. Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 12 Range: 0-100 ENTER ENTER Up-Down ENTER Up-Down MENU Up-Down ENTER RGBW Min/Max, Smooth, Compression, Sync and Boost level Range = Off-20 values settings Default = 4 ENTER Up-Down ENTER Up-Down Quadratic = RGBW MINIMUM VALUE Linear light This menu allows to select the ENTER Up-Down ENTER...
  • Page 13 MENU Up-Down ENTER ENTER Up-Down ENTER ENTER Up-Down AUTOMATIC MODE Automatic demo game without DMX controller ENTER ENTER Up-Down ChPr Chase with 16 steps previously created in REC MODE Speed and Wait time selectable by user CUPr RGBW values selectable by user Rainbow (rAIn) Rainbow colours effect.
  • Page 14 DMX Recorder Mode For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX channels are needed. So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly programmed. The three new DMX channels are: DMX channel 11 = SCENES channel From 0-10 = no function (r001)
  • Page 15 Wireless MENU Up-Down ENTER Up-Down Enabled ENTER ENTER Up-Down Wireless WIRELESS DMX ENTER Disabled Wireless DMX enabled / disabled. UNLINK = LOG OUT By activating WDMX MODE, it will be ENTER possible to control SCENA LED 80 FC via D.T.S. ANTENNA Wireless DMX Transmitter (cod.
  • Page 16 Default = OFF MENU Up-Down ENTER Up-Down ENTER ENTER Up-Down EMERGENCY Emergency operating mode. ENTER By setting Emergency mode, it will be possible to select Dimmer intensity level that will ENTER then ran if DMX signal is missing or not available. Usefull for Emergency EXIT illumination on public areas.

  • Page 17: 11- Dmx Protocol

    11- DMX PROTOCOL 10 CHANNELS MODE (Default) SHUTTER DIMMER GREEN BLUE WHITE WHITE PRE-PROGRAMMED MACRO FUNCTIONS DMX CHANNEL Parameter: SHUTTER Function DMX range Mid Point Move Range Mode Option Value (degrees) value 000-009 Black-out 010-019 Open 020-029 Black-out 030-119 Strobe at variable speed from slow to fast (3,27 s –...
  • Page 18 Value value (degrees) 000-055 No Function 056-105 Full (Red-Green- Blue at Full) 106-155 White DTS IF CHANNEL 10 (FUNCTIONS) = CUSTOM WHITE RECALL (DMX range value 000-079) 156-205 Custom White Recall 206-255 White CTC (Channel 8 CTC enabled 256 color temp.
  • Page 19 DMX CHANNEL Parameter: MACRO PLEASE CHECK PAGE 11 DMX range Mid Point Move Range Mode Option Function Value DMX value (degrees) 000-014 No Function 015-029 Macro 1 030-044 Macro 2 045-059 Macro 3 060-074 Macro 4 075-089 Macro 5 090-104 Macro 6 105-119 Macro 7...
  • Page 20 Create (Enable CH 7 for Custom white Creation) 161-255 Custom White Store (Store the Custom White created) “WALL” 6 CHANNELS MODE (For use with DTS Wall mounted DMX controller 0514L007) 6 CHANNELS ENTER MENU Up-Down ENTER Up-Down GREEN BLUE DIMMER...
  • Page 21 DMX CHANNEL Parameter: DIMMER Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional dimmer DMX CHANNEL Parameter: NOT USED Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 No Function DMX CHANNEL Parameter: SHUTTER Function...
  • Page 22 DMX CHANNEL Parameter: GREEN Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional colour DMX CHANNEL Parameter: BLUE Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional colour DMX CHANNEL Parameter: WHITE Function...
  • Page 23 1 CHANNEL MODE DIMMER DMX CHANNEL Parameter: DIMMER Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional Dimmer 15 CHANNELS MODE SHUTTER DIMMER DIMMER FINE RED FINE GREEN GREEN FINE BLUE BLUE FINE WHITE WHITE FINE WHITE PRE-PROGRAMMED MACRO...
  • Page 24 DMX CHANNEL Parameter: DIMMER FINE Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional Dimmer DMX CHANNEL Parameter: RED Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-255 Proportional colour DMX CHANNEL Parameter: RED FINE...
  • Page 25 Value value (degrees) 000-055 No Function 056-105 Full (Red-Green- Blue at Full) 106-155 White DTS IF CHANNEL 15 (FUNCTIONS) = CUSTOM WHITE RECALL (DMX range value 000-079) 156-205 Custom White Recall 206-255 White CTC (Channel 13 CTC enabled 256 color temp.
  • Page 26 DMX CHANNEL Parameter: MACRO PLEASE CHECK PAGE 11 DMX range Mid Point Move Range Mode Option Function Value DMX value (degrees) 000-014 No Function 015-029 Macro 1 030-044 Macro 2 045-059 Macro 3 060-074 Macro 4 075-089 Macro 5 090-104 Macro 6 105-119 Macro 7...
  • Page 27 DMX CHANNEL Parameter: FUNCTIONS (Recall, Create and Store the Custom white) Function DMX range Mid Point DMX Move Range Mode Option Value value (degrees) 000-079 Custom White Recall (Enable CH 12 for Custom white Recall) 080-160 Custom White Create (Enable CH 12 for Custom white Creation)
  • Page 28 ISO 9001:2008 standard D.T.S. products are designed and manufactured at the D.T.S. plants in italy *0517I243* 0517I243 D.T.S. Illuminazione s.r.l. – Via Fagnano Selve 10-12-14 47843 Misano Adriatico (RN) Italia Tel.: +39 0541 611131. Fax + 39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
