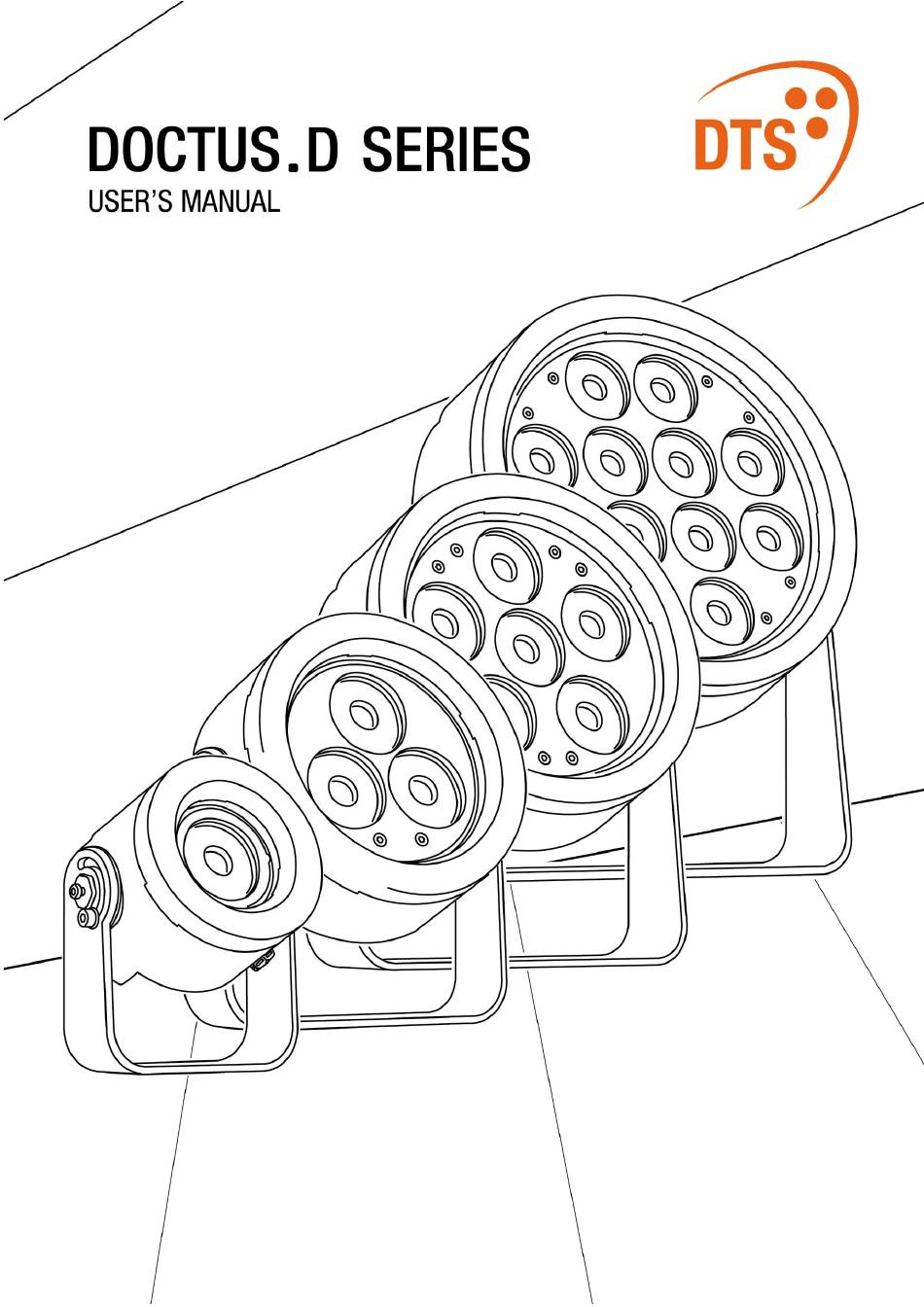

- Page 3 DOCTUS.D Release 1.02 For more information Code: Language User Manual Ver. 1.02 1 di 20...
- Page 4 DOCTUS.D Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S. Illuminazione S.r.l.
-
Page 5: Table Of Contents
DOCTUS.D Table of Contents Symbols................................ 4 Safety and Operation ........................... 5 Fire prevention ............................. 5 Prevention of electric shock ......................... 5 Level of protection IP ........................... 5 Safety ..............................6 Waste Electrical and Electronic Equipment (WEEE) directive ............. 6 Introduction..............................7 General Information .......................... -
Page 6: Symbols
DOCTUS.D 1 Symbols General risk Electric shock risk Burn risk – hot surface Maximum operating ambient temperature Minimum distance from illuminated surface. Do not stare at the operating lighting source Photobiological safety Risk Group 2 Never expose the front lens, from any angle, to direct sun light or strong artificial light sources in order to avoid damage to the internal parts of the product IEC Protection Class III Never throw with regular waste... -
Page 7: Safety And Operation
Failing to follow the instructions on this “User Manual” shall cancel the warranty issued by D.T.S. Illuminazione Srl. Before installation, please carefully read this “User Manual” and make sure to check the latest technical updates available on the D.T.S. Illuminazione Srl’s website – (www.dts-lighting.it). 2.1 Fire prevention Minimum distance from illuminated surface. -
Page 8: Safety
DOCTUS.D 2.4 Safety These products must be installed by qualified personnel only, following national laws and local regulation regarding construction and electrical systems. This product can only be installed by personnel qualified for the installation of electrical appliances. They must ensure that: The installation must be compliant with all relevant regulations, local and national laws, bills, norms, and safety regulations;... -
Page 9: Introduction

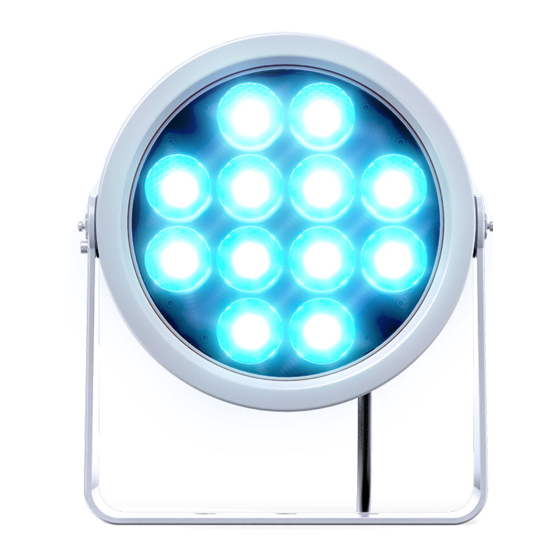

DOCTUS.D 3 Introduction 3.1 General Information LED lighting fixture for indoor and outdoor use. The product is particularly useful for “architainment” lighting, landscaping, or illuminating architectural elements. The whole DOCTUS.D line can be driven by constant voltage power supplies, managing the lighting of the leds through a control unit/console with DMX or RDM output. -
Page 10: Dimensions
DOCTUS.D 3.3 Dimensions Model DOCTUS.D 1 4.41 2.83 3.98 2.76 1.65 3.15 DOCTUS.D 3 6.18 3.74 5.71 2.76 1.54 4.88 DOCTUS.D 6 7.91 4.84 6.97 3.15 1.73 6.14 DOCTUS.D 12 10.43 6.42 8.94 3.74 1.89 8.03 4 Technical Specifications Model DOCTUS.D 1 DOCTUS.D 3 DOCTUS.D 6... -
Page 11: Protection Against Over-Temperature
DOCTUS.D Operating temperature range -10 to 45 °C (14 °F to 113 °F) Storage temperature range -25 to 60 °C (-13 °F to 140 °F) Max internal temperature 70 °C (158 °F) @ Full power Internal shutdown temperature 87 °C (188 °F) IP grade IP65 N°... -
Page 12: Before The Installation
DOCTUS.D 5.2 Before the Installation 5.2.1 Check-up List for the Installation Prepare all cables and necessary accessories. • • Test the DOCTUS.D before installing. Pay attention not to damage cables/connectors during check- Ensure that all check-ups described within this document are thoroughly followed. •... -
Page 13: Cable Folding
DOCTUS.D 5.2.4 Cable Folding Cables MUST NOT be folded with a curvature radius inferior to four times their external diameter (4x cable diameter). The cable, when extending from the product, must be kept straight for a minimum length of 5 cm (1.97 in) next to the cable gland. -
Page 14: Doctus.d Mounting
DOCTUS.D 5.3 DOCTUS.D Mounting 5.3.1 Drilling Templates DOCTUS.D 1 DOCTUS.D 3 DOCTUS.D 6 DOCTUS.D 12 NOTES: The drilling templates are lined with the rotation axis of the product. DOCTUS.D 1 and 3 brackets are provided with only one drilling template. As soon as the desired light beam orientation has been obtained, accurately fasten the fixture. -
Page 15: Vertical Orientation
DOCTUS.D 5.4 Vertical Orientation 5.4.1 Excursion DOCTUS.D can be vertically oriented with a 230° excursion. 5.4.2 Adjustment After installing the product, the vertical orientation of the light beam may be obtained by manually rotating the head of the fixture. The rotation system is manufactured within D.T.S. Illuminazione Srl’s plants with a friction level which allows for its manual positioning. -
Page 16: Wiring
DOCTUS.D 5.5 Wiring To operate, DOCTUS.D units require a DC power supply of appropriate value and a DMX/RDM connection to a control unit for their management and configuration. 5.5.1 Characteristics of power supplies Not all power supplies are suitable for driving the DOCTUS.D. To select the correct power supply consider that: The product is class III and therefore the PSU must have a SELV type output and ensure double •... -
Page 17: Termination Resistor
DOCTUS.D 5.5.2.1 Termination Resistor In DMX RDM connections, the use of a termination resistor is necessary to minimize reflections and provide good communication. The value of the termination resistor is 120 Ohm and should be placed near the two ends of the communication network. -
Page 18: Maintenance
DOCTUS.D 6 Maintenance D.T.S. Illuminazione Srl’s products are of higher quality and design, therefore must be treated with care. The following recommendations will help you keep your warranty intact, to make the best possible use of the product, and to maximize their lifespan: Do not use the product (or products) before carefully reading this manual. -
Page 19: Troubleshooting
DOCTUS.D 8 Troubleshooting Warning: Make sure to unplug the devices from their power supply when connecting/disconnecting cables. Problem Probable cause Possible solutions Check connections between DOCTUS.D and • their power supply. • Ensure correct polarity is respected. Wrong PSU connection The product, after Check that the PSU is working properly •... -
Page 20: Accessories And Their Installation
DOCTUS.D 9 Accessories and their Installation Three different accessories, which can be mounted during installation of the device, are designed for DOCTUS.D. The accessories can be ordered separately from the product. 9.1 Safety Cable In order to avoid accidental falls, a safety cable might be needed for temporary installation. Using a safety cable doesn’t exempt from a correct installation of the product. -
Page 21: Top Hat Installation
D.T.S. Illuminazione Srl’s products are guaranteed against any material or operational defect starting from the purchasing date, given that the acquired products have been used as indicated on this User Manual. Please refer to www.dts-lighting.it for the complete warranty terms and conditions. 11 Product Disposal DOCTUS.D are electrical devices and therefore, at the end of their lifetime, must be disposed according to... - Page 22 DOCTUS.D NOTES User Manual Ver. 1.02 20 di 20...
