Installation Guide
Avigilon™ High Definition H.264 IP Dome Camera Models:
1.0-H3-DO1, 1.0-H3A-DO1, 1.0-H3-DO1-IR, 1.0-H3A-DO1-IR, 1.0-H3-
DO2, 1.0-H3A-DO2, 1.3L-H3-DO1, 1.3L-H3-DO2, 2.0-H3-DO1, 2.0-
H3A-DO1, 2.0-H3-DO1-IR, 2.0-H3A-DO1-IR, 2.0-H3-DO2, 2.0-
H3A-DO2, 3.0W-H3-DO1, 3.0W-H3A-DO1, 3.0W-H3-DO1-IR,
3.0W-H3A-DO1-IR, 3.0W-H3-DO2, 3.0W-H3A-DO2, 5.0-H3-DO1,
5.0-H3-DO1-IR and 5.0-H3-DO2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avigilon 1.0-H3A-DO1
Summary of Contents for Avigilon 1.0-H3A-DO1

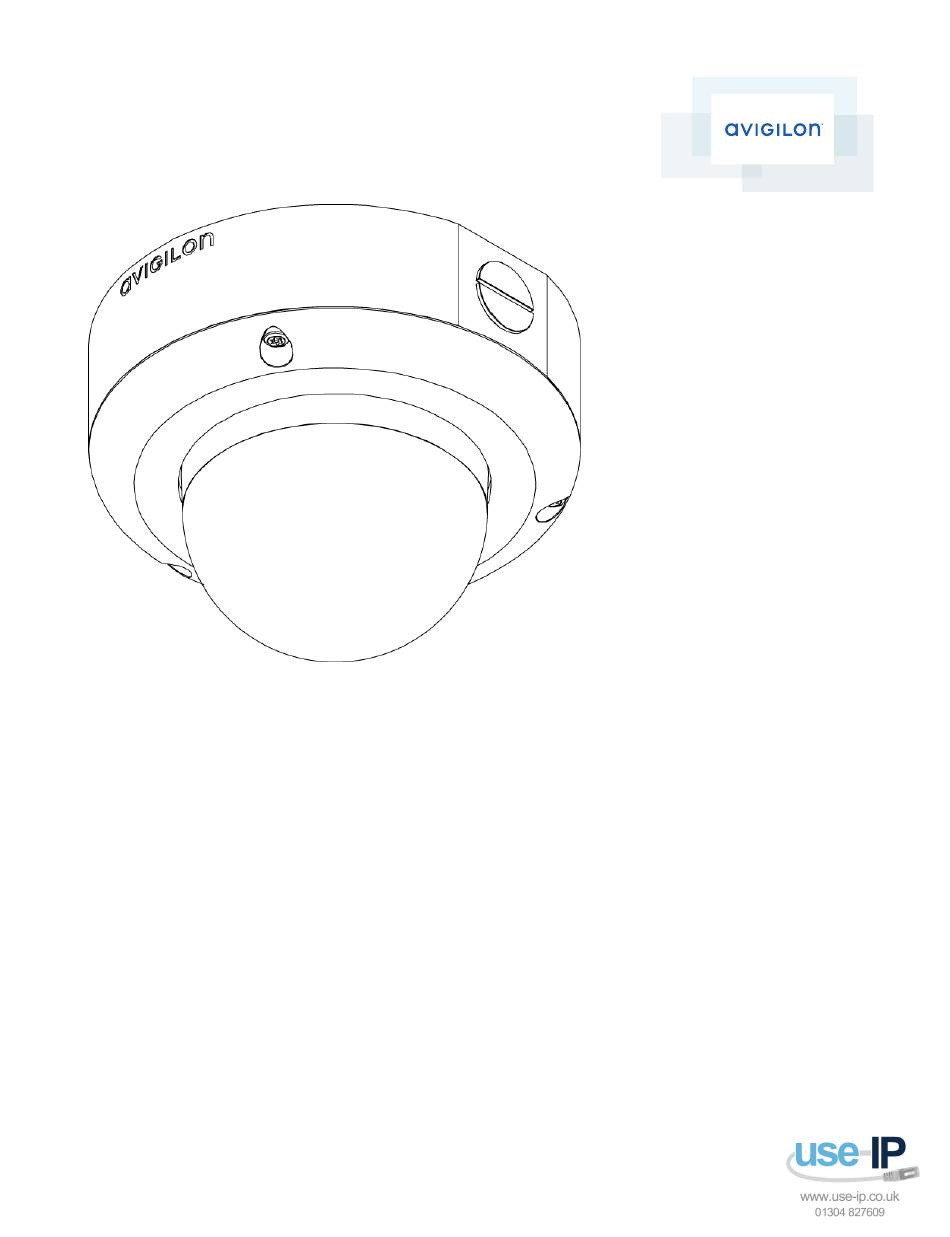

- Page 1 Installation Guide Avigilon™ High Definition H.264 IP Dome Camera Models: 1.0-H3-DO1, 1.0-H3A-DO1, 1.0-H3-DO1-IR, 1.0-H3A-DO1-IR, 1.0-H3- DO2, 1.0-H3A-DO2, 1.3L-H3-DO1, 1.3L-H3-DO2, 2.0-H3-DO1, 2.0- H3A-DO1, 2.0-H3-DO1-IR, 2.0-H3A-DO1-IR, 2.0-H3-DO2, 2.0- H3A-DO2, 3.0W-H3-DO1, 3.0W-H3A-DO1, 3.0W-H3-DO1-IR, 3.0W-H3A-DO1-IR, 3.0W-H3-DO2, 3.0W-H3A-DO2, 5.0-H3-DO1, 5.0-H3-DO1-IR and 5.0-H3-DO2...
- Page 2 Power Source” with output rated 12 VDC or 24 VAC, 10 W min. or Power over Ethernet (PoE), rated 48 VDC, 10 W min. Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated. ...
- Page 3 Legal Notices © 2012 -2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors.
- Page 4 This manual has been compiled and published covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
-
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Front View Rear View IR View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting and Aiming Video Analytics Cameras Mounting the Dome Camera Connecting Cables Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera... -
Page 6: Overview
Overview Cover View 1. Dome Cover Vandal proof dome cover. 2. Tamper Resistant Screws Torx captive screws to fix the dome cover to the base. 3. Cable Entry Hole An entry hole for network, power and I/O cables. Overview... -
Page 7: Bottom View
Bottom View 1. Cable Entry Hole An entry hole for network, power and I/O cables. 2. Mounting Holes Mounting points for the camera. Bottom View... -
Page 8: Front View
Front View 1. Azimuth Control Provides adjustment of the image angle. 2. Tilt Lock Thumb Screws Provides a locking mechanism for the image tilt adjustment. 3. Pan Lock Thumb Screws Provides a locking mechanism for the image pan adjustment. 4. I/O Connector Block Provides connections to external input/output devices. -
Page 9: Rear View
8. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 15 9. Link LED Indicates if there is an active connection in the Ethernet port. Rear View 1. SD Card Slot Accepts an SD card for onboard storage. Rear View... -
Page 10: Ir View
IR View 1. IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View... -
Page 11: Installation
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: Avigilon™ High Definition IP Dome Camera Terminal block T20 Torx key ... -
Page 12: Removing The Dome Cover
Try not to touch the dome bubble and keep the protective cover on the bubble until after the installation is complete. Mounting and Aiming Video Analytics Cameras If you are installing an Avigilon™ video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: ... - Page 13 Figure 1: Dome camera mounted to a vertical surface 4. Pull the cables through the conduit, then through the cable entry hole in the dome camera. 5. Apply silicone sealant over the mounting holes inside the camera then drive four screws into the mounting holes to fasten the dome camera to the ceiling or wall.
-
Page 14: Connecting Cables
Figure 2: Dome camera mounted to a ceiling 6. Apply extra silicone sealant over the screw heads and allow to cure. 7. Apply silicone sealant around the edge of the camera that is screwed into the mounting surface. WARNING — Only use UL listed mounting brackets suitable for the mounting surface and can sustain a minimum 1.2 kg (2.6 lbs). -
Page 15: Assigning An Ip Address
Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. Aiming the Dome Camera 1. Loosen the pan and tilt lock screws on the camera. -
Page 16: Installing The Dome Cover
The SD card can only be inserted in the orientation shown on the camera. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Installing the Dome Cover 1. -
Page 17: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the device needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The device can be powered from 12 VDC or 24 VAC. -
Page 18: Connecting To Microphones, Speakers And Video Monitors
1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 19 Figure 3: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT NOTE: Composite Video OUT is not available for 3.0 MP video analytics camera models. Connecting to Microphones, Speakers and Video Monitors...
-
Page 20: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 21: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 4: The firmware revert button on the side of the dome camera. 1. -
Page 22: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 23: Specifications
Specifications Camera Audio Input Line input, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H3-DO1: 3-9mm, F1.2, P-iris Lens H3-DO2: 9-22mm, F1.6, P-Iris Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network Network 100Base-TX Cabling Type... - Page 24 Operating -30 °C to +50 °C (-22 °F to 122 °F) Temperature Storage -10 °C to +70 °C (14 °F to 158 °F) Temperature Certifications UL 60950 CSA 60950 EN 60950-1 Safety WEEE ROHS IK10 Impact Rating Environmental Meets IP66 Weather Rating FCC Part 15 Subpart B Class B Electromagnetic EN 55022 Class B...
-
Page 25: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
