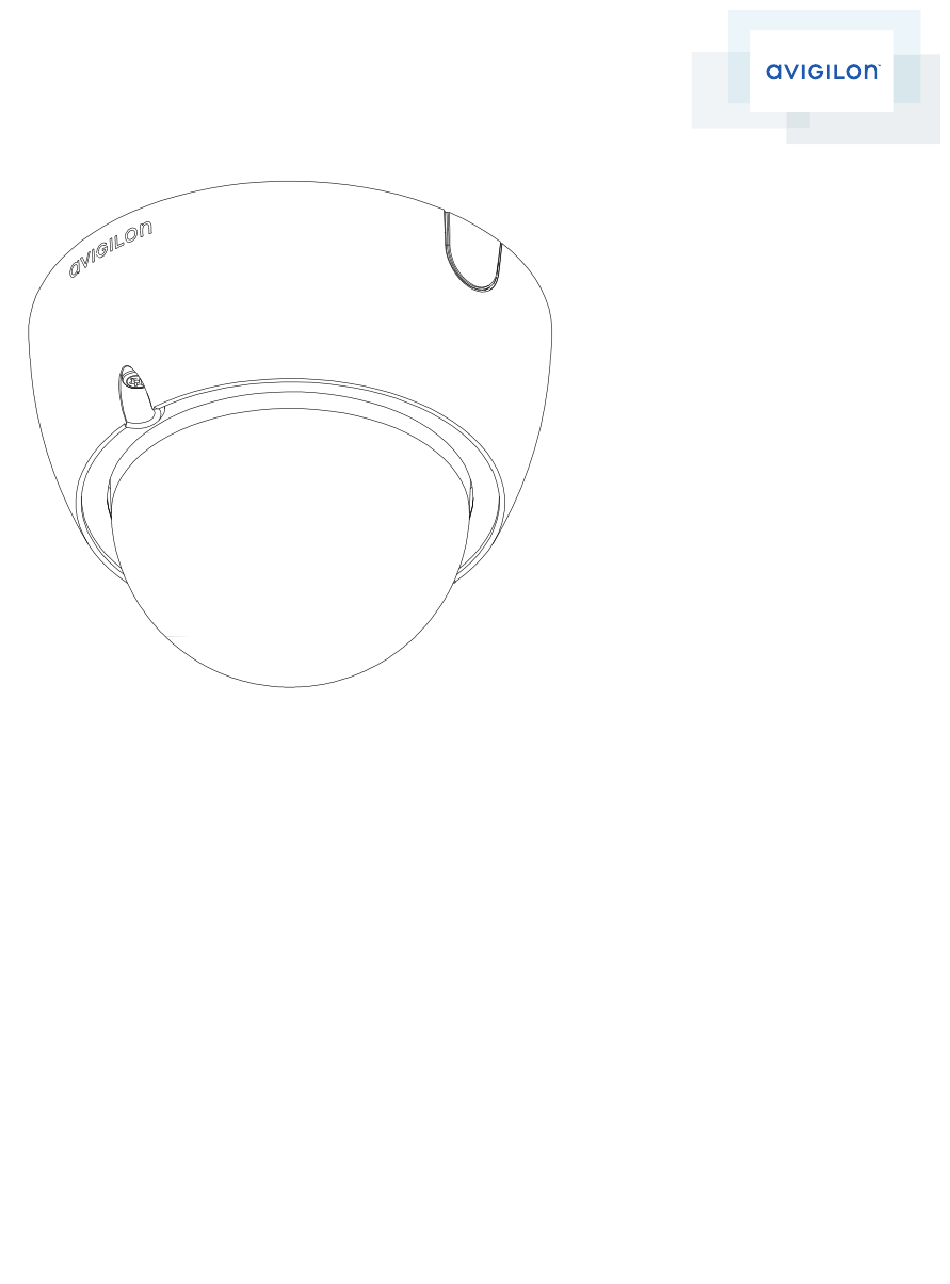

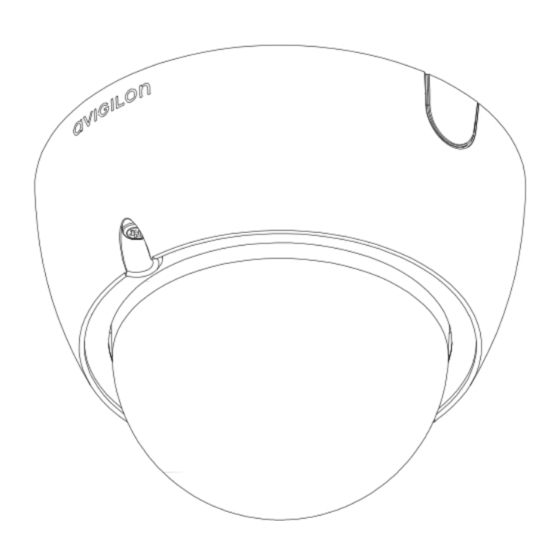

- Page 1 Installation Guide Avigilon™ High Definition H.264 IP Dome Camera Models: 1.0-H3-D1, 1.0-H3-D1-IR, 1.0-H3-D2, 1.3L-H3-D1, 1.3L-H3-D2, 2.0- H3-D1, 2.0-H3-D1-IR, 2.0-H3-D2, 3.0W-H3-D1, 3.0W-H3-D1-IR, 3.0W-H3-D2, 5.0-H3-D1, 5.0-H3-D1-IR and 5.0-H3-D2...
- Page 2 Ethernet (PoE), rated 48 VDC, 6 W min (10 W min. for -IR model). Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
- Page 3 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines.
- Page 4 Legal Notices © 2012 -2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. AVIGILON is a registered and/or unregistered trademark of Avigilon Corporation in Canada and other jurisdictions worldwide.
-
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Front View Rear View IR View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting the Dome Camera Connecting Cables Assigning an IP Address Accessing the Live Video Stream Aiming the Dome Camera (Optional) Configuring Onboard Storage Installing the Dome Cover... -
Page 6: Overview
Overview Cover View 1. Dome Cover Vandal proof dome cover. 2. Tamper Resistant Screws Torx captive screws to fix the dome cover to the base. 3. Cable Entry Hole An entry hole for network, power and I/O cables. Overview... -
Page 7: Bottom View
Bottom View 1. Cable Entry Hole An entry hole for network, power and I/O cables. 2. Mounting Holes Mounting points for the camera. 3. Serial Number Tag Product serial number and part number label. Bottom View... -
Page 8: Front View
Front View 1. Azimuth Control Provides adjustment of the image angle. 2. Tilt Lock Thumb Screws Provides a locking mechanism for the image tilt adjustment. 3. Pan Lock Thumb Screws Provides a locking mechanism for the image pan adjustment. 4. I/O Connector Block Provides connections to external input/output devices. -
Page 9: Rear View
Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. Also receives power when it is connected to a network that provides Power over Ethernet. 8. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 14 9. -
Page 10: Ir View
IR View 1. IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View... -
Page 11: Installation
Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Camera Package Contents Ensure the package contains the following: Avigilon™ High Definition IP Dome Camera Terminal block T20 Torx key ... -
Page 12: Mounting The Dome Camera
the installation is complete. Mounting the Dome Camera Perform the following steps to mount the dome camera to the ceiling or wall: 1. Use the drill template to drill four mounting holes and one cable entry hole in the ceiling or wall. 2. -
Page 13: Connecting Cables
Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. Connecting Cables... -
Page 14: Aiming The Dome Camera
The SD card can only be inserted in the orientation shown on the camera. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Installing the Dome Cover 1. -
Page 15: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Camera Installation Tool User Guide Avigilon Control Center Client User Guide Avigilon High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/support-and-downloads For More Information... -
Page 16: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the device needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The device can be powered from 12 VDC or 24 VAC. -
Page 17: Connecting To Microphones, Speakers And Video Monitors
1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 18 Figure 2: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT Connecting to Microphones, Speakers and Video Monitors...
-
Page 19: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 20: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 3: The firmware revert button on the side of the dome camera. 1. -
Page 21: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 22: Specifications
Specifications Camera Audio Input Line input, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H3-D1: 3-9mm, F1.2, P-iris Lens H3-D2: 9-22mm, F1.6, P-Iris Onboard Storage SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended Network Network 100Base-TX Cabling Type... - Page 23 Storage -10 °C to +70 °C (14 °F to 158 °F) Temperature Certifications UL 60950 CSA 60950 EN 60950-1 Safety WEEE ROHS FCC Part 15 Subpart B Class B Electromagnetic EN 55022 Class B Emissions IC ICES-003 Class B EN 55024 Class B EN 61000-4-2 EN 61000-4-3 Electromagnetic...
-
Page 24: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
