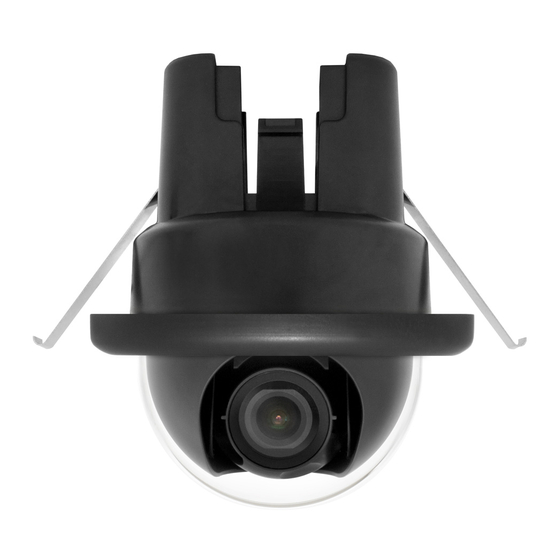

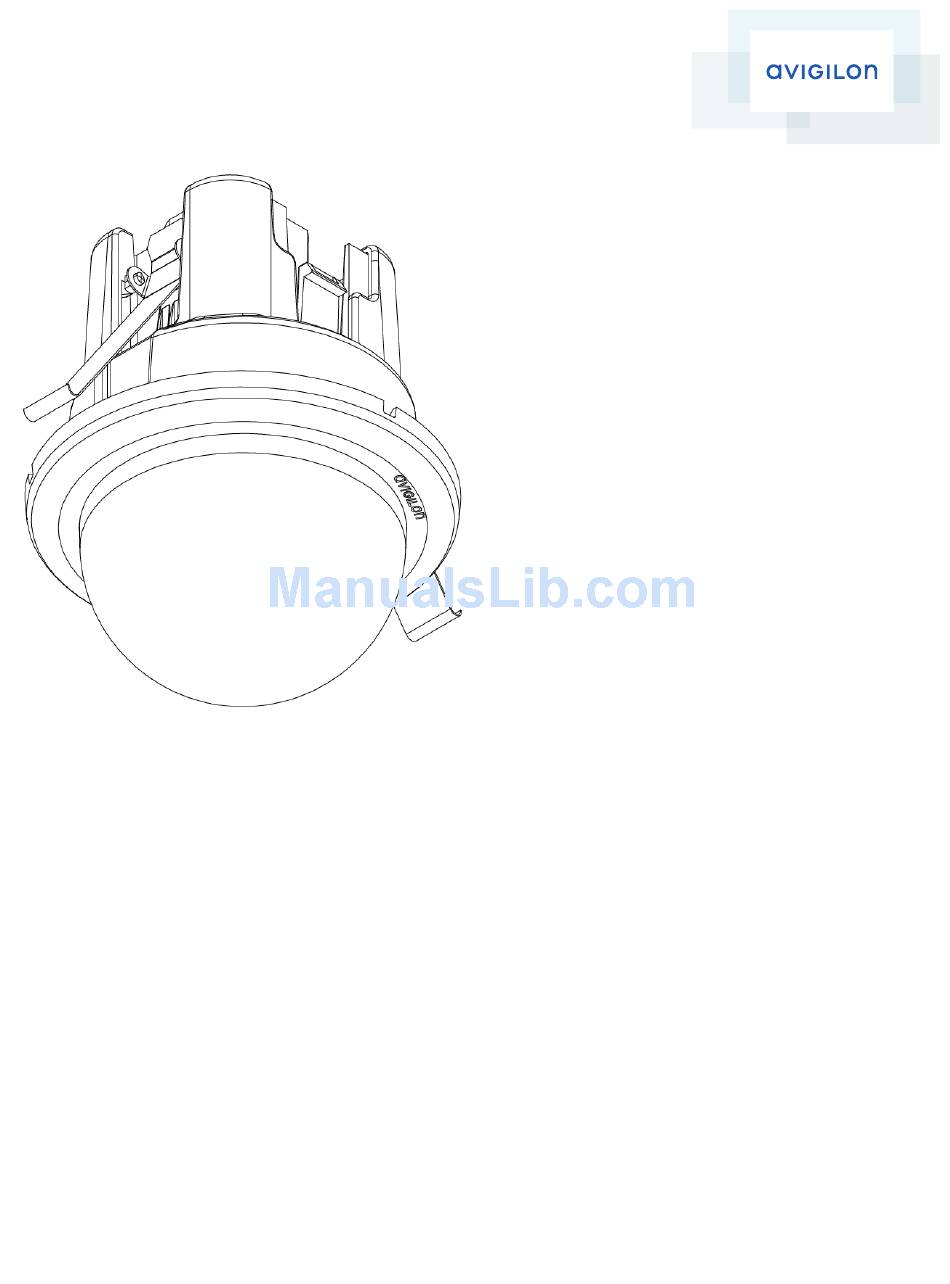

- Page 1 Installation Guide Avigilon™ High Definition H.264 IP Micro Dome Camera Models: 1.0-H3M-DC1, 1.0-H3M-DC1-BL, 2.0-H3M-DC1 and 2.0-H3M-DC1-...
- Page 2 Do not use strong or abrasive detergents when cleaning the device body. Use only accessories recommended by Avigilon. Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Fcc Notice
Legal Notices © 2014 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. - Page 4 This manual has been compiled and published covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
-
Page 5: Table Of Contents
Table of Contents Overview Shroud View Side View Front View Cable Assembly Installation Camera Package Contents Installation Steps Preparing for the Installation Connecting PoE Mounting the Micro Dome Camera Assigning an IP Address Accessing the Live Video Stream Aiming the HD Micro Dome Camera Installing the Dome Cover For More Information LED Indicators... -
Page 6: Overview
Overview Shroud View 1. Dome Shield Hides the camera's field of view from observers. 2. Shield Locking Tab Locks the dome shield into place. 3. Cover Release Tab Allows you to release and remove the dome cover. Overview... -
Page 7: Side View
Side View 1. Locking Sheet Springs Locks the in-ceiling camera into place. 2. Lock Release Snaps Releases the in-ceiling lock. 3. Gimbal Allows you to move and aim the camera after it has been installed. Side View... -
Page 8: Front View
Front View 1. Vertical Marker Provides a vertical reference point for the video image. Points up. 2. Horizon Markers Provides a reference point for aligning the video image with the horizon line. Front View... -
Page 9: Cable Assembly
Cable Assembly 1. Link LED Indicates if there is an active connection in the Ethernet port. 2. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 13 3. Ethernet Port Accepts power and Ethernet connection to the network. The camera can only be powered by Power over Ethernet (PoE). -
Page 10: Installation
Installation Camera Package Contents Ensure the package contains the following: Avigilon™ HD Micro Dome Camera Dome Cover Rubber boot Hole template sticker Installation Steps Complete the following steps to install the device: Preparing for the Installation Connecting PoE Mounting the Micro Dome Camera Assigning an IP Address Accessing the Live Video Stream... -
Page 11: Preparing For The Installation
Preparing for the Installation Before you can install the camera, you must first complete the following steps: 1. Use a 3" hole saw to cut a hole in the mounting surface. Or, use the mounting template as a guide for cutting a hole in the mounting surface. NOTE: The camera supports a mounting surface that is between 1 mm (0.04") to 25.4 mm (1") thick. - Page 12 4. Squeeze the lock release snaps together and pull the dome camera up. The locking sheet springs are released. Preparing for the Installation...
-
Page 13: Connecting Poe
5. Rest the camera on its side to keep the locks disengaged. Connecting PoE The HD Micro Dome camera can only be powered by Power over Ethernet (PoE). 1. Pull the required Ethernet cable to the camera. 2. To protect the cable from dust and moisture, slide the cable through the supplied rubber boot. 3. -
Page 14: Mounting The Micro Dome Camera
6. If you installed the rubber boot, slide the boot over the end of the cable assembly. 7. Tuck the cable assembly into the mounting hole. Make sure the cable assembly is not dangling by the cable. Mounting the Micro Dome Camera 1. -
Page 15: Assigning An Ip Address
Accessing the Live Video Stream Live video stream can be viewed using one of the following methods: Avigilon Camera Installation Tool software application. Web browser interface: http://<IP address>/. Network Video Management software application (for example, the Avigilon Control Center software). Assigning an IP Address... -
Page 16: Aiming The Hd Micro Dome Camera
NOTE: The default username is admin and the default password is admin. Aiming the HD Micro Dome Camera 1. Turn the gimbal and rotate the camera ball until it faces the direction you want. Use the horizon markers and the vertical marker as a guide. Installing the Dome Cover 1. -
Page 17: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Camera Installation Tool User Guide Avigilon Control Center Client User Guide Avigilon High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/support-and-downloads... -
Page 18: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 19: Removing The Dome Cover
Removing the Dome Cover If you ever need to adjust the camera aim, or access the cable assembly, you will need to remove the dome cover first. 1. Press the cover release tab and twist the dome cover until it is released from the base. The dome cover can only move in one direction. -
Page 20: Reset To Factory Default Settings
Reset to Factory Default Settings If the camera no longer functions as expected, you can choose to restore the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure: The firmware revert button on the cable assembly. 1. -
Page 21: Setting The Ip Address Through The Arp/Ping Method
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 22: Specifications
Specifications Camera Lens Lens 2.8mm, F2.0 Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF compliance version 1.02, 2.00, Profile S ( www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication. IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Streaming Protocols Zeroconf, ARP, RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,RTP/ RTSP/HTTPS/TCP, HTTP... - Page 23 FCC Part 15 Subpart B Class B Electromagnetic EN 55022 Class B Emissions IC ICES-003 Class B EN 55024 Class B EN 61000-4-2 EN 61000-4-3 Electromagnetic EN 61000-4-4 Immunity EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 Specifications...
-
Page 24: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
