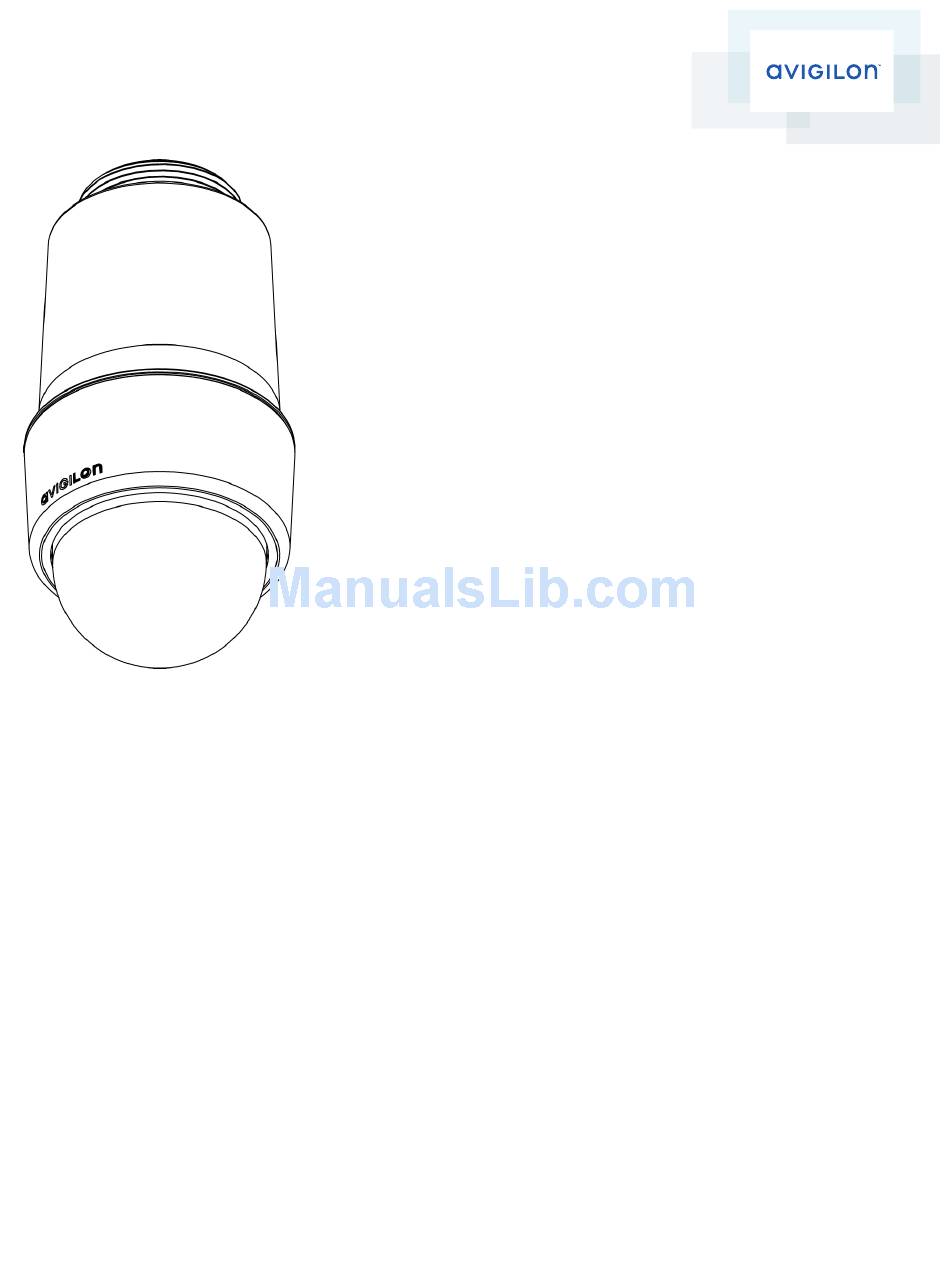

- Page 1 Installation Guide Avigilon™ High Definition H.264 IP Micro Dome Camera Models: 1.0-H3M-DP1 and 2.0-H3M-DP1...
- Page 2 Do not use strong or abrasive detergents when cleaning the device body. Use only accessories recommended by Avigilon. Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Fcc Notice
Legal Notices © 2014 -2015 Avigilon Corporation. All rights reserved. Unless expressly granted in writing, no license is granted with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of Avigilon Corporation or its licensors. - Page 4 This manual has been compiled and published covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice. Avigilon reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
-
Page 5: Table Of Contents
Table of Contents Overview Housing View Front View Cable Assembly Installation Required Tools and Materials Camera Package Contents Installation Steps Preparing for the Installation Connecting Power Over Ethernet (PoE) Mounting the HD Micro Dome Camera Assigning an IP Address Accessing the Live Video Stream Aiming the HD Micro Dome Camera For More Information LED Indicators... -
Page 6: Overview
Overview Housing View 1. Dome Cover Attaches the camera dome bubble to the camera housing. 2. 1.5" Thread Thread for mounting the camera onto the mounting conduit. Overview... -
Page 7: Front View
Front View 1. Vertical Marker Provides a vertical reference point for the video image. Points up. 2. Horizon Markers Provide reference points for aligning the video image with the horizon line. 3. Gimbal Allows you to move and aim the camera after it has been installed. Front View... -
Page 8: Cable Assembly
Cable Assembly 1. Link LED Indicates if there is an active connection in the Ethernet port. 2. Connection Status LED Provides information about device operation. For more information, see LED Indicators on page 13 3. Ethernet Port Accepts power and Ethernet connection to the network. The camera can only be powered by Power over Ethernet (PoE). -
Page 9: Installation
Mounting Conduit Teflon Tape Silicone Sealant Camera Package Contents Ensure the package contains the following: Avigilon™ HD Micro Dome Camera 3/4" NPT Female Adapter Foam Sealing Gasket Installation Steps Complete the following steps to install the device: Preparing for the Installation... - Page 10 1. Connect the NPT adapter If using the provided 3/4" NPT adapter a. Wrap the threads at the end of the mounting conduit three to five times with Teflon tape. Preparing for the Installation...
- Page 11 If using another adapter a. Attach the adapter to the mounting conduit. NOTE: If using a different adapter than the one provided by Avigilon, ensure that the camera housing is sealed from moisture. 2. Preparing the Ethernet Connector: a. Pull the Ethernet cable through the mounting conduit.
-
Page 12: Connecting Power Over Ethernet (Poe)
b. Crimp the end of the mounting conduit's Ethernet cable with an Ethernet connector. Connecting Power Over Ethernet (PoE) NOTE: The HD Micro Dome camera can only be powered by Power over Ethernet (PoE). Connecting Power Over Ethernet (PoE) - Page 13 1. Place the foam gasket onto the camera housing. 2. Connect the mounting conduit's Ethernet connector to the camera's Ethernet port. Connecting Power Over Ethernet (PoE)
-
Page 14: Mounting The Hd Micro Dome Camera
NOTE: The default camera username is admin and the default password is admin. Accessing the Live Video Stream Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network Video Management software application (for example, the Avigilon Control Center software). Mounting the HD Micro Dome Camera... -
Page 15: Aiming The Hd Micro Dome Camera
NOTE: The default camera username is admin and the default camera password is admin. Aiming the HD Micro Dome Camera 1. Unscrew the dome cover from the camera housing. NOTE: You must hold the housing to ensure that the camera housing does not rotate. Do not hold the camera dome bubble. - Page 16 3. Screw the dome cover back onto the base. NOTE: You must hold the base to ensure the camera does not rotate. Do not hold the camera dome bubble. The resulting fingerprints may damage the overall image quality. Aiming the HD Micro Dome Camera...
-
Page 17: For More Information
For More Information Additional information about setting up and using the device is available in the following guides: Avigilon™ Control Center Client User Guide Avigilon™ High Definition H.264 Web Interface User Guide The manuals are available on the Avigilon website: http://avigilon.com/support-and-downloads... -
Page 18: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 19: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 1: The firmware revert button on the cable assembly. 1. -
Page 20: Setting The Ip Address Using The Arp/Ping Method
Setting the IP Address Using the ARP/Ping Method Complete the following steps to configure the camera to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 21: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints Use a microfiber cloth or non-abrasive fabric to dry the dome bubble. -
Page 22: Specifications
Specifications Camera Lens Lens 2.8 mm, F2.0 Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF ONVIF compliance version 1.02, 2.00, Profile S ( www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Streaming Protocols Zeroconf, ARP RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/... - Page 23 IK10 Impact Rating Environmental IP55 Weather Rating FCC Part 15 Subpart B Class B Electromagnetic EN 55022 Class B Emissions IC ICES-003 Class B EN 55024 Class B EN 61000-4-2 EN 61000-4-3 Electromagnetic EN 61000-4-4 Immunity EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 Specifications...
-
Page 24: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
