Summary of Contents for Miele professional PG 8083 SCVi

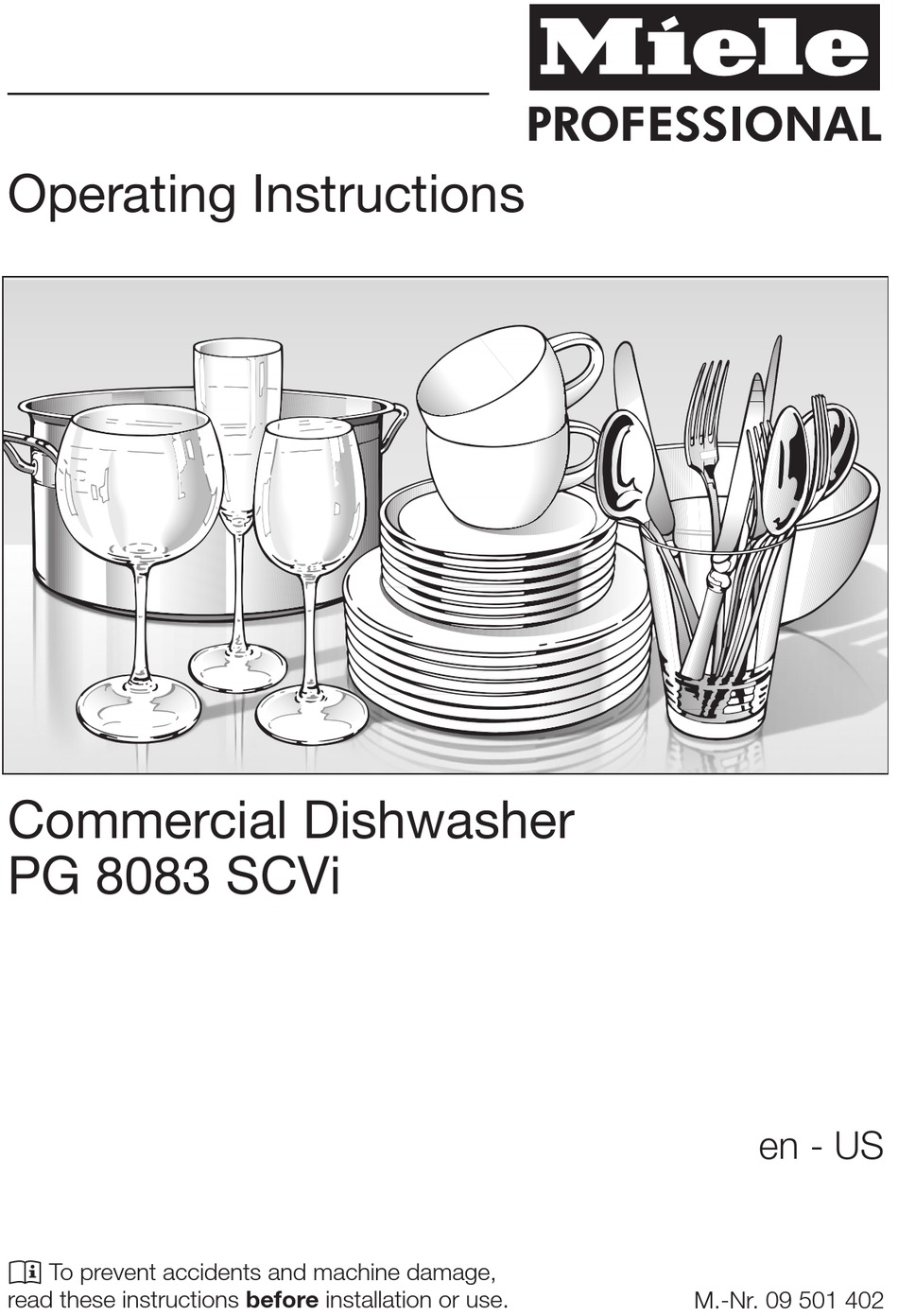

- Page 1 Operating Instructions Commercial Dishwasher PG 8083 SCVi en - US To prevent accidents and machine damage, read these instructions before installation or use. M.-Nr. 09 501 402...
-
Page 2: Table Of Contents
Contents Guide to the manual .................... 5 Proper use...................... 6 Important safety instructions ................ 8 Product description..................... 14 Machine overview....................14 Control panel ......................15 Caring for the environment ................ 16 Energy-saving washing ..................17 Commissioning.................... 18 Opening the door ....................18 Closing the door.................... - Page 3 Contents Optional accessories .................. 36 Operation...................... 37 Detergent....................... 37 Adding detergent....................39 Switching on the appliance ................... 40 Selecting a program ....................40 Starting a program ....................40 Time display ......................41 Standby ......................... 41 End of program...................... 42 Switching off......................42 Unloading the dishwasher..................
- Page 4 Contents Cleaning and care .................... 57 Maintenance......................57 Cleaning the wash chamber.................. 57 Cleaning the door and the door seal..............57 Cleaning the indicator reflector panel ..............58 Cleaning the control panel and door front ............58 Filter system ......................59 Cleaning the filters....................
-
Page 5: Guide To The Manual
Guide to the manual Warnings Information which is important for safety is highlighted by a thickly framed box with a warning symbol. This alerts you to a potential risk of personal injury or property damage. Read these warning notes carefully and follow any procedural instructions and operating prompts. -
Page 6: Proper Use
Proper use This dishwasher complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the dishwasher, please read these instructions carefully before using it for the first time. They contain important information on its safety, installation, use and maintenance. - Page 7 Proper use This dishwasher is supplied with a special bulb to cope with particular conditions (e.g. temperature, moisture, chemical resistance, abrasion resistance and vibration). This special bulb must only be used for the purpose for which it is intended, i.e. to illuminate the wash chamber.
-
Page 8: Important Safety Instructions
Important safety instructions Proper installation Do not install the commercial dishwasher in areas at risk of explosion or freezing. To ensure the stability of undercounter commercial dishwashers, they must only be installed beneath a continuous countertop that is bolted to the adjacent cabinetry. - Page 9 Important safety instructions The electrical safety of this commercial dishwasher can only be guaranteed when it is connected to a correctly installed grounding conductor system. If in any doubt, please have the electrical installation tested by a qualified electrician. Miele cannot be held liable for the consequences for the lack or interruption of a grounding conductor (e.g.
- Page 10 Important safety instructions There are live wires in the water intake hose. Do not shorten the water intake hose, even if it is too long. The built-in waterproof system offers reliable protection against water damage if the following conditions are met: –...
- Page 11 Important safety instructions Correct use This commercial dishwasher is designed for operation with water and detergents suitable for use in commercial dishwashers only. Organic solvents and flammable liquid agents must not be used. This could cause an explosion, property damage due to the destruction of rubber or plastic, and the resulting leakage of liquids.
- Page 12 Important safety instructions When using detergents and specialized products, it is essential that the manufacturer's instructions are followed. Detergents must only be used for the purpose they are designed for and in the situation specified, to avoid material damage and serious chemical reactions (e.g.
- Page 13 Important safety instructions Children in the vicinity Supervise children when they are anywhere near this dishwasher. Do not let them play with it. There is a danger that children may lock themselves in the dishwasher. Keep children away from chemical agents. These contain irritant and corrosive ingredients which can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing.
-
Page 14: Product Description
Product description Machine overview a Upper spray arm (not visible) g Filter combination b Cutlery tray h Data plate c Upper basket i In-operation indicator light d Middle spray arm j Rinse aid reservoir e Air intake for drying k Dual-compartment detergent dispenser f Lower spray arm l Reservoir for reactivation salt... -
Page 15: Control Panel
Product description Control panel a Display e Program selection b Additional Programs f Program Selection button button with indicator light c Delay Start button with g Button (On/Off) indicator light h In-operation indicator light d Extra Drying button + with indicator light... -
Page 16: Caring For The Environment
Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances contain valuable materials. They also The cardboard box and packing contain certain substances, compounds materials protect the appliance during and components which were essential shipping. -
Page 17: Energy-Saving Washing
Caring for the environment When using powder detergent you Energy-saving washing can use 1/3 less detergent if baskets This dishwasher is exceptionally are only half full. economical in its use of water and electricity. You can make the most of your machine by following these tips: ... -
Page 18: Commissioning
Commissioning Opening the door Closing the door Insert the baskets. Then lift the door upwards and push until it clicks into position. Do not put your hand inside the door as it is closing. Risk of injury! At the end of programs with a drying phase (see "Program overview"), the door will open automatically a little in... -
Page 19: Display Functions
Commissioning Display functions General information Settings menu The following functions can be selected or set with the display: The Settings menu is used to alter the dishwasher's electronics to suit – The program different requirements. – The delay start time You access the Settings menu by pressing a specific button combination. -
Page 20: Standard Settings
Commissioning It is useful to know your water hardness Standard settings so that you can provide the service Switch the dishwasher on with the technician with this information in the button. event of any service calls. If the dishwasher is being turned on for Enter the water hardness below: the first time, the welcome screen will ____________ gr/gal (°d) -
Page 21: Before Using The Machine For The First Time, You Will Need
Filling the salt compartment dishwasher salt for reactivation, or pure evaporated salt. In order to achieve good cleaning Miele Professional offers appropriate results, the dishwasher needs to products. operate with soft water. Hard water results in a build-up of calcium deposits Other types of salt may contain on tableware and in the dishwasher. - Page 22 Commissioning When adding salt, only open the door half way to avoid spills. Add salt only until the reservoir is full. The salt reservoir holds approx. 2.2 lbs (1 kg) of salt, depending on the Press the button on the lid of the salt type of salt used.
-
Page 23: Salt Indicator
Suitable products are available from The salt indicator is deactivated if the Miele Professional. dishwasher is set to a water hardness below 4 gr/gal (4 °dH - German scale). Alternatively household vinegar with a max. -
Page 24: Adding Rinse Aid
Commissioning Wipe up any spilled rinse aid. This Adding rinse aid prevents over-foaming occurring during the next program. You can adjust the rinse aid dosage for best results (see "Settings menu - Rinse aid"). Rinse aid indicator When the Refill rinse aid message appears, the reservoir contains... -
Page 25: Loading The Dishwasher
Loading the dishwasher Hollow items such as cups, glasses Preparing the load and pans, etc. should be placed Remove coarse food residues from the upside down in the baskets. dishware. Tall and narrow hollow items should There is no need to rinse items under be placed in the center of the basket running water! if possible to ensure better water... - Page 26 Loading the dishwasher Items not suitable for dishwashers: We recommend – Wooden cutlery and cookware or – When purchasing new cookware and items with wooden parts: these may cutlery, make sure they are discolor and fade. The glue used in dishwasher-proof.
-
Page 27: Example Of Load With 10 Place Settings With Cutlery Tray
Loading the dishwasher Example of load with 10 place settings with cutlery tray Lower basket Upper basket Cutlery tray... -
Page 28: Example Of Load For 16 Place Settings With Cutlery Tray
Loading the dishwasher Example of load for 16 place settings with cutlery tray Lower basket Upper basket Cutlery tray... -
Page 29: Upper Basket
Loading the dishwasher Upper basket For safety reasons, do not operate the dishwasher without the upper and lower baskets in place. Press the yellow lever downwards , and then lower the spikes . Cup rack Raise the rack to make room for tall items. -
Page 30: Xxl Cup Rack
Loading the dishwasher You can also move one of the side XXL cup rack inserts of the cutlery tray to make The cup rack can be set at two different more room for tall glasses. widths so that it can also accommodate large cups. -
Page 31: Adjusting The Upper Basket
Loading the dishwasher Adjusting the upper basket Depending on the setting of the upper basket, the following plate dimensions In order to gain more space for can be accommodated. individual taller pieces of tableware in the lower or upper basket, the upper Dishwasher with a cutlery tray basket can be adjusted on three levels with 3/4"... -
Page 32: Lower Basket
Loading the dishwasher Lower basket Use the lower basket for larger and heavier items such as plates, serving platters, saucepans, serving dishes, etc. Glasses, cups and small items such as saucers can also be placed in the lower basket. ... -
Page 33: Removable Multicomfort Insert
Loading the dishwasher Removable MultiComfort insert Glass rack The glass holder can be raised to The rear section of the lower basket is used for washing cups, glasses, plates make more room for tall items. and pots. Stemware, e.g. wine glasses or You can remove the MultiComfort insert champagne flutes, can be leaned to make more room for larger items... -
Page 34: Glass Rail
Loading the dishwasher Press the yellow lever downwards , Glass rail and then lower the spikes . This rail is designed to hold tall glasses and stemware securely. Bottle holder The bottle holder can be used to wash narrow items, e.g. milk and baby bottles. -
Page 35: 3D Cutlery Tray
Loading the dishwasher 3D cutlery tray If spoon handles do not fit between the holders, then lay them the other way Arrange the cutlery in the tray as around. shown. To make unloading easier, cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc. -
Page 36: Optional Accessories
Optional accessories Making better use of the dishwasher Optional accessories for this dishwasher are available from Miele. If you would like to … you will need to order … ... wash a Miele Cappuccinatore … a Cappuccinatore insert for the upper basket ...wash additional cutlery ... -
Page 37: Operation
See "Settings menu - External DOS" to compartment. activate the dispenser pump and set Suitable products are available from the detergent dosage. Miele Professional. For special soiling or if using liquid detergent, dispensed by a liquid Detergent tabs can be used. detergent pump, contact Miele for... - Page 38 Operation Place the container on the open Checking consumption dishwasher door or on a surface Monitor the amount of process which is easy to clean. chemicals used by regularly checking the level in the container in order to detect any dispensing irregularities. Dispensing system maintenance To ensure that the dispensing system functions reliably it should be serviced...
-
Page 39: Adding Detergent
Operation Avoid inhalation of powder detergents and do not ingest dishwasher detergent. Detergents can cause chemical burns in the nose, mouth and throat. Seek medical advice immediately if detergent has been swallowed or inhaled. Keep detergent and other household agents out of the reach of children at all times. -
Page 40: Switching On The Appliance
Operation When the indicator light next to Switching on the appliance lights up, you can select further Turn on the water supply if it is turned programs by means of the > button. off. You can now select additional ... -
Page 41: Time Display
Operation Time display Standby Before the program starts, the display To save energy, the dishwasher will shows the duration of the selected switch to Standby mode a few minutes program in hours and minutes. The after the last time a button has been remaining runtime is displayed during pressed or a few minutes after the end the program. -
Page 42: End Of Program
Operation End of program Switching off At the end of a program, the In- At the end of a program: operation indicator light will be visible Open the door. flashing slowly with the door shut. Turn the dishwasher off with the The program has finished when ... -
Page 43: Interrupting A Program
Operation Interrupting a program Changing a program A program is interrupted as soon as the If the detergent dispenser flap has door is opened. already opened, powder detergent If the door is closed again, the program must be added for the new program will continue from the point it was at unless liquid detergent is being before the door was opened. -
Page 44: Program Chart
Program chart Program Application Detergent The following dosages are based on Miele cleaning agents. Please follow manufacturer's instructions on dosage. Compartment I Compartment II For fresh, non-sticky food residues. 20 - 25 g ProSpeed or 1 tab For normal, slightly dried food residues. 20 - 25 g Universal or 1 tab... - Page 45 Program chart Program cycle Additional Pre-rinse Clean Interim Interim Final Drying Auto- Water drying rinse I rinse Open plus rinse II 150°F 150°F (65°C) (65°C) 10 s 1 min 30 s 150°F 150°F (65°C) (65°C) 3 min 10 min 1.5 min 165°F 150°F (75°C) (65°C) 8 min 3 min 10 min 1.5 min...
- Page 46 Program chart Program Consumption Duration Energy Water Cold water Hot water Cold water Hot water 60°F (15°C) 130°F (55°C) 60°F (15°C) 130°F (55°C) ProSpeed 1.5 kWh 0.9 kWh 17 l 22 min 17 min Universal 1.6 kWh 1.0 kWh 17 l 35 min 30 min Pots & Pans 1.9 kWh 1.0 kWh 23 l...
-
Page 47: Additional Functions
Additional functions Additional drying Delay start For better drying results and to reduce The start time of a program can be the amount of steam that escapes delayed. A delay start time of between when the door is opened, the "Extra 30 minutes and 24 hours can be Drying"... -
Page 48: Clearview Lighting
Additional functions If you do not close the door within a few ClearView Lighting seconds of setting the delay start time, This dishwasher has interior lighting. the program duration will appear in the When the door is open the lighting will display again. -
Page 49: Settings Menu
Settings menu Language Settings menu for changing standard settings The display can be set to appear in one of several different languages. Open the Settings menu You can change the language in the If the dishwasher is switched on, display via the Language ... -
Page 50: Water Hardness
Settings menu Water hardness °d gr/gal Display Your dishwasher is fitted with a water softener assembly. The dishwasher must be programmed for the water hardness in your household connection. – The dishwasher must be programmed to match exactly the hardness of your water. –... -
Page 51: Rinse Aid
Settings menu Rinse aid Buzzer For best results, the rinse aid dosage When the buzzer is activated, an can be adjusted. audible tone sounds at the end of a The dosage can be set between program and when there is a fault. approx. -
Page 52: Autoopen
Settings menu AutoOpen Optimize Standby To improve drying, the door To save energy, the dishwasher will automatically opens a little at the end of switch to Standby mode a few minutes a program, except for Pre-rinse, after the last time a button has been ProSpeed and Glass no rinse aid (see pressed or a few minutes after the end Program guide). -
Page 53: Refill Indicators
Settings menu Refill indicators Filter check You can adjust the interval at which the You can switch off the refill indicators message to remind you to check the to replenish salt and rinse aid so that filters appears. the dishwasher will go into Standby You can set an interval between 30 and despite a lack of salt or rinse aid. -
Page 54: Detergent Quantity
Settings menu Detergent quantity Venting DOS The DOS system will not dispense This function only becomes visible reliably if there is air in the system. when External DOS is activated. The DOS system must be vented: When using liquid dispensing via an –... -
Page 55: High-Temperature Final Rinse
Settings menu High-temperature final rinse Showroom program For better drying, the rinse temperature For demonstration purposes only! can be increased for individual programs. This function is not available The dishwasher is equipped with for all programs (see "Program chart"). various demo programs for showroom use. -
Page 56: Factory Default Setting
Settings menu Factory default setting If any settings have been changed from the factory default, you can reset them back to the factory default settings. An activated external dispensing module and its respective amount of detergent or dosage concentration will not be reset. -
Page 57: Cleaning And Care
Cleaning and care Maintenance All surfaces of this appliance are susceptible to scratching. In order to increase the dishwasher's service life, the machine should be Contact with unsuitable cleaning agents can alter or discolor all served by an authorized Miele service surfaces. -
Page 58: Cleaning The Indicator Reflector Panel
Cleaning and care Cleaning the indicator reflector To avoid damaging the panel surfaces of the machine, do not use: The indicator reflector panel for the In- operation indicator light is situated in – cleaning agents containing soda, the cover plate underneath the counter. ammonia, acids or chlorides, ... -
Page 59: Filter System
Cleaning and care Filter system Cleaning the filters Turn the dishwasher off. The filter combination in the base of the wash chamber prevents food from being redeposited on dishes. It also protects the circulation pump from damage caused by foreign objects. ... - Page 60 Cleaning and care Replace the filter combination so that To clean the inside of the filter, the flap must be opened: it lies flat in the base of the wash chamber. Press catches together in the Then turn the handle clockwise until direction of the arrows as shown, and open the filter .
-
Page 61: Cleaning The Spray Arms
Cleaning and care Cleaning the spray arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected and cleaned regularly (approx. every 4 - 6 months). Turn the dishwasher off. Remove the spray arms as follows: ... -
Page 62: Frequently Asked Questions
Frequently asked questions With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be corrected without contacting the Service Department. Repairs must only be carried out by a Miele technician or a Miele- authorized service agent in accordance with local and national safety regulations. - Page 63 Frequently asked questions Problem Possible cause and solution There may be a technical fault. Fault FXX After a few seconds: Turn the dishwasher back on. Select the desired program. Close the door. If the fault message is displayed again, there has been a malfunction.
-
Page 64: Faults With Water Intake Or Drainage
Frequently asked questions Faults with water intake or drainage Problem Possible cause and solution The In-operation indicator is flashing quickly. The buzzer is sounding. One of the following faults appears in the display: The water supply is turned off. ... -
Page 65: General Problems With The Dishwasher
Frequently asked questions General problems with the dishwasher Problem Possible cause and solution The indicator lights and The indicators and the display switch off the display are dark. automatically to save energy (Standby mode). Only the indicator Press the button. Standby comes to an end. flashes slowly. - Page 66 Frequently asked questions Problem Possible cause and solution Water remains in the Before remedying the fault: wash chamber at the Turn the dishwasher off with the button. end of a program. The filter combination in the wash chamber is clogged.
-
Page 67: Noises
Frequently asked questions Noises Problem Possible cause and solution There is a knocking A spray arm is hitting the dishware. noise in the wash Interrupt the program, and rearrange the items cabinet. which are obstructing the spray arm. There is a rattling noise Dishware is moving around in the wash cabinet. -
Page 68: Poor Cleaning Results
Frequently asked questions Poor cleaning results Problem Possible cause and solution The dishes are not The dishes were not loaded correctly. clean. See notes in "Loading the dishwasher". The program was not suitable for the requirements. Select a more suitable program (see "Program guide)". - Page 69 Frequently asked questions Problem Possible cause and solution White residue is visible The rinse aid dosage is too low. on the dishware. Increase the dosage (see "Settings menu, Rinse Clouding occurs on "). glassware and cutlery; The salt reservoir is empty. the deposit can be ...
-
Page 70: Cleaning The Water Intake
Frequently asked questions Cleaning the water intake A filter is incorporated in the screw connection of the water intake valve. The filter must be cleaned when dirty; otherwise, insufficient water flows into the wash chamber. The plastic housing of the water connection contains an electrical component. -
Page 71: Cleaning The Drain Pump And Non-Return Valve
Frequently asked questions Cleaning the drain pump and non-return valve If the water has not been pumped away at the end of a program, the drain pump or the non-return valve might be blocked. They are, however, easy to clean. ... -
Page 72: Miele Service
Miele Service Repairs PC Update In the event of any faults that you cannot remedy yourself, please contact: The Program Correction (PC) allows a technician to update the dishwasher to – the Miele Service Department, or make use of new technology. –... -
Page 73: Electrical Connection
Electrical connection Electrical connection Converting the machine to a different type of power supply can lead to All work on the electrical longer program durations, resulting in connection must be carried out by increased energy consumption. Miele, a Miele-authorized technician The values declared on the label will or a qualified electrician. -
Page 74: Plumbing
Plumbing – Water pressure: Must be between The Miele WaterProof System 4.35 - 145 psi (0.3 - 10 bar). Provided your dishwasher has been If the water pressure is lower than installed correctly, the Miele Waterproof this, the fault message Water intake system will provide protection against will appear in the display (see water damage throughout its lifetime. - Page 75 Plumbing To avoid any damage to the appliance, the dishwasher must only be connected to fully vented pipework. The intake hose must not be shortened or damaged in any way as it contains electrical components (see illustration).
-
Page 76: Connection To The Drainage System
Plumbing Venting the drain Connection to the drainage system If the on-site drain connection is situated lower than the guide path for – The dishwasher drain contains a the bottom basket rollers in the open built-in non-return valve which door, the drain must be vented. prevents dirty water from flowing Otherwise a siphoning effect during a back into the dishwasher via the... -
Page 77: Technical Details
Technical details Commercial Dishwasher PG 8083 SCVi model Height 33 1/4" (845 mm) (adjustable + 2 9/16" (65 mm)) Installation height 33 1/4" (845 mm) (adjustable + 2 9/16" (65 mm)) Width 23 9/16" (598 mm) Installation width 23 5/8" (600 mm) Depth 22 7/16" (570 mm) Weight 128 lb (57,5 kg) -
Page 78: Sound Emission Tests
Sound emission tests Setup for sound emission tests Test standard IEC 60704-2-3 The dishwasher needs to be set up according to the following information: Install the dishwasher into an analyzing unit. Secure the front panel. - Page 79 Sound emission tests Push the provided fleece strips (depending on model) under the toe-kick until it is flush with the appliance feet Push the toe-kick into place in such a way that it is flush with the door front .
- Page 80 Please have the model and serial number of your machine available when contacting Technical Service. U.S.A. Miele, Inc. National Headquarters 9 Independence Way Princeton, NJ 08540 Phone: 800-991-9380 Fax: 609-419-4241 www.miele-pro.com Technical Service & Support Phone: 800-991-9380 Fax: 800-220-1348 proservice@mieleusa.com 2017-01-16 M.-Nr.
