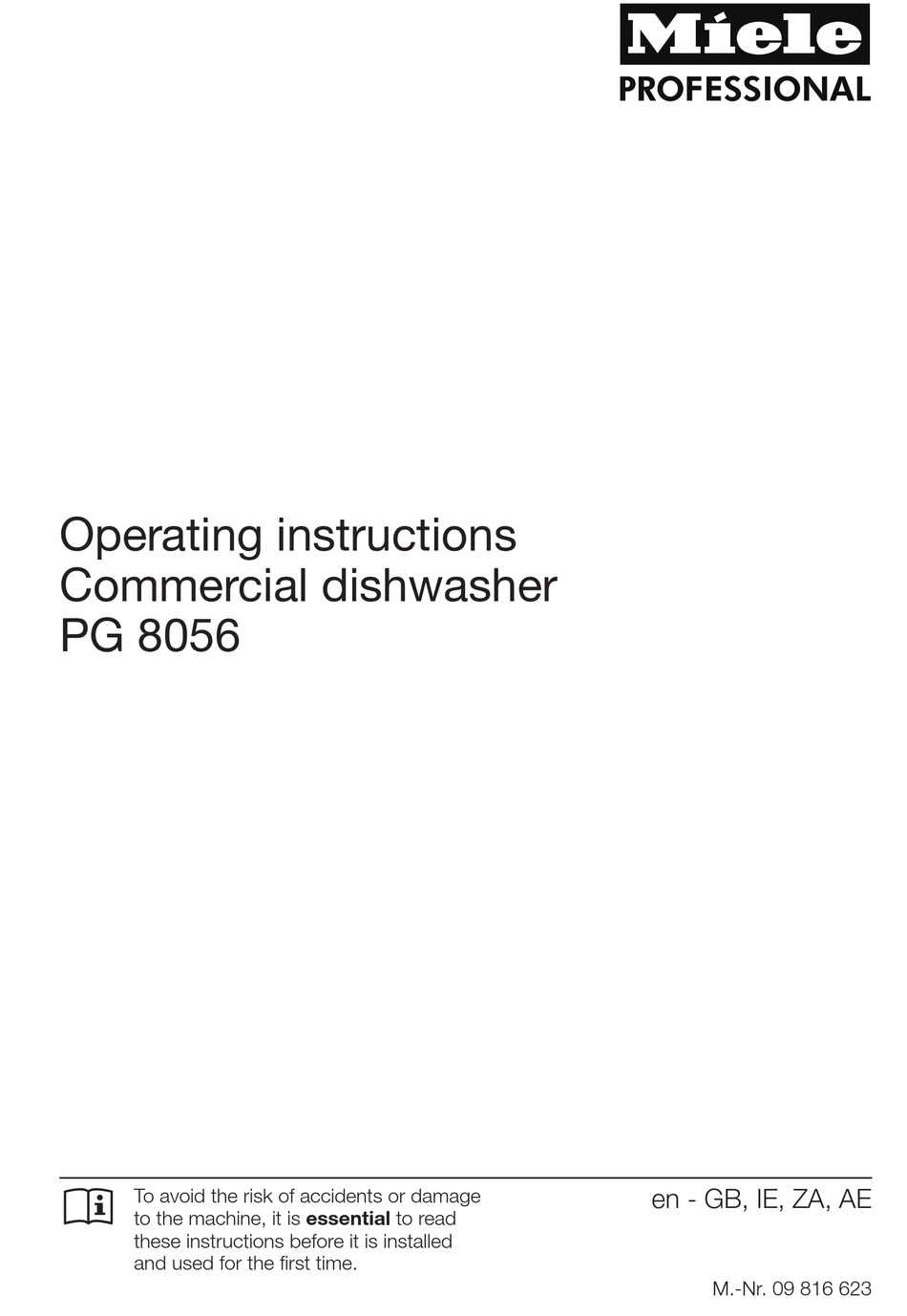

Operating instructions
Commercial dishwasher
PG 8056
To avoid the risk of accidents or damage
to the machine, it is essential to read
these instructions before it is installed
and used for the first time.
en - GB, IE, ZA, AE
M.-Nr. 09 816 623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG 8056 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miele professional PG 8056

Summary of Contents for Miele professional PG 8056

  • Page 1 Operating instructions Commercial dishwasher PG 8056 To avoid the risk of accidents or damage en - GB, IE, ZA, AE  to the machine, it is essential to read these instructions before it is installed and used for the first time.

  • Page 2: Table Of Contents

    Contents Notes about these instructions.................. 5 Guide to the machine ...................... 6 Appliance overview ....................... 6 Control panel ......................... 7 Correct application ...................... 8 Warning and Safety instructions.................. 9 Symbols used........................13 Disposal of your old dishwasher ..................13 Caring for the environment .................... 14 User profiles........................ 15 User groups.........................
  • Page 3 Contents Unloading the dishwasher....................51 Interrupting a programme....................52 Cancelling a programme ..................... 53 Additional functions ...................... 54 Delay start ........................... 54 Settings ........................... 55 Menu structure ........................56 Delay start ........................... 57 Setting the language ......................58 Venting DOS modules ......................59 Setting the date ........................
  • Page 4 Contents Cleaning the wash cabinet ....................89 Cleaning the door and the door seal................... 90 Cleaning the filters in the wash cabinet ................90 Cleaning the spray arms...................... 92 Problem solving guide ...................... 94 Faults with water intake or drainage..................94 General problems with the dishwasher ................

  • Page 5: Notes About These Instructions

    Notes about these instructions Warnings  Information which is important for safety is highlighted in a thick framed box with a warning symbol. This alerts you to the potential danger of injury to people or damage to property. Read these warning notes carefully and observe the procedural instructions and codes of practice they describe.

  • Page 6: Guide To The Machine

    Guide to the machine Appliance overview Door lock Rinsing agent container Upper spray arm (not visible) Door lock latch Upper basket runner Dishwasher salt container Connection for upper basket spray arm Dispenser for powder cleaning agent Lower spray arm Filter combination Lower basket runner Back: Connection for dispensing modules...

  • Page 7: Control Panel

    Guide to the machine Control panel  On/Off button For switching the dishwasher on and off Buttons 1 - 3 (programme selector buttons) Short cut buttons for storing favourite programmes  button (further programmes) For selecting further programmes Display User interface ...

  • Page 8: Correct Application

    Correct application This commercial dishwasher complies with all current local and national safety requirements. Inappropriate use can, however, lead to personal injury and material damage. Read the operating instructions carefully before using the commercial dishwasher for the first time. They contain important information on the safety, use and maintenance of the machine.

  • Page 9: Warning And Safety Instructions

    Technical safety  This dishwasher must only be installed, commissioned, repaired and maintained by Miele Professional Service or a suitably qualified service technician. Installation, repairs and other work by unqualified persons could be dangerous. Miele cannot be held liable for unauthorised work.
  • Page 10 Warning and Safety instructions  Warning. Do not open the casing of the dishwasher. Any contact with live connections or tampering with the electrical or mechanical components of the dishwasher will endanger your safety and may lead to machine malfunctions. ...
  • Page 11 Warning and Safety instructions Correct use  This dishwasher is designed for operation with water and cleaning agents suitable for use in commercial dishwashers only. Organic solvents and flammable liquid agents must not be used in it. This could cause an explosion, damage rubber or plastic components in the dishwasher and cause liquids to leak out of it.
  • Page 12 Warning and Safety instructions  To avoid material damage and corrosion, do not allow any acids or solutions containing chlorides or metals which are not rust-proof to get into the wash cabinet.  Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher.

  • Page 13: Symbols Used

    Warning and Safety instructions Symbols used Warning: Observe the operating instructions Warning: Danger of electric shock Disposal of your old dishwasher  For safety and environmental reasons, dispose of all chemical agents according to the manufacturer's instructions and to safety regulations.

  • Page 14: Caring For The Environment

    Caring for the environment Disposal of the packing material The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

  • Page 15: User Profiles

    User profiles User groups Users can be divided into two groups: – Daily operators – Experienced operators Access to “Additional settings” can be blocked to general, daily operators by using a code (see “Additional settings, Code”). Daily operators Operators must be instructed in operating and loading the commercial dishwasher and trained regularly to guarantee safe daily use.

  • Page 16: Operation Tips

    Operation tips Display The display is not a touch screen. The display is used to select or set the following: – the programme – the Delay start time – the settings During a programme, the display shows the following: – the programme name –...

  • Page 17: Menus

    Operation tips Menus The commercial dishwasher's user interface is divided into different menus. These menus are displayed in a 3-line display on the control panel. Example: Language  deutsch english (GB) The name of the menu and a maximum of two menu options are shown.
  • Page 18 Operation tips System messages The  symbol denotes system messages. These give information about current processes and the status of the commercial dishwasher. System messages are displayed individually at the end of the programme. If there are a number of system messages, subsequent messages can be displayed by pressing the OK button.

  • Page 19: Symbols In The Display

    Operation tips Symbols in the display Navigation arrows If a menu contains more than two options, two navigation arrows are  shown beside the options. The arrow buttons  and  can be used to scroll through the options. Dotted line ------- If a menu contains more than two options, the end of the option list is marked by a dotted line.

  • Page 20: Commissioning

    Commissioning During initial commissioning, the following settings must be carried out. You will be asked to programme settings one after the other automatically, and currently selected values will have a tick  beside them. The commissioning process follows a set procedure which cannot be interrupted.
  • Page 21 Commissioning Setting the The display will then change to the screen for setting the temperature temperature unit unit. Temperature unit °C °F Use the  and  arrow buttons to select the desired temperature  unit and confirm your choice with the OK button. Setting the The display will then change to the screen for setting the date format.
  • Page 22 Commissioning Setting The display will change to the screen for setting the time of day. the time Time of day : 00 Use the arrow buttons  (higher) and  (lower) to set the hours and  minutes, and confirm each entry with the OK button. If you have selected 12 h for the clock format, “am”...
  • Page 23 Set up successful  Press the OK button.  The dishwasher is now ready for use. PROFESSIONAL PG 8056 The start screen is displayed for 3 seconds. Then the first short cut button programme will appear in the display.

  • Page 24: Opening And Closing The Door

    Opening and closing the door Opening the door The control panel also serves as a door handle. Grasp the handle underneath the control panel and lower the door  to open. If the door is opened during operation all functions are automatically interrupted (see “Operation, Interrupting a programme”).

  • Page 25: Filling The Salt Reservoir

    Only use special coarse-grained dishwasher salt or other pure kitchen salt for reactivation. Suitable products are available from Miele Professional. If the hardness of your water is constantly less than 0.7 mmol/l (= 4 °dH), no salt is required for the water softener.

  • Page 26: Setting The Water Hardness Level

    Filling the salt reservoir Setting the water hardness level The water softener can be set between 0 - 12.6 mmol/l (0 - 70 °dH). Further settings Select the menu.  Water hardness Select and confirm your choice with the OK button.  Water hardness °dH (0 - 70 °dH) The factory default for the water softener is set to a hardness of...
  • Page 27 Filling the salt reservoir Settings °dH °f mmol/l Display °dH °f mmol/l Display   0    0   0   0   65   6.5   1   2   1   67   6.7   2   4   2   68   6.8   3   5   3   70   7.0   4   7   4   72   7.2   5   9   5   74...

  • Page 28: Add Salt Reminder

    Filling the salt reservoir Add salt reminder When the reminder to refill the salt reservoir appears in the display,  wait until the end of the programme and then refill it with reactivation salt. Confirm the message shown with the OK button. ...
  • Page 29 Filling the salt reservoir Filling the container for dishwasher salt When filling the salt container, only open the door halfway to  ensure that all the salt gets into the container. Press the button on the lid of the salt container in the direction of ...
  • Page 30 Filling the salt reservoir Do not add more than 2 kg of salt. If there is water present in the container, it may be forced out by the added salt. Clean any excess salt from around the container opening and the ...

  • Page 31: Adding Rinsing Agent

    This will seriously damage the reservoir. Suitable products are available from Miele Professional. Conversion to the external DOS module must be carried out only by Miele Service or by an authorised Miele Service Dealer.
  • Page 32 Adding rinsing agent Adding rinsing agent Open the door fully.  Unscrew the lid of the rinsing agent container.  Add rinsing agent only until it is up to the maximum mark on the  edge of the funnel on the container. The container holds approx.

  • Page 33: Areas Of Application

    Areas of application Loading the dishwasher Remove coarse food residues from crockery. There is no need to rinse items under running water. Notes  Ensure that no acid or solvent residues, especially hydrochloric acid or chlorides, get inside the wash cabinet. ...
  • Page 34 Areas of application Items not suitable – Wooden cutlery and crockery or items with wooden parts: these for dishwashers: may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.

  • Page 35: Upper Basket

    Areas of application Upper basket Use the upper basket for small, lightweight and delicate items such as cups, saucers, glasses, dessert bowls etc. Light, heat resistant plastic items can also be loaded in the upper basket. O 891 upper basket With insert E 810 for e.g.

  • Page 36: Adjusting The Upper Basket

    Areas of application Adjusting the upper basket In order to obtain more space for taller items in the lower or upper basket, the upper basket can be adjusted between two vertical positions that are approx. 5 cm apart. Pull out the upper basket. ...
  • Page 37 Areas of application Depending on the position of the upper basket, the following plate dimensions can be accommodated: Example with upper basket O 891: Upper basket Upper basket plate Ø Lower basket plate Ø position Max. 15 cm 33 cm* Bottom Max. 20 cm 25 cm * The E 816 plate insert is required in the lower basket.

  • Page 38: Lower Basket

    Areas of application Lower basket For larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Only place thin, delicate glassware in the lower basket using a suitable insert or basket. U 890 lower basket carrier For plastic trays, various inserts and cutlery inserts. U 890 lower basket carrier with 2 x E 816 inserts and 2 x E 165 cutlery inserts 16 plates each with Ø...
  • Page 39 Areas of application U 890 lower basket carrier with an E 816 insert rotated through 90° With the E 165 cutlery insert, 16 plates each with Ø 33 cm and various items of cutlery can be loaded. Without the cutlery insert, 19 plates each with Ø 33 cm can be loaded into the rotated E 816 insert.

  • Page 40: Loading Plastic Trays

    Areas of application Loading plastic trays The U 890 lower basket carrier can be loaded with plastic trays measuring 500 x 500 mm. The special O 885 upper basket carrier is required for loading plastic trays in the upper basket (max. height for items is 130 mm). The special U 876 lower basket carrier is required for loading taller items in the lower basket.
  • Page 41 Areas of application U 534–U 537 plastic trays with compartments for different glass heights In this example, the plastic tray is connected to the top frame by long extenders. (For assembly in U 876 lower basket carrier only) Assembling a The height of the tray can be altered by fitting a top frame  to the plastic tray base basket ...

  • Page 42: Operation

    Operation Adding cleaning agent Only use cleaning agent for commercial dishwashers. Suitable products are available from Miele Professional. Cleaning agent can be dispensed in powder form via the powder detergent dispenser or in liquid form via an external DOS module (Optional accessory - see “DOS module”).

  • Page 43: Tips For The Super Short Programme

    Operation Place the required amount of powder cleaning agent or a tab in the  detergent dispenser in the door and close the flap. Dispensing Always follow the recommendations of the cleaning agent  manufacturer. There are markings to assist with dispensing: 20 and 40. The marks indicate a level of approx.

  • Page 44: Dispensing Module

    In addition to the internal dispensing systems, up to two additional external dispensing systems (modules) DOS can be connected for dispensing liquid process chemicals. Suitable products are available from Miele Professional. For more information on Miele dispensing modules, please contact your Miele dealer or the Miele Customer Service Department.
  • Page 45 Operation Setting the For information about setting the dispensing concentration, see dispensing “Additional settings/Additional functions/Dispensing systems”. concentration Refilling or The dispensing module is equipped with a level monitoring indicator changing which shows a message in the display when the level drops below containers the minimum.
  • Page 46 Operation Checking Monitor the amount of process chemicals used by regularly checking consumption the level in the container in order to detect any dispensing irregularities.
  • Page 47 Operation LEDs on the Light-emitting diodes that indicate the status of the dishwasher are buttons set into the keypad. Except for the Start/Stop button, which has a green LED in normal operation, all other LEDs light up yellow. In the event of a fault the Start/Stop button flashes red. Button Status ...

  • Page 48: Switching On

    Operation Switching on Open the stopcock, if it is closed.  Press the  button until the button's LED lights up.  Close the door.  As soon as the dishwasher is ready for operation, the display changes to show the last selected programme, e.g.
  • Page 49 Operation Programme list Programmes which cannot be selected via the short cut buttons can be selected from the programme list. Press the  button.  The following option menu appears in the display Select programme Short Intensive Select the programme you want using the  and  buttons and ...

  • Page 50: Starting A Programme

    Operation Starting a programme Press the Start/Stop button (the LED of the Start/Stop button will  light up). A programme can no longer be changed after it has been started. A programme can either be interrupted (see “Interrupting a programme”) or cancelled (see “Cancelling a programme”). Programme After the start of a programme the wash phase and, for 10 seconds sequence...

  • Page 51: At The End Of The Programme

    Operation At the end of the programme After a programme which has ended normally the LED for the Start/ Programme finished Stop button will go out. The message will appear in the bottom line of the display. Universal Temperature 55 °C Programme finished In addition to this a buzzer will also sound for approx.

  • Page 52: Interrupting A Programme

    Operation Interrupting a programme A programme which is already running should only be interrupted if strictly necessary, e.g. if the wash load is moving significantly.  Caution. The wash load and the interior of the dishwasher may be hot. Danger of scalding and burning. Open the door.

  • Page 53: Cancelling A Programme

    Operation Cancelling a programme Only cancel a programme which has already started if strictly necessary, e.g. if you want to change the programme. In the event of a fault the programme will be cancelled automatically.  Caution. The wash load and the interior of the dishwasher may be hot.

  • Page 54: Additional Functions

    Additional functions Delay start The start time of a programme can be delayed, e.g. to benefit from economy rates of electricity. A delay start time of between 1 minute and 24 hours can be selected. Delay start must be switched on in the Settings menu (see “Settings , Delay start”).
  • Page 55 Settings  Opening the “Settings ” menu To open the settings menu: Switch the dishwasher off.  Press and hold the  button and switch the dishwasher back on  using the  button. After that, the display will show the following, for example: Menu Settings ...

  • Page 56: Menu Structure

    Settings  Menu structure Factory defaults are shown. Menu Submenu 1 Submenu 2 Delay start  Language  deutsch  english (GB) etc..VentingDOS DOS 1 DOS 4 Date Date format DD:MM:YY  MM:DD:YY Time of day Set the time Display Do not display ...

  • Page 57: Settings

    Settings  Delay start You can select whether Delay start appears in the Additional functions menu or not. Selecting will remove Delay start from the Additional functions menu for operators. To be able to delay the start of a programme, must be selected in order for it to be displayed in Additional functions.

  • Page 58: Setting The Language

    Settings  Setting the language  The language set will be used in the display. The flag symbol  after the word “Language” acts as a guide if a language which you do not understand has already been set. If this is the case, keep selecting the option which has a flag after it until you reach the “Language”...

  • Page 59: Venting Dos Modules

    Settings  Venting DOS modules This option is only visible when a DOS module is connected. The dispensing system for liquid agents can only dispense reliably if the system has been purged of air. The DOS system must be vented: –...

  • Page 60: Setting The Date

    Settings  Setting the date Settings  Select the menu.  Date Select and confirm your choice with the OK button.  In the following menu you can choose between: Date Date format Date format – This option offers two variations for date format. –...

  • Page 61: Setting The Time Of Day

    Settings  Setting the time of day Settings  Select the menu.  Time of day Select and confirm your choice with the OK button.  In the following menu you can choose between: Time of day Display – Set the time of day Display –...

  • Page 62: Display

    Settings  Display If required, the time of day can be displayed once the “Switch off Further settings Switch off after after duration” has elapsed (see . The LED in the  button will start to flash. The dishwasher is ready for use when the time is visible in the display.

  • Page 63: Regulating The Volume

    Settings  Regulating the volume The dishwasher has audible tones which sound when buttons on the keypad are pressed, at the end of a programme and when there are system messages. Settings  Select the menu.  Volume Select and confirm your choice with the OK button. ...

  • Page 64: Settingthe Volume

    Settings  Setting The volume is always set in the same way. The display is also similar, the volume e.g.: Keypad tone Quieter Louder Set the volume using the arrow buttons  (louder) and  (quieter).  The volume level is represented by a bar chart. On the lowest setting the tone is switched off.

  • Page 65: Further Settings

    Further settings Opening the “Further settings” menu To open the “Further settings” menu: Switch the dishwasher off.  Press and hold the  button and switch the dishwasher on using  the  button. After that, the display will show the following, for example: Menu Settings ...
  • Page 66 Further settings Display view – The display can show the Actual temperature or the Required temperature (see “Display view”) Display – The display contrast and brightness can be adjusted (see “Display”) – Switch off after Automatic switch off can be activated or deactivated (see “Switch off after”) Factory default –...

  • Page 67: Menu Structure

    Further settings Menu structure Factory defaults are shown. Menu Submenu 1 Submenu 2 Submenu 3 Code Release Further settings  Enter code Block Change code Log book Consumption: Water Consumption: Detergent Consumption: Surfactant Operating hours Wash cycles Service interval Temperature unit °C ...
  • Page 68 Further settings Menu Submenu 1 Submenu 2 Submenu 3 Display view Actual temperature Required temperature  Display Contrast ContrastSet Brightness BrightnessSet Switch off after  Set the time Factory default Reset  Programme settings only All settings Software version EB Id: XXXX EGL Id: XXXX EZL Id: XXXX EFU Id: XXXX...

  • Page 69: Pin Code

    Further settings PIN code A PIN code can be used to prevent unauthorised access to various functions and system settings on the commercial dishwasher. Select the Further settings menu.  Code Select and press OK to open the relevant menu. ...
  • Page 70 Further settings Release Block Entering the If in the menu you have selected or if you have set the PIN code Further settings menu up for access via a PIN code, you have to enter the PIN code. Further settings Settings within the menu can then only be changed by people with administrative rights.

  • Page 71: Log Book

    Further settings Log book The dishwasher controls measure the consumption levels for water, cleaning agent and rinsing agent. They also calculate the number of hours the dishwasher has been run for, how many programmes have been run and measure the service intervals. Further settings Select the menu.

  • Page 72: Temperature Unit

    Further settings Temperature unit The temperature can be shown in the display in degrees Celsius or degrees Fahrenheit. Further settings Select the menu.  Temperature unit Select and confirm your choice with the OK  button. Temperature unit °C °F –...

  • Page 73: Move Programme

    Further settings Move programme You can change the order of the programmes and therefore also the allocation of the shortcut buttons. You can move the programmes you use most frequently to programme places 1-3. These are then automatically allocated to the shortcut buttons.

  • Page 74: Additional Functions

    Further settings Additional functions With these functions, it is possible to adjust individual parameters to adapt programme sequences to particular types of soiling and optimise cleaning results. Further settings Select the menu.  Additional functions Select and open the corresponding menu by ...

  • Page 75: Increased Water Level

    Further settings Increased water level Increased water Select the option and confirm your choice with  level the OK button. The amount of water is shown in litres and can be increased in 0.5 litre increments up to 1.5 litres. Increased water level (0,0 - 1,5 l) Use the arrow buttons ...

  • Page 76: Dos Dispensing System

    Further settings Dispensing system DOS dispensing Select the option and confirm your choice with  system the OK button. Dispensing system DOS 2 Surfactant DOS1 Select the dispensing system you want and confirm your choice  with the OK button. The following options are available: DOS1 Active Inactive...
  • Page 77 Further settings DOS venting  To avoid damage to the dispensing system, make sure before venting that the containers for cleaning agent and rinsing agent are sufficiently filled and the dispensing siphons are screwed securely to the containers. DOS venting Select and confirm your choice with the OK button.
  • Page 78 Further settings Change name Changing a DOS Select and confirm your choice with the OK button.  name Change name DOS1 _ _ _ _ _ _ _ _ _ _ _ ä b c P OK # The current name is shown on the second line of the display. This can be changed using the options shown in the bottom line.

  • Page 79: Temperature / Time

    Further settings Temperature / The temperature and holding time for the main wash and final rinse Time phases can be altered in some programmes (see “Programme chart”). Select Temperature / time and confirm your choice with the OK  button. Select programme Short Universal The following options are available:...
  • Page 80 Further settings Main wash Final rinse Main wash / Final The procedure for altering settings in is the rinse same. The display also looks similar. Select the Main wash Final rinse option and confirm your choice  with the OK button. Short Final rinse temp.
  • Page 81 Further settings Holding time Holding time Select and confirm your choice with the OK button.  The holding time is set in minutes and can be set between 0 and 10 minutes in 1 minute increments. Super short In the case of the programme, the holding time is set in seconds and can be set between 0 and 300 seconds in 5 second increments.

  • Page 82: Releasing Programmes

    Further settings Releasing programmes Individual programmes can be blocked so that they cannot be used. All programmes are released for use as default. Select the Further settings menu.  Release programme Selection Release programme Select and press OK to open the relevant ...

  • Page 83: Water Hardness

    Further settings Water hardness You can use this menu to set the water softener to the water hardness of the mains supply. For further information see “Filling the salt reservoir”. Display view During a programme the Actual or Required temperature can be shown in the second line of the display.

  • Page 84: Display

    Further settings Display The display menu can be used for altering the display contrast and brightness. Select the Further settings menu.  Display Contrast Brightness Display Select and press OK to open the relevant menu.  The following options are available: Contrast –...

  • Page 85: Switch Off After

    Further settings Switch off after When not in use, the commercial dishwasher can be switched off to save energy or be placed in standby mode by selecting an option Settings  Time of day Display from the menu. The clock display will be visible in standby mode. Select the Further settings menu.

  • Page 86: Factory Default Setting

    Further settings Factory default setting Factory default setting can be used to reset all changed parameters in the commercial dishwasher back to their factory default settings or just values that have been changed for programmes. Further settings Select the menu. ...

  • Page 87: Software Version

    Further settings Software version This displays the various software components. Further settings Select the menu.  Software version Select and press OK to open the relevant menu.  Software version EB Id: XXXX EGL Id: XXXX Software for individual units is displayed. XXXX denotes the version. –...

  • Page 88: Cleaning And Care

    Cleaning and care Periodic checks To prolong the service life of the commercial dishwasher, it should be serviced at least once a year by the Miele Customer Service Department. Maintenance covers the following: – Electrical safety according to national regulations (e.g. VDE 0701/0702 in Germany) –...

  • Page 89: Cleaning The Control Panel

    Cleaning and care  Remove any soiling from the control panel and from the front of the dishwasher straight away. Soiling that is left too long might become impossible to remove and could cause the external surfaces to alter or discolour. ...

  • Page 90: Cleaning The Door And The Door Seal

    Cleaning and care Cleaning the door and the door seal Wipe the door seal and the area beneath the door regularly with a  damp cloth to remove food deposits. Wipe away any spillages of food and beverages from the sides and ...
  • Page 91 Cleaning and care Cleaning the flat Remove the coarse filter.  and micro-fine filters Grasp the micro-fine filter by the upper rim and turn it in the  direction of the arrow to release it. Then lift it out. Remove the flat filter. ...

  • Page 92: Cleaning The Spray Arms

    Cleaning and care Cleaning the spray arms This commercial dishwasher has three different spray arms. Particles of food can get stuck in the spray arm nozzles and bearings. The spray arms should therefore be checked and cleaned regularly. Switch the commercial dishwasher off. ...
  • Page 93 Cleaning and care Use a pointed object to push food particles into the spray arm  nozzles. Rinse the spray arms thoroughly under running water.  Replace the spray arms and check that they rotate freely. Make sure that the spray arm with the yellow bayonet fitting is fitted in the bottom of the wash chamber.

  • Page 94: Problem Solving Guide

    Problem solving guide With the aid of the following guide, most minor problems can be corrected without contacting Miele. You can save time and money in many cases, as you do not need to call the Miele Customer Service Department. The following guide should help you to find the reason for a malfunction or fault, and to correct it.
  • Page 95 Problem solving guide Problem Cause and remedy Fault 403-405 Check water inlet appears in the display, the control unit is checking the water intake approx. every 30 seconds. If, after three attempts, water is not getting into the dishwasher, one of these fault numbers will appear in the display and the programme will be cancelled.
  • Page 96 Problem solving guide Problem Cause and remedy Fault XXX There may be a technical fault. (XXX stands for a number) After 10 seconds: Switch the dishwasher back on.  Select the programme you want.  Press the Start/Stop button.  If the fault message appears again, there is a technical fault.

  • Page 97: General Problems With The Dishwasher

    Problem solving guide General problems with the dishwasher Problem Cause and remedy Programme finished This is not a fault. appeared in the display Open and close the door.  and you cannot select or The dishwasher must remain switched on whilst you do start a programme.

  • Page 98: Noises

    Problem solving guide Noises Problem Cause and remedy Knocking noise in the A spray arm is knocking against an item in a basket. wash cabinet. Interrupt the programme, and rearrange the items which  are obstructing the spray arm. Rattling noise in the wash Items are insecure in the wash cabinet.

  • Page 99: Unsatisfactory Cleaning Result

    Problem solving guide Unsatisfactory cleaning result Problem Cause and remedy The dishes are not clean. The dishes were not loaded correctly. Please observe the instructions in “Loading the  dishwasher”. The programme was not suitable for the load. Select a more suitable programme (see “Programme ...
  • Page 100 Problem solving guide Problem Cause and remedy White residue is visible on The rinsing agent dosage is set too low. crockery and cutlery, Increase the dosage (see “Further settings, Additional  clouding occurs on functions, Dispensing system”). glassware; film can be There is no salt in the salt reservoir.

  • Page 101: Clean The Water Intake Filters

    Problem solving guide Clean the water intake filters Filters are incorporated into the water inlet connection on the hose to protect the water inlet valve. If these filters get dirty they must be cleaned as otherwise too little water will flow into the wash cabinet. ...

  • Page 102: Cleaning The Drain Pump And Non-Return Valve

    Problem solving guide Cleaning the drain pump and non-return valve If water has not pumped away at the end of a programme, there may be a foreign object in the drain pump or blocking the non-return valve. These are easy to remove. Disconnect the dishwasher from the mains (switch the dishwasher ...
  • Page 103 Problem solving guide The drain pump is situated under the non-return valve (see arrow). Check the area around the drain pump for foreign objects (watch  out for glass splinters which could cause injury) and remove them before replacing the non-return valve. Carefully replace the non-return valve and secure it with the clamp.

  • Page 104: Programme Chart

    Programme chart Programme When to use Powder cleaning agent (if liquid cleaning agent is not being used) The following dosages are based on Miele cleaning agents. Please follow manufacturer's instructions on dosage “Quick programme” for lightly soiled crockery that is in 20 - 25 g continual use and that has fresh, easily removed food placed on the inside of the door...
  • Page 105 Programme chart Programme sequence Pre-wash Pre-wash Main wash Interim rinse Interim rinse Final rinse (1) / (2) (1) / (2) X *) 55 °C 55 °C 30 s 30 s 55 °C 60 °C 2 min 1 min 60 °C 70 °C 3 min 10 min 55 °C 60 °C 1 min 1 min 65 °C 60 °C 3 min...
  • Page 106 Programme chart Programme When to use Powder cleaning agent (if liquid cleaning agent is not being used) The following dosages are based on Miele cleaning agents. Please follow manufacturer's instructions on dosage Special programme for plastic items and other lightweight 20 - 25 g items.
  • Page 107 Programme chart Programme sequence Pre-wash Pre-wash Main wash Interim rinse Interim rinse Final rinse (1) / (2) (1) / (2) 50 °C 60 °C 5 min 1 min 46 °C 50 °C 10 min 2 min Reactivation sequence X = sections included in a programme (X) = optional sections which can be selected (see “Further settings, Additional functions”) (1) Temperature range 30 - 70°C (see “Further settings, Additional functions”).

  • Page 108: After Sales Service

    After sales service Service If, despite following the instructions in this manual, you are unable to rectify a problem, please contact one of the following, quoting the fault code shown in the display: – Your Miele dealer or – the Miele Customer Service Department Contact details for the Miele Customer Service Department can be found at the back of this manual.

  • Page 109: Installation

    Installation Installation  In order to reduce the risk of damage from condensation, the furniture in the area around the commercial dishwasher should be designed for commercial use. The commercial dishwasher must be installed in a secure and level position. Any unevenness in the floor level and height of the machine can be compensated for by adjusting the four feet.

  • Page 110: Levelling And Securing The Dishwasher

    Installation Levelling and To guarantee stability the dishwasher must be secured to the worktop securing the after levelling. dishwasher After levelling, secure the dishwasher to the continuous worktop.  With the door open, screw into the worktop through the holes in the front trim on the left and right hand sides of the dishwasher.

  • Page 111: Moving The Dishwasher

    Installation Moving the dishwasher Before moving the dishwasher screw in the adjusting feet fully so that they do not get damaged.  Do not lift the dishwasher by any protruding components, e.g. the control panel. This could break off.  Only transport the dishwasher on a sack barrow in its original packaging.

  • Page 112: Electrical Connection

    Electrical connection Electrical connection  All electrical work must be carried out by a suitably qualified and competent person in accordance with local and national safety regulations. – In the U.K. it must comply with BS 7671. – Connection to the power supply must be made via a suitable plug and socket which conforms to national regulations and must be accessible for service and maintenance work after the machine has been installed.

  • Page 113: Peak-Load Negotiation

    Electrical connection Peak-load negotiation The commercial dishwasher is suitable for use in an energy management system. For this purpose, it must be technically adapted and the controls reset by the Miele Customer Service Department. Please contact the Miele Customer Service Department for further information.

  • Page 114: Plumbing

    Plumbing Connecting the water inlet  The water in the dishwasher is NOT safe to drink! – The commercial dishwasher must be connected to the water supply in strict accordance with current local and national water authority regulations. – The water used must at least comply with national regulations for drinking water quality.
  • Page 115 Plumbing – Install the large-surface filter (included in the accessory pack) between the valve and the inlet hose (see “Cleaning and care, Water inlet”).  Do NOT shorten or otherwise damage the inlet hoses (see diagram). See installation diagram supplied.

  • Page 116: Connecting The Drain Hose

    Plumbing Connecting the drain hose – The dishwasher drainage system is fitted with a non-return valve, which prevents dirty water from flowing back into the dishwasher via the drain hose. – The dishwasher should preferably be connected to a separate on- site drainage system.

  • Page 117: Technical Data

    Technical data Height 820 mm (adjustable + 60 mm) Height with lid 835 mm (adjustable + 60 mm) Width 598 mm Depth 580 mm Depth with door open 1,180 mm Weight (net) 70 kg Voltage, rated load, fuse rating See data plate Connection cable Approx. 1.7 m Water temperature: Cold water connection Max.
