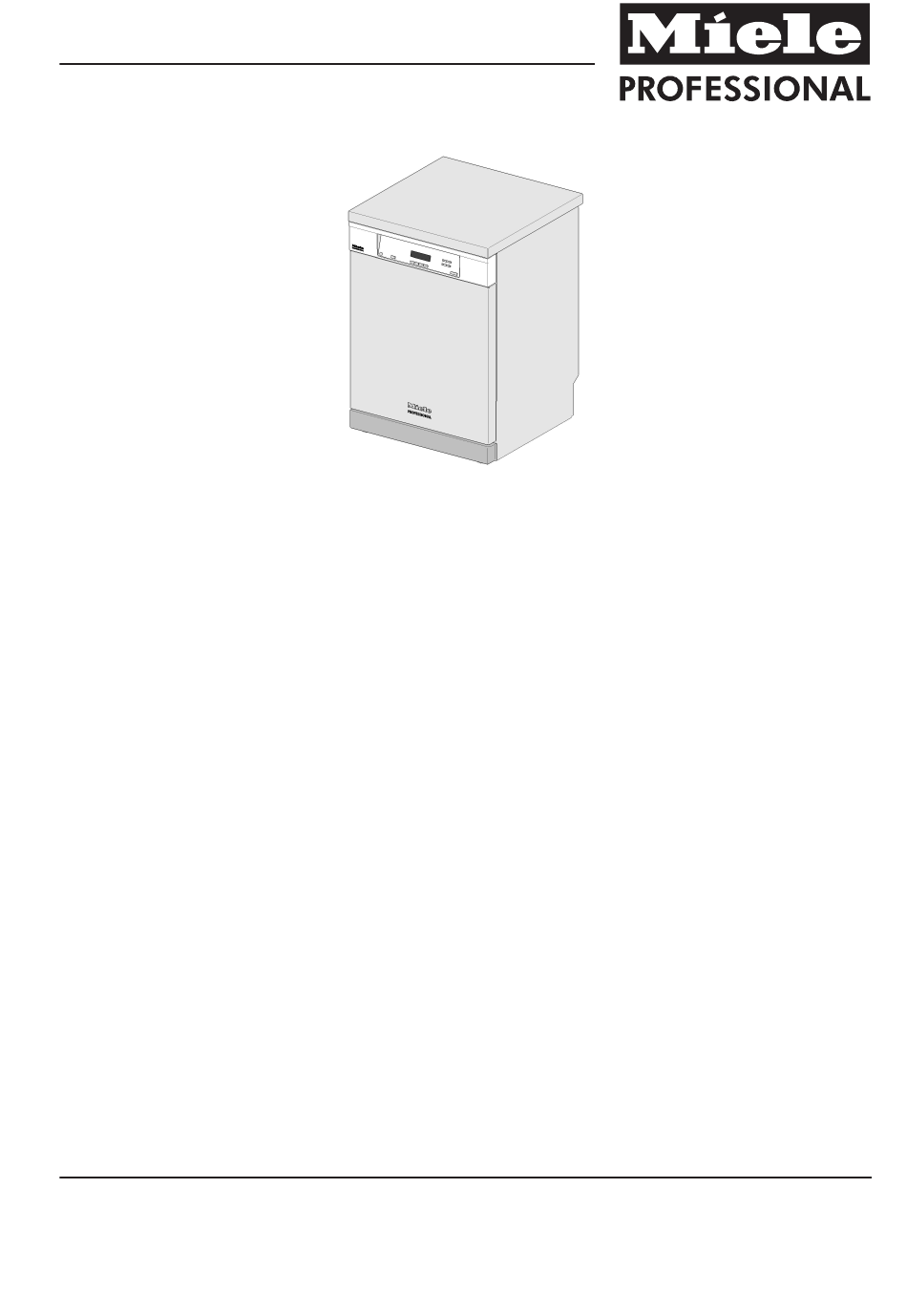

- Page 1 Installation plan PG 8130 PG 8131 PG 8132 PG 8133 To avoid the risk of accidents or damage to the en - GB, IE machine, it is essential to read these instructions as well as the service documents before it is in- stalled, commissioned and used for the first time.
-
Page 2: Installation Notes
A suitable stainless steel vapour plate is available to order from Miele. Connecting an ex- A dispensing system for liquid detergents and rinsing agents can be ternal dispensing connected to the back of the machine. system PG 8130 / PG 8131 / PG 8132 / PG 8133... - Page 3 Illustrations Dimensions PG 8130-31 Dimensions PG 8132-33 XXL PG 8130 / PG 8131 / PG 8132 / PG 8133...
- Page 4 Illustrations Connections on the back of the machine On-site connections KW/WW Connection to cold or hot water Electrical connection Drain connection Equipotential bonding External dispensing PG 8130 / PG 8131 / PG 8132 / PG 8133...
- Page 5 Illustrations Machine versions PG 8130 U PG 8130 freestanding model PG 8130 U/i PG 8130i / PG 8131i PG 8132 SCi XXL PG 8133 SCVi XXL PG 8130 / PG 8131 / PG 8132 / PG 8133...
-
Page 6: Technical Data
Hose sleeves to be provided on site (ext. dia. x l) 22 x 30 mm Drain hose (internal diameter) 22 mm Machine feet Machine feet height adjustment 65 mm Diameter of machine feet 30 mm Machine feet thread 20 mm PG 8130 / PG 8131 / PG 8132 / PG 8133... - Page 7 Transport conditions - permitted temperature range -20 - 60 °C Transport conditions - permitted relative humidity 10 - 85 % Transport conditions - permitted air pressure 500 - 1060 hPa Max. installation altitude above sea level 2000 m PG 8130 / PG 8131 / PG 8132 / PG 8133...
- Page 8 Tel. +971 4 3044 999, Fax. +971 4 3418 852 Manufacturer: 800-MIELE (64353) Miele & Cie. KG Carl-Miele-Straße 29, 33332 Gütersloh, Germany E-Mail: info@miele.ae, Website: www.miele.ae Alteration rights reserved / Publication date: 2017-09-19 M.-Nr. 10 784 820 / 00 PG 8130 PG 8131 PG 8132 PG 8133...
