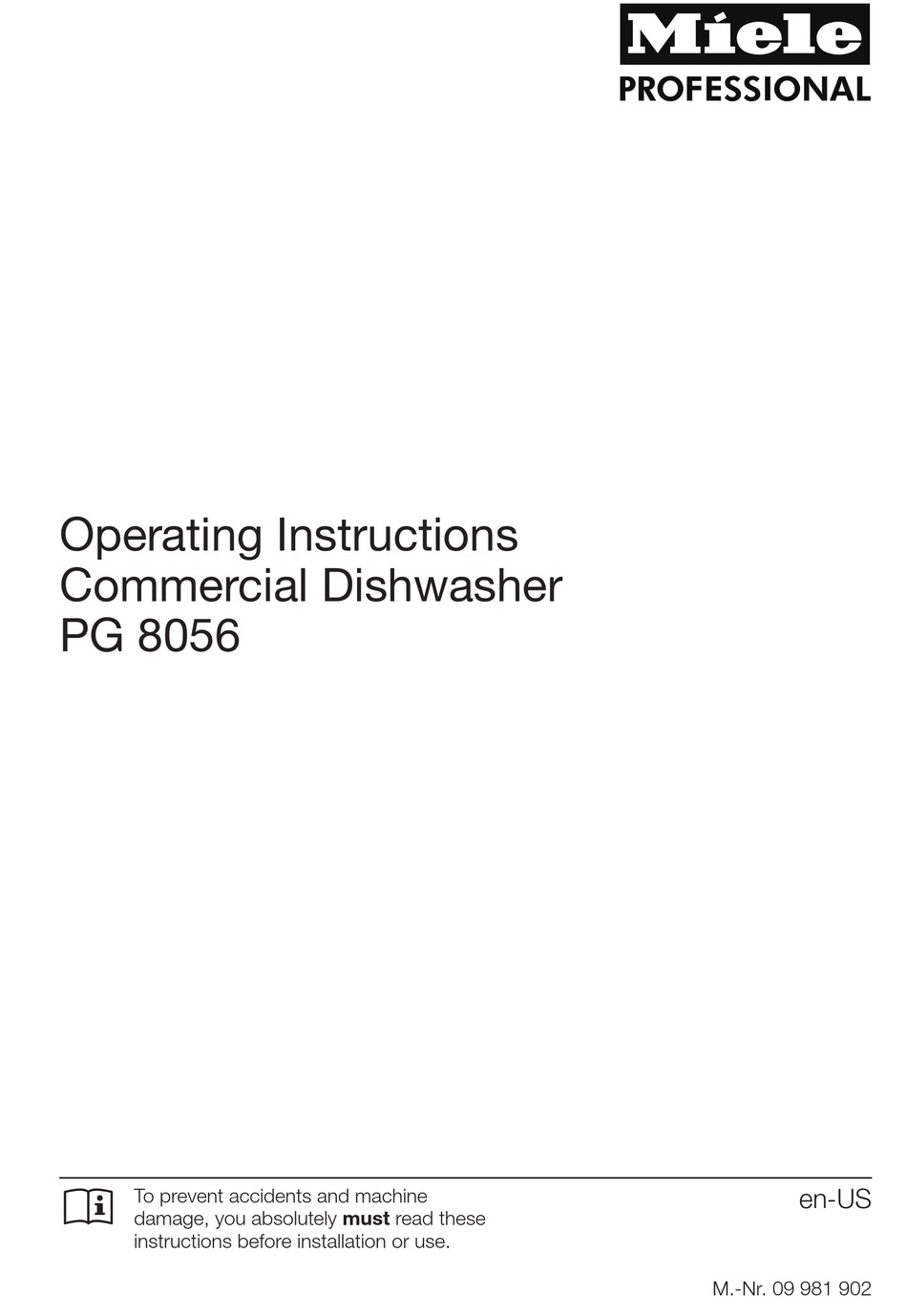

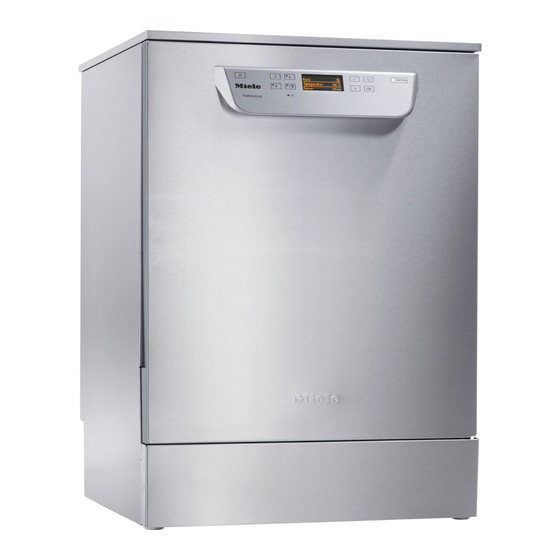

Operating Instructions
Commercial Dishwasher
PG 8056
To prevent accidents and machine
damage, you absolutely must read these
instructions before installation or use.
en-US
M.-Nr. 09 981 902

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG 8056 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miele professional PG 8056

Summary of Contents for Miele professional PG 8056

  • Page 1 Operating Instructions Commercial Dishwasher PG 8056 To prevent accidents and machine en-US  damage, you absolutely must read these instructions before installation or use. M.-Nr. 09 981 902...

  • Page 2: Table Of Contents

    Contents Guide to the manual ...................... 5 Proper use.......................... 6 IMPORTANT SAFETY INSTRUCTIONS ................ 7 Symbols attached to the commercial dishwasher .............. 11 Disposal of the commercial dishwasher ................11 Product description...................... 12 Machine overview........................ 12 Control panel ........................13 User profiles........................ 14 User groups......................... 14 Daily operators .......................
  • Page 3 Contents Cancelling a program ......................52 Additional functions ...................... 53 Delay Start........................... 53 Program chart........................ 54 Settings ........................... 58 Menu structure ........................59 Delay Start........................... 60 Setting the language ......................61 Venting DOS modules ......................62 Setting the date ........................63 Date format........................ 63 Setting the date ......................
  • Page 4 Contents Cleaning the wash cabinet ....................92 Cleaning the door and the door seal................... 93 Cleaning the filters in the wash cabinet ................93 Cleaning the spray arms...................... 95 Frequently asked questions ..................... 97 Faults with water intake or drainage..................97 Unusual behavior of the dishwasher .................

  • Page 5: Guide To The Manual

    Guide to the manual Warnings  Warnings important for safety are highlighted like this. Warnings alert you to potential injury and damage. Read the warnings carefully and follow the instructions and directions. Notes Notes contain information that is particularly important to follow. They are highlighted by a thickly framed box.

  • Page 6: Proper Use

    Proper use This Commercial Dishwasher complies with all current local and national safety requirements. Inappropriate use can, however, lead to personal injury and material damage. Read the operating instructions carefully before using the Commercial Dishwasher for the first time. They contain important information on the safety, use, and maintenance of the machine.

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Proper installation  Do not install the machine in an area where a danger of explosion or of freezing temperatures may be present.  To ensure the stability of undercounter dishwashers, these units may only be installed beneath a continuous countertop that is bolted to adjacent cabinetry.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS  Do not open the casing of the dishwasher. Any contact with live connections or tampering with the electrical or mechanical components of the dishwasher will endanger your safety and may lead to machine malfunctions.  The dishwasher must not be used if the wire is damaged. A damaged wire may only be replaced by a suitable wire of the same type.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS Correct use  This commercial dishwasher is designed for operation with water and detergents suitable for use in commercial or residential dishwashers only. Organic solvents and flammable liquid agents must not be used. This could cause an explosion, property damage due to the destruction of rubber or plastic, and the resulting leakage of liquids.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS  Do not wash items soiled with ash, sand, wax, lubricating grease, or paint in the dishwasher. These materials will cause damage to the dishwasher.  Do not clean the dishwasher or its near vicinity with a hose or a pressure washer.

  • Page 11: Symbols Attached To The Commercial Dishwasher

    IMPORTANT SAFETY INSTRUCTIONS Symbols attached to the commercial dishwasher Attention: Observe the operating instructions! Attention: Danger of electric shock! Warning: Hot surfaces: It can be very hot inside the wash chamber when the door is opened! Risk of being cut: Wear cut-resistant protective gloves when transporting and setting up the machine! Disposal of the commercial dishwasher...

  • Page 12: Product Description

    Product description Machine overview Door lock Rinse aid container Upper spray arm (not visible) Door lock barrel Upper basket runner Container for reactivation salt Connection for upper basket spray arm Dispenser for powder detergent Lower spray arm Filter combination Lower basket runner Back: Connection for dispenser modules Data plate...

  • Page 13: Control Panel

    Product description Control panel  (On/Off) Button  button (cancel or back) Turns the dishwasher on and off Cancels a process in the user interface (not for canceling programs) Buttons 1 - 3 (program selection buttons) Shortcut buttons for storing favorite Start/Stop button programs Starts or cancels a program...

  • Page 14: User Profiles

    User profiles User groups Users can be divided into two groups: – Daily operators – Experienced operators Access to “Additional settings” can be blocked to general, daily operators by using a code (see “Additional settings, Code”). Daily operators Operators must be instructed in operating and loading the Commercial Dishwasher and trained regularly to guarantee safe daily use.

  • Page 15: Operation Tips

    Operation tips Display functions The display is not a touch screen. The following functions can be selected or set with the display: – The program – The delay start time – The settings The following appears in the display while a program is running: –...

  • Page 16: Menus

    Operation tips Menus The Commercial Dishwasher's user interface is divided into different menus. These menus are displayed in a 3-line display on the control panel. Example: Language  deutsch english (GB) The name of the menu and a maximum of two menu options are shown.
  • Page 17 Operation tips System messages The  symbol denotes system messages. These give information about current processes and the status of the Commercial Dishwasher. System messages are displayed individually at the end of the program. If there are a number of system messages, subsequent messages can be displayed by pressing the OK button.

  • Page 18: Symbols In The Display

    Operation tips Symbols in the display Navigation arrows If a menu contains more than two options, two navigation arrows are  shown beside the options. The arrow buttons  and  can be used to scroll through the options. Dotted line ------- If a menu contains more than two options, the end of the option list is marked by a dotted line.

  • Page 19: Commissioning

    Commissioning During commissioning, the following settings must be carried out. You will be asked to program settings one after the other automatically, and currently selected values will have a check  beside them. The commissioning process requires a set period of time which cannot be interrupted.
  • Page 20 Commissioning Setting the The display will then change to the screen for setting the temperature temperature unit unit. Temperature unit °C °F Use the  and  arrow buttons to select the desired temperature  unit and confirm your choice with the OK button. Setting the The display will then change to the screen for setting the date format.
  • Page 21 Commissioning Setting The display will change to the screen for setting the time of day. the time Time of day : 00 Use the arrow buttons  (higher) and  (lower) to set the hours and  minutes, and confirm each entry with the OK button. If you have selected 12 h for the clock format, “am”...
  • Page 22 Set up successful  Press the OK button.  The dishwasher is now ready for use. PROFESSIONAL PG 8056 The start screen is displayed for 3 seconds. Then the first shortcut button program will appear in the display.

  • Page 23: Opening And Closing The Door

    Opening and closing the door Opening the door The control panel also serves as a door handle. Grasp the handle underneath the control panel and lower the door  to open. If the door is opened during operation all functions are automatically interrupted (see “Operation, Interrupting a program”).

  • Page 24: Filling The Salt Container

    Use only special, coarse-grained reactivation salt or other pure kitchen salt. Suitable products are available from Miele Professional. If the hardness of your water is constantly less than 4 gpg (= 4°dH), no salt is required for the water softener.

  • Page 25: Setting The Water Hardness Level

    Filling the salt container Setting the water hardness level The water softener can be set to between 0 and 73 gpg (0 - 70 °dH German scale). Select the Additional settings menu.  Water hardness Select and confirm your choice with the OK button. ...
  • Page 26 Filling the salt container Settings table gr/gal mmol/l Display gr/gal mmol/l Display CaCO 3 CaCO 3   0     0   0   0   650   6.5   1   20   1   670   6.7   2   40   2   680   6.8   3   50   3   700   7.0   4   70   4   720   7.2   5...

  • Page 27: Salt Refill Reminder

    Filling the salt container Salt refill reminder At the end of a program, fill the salt compartment with salt  whenever the message appears in the display. Acknowledge the message with the OK button.  If no salt is added, the  symbol indicating low salt will appear beside the program name on the right.
  • Page 28 Filling the salt container Filling the container for reactivation salt When filling the salt container, only open the door halfway to  ensure that all the salt gets into the container. Press the button on the lid of the salt container in the direction of ...
  • Page 29 Filling the salt container Do not add more than 4.4 lb (2 kg) of salt. If there is water present in the container, it may be forced out by the added salt. Clean any excess salt from around the container opening and the ...

  • Page 30: Adding Rinse Aid

     Only fill the rinse aid reservoir with rinse aid. Do not fill it with detergent (including liquid detergent). This will seriously damage the reservoir. Suitable products are available from Miele Professional. Conversion to the external DOS module must be carried out only by Miele Service or by an authorized dealer.
  • Page 31 Adding rinse aid Adding rinse aid Open the door fully.  Unscrew the lid of the rinse aid container.  Add rinse aid only until it is up to the maximum mark on the edge of  the funnel on the container. The rinse aid container holds approx.

  • Page 32: Application Technology

    Application technology Preparing the load Remove coarse food residues from the dishware. There is no need to rinse items under running water! Tips  Ensure that no acid or solvent residues, especially hydrochloric acid or chlorides, get inside the machine. ...
  • Page 33 Application technology Items not suitable – Wooden cutlery and cookware or items with wooden parts: these for dishwashers: may discolor and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher. –...

  • Page 34: Upper Basket

    Application technology Upper basket Use the upper basket for small, lightweight and delicate items such as cups, saucers, glasses, dessert bowls etc. Light, heat resistant plastic items can also be loaded in the upper basket. O 891 upper basket With insert E 810 for e.g. 20 cups, 33 saucers or 17 dessert plates. Cup rack The cup rack can be set at two different widths so that it can also accommodate large cups.

  • Page 35: Adjusting The Upper Basket

    Application technology Adjusting the upper basket In order to obtain more space for taller items in the lower or upper basket, the upper basket can be adjusted between two vertical positions that are approx. 2" (5 cm) apart. Pull the upper basket out. ...
  • Page 36 Application technology Depending on the position of the upper basket, the following plate dimensions can be accommodated: Example with O 891 Upper Basket: Upper basket Upper basket plate Ø Lower basket plate Ø position Max. 5 1/8" (15 cm) 13" (33 cm)* Bottom Max.

  • Page 37: Lower Basket

    Application technology Lower basket Use the lower basket for larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Always place thin, delicate glassware in the lower basket using a suitable insert or basket. U 890 lower basket carrier For plastic trays, various inserts and cutlery baskets. U 890 lower basket with 2 x E 816 inserts and 2 x E 165 cutlery baskets 16 plates with Ø...
  • Page 38 Application technology U 890 lower basket with an E 816 insert rotated 90° With the E 165 cutlery baskets, 16 plates with Ø 13“ (33 cm) and various cutlery items can be loaded. Without the cutlery basket, 19 plates with Ø 13” (33 cm) can be loaded into the rotated E 816 insert.

  • Page 39: Use Of Plastic Trays

    Application technology Use of plastic trays The U 890 Lower Basket Carrier can be loaded with plastic trays measuring 19 3/4" x 19 3/4" (500 x 500 mm). The special O 885 Upper Basket Carrier is required for loading plastic trays in the upper basket (max. height for wash items is 5 1/8"...
  • Page 40 Application technology U 534–U 537 Plastic Trays with compartments for different glass heights In this example, the plastic tray is connected to the top frame by long extenders. (For assembly in U 876 Lower Basket Carrier only) Assembling a The height of the tray can be altered by fitting a top frame  to the plastic tray base basket ...

  • Page 41: Operation

    Operation Adding detergent Use only detergents suitable for commercial dishwashers. Suitable products are available from Miele Professional. The detergent can be dispensed in powder form via the powder detergent dispenser or in liquid form via the DOS module (optional accessory - see “DOS module”).

  • Page 42: Tips For The Rapid Program

    Operation Detergent Always follow the recommendations of the detergent manufacturer.  quantity There are markings to help you add the right amount of detergent: 20 and 40. The marks indicate a level of approx. 20 or 40 ml (0.7 oz or 1.3 oz) when the door is open in the horizontal position. They also indicate the approx.

  • Page 43: Dispenser Module

    In addition to the internal dispensing systems, up to two additional external dispensing systems (dispenser modules) can be connected for dispensing liquid process chemicals. Suitable products are available from Miele Professional. For more information on Miele dispenser modules, please contact your Miele dealer or Miele Technical Service.
  • Page 44 Operation Setting the For information about setting the dispensing concentration, see dispensing “Additional settings/Additional functions/Dispensing systems”. concentration Refilling or The dispensing module is equipped with a level monitoring indicator changing which shows a message in the display when the level drops below containers the minimum.
  • Page 45 Operation To vent the system and set the dispensing quantity, see “Additional settings, Additional functions.” Checking Monitor the amount of process chemicals used by regularly checking consumption the level in the container in order to detect any dispensing irregularities.
  • Page 46 Operation LEDs on the Light-emitting diodes that indicate the status of the dishwasher are keypad integrated in the keypad. Except for the Start/Stop button, which has a green LED during normal operation, all other LEDs light up yellow. In the event of a fault the Start/Stop button flashes red. Button Status ...

  • Page 47: Turning On The Dishwasher

    Operation Turning on the dishwasher Open the water valve if it is closed.  Press the  button until the button's LED lights up.  Close the door.  Once the dishwasher is ready for operation, the display changes to show the previously selected program, e.g.: Universal Temperature...
  • Page 48 Operation Program list Programs that cannot be selected using the shortcut buttons can be selected from the program list. Press the  button.  The following selection menu appears in the display Select program Normal Intensive Select the desired program using the  and  buttons, and confirm ...

  • Page 49: Starting A Program

    Operation Starting a program Press the Start/Stop button (the LED for the Start/Stop button will  light up). Once it has been started, a program can no longer be changed. A running program can either be interrupted (see “Interrupting a program”) or cancelled (see “Canceling a program”).

  • Page 50: At The End Of The Program

    Operation At the end of the program When a program ends normally, the LED for the Start/Stop button will Program finished go out. The message  will appear in the bottom line of the display. Universal Temperature 55 °C Program finished In addition, a buzzer will also sound for approx. 3 seconds (factory default setting).

  • Page 51: Interrupting A Program

    Operation Interrupting a program A program which is already running should only be interrupted if strictly necessary, e.g. if the wash load is moving significantly.  Caution! The wash load and the interior of the dishwasher may be hot. Danger of scalding and burning. Open the door.

  • Page 52: Cancelling A Program

    Operation Cancelling a program Only cancel a program that has already started if it is absolutely necessary, e.g. if you want to change the program. In the event of a fault, the program will be cancelled automatically.  Caution! The wash load and the interior of the dishwasher may be hot.

  • Page 53: Additional Functions

    Additional functions Delay Start You can schedule the start time of a program in advance. The start time can be delayed by 1  minute to 24 hours. The Delay Start function must be enabled in the Settings menu (see “Settings , Delay Start”). If Delay Start is disabled, the function will not appear in the “Additional functions”...

  • Page 54: Program Chart

    Program chart Program Application Powder detergent (if liquid cleaning agent is not dispensed) The following dosages are based on Miele detergents. Please follow manufacturer's instructions on dosage “Quick wash” for washing consecutive lightly soiled loads 1.5 - 2 tbsp. with fresh traces of easily removable food residue. placed on the inside of the door Rapid For normally soiled items.
  • Page 55 Program chart Program cycle Pre-wash Pre-wash Main wash Interim rinse Interim rinse Final rinse (1) / (2) (1) / (2) X *) 131°F (55°C) 131°F (55°C) 30 s 30 s 131°F (55°C) 140°F (60°C) 2 min 1 min 151°F 158°F (70°C) 3 min 10 min 131°F (55°C) 140°F (60°C) 1 min 1 min...
  • Page 56 Program chart Program Application Powder detergent (if liquid cleaning agent is not dispensed) The following dosages are based on Miele detergents. Please follow manufacturer's instructions on dosage Special program for plastic items and other lightweight loads. 1.5 - 2 tbsp. or 1 tab Plastics in the detergent dispenser Energy-saving program offering the most efficient combined...
  • Page 57 Program chart Program cycle Pre-wash Pre-wash Main wash Interim rinse Interim rinse Final rinse (1) / (2) (1) / (2) 122°F (50°C) 140°F (60°C) 5 min 1 min 115°F (46°C) 122°F (50°C) 10 min 2 min Reactivation cycle X = Stages included in the program (X) = Optional stages that can also be selected (see “Additional settings, Additional functions”) (1) Temperature range 86 - 158°F (30 - 70°C) (see “Additional settings, Additional functions”).

  • Page 58: Settings

    Settings  Accessing the “Settings ” menu You can access the system settings menu as follows: Turn the dishwasher off.  Press and hold the  button and, at the same time, turn the  dishwasher on using the  button. The display will then show the following options, for example: Menu Settings ...

  • Page 59: Menu Structure

    Settings  Menu structure The factory defaults for the menu structure are shown. Menu 1. Submenu 2. Submenu Delay start  Language  German  English (GB) etc..PrimingDOS DOS 1 DOS 4 Date Date format DD:MM:YY  MM:DD:YY Time of day Set the time Display Do not display...

  • Page 60: Delay Start

    Settings  Delay Start You can determine whether Delay Start appears in the “Additional functions” menu or not. Selecting will remove Delay Start from the “Additional functions” menu as an operation option. To enable the delayed start of a program, must be selected so that Delay Start can be displayed and selected in the “Additional functions”...

  • Page 61: Setting The Language

    Settings  Setting the language  The language set here will be used in the display. The flag symbol  next to the “Settings” menu and the word “Language” will help guide you if a language that you do not understand has been set. In this case, keep selecting the menu option that is followed by a flag until the “Language”...

  • Page 62: Venting Dos Modules

    Settings  Venting DOS modules This option is only visible when a DOS module is connected. The dispensing system for liquid agents can only dispense reliably if the system has been purged of air. The DOS system must be vented if: –...

  • Page 63: Setting The Date

    Settings  Setting the date Settings  Select the menu.  Date Select and confirm your choice with the OK button.  In the following menu, you can choose between: Date Date format Date format – This menu option offers two different formats for displaying the date.

  • Page 64: Setting The Time Of Day

    Settings  Setting the time of day Settings  Select the menu.  Time of day Select and confirm your entry with the OK button.  In the following menu, you can choose between: Time of day Display – Set the time of day. Display –...

  • Page 65: Display

    Settings  Display If required, the time of day can be displayed once the “Switch off Additional settings Switch off after after duration” has elapsed (see The LED in the  button will start to flash. The dishwasher is ready for use when the time is visible in the display.

  • Page 66: Adjusting The Volume

    Settings  Adjusting the volume The dishwasher has audible tones that sound when buttons on the keypad are pressed, at the end of a program, and when there are system messages. Settings  Select the menu.  Volume Select and confirm your choice with the OK button. ...

  • Page 67: Setting The Volume

    Settings  Setting the The procedure for setting the volume is always the same. The display volume also looks similar, e.g.: Keypad tone Quieter Louder Use the arrow buttons  (louder) and  (softer) to set the volume.  The volume level is shown as a bar. On the lowest setting, the buzzer is turned off.

  • Page 68: Additional Settings

    Additional settings Accessing the “Additional settings” menu To access the “Additional settings” menu: Turn the dishwasher off.  Press and hold the  button and, at the same time, turn the  dishwasher on using the  button. The display will then show the following options, for example: Menu Settings ...
  • Page 69 Additional settings Display – Adjust the contrast and brightness of the display (see “Display”) – Switch off after Enable or disable the automatic switch-off function (see “Switch off after”) – Factory default Reset all parameters to the factory default settings (see “Restoring factory default settings”) Software version –...

  • Page 70: Menu Structure

    Additional settings Menu structure The factory defaults for the menu structure are shown. Menu 1st submenu 2nd submenu 3rd submenu Code Release Additional settings  Enter code Block Change code Log book Consumption: Water Consumpt.:Cleaning agent Consumpt.: Rinse Operating hours Wash programs Service interval Temperature unit...
  • Page 71 Additional settings Menu 1st submenu 2nd submenu 3rd submenu Display view Actual temperature Required temperature  Display Contrast Contrast Brightness Brightness Switch off after  Set the time Factory default Reset  Program settings only All settings Software version EB Id: XXXX EGL Id: XXXX EZL Id: XXXX EFU Id: XXXX...

  • Page 72: Code

    Additional settings Code A PIN code can be used to prevent unauthorized access to various functions and system settings on the Commercial Dishwasher. Additional settings Select the menu.  Code Select and press OK to open the relevant menu.  Release –...
  • Page 73 Additional settings Release Block Entering the If in the menu you have selected or if you have set the PIN code Additional settings menu up for access via a PIN code, you have to enter the PIN code. Additional settings Settings within the menu can then only be changed by people with administrative rights.

  • Page 74: Log Book

    Additional settings Log book The dishwasher controls record the consumption levels for water, detergent and rinse aid. They also calculate the number of hours the dishwasher has been in operation, the number of programs that have been run, and the required service intervals. Additional settings Select the menu.

  • Page 75: Temperature Unit

    Additional settings Temperature unit The temperature can be displayed in degrees Celsius or degrees Fahrenheit. Select the Additional settings menu.  Temperature unit Select and confirm your choice with theOK button.  Temperature unit °C °F – °C The temperature is displayed in degrees Celsius °F –...

  • Page 76: Moving A Program

    Additional settings Moving a program You can change the order of the programs and therefore also the allocation of the shortcut buttons. You can move the programs you use most frequently to program places 1-3. These are then automatically allocated to the shortcut buttons.

  • Page 77: Additional Functions

    Additional settings Additional functions With these functions, it is possible to adjust individual parameters to adapt program cycles to particular types of soiling and optimize cleaning results. Additional settings Select the menu.  Additional functions Select and open the corresponding menu by ...

  • Page 78: Increased Amount Of Water

    Additional settings Increased water level Increased amount Select the option and confirm your choice with  of water the OK button. The amount of water used is indicated in liters and can be increased by up to 1.5 l in 0.5-liter increments. Increased water level (0.0 - 1.5 l) Use the arrow buttons ...

  • Page 79: Dos Dispensing Systems

    Additional settings Dispensing system DOS dispensing Select the option and confirm your choice with  systems the OK button. Dispensing system DOS 2 Rinse aid DOS1 Select the desired dispensing system and confirm your choice with  the OK button. The following settings are available: DOS1 Active Inactive...
  • Page 80 Additional settings DOS venting  To avoid damage to the dispensing system, make sure before venting that the detergent and rinse aid containers are adequately filled and that the dispensing siphons are screwed securely to the containers. DOS priming Select and confirm your selection with the OK button.
  • Page 81 Additional settings Change name Changing a DOS Select and confirm your entry with the OK button.  name Change name DOS1 _ _ _ _ _ _ _ _ _ _ _ ä b c P OK # The current name is shown on the second line of the display. This can be changed using the options shown in the bottom line.

  • Page 82: Temperature / Time

    Additional settings Temperature / The temperature and holding time for the main wash and final rinse Time phases can be changed in some programs (see “Program chart”). Select Temperature / Time and confirm your choice with the  OK button. Select program Short Universal The following options are available:...
  • Page 83 Additional settings Main wash Final rinse Main wash / Final The procedure for altering settings in is the rinse same. The display also looks similar. Select the Main wash Final rinse option and confirm your choice  with the OK button. Normal Final rinse temperature Holding time...
  • Page 84 Additional settings Holding time Holding time Select and confirm your choice with the OK button.  The holding time is displayed in minutes and can be changed to between 0 and 10 minutes in 1-minute increments. Rapid In the program, the holding time is displayed in seconds and can be changed to between 0 and 300 seconds in 5-second increments.

  • Page 85: Program Access

    Additional settings Program access Individual programs can be locked so that they cannot be used. In the factory default setting, all programs are unlocked for use. Select the Additional settings menu.  Release program Selection Release program Select and press OK to open the corresponding ...

  • Page 86: Water Hardness

    Additional settings Water hardness Using this menu, you can program the water softener to match the hardness of the water supplied. Detailed information is available under “Filling the salt compartment”. Display view During a program, the actual or set temperature can be shown in the second line of the display.

  • Page 87: Display

    Additional settings Display The Display menu can be used to alter the contrast and brightness of the display. Select the Additional settings menu.  Display Contrast Brightness Display Select and open the corresponding menu by pressing the  OK button. The following settings are available: Contrast –...

  • Page 88: Switch Off After

    Additional settings Switch off after When not in use, the Commercial Dishwasher can be switched off to save energy or be placed in standby mode by selecting an option Settings  Time of day Display from the menu. The clock display will be visible in standby mode. Select the Additional settings menu.

  • Page 89: Factory Default Setting

    Additional settings Factory default setting Factory default setting can be used to reset all changed parameters in the Commercial Dishwasher back to their factory default settings or just values that have been changed for programs. Additional settings Select the menu. ...

  • Page 90: Software Version

    Additional settings Software version Displays the versions of the individual software components. Additional settings Select the menu.  Software version Select and open the corresponding menu by  pressing the OK button. Software version EB Id: XXXX EGL Id: XXXX The software for the individual components is displayed. XXXX denotes the version.

  • Page 91: Cleaning And Care

    Cleaning and care Maintenance To prolong the service life of the Commercial Dishwasher, it should be serviced at least once a year by Miele Technical Service. Maintenance covers the following: – Electrical safety according to national regulations – Door mechanism and door seal –...

  • Page 92: Cleaning The Control Panel

    Cleaning and care  Remove any soiling from the control panel and from the front of the machine straight away. Soiling that is left too long might become impossible to remove and could cause the external surfaces to alter or discolor. ...

  • Page 93: Cleaning The Door And The Door Seal

    Cleaning and care Cleaning the door and the door seal Wipe the door seal and the area beneath the door regularly with a  damp cloth to remove food deposits. Wipe away any spillages of food and beverages from the sides and ...
  • Page 94 Cleaning and care Cleaning the flat Remove the coarse filter.  and micro-fine filters Grasp the micro-fine filter by the upper rim and turn it in the  direction of the arrow to release it. Then lift it out. Remove the flat filter. ...

  • Page 95: Cleaning The Spray Arms

    Cleaning and care Cleaning the spray arms This Commercial Dishwasher has three different spray arms. Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. Switch the Commercial Dishwasher off. ...
  • Page 96 Cleaning and care Use a pointed object to push food particles in the jets into the spray  arms. Rinse the spray arms thoroughly under running water.  Reinstall the spray arms and check that they rotate freely. Make sure that the spray arm with the yellow bayonet fitting is fitted in the bottom of the wash cabinet.

  • Page 97: Frequently Asked Questions

    Frequently asked questions With the aid of the following guide, most minor problems can be corrected without contacting Miele. In many cases, this will save you time and money because you won't need to call Miele Technical Service. The following guide should help you to find the reason for a malfunction or fault, and to correct it.
  • Page 98 Frequently asked questions Problem Possible cause and solution Fault 403-405 Check water intake has appeared in the display, the controls will check the water intake every 30 seconds. If no water has entered the dishwasher after three attempts, one of these fault numbers appears in the display and the program will be canceled.
  • Page 99 Frequently asked questions Problem Possible cause and solution Fault XXX A malfunction may have occurred. (XXX stands for a number) After waiting 10 seconds: Turn the dishwasher back on.  Select the desired program.  Press the Start/Stop button.  If the fault message is displayed again, there has been a malfunction.

  • Page 100: Unusual Behavior Of The Dishwasher

    Frequently asked questions Unusual behavior of the dishwasher Problem Possible cause and solution Program finished has ap- This is not a fault. peared on the display and Open and close the door.  you cannot select or start The dishwasher must remain switched on while you do a program.

  • Page 101: Noises

    Frequently asked questions Noises Problem Possible cause and solution There is a knocking noise A spray arm is hitting the dishware. in the wash cabinet. Interrupt the program, and rearrange the items which are  obstructing the spray arm. There is a rattling noise in Dishware is moving around in the wash cabinet.

  • Page 102: Poor Cleaning Results

    Frequently asked questions Poor cleaning results Problem Possible cause and solution The dishes are not clean. The dishes were not loaded correctly. Please observe the instructions in “Loading the  dishwasher”. The program was not suitable for the requirements. Select a more suitable program (see “Program guide)”. ...
  • Page 103 Frequently asked questions Problem Possible cause and solution White residue is visible on The rinse aid dosage is too low. the dishware. Clouding oc- Increase the quantity dispensed (see “Additional  curs on glassware and settings, Additional functions, Dispensing system”). cutlery;...

  • Page 104: Cleaning The Water Intake Filter

    Frequently asked questions Cleaning the water intake filter A filter is incorporated in the screw connection of the water intake valve. The filter must be cleaned when dirty; otherwise, insufficient water will flow into the wash cabinet.  The plastic housing of the water connection contains an electrical component.

  • Page 105: Cleaning The Drain Pump And Non-Return Valve

    Frequently asked questions Cleaning the drain pump and non-return valve If water has not pumped out at the end of a program, there may be a foreign object in the drain pump or blocking the non-return valve. These are easy to remove. Disconnect the dishwasher from the water supply and the electrical ...
  • Page 106 Frequently asked questions The drain pump is situated under the non-return valve (see arrow). Check the area around the drain pump for foreign objects (watch  out for glass splinters which could cause injury) and remove them before replacing the non-return valve. Carefully replace the non-return valve and secure it with the clamp.

  • Page 107: After Sales Service

    After sales service Technical Service If, despite following the instructions in this manual, you are unable to rectify a problem, please contact one of the following, quoting the fault code shown in the display: – your Miele dealer, or – Miele Technical Service Contact details for Miele Technical Service can be found at the back of this manual.

  • Page 108: Installation Instructions

    Installation instructions Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. To prevent accidents and machine damage, read these instructions before installation or use.

  • Page 109: Caring For The Environment

    Caring for the environment Disposal of the packing material The cardboard box and packing materials protect the appliance during shipping. They have been designed to be biodegradable and recyclable. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.

  • Page 110: Installation

    *INSTALLATION* Installation Installation  In order to reduce the risk of damage from condensation, the furniture in the area around the Commercial Dishwasher should be designed for commercial use. The Commercial Dishwasher must be installed in a secure and level position.

  • Page 111: Leveling And Securing The Dishwasher

    *INSTALLATION* Installation Leveling and To ensure stability, the dishwasher must be secured to the counter securing the once it has been leveled. dishwasher After leveling, securely screw the dishwasher to the continuous  countertop. With the door open, turn the screws into the countertop through the holes in the front trim on the left and right hand sides of the dishwasher.

  • Page 112: Moving The Dishwasher

    *INSTALLATION* Installation Moving the dishwasher Before moving the dishwasher, screw in the adjustable feet fully so that they do not become damaged.  Do not use protruding parts, e.g. the control panel, to lift the dishwasher. These parts could break off. ...
  • Page 113 *INSTALLATION* Electrical connection Electrical connection  All electrical work must be performed by a suitably qualified electrician in accordance with local and national safety codes. – The electrical system must conform to local and national safety standards. – The dishwasher can be plugged into an electrical outlet (the outlet must be accessible after installation).

  • Page 114: Electrical Connection

    *INSTALLATION* Electrical connection Peak-load negotiation The Commercial Dishwasher is suitable for use in an energy management system. For this purpose, it must be technically adapted and the controls reset by Miele Technical Service. Please contact Miele Technical Service for further information. Peak-load In the event of a peak load cut-out, some components of the management...

  • Page 115: Plumbing

    *INSTALLATION* Plumbing Connecting the water supply  The water in the dishwasher is NOT safe to drink! – The Commercial Dishwasher's connection to the water supply system must be in compliance with local codes. – The water used must at least comply with national regulations for drinking water quality.
  • Page 116 *INSTALLATION* Plumbing  Do NOT shorten or otherwise damage the inlet hoses (see diagram). Also refer to the supplied installation diagram!

  • Page 117: Connection To The Drainage System

    *INSTALLATION* Plumbing Connection to the drainage system – The dishwasher drain contains a built-in non-return valve which prevents dirty water from flowing back into the dishwasher via the drain hose. – Ideally, the dishwasher should be connected to a separate on-site drainage system.

  • Page 118: Technical Details

    Technical details Height 32 5/16" (820 mm) adjustable + 2 1/4" (60 mm) Height with cover 32 7/8" (835 mm) adjustable + 2 1/4" (60 mm) Width 23 1/2" (598 mm) Depth 22 13/16" (580 mm) Depth with door open 49 1/2" (1180 mm) Weight (net) 154 lbs (70 kg) Voltage, rated load, fuse rating See data plate Power cord...
  • Page 120 Please have the model and serial number of your machine available when contacting Technical Service. U.S.A. Miele, Inc. National Headquarters 9 Independence Way Princeton, NJ 08540 Phone: 800-991-9380 Fax: 609-419-4241 www.mieleusa.com/professional proinfo@mieleusa.com Technical Service & Support Phone: 800-991-9380 Fax: 800-220-1348 proservice@mieleusa.com Alteration rights reserved / Publication date: 2020-01-23 M.-Nr.

Table of Contents
