Operating instructions
Commercial Dishwasher
PG 8059
It is essential to read these operating
instructions before installing and using
the appliance. This will prevent both
personal injury and damage to the
machine.
en - AU, NZ
M.-Nr. 09 865 042

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG 8059 and is the answer not in the manual?

Questions and answers

Related Manuals for Miele professional PG 8059

Summary of Contents for Miele professional PG 8059

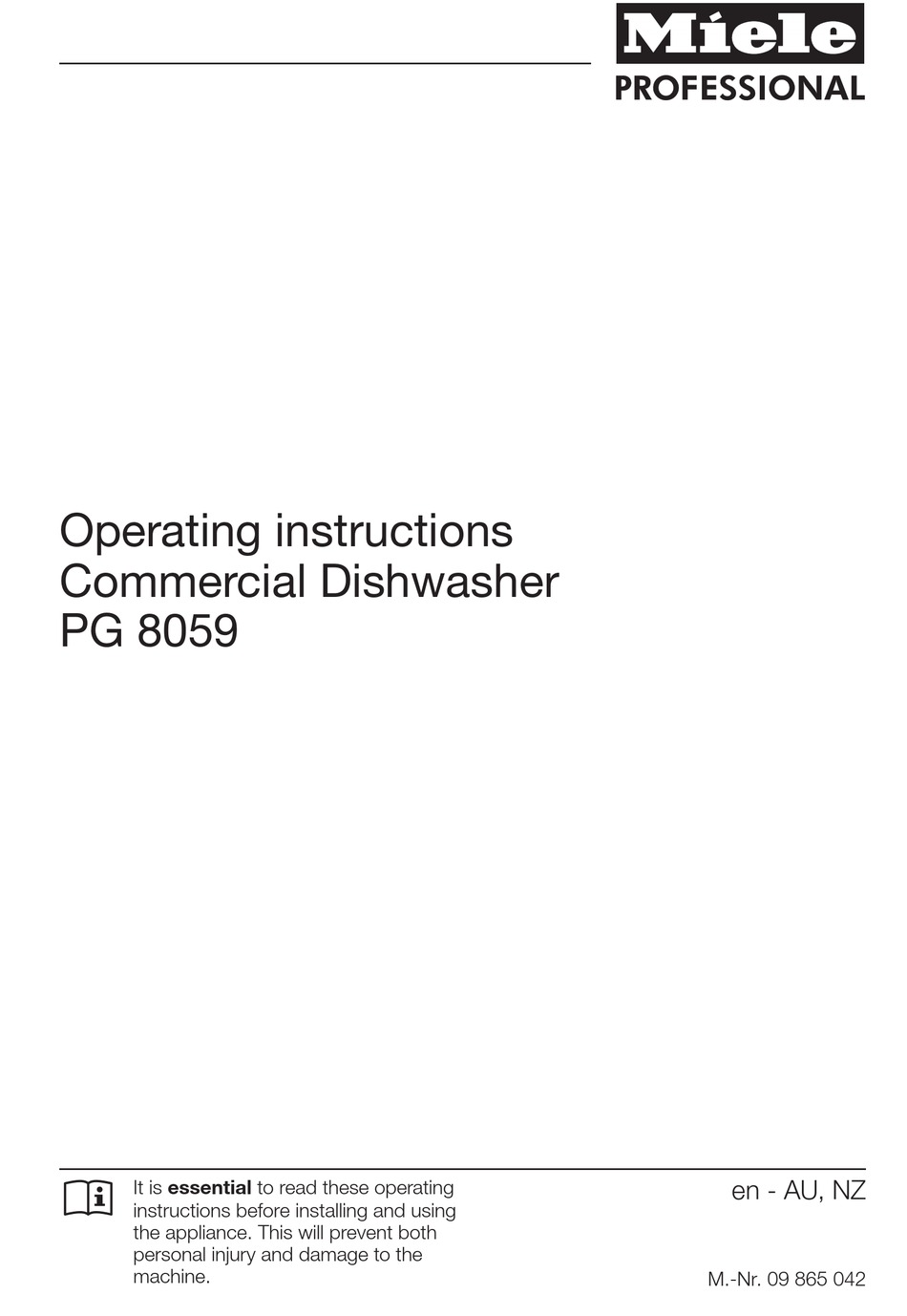

  • Page 1 Operating instructions Commercial Dishwasher PG 8059 It is essential to read these operating en - AU, NZ  instructions before installing and using the appliance. This will prevent both personal injury and damage to the machine. M.-Nr. 09 865 042...

  • Page 2: Table Of Contents

    Contents Notes about these instructions.................. 5 Guide to the appliance ...................... 6 Overview..........................6 Control panel ......................... 7 Correct application ...................... 8 Warning and Safety instructions.................. 9 Symbols used........................13 Disposal of your old dishwasher ..................13 Caring for the environment .................... 14 User profiles........................ 15 User groups.........................
  • Page 3 Contents Switching on........................50 Selecting a programme ....................... 50 Starting a programme ......................52 At the end of the programme ....................53 Switching off........................53 Unloading the dishwasher....................53 Interrupting a programme....................54 Cancelling a programme ..................... 55 Additional functions ...................... 56 Delay start ...........................
  • Page 4 Unsatisfactory cleaning result ................... 105 Maintenance ........................ 107 Cleaning the filters in the water inlet ................. 107 Cleaning the drain pump and non-return valve..............108 Programme chart ...................... 110 Miele Professional Service ..................... 114 Installation........................ 115 Installation ......................... 115 Built-under........................ 115 Levelling and securing the dishwasher ................  116 Moving the dishwasher .....................

  • Page 5: Notes About These Instructions

    Notes about these instructions Important warnings  Information which is important for safety is highlighted like this. This alerts you to the potential danger of injury to people or damage to property. Read these warning notes carefully and observe the procedural instructions and codes of practice they describe.

  • Page 6: Guide To The Appliance

    Guide to the appliance Overview Door lock Upper spray arm (not visible) Upper basket runner Connection for upper basket spray arm Lower spray arm Lower basket runner Data plate Rinsing agent reservoir Door lock latch Salt reservoir Dispenser for powder detergent Filter combination Back: Connection for DOS modules...

  • Page 7: Control Panel

    OK button (confirmation) For selecting or confirming entries in the user interface.  PC / Optical interface This is used by Miele Professional Service technicians to run diagnostic checks and can also be used to update programming data in the future.

  • Page 8: Correct Application

    Correct application This appliance complies with all current local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. Read the Operating instructions carefully before using the appliance for the first time. They contain important information on the safety, installation, use and maintenance of the appliance.

  • Page 9: Warning And Safety Instructions

    Technical safety  This dishwasher must only be installed, commissioned, repaired and maintained by Miele Professional Service or a suitably qualified service technician. Installation, repairs and other work by unqualified persons could be dangerous and Miele will not be held liable.
  • Page 10 The dishwasher must not be used if the electrical connection cable is damaged. If the cable is damaged, it must be replaced with a special cable available from Miele. For safety reasons, the replacement must only be carried out by Miele Professional Service or a qualified electrician. ...
  • Page 11 Warning and Safety instructions Correct use  This dishwasher is designed for operation with water and cleaning agents suitable for use in commercial dishwashers only. Organic solvents and flammable liquid agents must not be used in it. This could cause an explosion, damage rubber or plastic components in the dishwasher and cause liquids to leak out of it.
  • Page 12 Warning and Safety instructions  To avoid material damage and corrosion, do not allow any acids or solutions containing chloride to get into the wash cabinet. Similarly avoid any ferrous materials with a corrosive effect.  Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher.

  • Page 13: Symbols Used

    Warning and Safety instructions Symbols used Warning: Observe the operating instructions! Warning: Danger of electric shock! Disposal of your old dishwasher  For safety and environmental reasons, dispose of all process chemicals according to the manufacturer's instructions and safety regulations. Safety goggles and protective gloves should be worn. ...

  • Page 14: Caring For The Environment

    Caring for the environment Disposal of the packing material The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

  • Page 15: User Profiles

    User profiles User groups Users can be divided into two groups: – Daily operators – Experienced operators Access to the "Further settings" can be blocked to general operators by using a code (see "Further settings, Code"). Daily operators Operators must be instructed in operating and loading the dishwasher and trained regularly to guarantee safe daily use.

  • Page 16: Operation Tips

    Operation tips Display functions The display is not a touch screen. The display is used to select or set the following: – the programme – the Delay start time – settings During a programme, the display shows the following: – the programme name –...

  • Page 17: Menus

    Operation tips Menus The user interface of the commercial dishwasher is divided into menus. The menus are displayed in a 3-line display on the control panel. Example: Language  deutsch english (GB) The name of the menu and a maximum of two options are shown. The currently selected option is highlighted.
  • Page 18 Operation tips System messages The  symbol denotes system messages. These give information about current processes and the status of the dishwasher. System messages are displayed individually at the end of the programme. If there are a number of system messages, subsequent messages can be displayed by pressing OK.

  • Page 19: Symbols In The Display

    Operation tips Symbols in the display Navigation arrows If a menu consists of more than two options, two navigation arrows  are shown at the side of the menu options. The arrow buttons  and  can be used to scroll through the options. Dotted line -------- If a menu contains more than two options, the end of the option list is marked by a dotted line.
  • Page 20 Commissioning Commissioning During commissioning, the following settings must be carried out. You will automatically be asked to programme settings one after the other. Currently selected values will have a tick  beside them. The commissioning process follows a set procedure which cannot be interrupted.

  • Page 21: Commissioning

    Commissioning Setting the The display will change to the screen for setting the temperature unit. temperature unit Temperature unit °C °F Use the  and  arrow buttons to select the temperature unit you  want and confirm your choice using the OK button. Setting the date The display will change to the screen for setting the date format.
  • Page 22 Commissioning Setting the time The display will change to the screen for setting the time of day. of day Time of day : 00 Use the  and  arrow buttons to set the hours and minutes and  confirm each entry using the OK button. If you have selected 12 h for the clock, "am"...
  • Page 23 This setting can be switched off if the dishwasher cannot be connected to all available plumbing connections. If individual plumbing connections are switched off, they can only be reactivated by Miele Professional Service. Plumbing connections Accept Cold water Use the  and  arrow buttons to select the plumbing connections ...

  • Page 24: Opening And Closing The Door

    Opening and closing the door Comfort door lock The dishwasher is equipped with a Comfort door locking mechanism. This door locking mechanism helps drying by opening the door by a Super short few centimetres at the end of the programme (except Reactivation Cold Drain ).

  • Page 25: Closing The Door

    Opening and closing the door Closing the door Push the baskets right in.  Raise the door upwards and push it gently until the catch audibly  engages. The door will be drawn automatically into its final closed position by the closing mechanism. ...

  • Page 26: Opening The Door Using The Emergency Release

    Opening and closing the door Opening the door using the emergency release  The emergency release may only be used when it is no longer possible to open the door normally.  If the emergency release is operated during a programme cycle, hot water can escape.

  • Page 27: Filling The Salt Reservoir

    Dishwasher detergent will damage the water softener. Only use special coarse grained dishwasher salt for reactivation, or pure evaporated salt. Suitable products are available from Miele Professional. Other salts may contain insoluble additives which can impair the functioning of the water softener.

  • Page 28: Setting The Water Hardness Level

    Filling the salt reservoir Setting the water hardness level The water softener can be set between 0 - 12.6 mmol/l (0 - 70 °dH). Further settings Select the menu.  Water hardness Select and confirm your choice with the OK button.  Water hardness °dH (0 - 70 °dH) The factory setting for the water softener is set to a water hardness of...
  • Page 29 Filling the salt reservoir Settings table °dH °f mmol/l Display °dH °f mmol/l Display   0   0   0   0   65   6.5   1   2   1   67   6.7   2   4   2   68   6.8   3   5   3   70   7.0   4   7   4   72   7.2   5   9   5...

  • Page 30: Add Salt Reminder

    Filling the salt reservoir Add salt reminder Fill the salt reservoir with dishwasher salt for reactivation as soon as  the reminder appears in the display (if it appears during a programme, wait until the end of the programme). Confirm the message shown with the OK button. ...

  • Page 31: Filling The Salt Reservoir

    Filling the salt reservoir Filling the salt reservoir When filling the salt reservoir, only open the door halfway to  ensure that all the salt gets into the reservoir. Press the button on the lid of the salt reservoir in the direction of the ...
  • Page 32 Filling the salt reservoir Do not add more than 2 kg of salt. As the salt reservoir is being filled, displaced water may run out. Clean any excess salt from around the reservoir opening and the  seal around it, and then close the flap. Cold To avoid corrsion in the wash cabinet, run the programme...

  • Page 33: Adding Rinsing Agent

     Filling the rinsing agent reservoir with powder or liquid detergent accidentally will seriously damage the reservoir. Only fill the reservoir with rinsing agent! Suitable products are available from Miele Professional. Conversion to the external DOS module must be carried out only by Miele Professional Service.

  • Page 34: Adding Rinsing Agent

    Adding rinsing agent Adding rinsing agent Open the door fully.  Unscrew the lid of the rinsing agent reservoir.  Add the rinsing agent until it reaches the maximum mark on the  edge of the reservoir. The rinsing agent reservoir holds approx. 300 ml. Screw the lid of the rinsing agent reservoir back on securely so that ...

  • Page 35: Guide To The Appliance

    Guide to the appliance Preparing the load Remove coarse food residues from crockery. There is no need to rinse items under running water. Notes  Ensure that no acid or solvent residues, especially hydrochloric acid or chlorides, get inside the wash cabinet. ...
  • Page 36 Guide to the appliance Items not suitable – Wooden cutlery and crockery or items with wooden parts, as these for dishwashers may discolour or fade. The glue used in these items is not dishwasher-proof. Wooden parts may come loose after being washed in a dishwasher.

  • Page 37: Upper Basket

    Guide to the appliance Upper basket Use the upper basket for small, lightweight and delicate items such as cups, saucers, glasses, dessert bowls etc. Light, heat-resistant plastic items can also be loaded in the upper basket. O 891 upper basket With insert E 810 for e.g.

  • Page 38: Adjusting The Upper Basket

    Guide to the appliance Adjusting the upper basket In order to gain more space for taller pieces of crockery in the lower or upper basket, the upper basket can be adjusted between two positions with approx. 5 cm between each position. Pull out the upper basket.
  • Page 39 Guide to the appliance Depending on the setting of the upper basket, the following plate dimensions can be accommodated: Example upper basket O 891: Upper basket in Upper basket plate Ø Lower basket plate Ø position Upper max. 15 cm 33 cm * Lower max.

  • Page 40: Lower Basket

    Guide to the appliance Lower basket Place larger and heavier items such as plates, serving platters, saucepans, bowls etc. in the lower basket. Only place thin, delicate glassware in the lower basket using a suitable insert or basket. U 890 lower basket carrier For plastic trays, various inserts and cutlery inserts.
  • Page 41 Guide to the appliance U 890 lower basket carrier with an E 816 insert rotated 90° With the E 165 cutlery insert, 16 plates each with Ø 33 cm and various items of cutlery can be loaded. Without the cutlery insert, 19 plates each with Ø 33 cm can be loaded into the rotated E 816 insert.

  • Page 42: Loading Plastic Trays

    Which basket combination to use will depend on the type, shape and size of the items to be washed. For further information on baskets, please contact Miele Professional Service. Example (lower baskets): U 525 5-row wire basket The wire basket can be used for glasses with a maximum diameter of 8 cm.
  • Page 43 Guide to the appliance U 534 - U 537 plastic trays with compartments for different glass heights In this example the plastic tray is connected to the top frame by long extenders. (for assembly in U 876 lower basket carrier only) The height of the basket can be altered by fitting a top frame  to the Assembling a plastic tray base ...

  • Page 44: Operation

    Operation Adding detergent Only use cleaning agents for commercial dishwashers. Suitable products are available from Miele Professional. Cleaning agent can be dispensed in powder form via the powder detergent dispenser or in liquid form via an external DOS module (Optional accessory - see "DOS module").

  • Page 45: Tips For The Super Short Programme

    Operation Place the required amount of powder cleaning agent or a tab in the  detergent dispenser in the door and close the flap. Dispensing Always follow the recommendations of the cleaning agent  manufacturer. There are markings in compartment II to assist with dispensing: 20 and 40.

  • Page 46: Dos Module

    Colour coding the siphons can be helpful for correct dispensing. Specific types of soiling may require different combinations of cleaning agents and additives. Miele Professional Service will be able to advise you. Connecting DOS The DOS module is supplied with its own installation instructions.
  • Page 47 Operation Setting the For adjusting the dispensing concentration, see "Further settings, dispensing Additional functions, Dispensing systems". concentration Refilling or The DOS module is equipped with a level indicator which gives a changing message in the display when the level drops below the minimum. containers Refill As soon as the message appears in the display, refill or replace the...
  • Page 48 Operation Checking Monitor the amount of process chemicals used by regularly checking consumption the level in the container in order to detect any dispensing irregularities.

  • Page 49: Leds In The Buttons

    Operation LEDs in the buttons Light-emitting diodes are set into the buttons. They indicate the status of the dishwasher. Except for the Start/Stop button, which has a green LED in normal operation, all other LEDs light up yellow. In the event of a fault the Start/Stop button flashes red. Button Status ...

  • Page 50: Switching On

    Operation Switching on Turn on the tap, if it is turned off.  Press the  button until the LED lights up.  Close the door (the  button's LED will light up).  As soon as the dishwasher is ready for operation, the display changes to show the last selected programme, e.g.: Universal...
  • Page 51 Operation Programme list Programmes which cannot be selected via the shortcut buttons can be selected from the programme list. Press the  button.  The following options menu appears in the display: Select programme Super short Hygiene plus Select the programme you want using the  and  buttons and ...

  • Page 52: Starting A Programme

    Operation Starting a programme Press the Start/Stop button.  The Start/Stop button's LED will light up and the  button's LED will go out. A programme can no longer be changed after it has been started. A programme can either be interrupted (see "Interrupting a programme") or cancelled (see "Cancelling a programme").

  • Page 53: At The End Of The Programme

    Operation At the end of the programme After a programme has ended normally, the Start/Stop button's LED will go out and the  button's LED will flash. The message Programme finished will appear in the bottom line of the display. Universal Temperature 55 °C...

  • Page 54: Interrupting A Programme

    Operation Interrupting a programme A programme which is already running should only be interrupted if strictly necessary, e.g. if the wash load is moving about significantly.  Caution! The wash load and the interior of the dishwasher may be hot. Danger of scalding and burning! Press the  button.

  • Page 55: Cancelling A Programme

    Operation Cancelling a programme Only cancel a programme which has already started if strictly necessary, e.g. if you want to change the programme. In the event of a fault the programme will be cancelled automatically.  Caution! The wash load and the interior of the dishwasher may be hot.

  • Page 56: Additional Functions

    Additional functions Delay start The start time of a programme can be delayed, e.g. to benefit from economy rates of electricity. The delayed start time of between 1 minute and 24 hours can be selected. Delay start must be switched on in the Settings menu (see "Settings , Delay start").

  • Page 57: Drying Support

    Additional functions Drying support To achieve better drying results, the dishwasher door will automatically open a few centimetres at the end of the programme. This function cannot be activated for all programmes (see "Programme chart"). Drying support can be activated or deactivated for the selected programme, even if it is switched on or off permanently under Settings ...
  • Page 58 Additional functions Universal Temperature 55 °C Duration If Drying support has been activated, the drying symbol  will appear in the display to the right of the programme name. If the temperature in the wash cabinet is higher than 67 °C after the final wash phase (e.g.

  • Page 59: Settings

    Settings  Calling up the Settings  menu To open the Settings menu: Switch the dishwasher off.  Press and hold the  button and switch the dishwasher on using  the  button. After that, the display will show the following, for example: Menu Settings ...

  • Page 60: Menu Structure

    Settings  Menu structure Factory settings are marked with a tick. Menu Submenu 1 Submenu 2 Delay start  Drying  Language  deutsch  english (GB) etc..Venting DOS DOS 1 DOS 4 Date Date format DD:MM:YY  MM:DD:YY Time of day Set the time Display...

  • Page 61: Delay Start

    Settings  Delay start You can select whether Delay start appears in the Additional functions menu or not. Selecting the option will remove Delay start from the Additional functions menu for operators. To be able to delay the start of a programme, must be selected in order for it to be displayed in Additional functions.

  • Page 62: Drying

    Settings  Drying You can switch drying support on or off for all programmes that support this function. In Additional functions you can select or deselect drying for individual programmes (see "Additional functions, Drying support"). Select the Settings  menu. ...

  • Page 63: Setting The Language

    Settings  Setting the language  The language set will be used in the display. The flag symbol  after the "Settings" menu and after the word "Language" serves as a guide if a language that you do not understand has been set. In this case keep selecting the option which has a flag after it until you reach the "Language"...

  • Page 64: Venting Dos Modules

    Settings  Venting DOS modules This option is only visible when a DOS module is connected. The dispensing system for liquid agents can only dispense reliably if the system has been purged of air. The DOS system must be vented: –...

  • Page 65: Setting The Date

    Settings  Setting the date Settings  Select the menu.  Date Select and confirm your choice with the OK button.  In the following menu you can choose between: Date Date format Date format – This option offers two variations for the date format. –...

  • Page 66: Setting The Time Of Day

    Settings  Setting the time of day Settings  Select the menu.  Time of day Select and confirm your choice with the OK button.  In the following menu you can choose between: Time of day Display – Set the time of day. Display –...

  • Page 67: Display

    Settings  Display If required, the time of day can be displayed once the "Switch off Further settings Switch off after after duration" has elapsed (see ). The LED in the  button will flash. The dishwasher is in standby when the time is visible in the display. Pressing any button will reactivate it.

  • Page 68: Regulating The Volume

    Settings  Regulating the volume The dishwasher has audible tones. They sound when buttons on the keypad are pressed, at the end of a programme and when there are system messages. Settings  Select the menu.  Volume Select and confirm your choice with the OK button. ...

  • Page 69: Setting The Volume

    Settings  Setting The volume is always set in the same way. The display is also similar, the volume e.g.: Keypad tone Quieter Louder Set the volume using the arrow buttons  (louder) and  (quieter).  The volume level is represented by a bar chart. On the lowest setting the tone is switched off.

  • Page 70: Further Settings

    Further settings Opening the "Further settings" menu To open the "Further settings" menu: Switch the dishwasher off.  Press and hold the  button and switch the dishwasher on using  the  button. After that, the display will show the following: Menu Settings ...
  • Page 71 Further settings Display view – The display can show the actual temperature or the target temperature (see "Display view") Display – The display contrast and brightness can be adjusted (see "Display") Switch off after – Automatic switch off can be activated or deactivated (see "Switch off after") Factory default –...

  • Page 72: Menu Structure

    Further settings Menu structure Factory settings are marked with a tick. Menu Submenu 1 Submenu 2 Submenu 3 Code Release Further settings  Enter code Block Change code Log book Consumption: Water Consumpt.: Cleaning agent Consumpt.: Rinsing agent Operating hours Wash cycles Service interval Temperature unit...
  • Page 73 Further settings Menu Submenu 1 Submenu 2 Submenu 3 Display view Actual temperature Required temperature  Display Contrast Contrast Set Brightness Brightness Set Switch off after  Set the time Factory default Reset  Programme settings only All settings Software version EB Id: XXXX EGL Id: XXXX EZL Id: XXXX...

  • Page 74: Code

    Further settings Code A code can be used to prevent unauthorised access to various functions and system settings on the dishwasher. Further settings Select the menu.  Code Select and press OK to open the relevant menu.  Release – Further settings Restrict access to the menu to users with...
  • Page 75 Further settings Release Block Entering the If in the menu you have selected or if you have set the code Further settings menu up for access via a code, you have to enter the code. Further settings Settings within the menu can then only be changed by people with administrative rights.

  • Page 76: Log Book

    Further settings Log book The dishwasher controls measure the consumption levels for water, cleaning agent and rinsing agent. They also calculate the number of hours the dishwasher has been run for, how many programmes have been run and measure the service intervals. Select the Further settings menu.

  • Page 77: Temperature Unit

    Further settings Temperature unit The temperature can be shown in the display in degrees Celsius or degrees Fahrenheit. Further settings Select the menu.  Temperature unit Select and confirm your choice with the OK  button. Temperature unit °C °F –...

  • Page 78: Moving A Programme

    Further settings Moving a programme You can change the order of the programmes and with it the allocation of the shortcut buttons. You can move the programmes you use most frequently to programme places 1-3. These are then automatically allocated to the shortcut buttons.

  • Page 79: Additional Functions

    Further settings Additional functions It is possible to adapt individual parameters to tailor programme sequences to particular types of soiling and to optimise the cleaning result. Further settings Select the menu.  Additional functions Select and press the OK button to open the ...

  • Page 80: Increased Water Level

    Further settings Increased water level Increased water Select the option and confirm your choice with  level the OK button. The amount of water is shown in litres and can be increased in 0.5 litre increments up to 1.5 litres. Increased water level (0.0 - 1.5 l) Use the arrow buttons ...
  • Page 81 Further settings Dispensing system DOS dispensing Select the option and confirm your choice with  system the OK button. Dispensing system DOS 2 Rinsing agent DOS1 Select the dispensing system you want and confirm your choice  with the OK button. The following options are available: DOS1 Active...
  • Page 82 Further settings DOS venting  To avoid damage to the dispensing system, make sure before venting that the containers for cleaning agent and rinsing agent are sufficiently filled and the dispensing siphons are screwed securely to the containers. DOS venting Select and confirm your choice with the OK button.
  • Page 83 Further settings Change name Changing a DOS Select and confirm your choice with the OK button.  name Change name DOS1 _ _ _ _ _ _ _ _ _ _ _ ä b c P OK # The current name is shown on the second line of the display. This can be changed using the options shown in the bottom line.
  • Page 84 Further settings Temperature / The temperature and holding time for the main wash and final rinse time phases can be altered in some programmes (see "Programme chart"). Select Temperature / Time and confirm your choice with the  OK button. Select programme Short Universal The following options are available:...
  • Page 85 Further settings Main wash Final rinse Main wash / final The procedure for altering settings in is the rinse same. The display also looks similar. Select the Main wash Final rinse option and confirm your choice  with the OK button. Short Final rinse temp.
  • Page 86 Further settings Holding time Holding time Select and confirm your choice with the OK button.  The holding time is set in minutes and can be set between 0 and 10 minutes in 1 minute increments. Super short In the case of the programme, the holding time is set in seconds and can be set between 0 and 300 seconds in 5 second increments.

  • Page 87: Releasing Programmes

    Further settings Releasing programmes Individual programmes can be blocked so that they cannot be used. All programmes are released for use as default. Select the Further settings menu.  Release programme Selection Release programme Select and press OK to open the relevant ...

  • Page 88: Water Hardness

    Further settings Water hardness You can use this menu to set the water softener to the water hardness of the mains supply. For further information, see "Filling the salt reservoir". Display During a programme the actual or target temperature can be shown in the second line of the display.

  • Page 89: Display

    Further settings Display The display menu can be used for altering the display contrast and brightness. Select the Further settings menu.  Display Contrast Brightness Display Select and press OK to open the relevant menu.  The following options are available: Contrast –...

  • Page 90: Switch Off After

    Further settings Switch off after When not in use the dishwasher can be switched off to save energy or be placed in standby mode by selecting an option from the Settings  Time of day Display menu. The clock display will be visible in standby mode. Select the Further settings menu.

  • Page 91: Factory Default

    Further settings Factory default The factory default setting can be used to reset all changed parameters in the dishwasher back to their default settings or just values that have been changed for programmes. Further settings Select the menu.  Factory default Reset Factory default Select...

  • Page 92: Software Version

    Further settings Software version This displays the versions of the various software components. Further settings Select the menu.  Software version Select and press OK to open the relevant menu.  Software version EB Id: XXXX EGL Id: XXXX The software for individual components is displayed. XXXX denotes the version.

  • Page 93: Cleaning And Care

    Cleaning and care Maintenance The dishwasher should be serviced every 1000 hours of operation, or at least once a year by Miele Professional Service. Maintenance covers the following: – Electrical safety according to national regulations – Door mechanism and door seal –...

  • Page 94: Cleaning The Control Panel

    Cleaning and care  Remove any soiling from the control panel and from the front of the dishwasher straight away. Soiling that is left too long might become impossible to remove and could cause external surfaces to alter or discolour. ...

  • Page 95: Cleaning The Door And The Door Seal

    Cleaning and care Cleaning the door and the door seal Wipe the door seal and the area beneath the door regularly with a  damp cloth to remove food deposits. Wipe away any spillages of food and drink from the sides of the ...
  • Page 96 Cleaning and care Cleaning the flat Remove the coarse filter.  and micro-fine filters Grasp the micro-fine filter by the upper rim and turn it in the  direction of the arrow to release it. Then lift it out. Remove the flat filter. ...

  • Page 97: Cleaning The Spray Arms

    Cleaning and care Cleaning the spray arms This dishwasher has three different spray arms. Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be inspected and cleaned regularly. Switch the dishwasher off. ...
  • Page 98 Cleaning and care Use a pointed object to push food particles into the spray arm jets.  Rinse the spray arms thoroughly under running water.  Refit the spray arms and check that they rotate freely. Make sure that the spray arm with the yellow bayonet fitting is fitted in the bottom of the wash cabinet.

  • Page 99: Problem Solving Guide

    Please note:  Repairs must only be carried out by the Miele Professional Service, a Miele authorised service agent or a suitably qualified technician in accordance with local and national safety regulations.
  • Page 100 If the flow pressure is too low, one of these numbers will appear in the display and the program will be cancelled. The flow pressure at the water intake point is too low  (see "Technical data"). Contact Miele Professional Service for advice. Fault 412-414 Water inlet fault.
  • Page 101 (XXX stands for a number) After 10 seconds: Switch the dishwasher back on.  Select the required programme.  Press the Start/Stop button.  If the fault message appears again, there is a technical fault. Call Miele Professional Service. ...

  • Page 102: Door

     Close the door and try to open it again using the   button. If it is still blocked: Contact Miele Professional Service.  Warning. Cabinet hot! Open When pressing the  button, be aware that the anyway? temperature in the wash cabinet may be over 70 °C.

  • Page 103: General Problems With The Dishwasher

    Problem solving guide General problems with the dishwasher Problem Possible cause and remedy The dishwasher fails to The dishwasher has switched itself off after the set "switch react when buttons are off after" period to save energy. pressed. The display and Press the ...

  • Page 104: Noises

    Problem solving guide Noises Problem Possible cause and remedy Knocking noise in the A spray arm is knocking against an item in a basket. wash cabinet. Interrupt the programme and rearrange the items which  are obstructing the spray arm. Rattling noise in the wash Items of crockery are insecure in the wash cabinet.

  • Page 105: Unsatisfactory Cleaning Result

    Problem solving guide Unsatisfactory cleaning result Problem Possible cause and remedy The dishes are not clean. The dishes were not loaded correctly. Please observe the instructions in "Guide to the  appliance", "Preparing the load". The programme selected was not suitable for the load. Select a more suitable programme (see "Programme ...
  • Page 106 Problem solving guide Problem Possible cause and remedy White residue is visible on Not enough rinsing agent was added. crockery. Clouding occurs Increase the dosage (see "Further settings, Additional  on glassware and cutlery; functions, Dispensing system"). film can be wiped off. There is no salt in the salt reservoir.

  • Page 107: Maintenance

    Maintenance Cleaning the filters in the water inlet Filters are incorporated into the water inlet connection on the hose to protect the water inlet valve. If these filters get dirty they must be cleaned as otherwise too little water will flow into the wash cabinet. ...

  • Page 108: Cleaning The Drain Pump And Non-Return Valve

    Maintenance Cleaning the drain pump and non-return valve If the water has not been pumped away at the end of a programme (excluding the Super short programme), there may be a foreign object in the drain pump or blocking the non-return valve. These are easy to remove.
  • Page 109 Maintenance The drain pump is situated under the non-return valve. (arrow) Check the area around the drain pump for foreign objects (watch  out for glass splinters which could cause injury) and remove them before replacing the non-return valve. Carefully replace the non-return valve and secure it with the clamp. ...

  • Page 110: Programme Chart

    Programme chart Programme Powder cleaning agent (when no liquid detergent dispensing is used) The following dosages are based on Miele cleaning agents. Please follow manufacturer's instructions on dosage "Quick programme" for lightly soiled crockery with fresh, 20 - 25 g easily removed food residues.
  • Page 111 Programme chart Programme sequence Pre-wash Pre-wash Main wash Interim Interim Final rinse Drying (1) / (2) rinse rinse (1) / (2) 66 °C 85 °C 1 min 1 min 66 °C 85 °C 1 min 1 min 66 °C 85 °C 3 min 1 min X *)
  • Page 112 Programme chart Programme Powder cleaning agent (when no liquid detergent dispensing is used) The following dosages are based on Miele cleaning agents. Please follow manufacturer's instructions on dosage Special programme for plastic items and other lightweight 20 - 25 g items.
  • Page 113 Programme chart Programme sequence Pre-wash Pre-wash Main wash Interim Interim Final rinse Drying (1) / (2) rinse rinse (1) / (2) 50 °C 60 °C 5 min 1 min 46 °C 50 °C 10 min 2 min Reactivation sequence X = Sections included in a programme (X) = Optional sections which can be selected (see "Further settings, Additional functions") (1) Temperature range 30 - 85 °C (see "Further settings, Additional functions").

  • Page 114: Miele Professional Service

    Miele Professional Service, quoting the fault code shown in the display. Contact details for Miele Professional Service can be found at the back of this manual.  When contacting Miele please quote the fault code as well as the model number of your dishwasher together with the 8 digit machine number.

  • Page 115: Installation

    Installation Installation  In order to reduce the risk of damage from condensation, the furniture in the area around the dishwasher should be designed for commercial use. The dishwasher must be installed in a secure and level position. Any unevenness in the floor level and height of the machine can be compensated for by adjusting the four feet.
  • Page 116 Installation Levelling and To guarantee stability, the dishwasher must be secured to the securing the worktop after levelling. dishwasher After levelling, secure the dishwasher to the continuous worktop.  With the door open, screw into the worktop through the holes in the front trim on the left and right-hand sides of the dishwasher.

  • Page 117: Moving The Dishwasher

    Installation Moving the dishwasher Before moving the dishwasher, screw in the adjusting feet fully so that they do not get damaged.  Do not lift the dishwasher by any protruding components, e.g. the control panel. This could break off.  Only transport the dishwasher on an upright trolley in its original packaging.

  • Page 118: Electrical Connection

    Electrical connection Electrical connection  All electrical work must be carried out by a suitably qualified and competent electrician in accordance with local and national safety regulations. – The electrical installation must comply with the current local and national safety regulations. –...

  • Page 119: Peak Load Cut-Out

    Peak load cut-out The machine is suitable for use in an energy management system. For this purpose, it must be technically adapted and the controls reset by Miele Professional Service. Please contact Miele for further information. Peak load In the event of a peak load cut-out, some machine components, such management as the heater elements, will be switched off for a while.

  • Page 120: Plumbing

    The maximum permissible static pressure amounts to 1000 kPa (overpressure). If the water pressure does not lie in the 200-1000 kPa (2-10 bar) range, contact Miele Professional Service for advice. – The dishwasher is supplied as standard for connection to cold water (blue coded hose) and hot water up to 65 °C (red coded...
  • Page 121 Plumbing – Install the filter (supplied in the accessory pack) and non-return valve (supplied separately with the machine) between the tap and the inlet hose (see illustration in "Maintenance, Cleaning the water intake filters").  Do not shorten or otherwise damage the inlet hoses (see diagram).

  • Page 122: Connecting The Drain Hose

    Plumbing Connecting the drain hose – The dishwasher drainage system is fitted with a non-return valve, which prevents dirty water from flowing back into the dishwasher via the drain hose. – The dishwasher should preferably be connected to a separate on- site drainage system.

  • Page 123: Technical Data

    CE-mark 2006/42/EC Machine guidelines Manufacturer's address Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany * If installed above 2000 m the boiling point of water will be lower. Dishwashers installed above this altitude must be modified by Miele Professional Service.
  • Page 124 Miele Australia Pty. Ltd. ACN 005 635 398 ABN 96 005 635 398 Melbourne: 1 Gilbert Park Drive Knoxfield, VIC 3180 Telephone: 1300 731 411 service.prof@miele.com.au www.miele-professional.com.au info@miele-professional.com.au Miele New Zealand Limited IRD 98 463 631 Level 2, 10 College Hill Freemans Bay Auckland 1011 New Zealand...

Table of Contents

Save PDF
