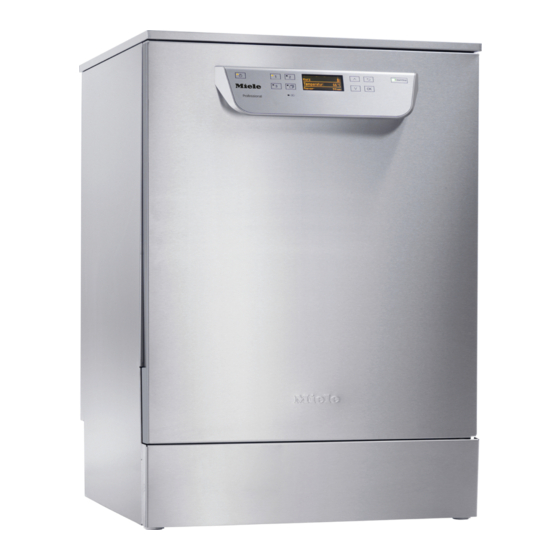

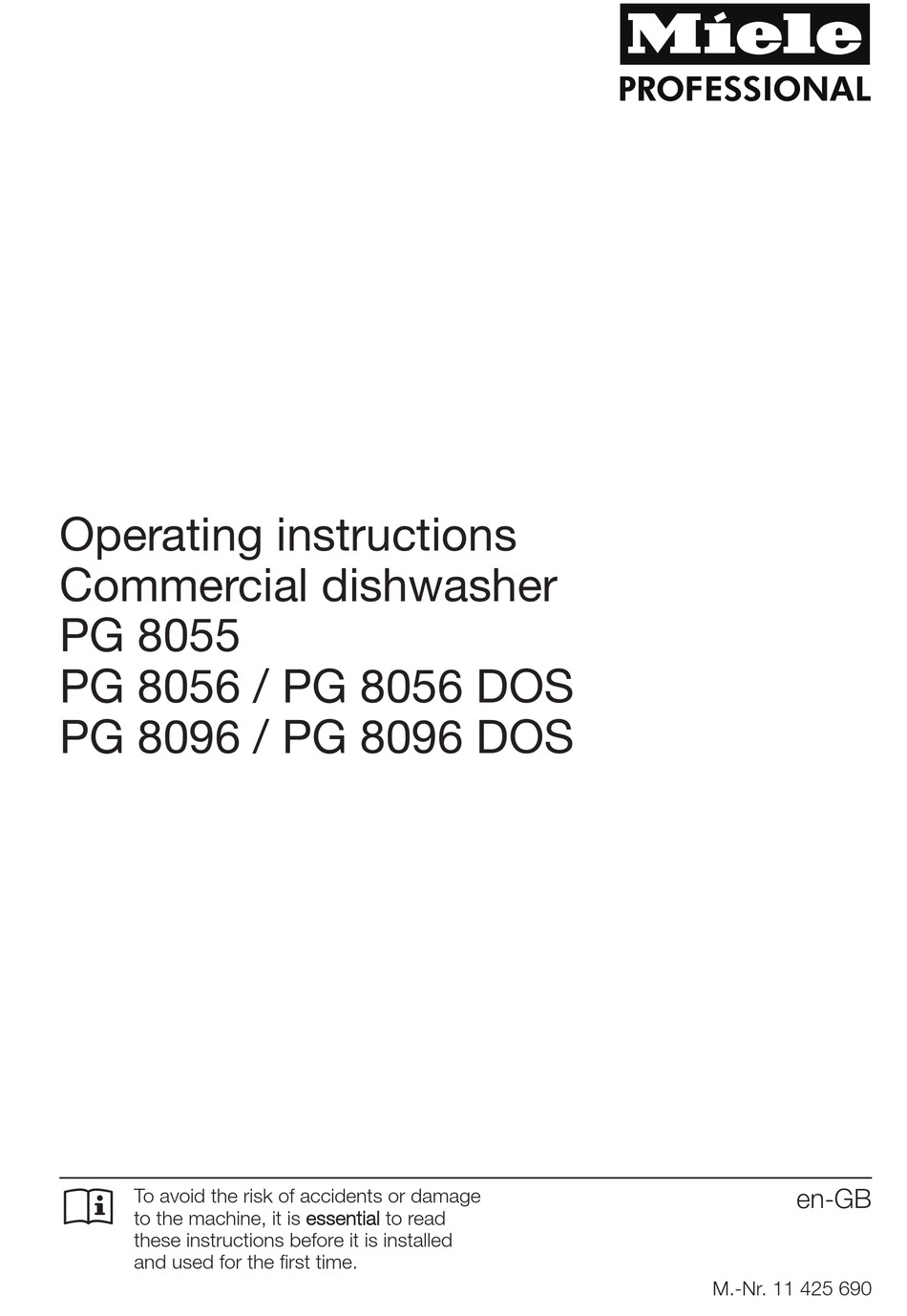

Operating instructions
Commercial dishwasher
PG 8055
PG 8056 / PG 8056 DOS
PG 8096 / PG 8096 DOS
To avoid the risk of accidents or damage
to the machine, it is essential to read
these instructions before it is installed
and used for the first time.
en-GB
M.-Nr. 11 425 690
