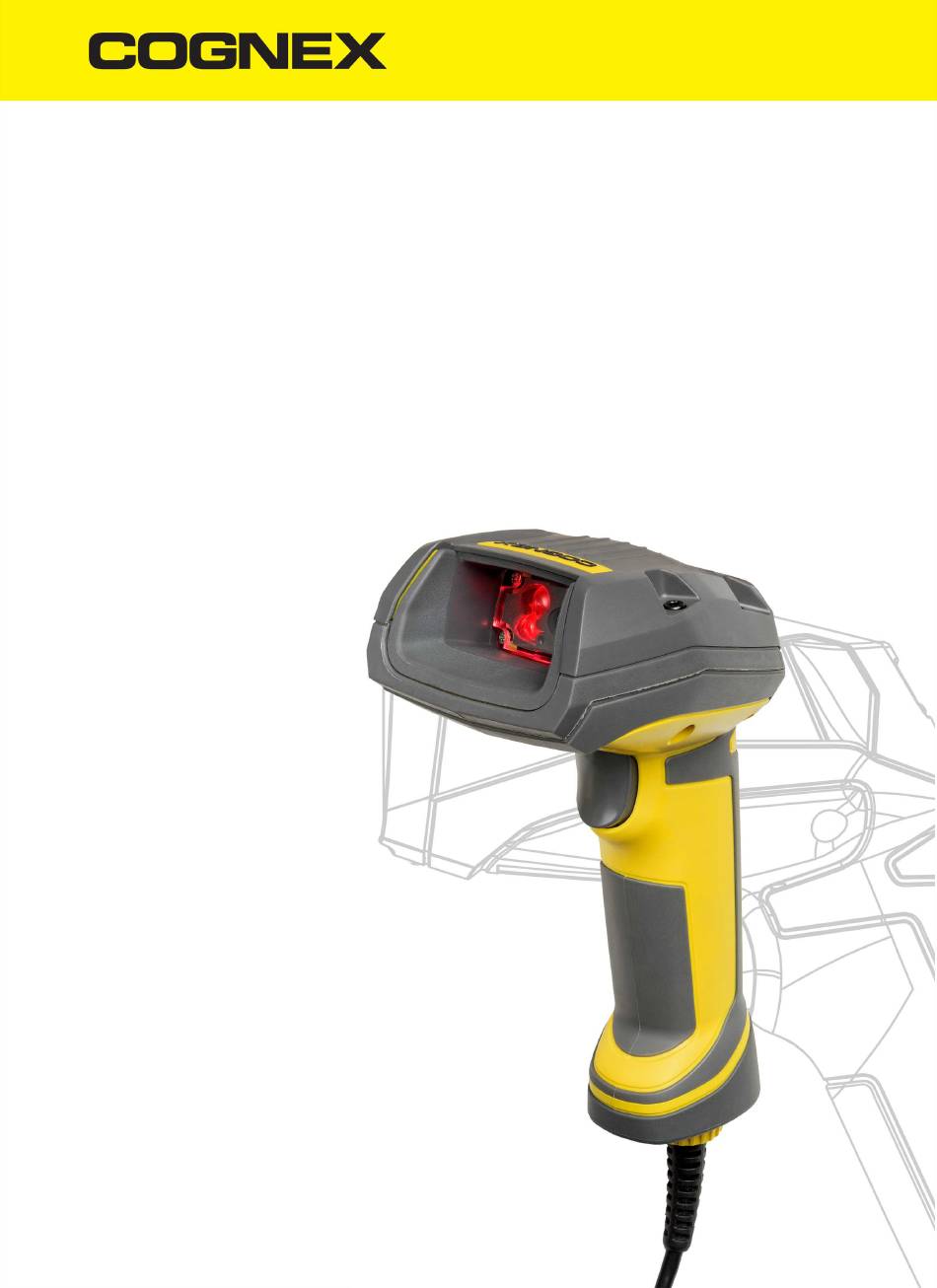

  • Page 1 ® DataMan 8072 ER Reference Manual 2023 May 04 Revision: 23.2.0.2...

  • Page 2: Legal Notices

    Copyright © 2021. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Legal Notices Table of Contents Symbols Precautions Getting Started About DataMan 8072 ER DataMan 8072 ER Accessories Miscellaneous Accessories Cables DataMan 8000 Series Base Station Cables Physical Layout of the Base Station Setting up Your DataMan 8072 ER Install the DataMan SetupTool and Connect to Reader DataMan 8072 ER Specifications DataMan 8072 ER Imager Specifications...
  • Page 4 Table of Contents Compliance Information, Warnings and Notices Regulations and Conformity Compliance Statements: DataMan Base Station For European Community Users 中 国 大陆 RoHS (Information for China RoHS Compliance)

  • Page 5: Symbols

    Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

  • Page 6: Precautions

    LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2 LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE SERIOUS INJURY. To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: This product is intended for industrial use in automated manufacturing or similar applications.

  • Page 7: Getting Started

    Getting Started Getting Started About DataMan 8072 ER The DataMan 8072 ER readers offer Industrial Ethernet communication, and advanced technology for reading 1-D and 2-D codes regardless of size, quality, printing method or surface. DataMan 8072 ER is available with patented 1DMax+ with Hotbars, class-leading 2-D algorithms and future-proof modular communication slide-ins.

  • Page 8: Dataman 8072 Er Accessories

    Getting Started DataMan 8072 ER Accessories Miscellaneous Accessories Accessory Name Accessory Number Accessory Image Serial/USB slide-in DMCM-SERIALM-00 Ethernet slide-in DMCM-ENETM-00 Bluetooth slide-in DMCM-BTM-00 Charging Base Station DMA-CBASE-01 Intelligent Bluetooth Base Station DMA-IBASE-BT-02 Power Supply for Base Station DMA-24VPWR-xx Power Supply for Reader DM100-PWR-000 5000 mAh Battery for the wireless Reader DMA-HHBATTERY-02...

  • Page 9: Cables

    Getting Started Cables Note: Cables are sold separately. Accessory Name Accessory Number Accessory Image RS-232 coiled cable for Reader, 2.5 m DM8000-RS232-02 RS-232 industrial cable for Reader, 2.5 m DM8000-RS232IND-02 RS-232 coiled cable for Reader, 4 m DM8000-RS232-05 USB cable, 2.5 m DM8500-USB-00 USB coiled cable, 2.5 m DM8500-USBC-02...

  • Page 10: Physical Layout Of The Base Station

    Getting Started Physical Layout of the Base Station DMA-IBASE-BT-02 Base station status indicators PAIR sticker - Reading the code pairs the base station with the device Connection point to the reader: pairing reader and base station non-wireless communication charging RS-232 Power plug (24 V, max.
  • Page 11 Getting Started Base station status indicators PAIR sticker - Reading the code pairs the base station with the device Connection point to the reader: pairing reader and base station non-wireless communication charging RS-232 Power plug (24 V, max. 15 W) Alternative power supply connector (24 V, max.

  • Page 12: Setting Up Your Dataman 8072 Er

    2. Download the DataMan Setup Tool from cognex.com/support/dataman and follow the on-screen steps. 3. Connect the DM8072 ER to your PC. 4. Launch the DataMan Setup Tool and click Refresh. The reader or the base station appears under COM ports or Network devices.

  • Page 13: Dataman 8072 Er Imager Specifications

    Setting up Your DataMan 8072 ER Specification DataMan 8072 ER Reader Environmental IP65 Symbologies 1-D barcodes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5, Pharma, GS1 DataBar, Postal, UPC/EAN/JAN, DataBar 2-D barcodes: Data Matrix ; QR Code and microQR Code, RSS/CS, PDF 417, MicroPDF 417, MaxiCode, Aztec Code Power Supply Requirements USB: external 5.0 W maximum LPS or NEC class 2 power supply: +5 V - +6 V DC...
  • Page 14 Setting up Your DataMan 8072 ER λ [nm]...

  • Page 15: Connection Options

    Connection Options Connection Options Connecting a DataMan 8072 ER Through Ethernet 1. Connect the Ethernet slide-in (DMCM-ENETM-00) to your DataMan 8072 ER. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug. Slide the cable lock up to the reader, and twist the cable lock in place. Use the DM8000-ECABLE-05 (5 meters) or the DM8000-ECABLE-30 (30 meters).

  • Page 16: Troubleshooting An Ethernet Connection

    Connection Options Troubleshooting an Ethernet Connection If your reader does not appear in the DataMan Setup Tool’s list of detected network devices, adjust your network settings. 1. Check your Ethernet connection and click Refresh in the DataMan Setup Tool. 2. Scan the Enable DHCP code (which you can find in the DataMan Reader Configuration Codes document available from the Windows Start menu or the Setup Tool Help menu).
  • Page 17 Connection Options 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug. Slide the cable lock up to the reader and twist the cable lock in place. Use the DM8000-RS232-02 cable (2.5 meters) or the DM8000-RS232-05 cable (5 meters). For power supply, use the DataMan 8000 Power Supply (DM100-PWR-000).

  • Page 18: Connecting A Dataman 8072 Er Through Usb

    Connection Options Note: Power on the RS-232 cable can be supplied by either the DC Power Plug or Pin 1 of the D-SUB. DO NOT use both in parallel. Connecting a DataMan 8072 ER through USB 1. Connect the serial slide-in (DMCM-SERIALM-00) to your DataMan 8072 ER. 2.

  • Page 19: Using Your Device Through Usb

    Connection Options Using Your Device Through USB If you connect your reader with the coiled USB cable, you must use your device in USB 1.1 mode. With a straight USB cable, you can use your device in both, USB 1.1 and USB 2.0 modes. Set the USB Connection properties in the Serial tab of the Communication Settings pane in DataMan Setup Tool, or scan the appropriate code from the DataMan Configuration Codes document.
  • Page 20 Connection Options...

  • Page 21: Using Dataman 8072 Er Wireless Reader

    Connection Options Using DataMan 8072 ER Wireless Reader This section provides wireless reader specific procedures. Connecting to a Wireless DataMan 8072 ER Through a Base Station 1. Connect the wireless slide-in (DMCM-BTM-00) to your DataMan 8072 ER. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3.
  • Page 22 Connection Options 4. Insert the plug and twist it in place. 5. Power up the DMA-IBASE-BT-XX base station using a 24V power supply (DMA-24VPWR-XX). 6. Connect your base station to your PC using either serial, USB or Ethernet communication. DMA-IBASE-BT-02 RS-232 connection (RJ-25 port) USB Type B connection Power (24 V, max 15W)

  • Page 23: Pairing Wireless Readers To Base Station

    Connection Options Power to the base station can be supplied by either the DC power plug or by wiring in 24V. DO NOT use both in parallel. The DC power plug is a 24VDC power supply (DMA-24VPWR-xx), 3.5 mm x 1.3 mm. Note: Be careful to use the appropriate connector for RS-232.

  • Page 24: Pairing Strategy

    Connection Options 4. The following pairing scenarios are available: a. For legacy pairing, a PIN is displayed on the reader screen. Enter the PIN into the 3rd party device. b. For Secure Connections, a number is displayed on the screen of the reader and on the 3rd party device. Verify if the reader and the 3rd party device match and confirm by pressing the button.

  • Page 25: Unpair Reader From Base Station

    Connection Options When the reader is put onto another (unpaired) base station without any previous actions, the base station signals this event by beeping and indicators flashing RED : The base station that is paired with a certain reader signals a bad reader alert (beeping and indicators flashing RED) also when another, unassigned reader is put into it.

  • Page 26: Buffering Data

    Connection Options Buffering Data When you are within the wireless range of the base station, your wireless reader sends decoded data to your host through the base station, just as if you used a corded reader. You can also see the decoded images in the DataMan Setup Tool, if it is running and is connected to the reader.
  • Page 27 Connection Options Blinking BLUE status indicator: wireless connection is alive. When you leave the wireless range, a long beep and blinking MAGENTA on the indicator signals that the reader is going offline. The status indicator blinks MAGENTA: your reader is offline. When the reader is offline, good reads are indicated with 2 short beeps and the selected good read status indicator color (GREEN by default).

  • Page 28: Summary Of Wireless Buffering Indicators

    Connection Options Summary of Wireless Buffering Indicators Condition Status Indicator: Reader Status Indicator: Base Sounds Station Reader in wireless range When the reader is awake, blinking Reader out of the base station Good read: 1 beep of connected to base BLUE indicates wireless connection and awake: steady BLUE.

  • Page 29: Charging

    Connection Options Charging When you are reading codes with your wireless reader, blinking red status indicators signal a low battery. As the battery discharges, the blink frequency increases. A blinking red status indicator indicates low battery or thermal shutdown mode. You can also check check the status of the battery in the DataMan Setup Tool.
  • Page 30 Connection Options Paired Reader Charging Paired Reader Fully Charged Summary of indicator charging signals: Condition Status Indicator: Reader Status Indicator: Base Station Battery low, Reader is off base station blinking RED indicators steady BLUE, indicating connection steady RED, indicating no connection Reader is charging in the base station steady RED indicators steady GREEN, indicating connection...

  • Page 31: Changing Batteries

    The battery used in these devices may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 60 ºC (140 ºF), or incinerate. Replace battery with Cognex DMA-HHBATTERY-01 only. Any other battery may present a risk of fire or explosion.
  • Page 32 Connection Options 4. Put the end cap back on and twist it. Make sure that the triangle aligns with the circle when the cover is locked. 5. If using DMA-CBASE-01, place the battery in the spare battery charger in the direction of the small triangle of the battery.

  • Page 33: Reading Codes With The Dataman 8072 Er

    Scan the appropriate Reader Configuration codes (see the Reader Configuration Codes Manual available through the Windows Start menu, the Setup Tool Help menu, or the Cognex Documentation Portal). Send the appropriate DMCC (see the DataMan Control Commands Documentation available through the Windows Start menu or the Setup Tool Help menu).

  • Page 34: Trigger Types

    Reading Codes with the DataMan 8072 ER Trigger Types The DataMan 8072 ER trigger mode determines when the reader attempts to read a code. Use the DataMan Setup Tool or the appropriate reader configuration codes to change trigger types. Supported trigger types: Manual (default): Pressing the trigger button on the reader starts image acquisition.

  • Page 35: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Cleaning the Reader Housing To clean the outside of the reader housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner on the reader housing. CAUTION: Do not attempt to clean any DataMan product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline.

  • Page 36: Compliance Information, Warnings And Notices

    However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your device. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support.

  • Page 37: Compliance Statements: Dataman Base Station

    However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support.

  • Page 38: For European Community Users

    CB report available upon request.TÜV SÜD, IEC/EN 61010-1. For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.
  • Page 39 Compliance Information, Warnings and Notices Part Name Lead (Pb) Mercury Cadmium Hexavalent Polybrominated Polybrominated 部 件名称 铅 (Hg) (Cd) Chromium biphenyls (PBB) diphenyl ethers 汞 镉 多溴 联 苯 (PBDE) (Cr (VI)) 多溴 二 苯 醚 六 价铬 Regulatory Model R00049 Base Station This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 40 Copyright © 2021 Cognex Corporation. All Rights Reserved.
