  • Page 1 ® DataMan 8072 ER Quick Reference Guide 2020 June 24 Revision: 6.2.0.2...
  • Page 2 LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE SERIOUS INJURY. To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: This product is intended for industrial use in automated manufacturing or similar applications.
  • Page 3 This device should be used in accordance with the instructions in this manual. All specifications are for reference purposes only and can change without notice.

  • Page 4: Product Overview

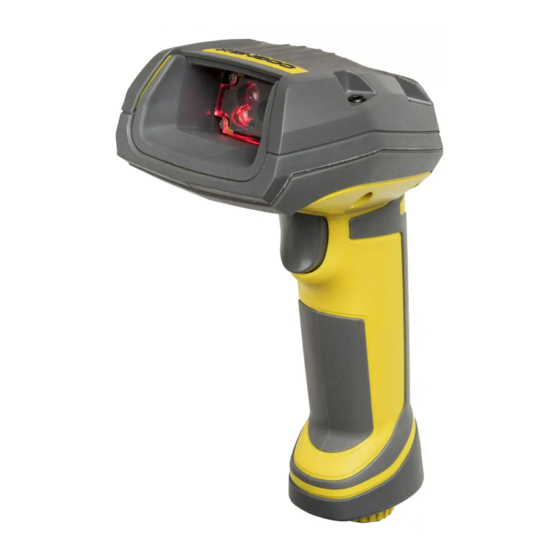

    Product Overview DataMan 8072 ER Reader WARNING: LASER LIGHT, DO NOT STARE INTO BEAM Illumination module Laser aimer Illumination LEDs Trigger (press and hold to read) Lanyard hook Indicator light Communication module insertion point...

  • Page 5: Base Station Overview

    Base Station Overview Base station status indicators PAIR sticker - Reading the code pairs the base station with the device Connection point to the reader: pairing reader and base station non-wireless communication charging RS-232 Power plug (24V, max. 15W) Alternative power supply connector (24V, max. 15W, polarity marked on the plastic part near the connector).
  • Page 6 DataMan 8072 ER Accessories Accessory Name Product ID Illustration Serial/USB slide-in DMCM-SERIALM-00 Ethernet slide-in DMCM-ENETM-00 Bluetooth slide-in DMCM-BTM-00 Charging base station DMA-CBASE-01 Intelligent Bluetooth base station DMA-IBASE-BT-02 Power Supply for base station DMA-24VPWR-xx* Power Supply for reader DM100-PWR-000 DMA-HHBATTERY-02 Battery for the wireless reader...
  • Page 7 Coiled RS-232 cable for reader, 2.5 m DM8000-RS232-02 Industrial RS-232 cable for reader, 2.5 m DM8000-RS232IND-02 Coiled RS-232 cable for reader, 4 m DM8000-RS232-05 Coiled USB cable, 2.5 m DM8500-USBC-02 Ethernet cable, 2.5 m DM8000-ECABLE-02 Ethernet cable, 30 m DM8000-ECABLE-30 Ethernet cable, 5 m DM8000-ECABLE-05 USB cable, 2.5 m...

  • Page 8: Field Of View And Reading Distances

    Note: All values beginning with 0 denote the minimum distance where the Field of View is able to see the entire code. DataMan 8072 ER with a 12 mm Liquid Lens (Long Range, Focused to 8 meters) Device Distances in mm/1D min. code...
  • Page 9 DM8072ER 4 MIL 8 MIL 4000 50 MIL 2250 50 MIL 8000 100 MIL 4750 100 MIL...
  • Page 10 1. Connect the slide-in to the reader and tighten the screws to lock the slide-in. 2. Insert the plug. Slide the cable lock up to the reader and twist the cable lock in place. Note: Disconnect the DataMan 8072 ER from powerbefore inserting the communication modules.

  • Page 11: Installation

    Install Software, Documentation and Connect the Reader To configure a DataMan 8072 ER reader, the DataMan Setup Tool software must be installed on a PC on the network. The DataMan Setup Tool is available from the DataMan support site: cognex.com/support/dataman.
  • Page 12 The expected life time of the wireless reader is 5 years. Ethernet 10/100 Base-T FULL/HALF DUPLEX, IEEE 802.3 Bluetooth Bluetooth™ 2.1, 2.4 GHz Protection Base Station: IP65 DataMan 8072 ER Imager Specifications Specification DataMan 8072 ER Imager Image Sensor 1/3 inch CMOS Image Sensor Properties 3.75 μm square pixels...
  • Page 13 Power Supply 5.5 V DC, 6 W maximum LPS or NEC Class 2 power Requirements supply or PoE Class 2 power supply LED Wavelengths for DataMan 8072 ER Reader The following table shows LED types and the related wavelengths: λ [nm]...

  • Page 14: Regulations And Conformity

    Regulations and Conformity The DataMan 8072 ER has Regulatory Model R00049, and meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow.

  • Page 15: Led Safety Statement

    Safety and Regulatory FCC Part 15, Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 17: For European Community Users

    For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 18 Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Please read these guidelines carefully before using your device. Safety and Regulatory...
  • Page 19 Safety and Regulatory Canadian Compliance This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. UL and cUL Statement UL and cUL listed: UL60950-1 2nd ed. and CSA C22.2 No.60950-1 2nd ed. DMA-IBASE-BT-XX: RCPCO1A15-0073 Mexican Compliance DMA-IBASE-01: RCPCODM12-0655...
  • Page 20 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
  • Page 21 Copyright © 2020 Cognex Corporation. All Rights Reserved.
