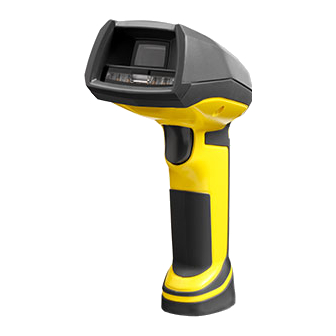

Cognex DataMan 8000 Series Reference Manual
Hide thumbs
Also See for DataMan 8000 Series:
- Quick reference manual (17 pages) ,
- Quick reference manual (32 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cognex DataMan 8000 Series
Summary of Contents for Cognex DataMan 8000 Series
- Page 1 ® DataMan 8072 ER Reference Manual 2019 October 08 Revision: 6.1.6SR1.5...
-
Page 2: Legal Notices
Copyright © 2019. Cognex Corporation. All Rights Reserved. Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents. -
Page 3: Table Of Contents
About DataMan 8072 ER DataMan 8072 ER Accessories DataMan 8072 ER Other Accessories DataMan 8072 ER Reader Cables DataMan 8000 Series Base Station Cables Physical Layout of the Base Station Setting Up Your DataMan 8072 ER Setting Up the Reader... -
Page 4: Symbols
Symbols Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent. -
Page 5: Getting Started
Getting Started Getting Started This section provides general information about the DataMan 8072 ER readers and the DataMan 8000 series base stations. You can also find information on the DataMan 8072 ER accessories and the physical layout of the reader and the base stations in this section. -
Page 6: Dataman 8072 Er Accessories
Getting Started Base Station Communication Wireless Protocol Ethernet with RS-232 Bluetooth Industrial Protocols DMA-IBASE-BT-02 √ √ √ √ DataMan 8072 ER Accessories DataMan 8072 ER Other Accessories DMCM-SERIALM-00 Serial/USB slide-in Ethernet slide-in DMCM-ENETM-00 Bluetooth slide-in DMCM-BTM-00 Charging Base Station DMA-CBASE-01 Intelligent Bluetooth Base Station DMA-IBASE-BT-02 Power Supply for base station... -
Page 7: Dataman 8072 Er Reader Cables
Ethernet cable, 5 m DM8000-ECABLE-05 Ethernet cable, 30 m DM8000-ECABLE-30 *Collimated cable length including DM8000-ECABLE-X should not exceed 50 m. DataMan 8000 Series Base Station Cables RJ25 (RJ12) to DSUB9 cable for base station, 5 m DMA-RS232RJ-05 Straight 10ft USB cable DMA-USB-00 USB cable for base station: Use any standard USB-A to USB-B 2.0 cable up to 3 meters. -
Page 8: Physical Layout Of The Base Station
Getting Started Physical Layout of the Base Station DMA-IBASE-BT-02 Base station status indicators PAIR sticker - Reading the code pairs the base station with the device Connection point to the reader: pairing reader and base station non-wireless communication charging RS-232 Power plug (24V, max. -
Page 9: Setting Up Your Dataman 8072 Er
This section provides information on how to set up and start working with your DataMan 8072 ER reader. It also describes how to install the DataMan Setup Tool and at the end of the section, you will find the DataMan 8072 ER and DataMan 8000 series base station specifications. Setting Up the Reader... -
Page 10: Dataman 8072 Er Specifications
Setting Up Your DataMan 8072 ER Select a COM port or a Network device and click Connect. DataMan 8072 ER Specifications 254g Weight 0ºC — 40ºC (32ºF — 104ºF) Operating Temperature -10ºC — 60ºC (14ºF — 140ºF) Storage Temperature Maximum Humidity <... -
Page 11: Led Wavelengths
Setting Up Your DataMan 8072 ER DMA-IBASE-BT-02 Operating Temperature 0ºC — 45ºC (32ºF — 113ºF) Storage Temperature -40ºC — 60ºC (-40ºF — 140ºF) Maximum Humidity 95% (non-condensing) 24V +-10%, 15 W maximum LPS or NEC class 2 Power Supply Requirements power supply Recommended wire diameter is 14-18 AWG LED Wavelengths... -
Page 12: Connection Options
Connection Options Connection Options Connecting a DataMan 8072 ER Through Ethernet 1. Connect the Ethernet slide-in (DMCM-ENETM-00) to your DataMan 8072 ER. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug and slide the cable lock up to the reader, and twist the cable lock in place. Use the DM8000-ECABLE-05 (5 meters) or the DM8000-ECABLE-30 (30 meters). -
Page 13: Troubleshooting An Ethernet Connection
Connection Options Troubleshooting an Ethernet Connection If your reader does not appear in the DataMan Setup Tool’s list of detected network devices, you may need to adjust your network settings. 1. First, check your Ethernet connection and click Refresh in the DataMan Setup Tool. 2. - Page 14 Connection Options 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. Insert the plug and slide the cable lock up to the reader and twist the cable lock in place. Use the DM8000-RS232-02 cable (2.5 meters) or the DM8000-RS232-05 cable (5 meters). For power supply, use the DataMan 8000 Power Supply (DM100-PWR-000).
-
Page 15: Connecting A Dataman 8072 Er Through Usb
Connection Options Note: Power on the RS-232 cable can be supplied by either the DC Power Plug or Pin 1 of the D-SUB. DO NOT use both in parallel. Connecting a DataMan 8072 ER Through USB 1. Connect the serial slide-in (DMCM-SERIALM-00) to your DataMan 8072 ER. 2. -
Page 16: Using Dataman 8072 Er Wireless Reader
Connection Options Using DataMan 8072 ER Wireless Reader Connecting to a Wireless DataMan 8072 ER Through a Base Station 1. Connect the wireless slide-in (DMCM-BTM-00) to your DataMan 8072 ER. 2. With a 2.5 mm Allen wrench, tighten the screws so that the slide-in is firmly locked. 3. - Page 17 Connection Options 4. Insert the plug and twist it in place. 5. Power up the DMA-IBASE-BT-XX base station using a 24V power supply (DMA-24VPWR-XX). 6. Connect your base station to your PC using either serial, USB or Ethernet communication. DMA-IBASE-BT-02 RS-232 connection (RJ-25 port) USB Type B connection Power (24 V, max 15W)
-
Page 18: Pairing Strategy (Dma-Ibase-Bt-02)
Connection Options Power to the base station can be supplied by either the DC power plug or by wiring in 24V. DO NOT use both in parallel. The DC power plug is a 24VDC power supply (DMA-24VPWR-xx), 3.5 mm x 1.3 mm. Note: Be careful to use the appropriate connector for RS-232. - Page 19 Connection Options The reader then blinks green/blue until it gets paired with the base station (or until the end of the 20 second timeout period). When the reader is put on the base station, the base station drops its pairing with its old reader and pairs with the new reader.
-
Page 20: Base Station Routing Capabilities
Connection Options The base station that is paired with a certain reader signals a bad reader alert (beeps and flashing red indicators) also when another, unassigned reader is put into it. Base Station Routing Capabilities The base station is visible as connected through either RS-232, USB or Ethernet, but it routes data through the wireless interface to the reader. - Page 21 Connection Options See the following table for connection options according to communication type: Base Station Connection Type How to Connect RS-232 Connect to the COM port of the base station. Connect to the COM port of the wireless reader. Ethernet Connect to the terminal program using the IP address of the reader.
-
Page 22: Summary Of Wireless Buffering Indicators
Connection Options When the buffer is full, no more codes are read. The reader does not discard the oldest read. When the buffer is full, the reader beeps and the status indicator becomes white. Summary of Wireless Buffering Indicators Condition Status Indicator: Reader Status Indicator: Base Station Sounds... - Page 23 Connection Options You can also check the status of the battery in the DataMan Setup Tool. Place the reader on the base station for charging. Make sure that the pins at the end of the handle make contact with the pins in the base station.
- Page 24 Connection Options Condition Status Indicator: Reader Status Indicator: Base Station steady blue, indicating connection flashing red Battery low indicators flashing blue, indicating data transfer steady green, indicating connection Reader is charging in the base station steady indicators flashing green, indicating data transfer steady green, indicating connection green Reader is fully charged in the base station...
-
Page 25: Reading Codes With The Dataman 8072 Er
Reading Codes with the DataMan 8072 ER Reading Codes with the DataMan 8072 ER This section contains descriptions about trigger types as well as about the field of view and reading distances and the industrial protocols supported by the DataMan 8072 ER reader. Industrial Protocols The DataMan 8072 ER readers support the following industrial protocols: EtherNet/IP™... -
Page 26: Trigger Types
Reading Codes with the DataMan 8072 ER Trigger Types The DataMan 8072 ER trigger mode determines when the reader attempts to read a code. Use the DataMan Setup Tool or the appropriate reader configuration codes to change trigger types. The following trigger types are supported: Presentation: The LED aimer is always on. -
Page 27: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Cleaning the Reader Housing To clean the outside of the reader housing, use a small amount of mild detergent cleaner or isopropyl alcohol on a cleaning cloth. Do not pour the cleaner directly onto the reader housing. CAUTION: Do not attempt to clean any DataMan product with harsh or corrosive solvents, including lye, methyl ethyl ketone (MEK) or gasoline. -
Page 28: Compliance Information, Warnings And Notices
However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your device. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Regulator... -
Page 29: Compliance Statements: Dataman Base Station
Compliance Information, Warnings and Notices For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. -
Page 30: 中 国 大 陆 Rohs (Information For China Rohs Compliance)
Compliance For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. - Page 31 Compliance Information, Warnings and Notices Hazardous Substances 有害物质 Part Name Lead (Pb) Mercury Cadmium Hexavalent Polybrominated Polybrominated 部件名称 铅 (Hg) (Cd) Chromium biphenyls diphenyl ethers 汞 镉 (PBB) (PBDE) (Cr (VI)) 多溴联苯 多溴二苯醚 六价铬 Regulatory Model R00049 Base Station This table is prepared in accordance with the provisions of SJ/T 11364. 这个标签是根据SJ / T 11364 的规定准备的。...
-
Page 32: Precautions
LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2 LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE SERIOUS INJURY. To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply. - Page 33 Copyright © 2019 Cognex Corporation. All Rights Reserved.
