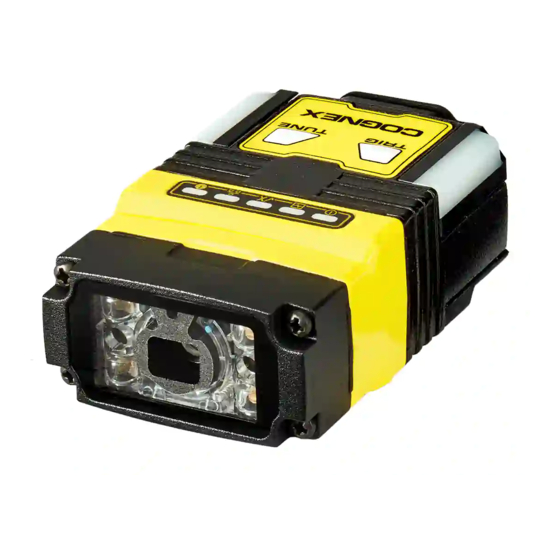

Cognex DataMan 280 Series Quick Reference Manual

Hide thumbs Also See for DataMan 280 Series:

Advertisement

Quick Links

Download this manual
®
DataMan
280 Series
Quick Reference Guide
2023 February 01
Revision: 23.1.0.5

Advertisement

loading
Need help?

Need help?

Do you have a question about the DataMan 280 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex DataMan 280 Series

Summary of Contents for Cognex DataMan 280 Series

  • Page 1 ® DataMan 280 Series Quick Reference Guide 2023 February 01 Revision: 23.1.0.5...
  • Page 2 The safety of any system incorporating this product is the responsibility of the assembler of the system. Do not install Cognex products where they are exposed to environmental hazards such as excessive heat, dust, moisture, humidity, impact, vibration, corrosive substances, flammable substances, or static electricity.
  • Page 3 This product does not contain user-serviceable parts. Do not make electrical or mechanical modifications to product components. Unauthorized modifications can void your warranty. Changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment.
  • Page 4 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.
  • Page 5 Accessories You can purchase the following components separately. For a list of options and accessories, contact your local Cognex sales representative. DataMan 280 Series Lenses Accessory Product Number Illustration DM280 DM282 6.2 mm lens kit that includes: DM280-LENS-62 ✓ 6.2 mm optics mount 6.2 mm lens...
  • Page 6 Accessory Product Number Illustration DM280 DM282 IR 16 mm lens kit that includes: 280-KIT-2MP-IR16 ✓ 16 mm optics mount 16 mm lens (IR) High Speed Liquid Lens Module (DMA- HSLL-280) Standard Infrared Light for 16mm (Risk Group Exempt acc. IEC62471) Manual lens cap (assembled) Screws High Speed Liquid Lens Module (HSLL) to be used DMA-HSLL-280...
  • Page 7 Accessory Product Number Illustration DM280 DM282 Blue bandpass filter DM150-BP470 ✓ Blue bandpass filter, 450nm 280-TORCH-BP450 ✓ Red bandpass filter DM150-BP635 ✓ Red bandpass filter, 635nm 280-TORCH-BP635 ✓...
  • Page 8 DataMan 280 Series Lens Covers Accessory Product Number Illustration DM280 DM282 Standard front cover. Use with a 6.2 mm lens only. DM280-CVR-62 ✓ Standard front cover, half-polarized. Use with a 6.2 mm DM280-LENS- ✓ lens only. 62CVR-P Standard front cover, fully-polarized. Use with a 6.2 DM260-LENS- ✓...
  • Page 9 Accessory Product Number Illustration DM280 DM282 Cross-polarized cover for High-Power Integrated Torch 280-HPIT-COVPOL ✓ Clear cover for High-Power Integrated Torch 280-HPIT-COVCLR ✓ ✓ Diffuse cover for High-Power Integrated Torch 280-HPIT-COVDIF Dome Diffuser cover for High-Power Integrated Torch 280-HPIT-DOME ✓ CAUTION: For 280-HPIT-COVPOL, 280-HPIT-COVCLR, and 280-HPIT- COVDIF equipped with a laser aimer, the device has been tested to be under the limits of a Class 1 Laser device.
  • Page 10 DataMan 280 Series Cables Note: Cables are sold separately. Accessory Product Number Illustration DM280 DM282 Ethernet Cable, X-coded M12-8 CCB-84901-2001-xx (straight, xx specifies ✓ ✓ to RJ-45 length: 2m, 5m, 10m, 15m, 30m) Ethernet Cable, X-coded M12-8 CCB-84901-2002-xx (right-angled, xx ✓...
  • Page 11 Accessory Product Number Illustration DM280 DM282 Power and I/O Breakout Cable, CCB-PWRIO-xxR (right-angled, xx specifies ✓ ✓ M12-12 to Flying Lead length: 5m, 10m, 15m) I/O Module Cable M12-12 to CCB-PWRIO-MOD-xx (xx specifies length: ✓ ✓ DB15 2m, 5m) RS-232 Connection Cable CCB-M12xDB9Y-05 ✓...
  • Page 12 DataMan 280 Series Mounting Brackets Accessory Product Number Illustration DM280 DM282 Universal mounting bracket DM100-UBRK-000 ✓ ✓ Pivot mounting bracket DM100-PIVOTM-01 ✓ ✓ Tilted angle pivot bracket DMBK-DMPIVOT-00 ✓ ✓ Logistics mounting bracket and plate kit DMA-BKT-LGS ✓ ✓ Adjustable mirror bracket DMA-262-MIR ✓...
  • Page 13 DataMan 280 Series Systems DataMan 280 Systems 2DMax - Omni- PowerGrid - Multi- 1D Max with High Speed Hard to directional Damaged Reader Resolution Hotbars Decoding read 2D 1D Code 2D codes Sync codes DM-280L 1D Codes 280QL 1D Codes...
  • Page 14 DataMan 282 Systems 2DMax - Omni- PowerGrid - Multi- 1D Max with High Speed Hard to directional Damaged Reader Resolution Hotbars Decoding read 2D 1D Code 2D codes Sync codes DM-282L 1D Codes 282QL 1D Codes DM-282S 1D/2D Codes 1920 x 1080 DM-282Q 1D/2D Codes...

  • Page 15: Reader Layout

    Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader. Do not force the connections or damage may occur.
  • Page 16 Number Description Power I/O Breakout cable connector USB-C slot (with plastic cover) Ethernet connector Illumination LEDs LED aimers Trigger button Tune button...
  • Page 17 Number Description Indicator LEDs Power LED indicator Train status/Trigger status LED indicator Good/bad read LED indicator Communication LED indicator Error LED indicator DataMan 282:...
  • Page 18 Number Description Power I/O Breakout cable connector USB-C slot (with plastic cover) Ethernet connector Illumination LEDs LED Aimer Distance Sensor Trigger button Tune button...
  • Page 19 Number Description Indicator LEDs Power LED indicator Train status/Trigger status LED indicator Good/bad inspection LED indicator Communication LED indicator Error LED indicator...
  • Page 20 Dimensions The following sections list dimensions of the reader. Note: Dimensions are in millimeters and are for reference purposes only. All specifications are for reference purposes only and can change without notice. DataMan 280 with 6.2 mm lens The following image shows the dimensions of DataMan 280, equipped with 6.2 mm lens.
  • Page 21 DataMan 280 with 16 mm Lens The following image shows the dimensions of DataMan 280 equipped with 16 mm lens.
  • Page 22 DataMan 280 with L-shaped extension, equipped with 6.2 mm Lens The following image shows the dimensions of DataMan 280 equipped with L-shaped extension and 6.2 mm lens.
  • Page 23 DataMan 280 with L-shaped extension, equipped with 16 mm Lens The following image shows the dimensions of DataMan 280 equipped with L-shaped extension and 16 mm lens.
  • Page 24 DataMan 282 with High Power Integrated Torch The following image shows the dimensions of DataMan 282 equipped with high power integrated torch.
  • Page 25 DataMan 282 with High Power Integrated Torch - L- Shaped Extension The following image shows the dimensions of DataMan 282 equipped with high power integrated torch and L-shaped extension.
  • Page 26 Dataman 282 with Dome Front Cover The following image shows the dimensions of DataMan 282 equipped with a dome front cover.
  • Page 27 Dataman 282 with Dome Front Cover - Right Angle Configuration The following image shows the dimensions of DataMan 282 equipped with L-shaped extension and dome front cover.
  • Page 28 Field of View and Reading Distance This section discusses the Field of View (FoV) values for 6.2 mm and 16 mm lenses. DataMan 280 Readers with 6.2 mm Lens 6.2 mm lenses can be focused to 105 mm (short range) and to 190 mm (long range). Short Range (Focused to 105 mm) The following tables show the Field of View (FoV) widths of the 6.2 mm lens focused to 105 mm at various distances.
  • Page 29 Vertical values in mm Working distance in mm Horizontal values in mm = 40 = 38 = 29 = 65 = 58 = 44 = 105 = 90 = 68 Distances in mm 2D min. code in mil 1D min. code in mil Long Range (Focused to 190 mm) The following table shows the Field of View (FoV) widths of the 6.2 mm lens focused to 190 mm at various distances.
  • Page 30 Distances in mm 2D min. code in mil 1D min. code in mil 1000...
  • Page 31 DataMan 280 Readers with 16 mm lens The following tables list the Field of View (FoV) widths of the 16 mm lens at various distances: Vertical values in mm Working distance in mm Horizontal values in mm = 150 = 46 = 34 = 225 = 69...
  • Page 32 Vertical values in mm Working distance in mm Horizontal values in mm = 375 = 116 = 87 = 1000 = 310 = 232 Distances in mm 2D min. code in mil 1D min. code in mil 1000...
  • Page 33 DataMan 282 Readers with 8 mm Lens Vertical values in mm Working distance in mm Horizontal values in mm = 300 = 223 = 125 = 750 = 526 = 295 = 1200 = 828 = 466 Working Distance in mm 2D min.
  • Page 34 DataMan 282 Readers with 12 mm Lens Vertical values in mm Working distance in mm Horizontal values in mm = 300 = 141 = 79 = 750 = 343 = 193 = 1200 = 545 = 306 Working Distance in mm 2D min.
  • Page 35 DataMan 282 Readers with 16 mm Lens Vertical values in mm Working distance in mm Horizontal values in mm = 300 = 105 = 59 = 750 = 256 = 144 = 1200 = 407 = 229 Working Distance in mm 2D min.

  • Page 36: Mounting The Reader

    Mounting the Reader The reader provides mounting holes for attachment to a mounting surface. CAUTION: The reader has to be grounded, either by mounting the reader to a fixture that is electrically grounded or by attaching a wire from the reader’s mounting fixture to frame ground or Earth ground.
  • Page 37 Align the holes on the mounting surface with the mounting holes on the reader. Insert the M3 screws into the mounting holes. Mounting the Reader in Right-Angle Configuration Align the holes on the mounting surface with the mounting holes on the reader. With the reader in right-angle position, only the back mounting holes can be used.
  • Page 38 Note: Mounting the reader at a slight angle (15°) reduces reflections and improves performance.
  • Page 39 Connecting the Ethernet Cable to DataMan 280 Series Readers CAUTION: The Ethernet cable shield has to be grounded at the far end. Whatever this cable is plugged into (typically a switch or router) should have a grounded Ethernet connector. A digital voltmeter has to be used to validate the grounding.
  • Page 40 Connecting the Power and I/O Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Perform wiring or adjustments to I/O devices when the reader is not receiving power. You can clip unused wires short or use a tie made of non-conductive material to tie them back.

  • Page 41: Specifications

    Specifications The following sections list general specifications for the reader. DataMan 280 Series Reader DataMan 282 Specification 6.2 mm: 141 g HPIT: 290 g Weight 16 mm: 169 g Right angle configuration adds 50 g Right angle configuration adds 50 g 24 V DC +/- 10%, PoE (Power over Ethernet) 24 V DC ±...
  • Page 42 DataMan 282 Specification -10–60 °C (14–140 °F) Storage Temperature Humidity <95% non-condensing IP67 Environmental Note: IP67 rating applies only if all blind plugs and cables are attached properly, or the provided connector plug is installed. Also make sure that the IP67-rated cover is installed properly.
  • Page 43 DataMan 280 Series Reader Image Sensor Specification DataMan 280 DataMan 282 1/3-inch CMOS, global shutter 1/3-inch CMOS, global Image Sensor shutter Diagonal size: 6.21 mm Diagonal size: 6.17 mm Image Sensor Pixel size: 3.45 μm (H) x 3.45 μm (V) Pixel size: 2.8 μm (H) x 2.8...
  • Page 44 LED Wavelengths The following table shows LED types and the related dominant wavelengths. λ [nm] RED HPIL BLUE WHITE 6500K (Color temperature) IR HPIL...

  • Page 45: Regulations And Conformity

    Regulations and Conformity Note: For the most current CE and UKCA declarations and regulatory conformity information, see the Cognex support site: cognex.com/support. DataMan 280 readers have Regulatory Model numbers 50208, 50210, 50215, 50216 and meet or exceed the requirements of all applicable standards organizations for safe operation.
  • Page 46 Safety and Regulatory Korea This device is certified for office use only and if used at home, there can be frequency interference problems. A급 기 기 (업 무 용 방 송 통 신 기 자 재 ): 이 기 기 는 업 무 용 (A급 ) 전 자 파 적 합 기 기 로...
  • Page 47 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...

  • Page 48: For European Community Users

    For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 49 Copyright © 2022 Cognex Corporation. All Rights Reserved.

This manual is also suitable for:

Dataman 280Dataman 282Dm-280l 1dDm280ql 1dDm-280s 1dDm-280s 2d ... Show all
