Summary of Contents for Chauvet Professional MAVERICK FORCE 3 PROFILE
- Page 1 User Manual Model ID: MAVERICKFORCE3PROFILE...
- Page 2 Edition Notes The Maverick Force 3 Profile User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Maverick Force 3 Profile as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Storm are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Battery Powered Display ..................Home Screen ....................Control Panel Lock..................Passcode ......................Technician Mode................... Menu Map ..................... Configuration (DMX, Art-Net™, sACN) ............Control Mode...................... 15 Control Personalities ..................15 Starting Address....................15 Maverick Force 3 Profile User Manual Rev. 1... - Page 4 Auto Test......................23 Manual Test ....................... 23 System Information ..................Offset Mode (Zero Adjust)................Web Server ....................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Maverick Force 3 Profile User Manual Rev. 1...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick Force 3 Profile User Manual Rev. 1... -
Page 6: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Maverick Force 3 Profile User Manual Rev. 1... -
Page 7: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Maverick Force 3 Profile User Manual Rev. 1... -
Page 8: Introduction

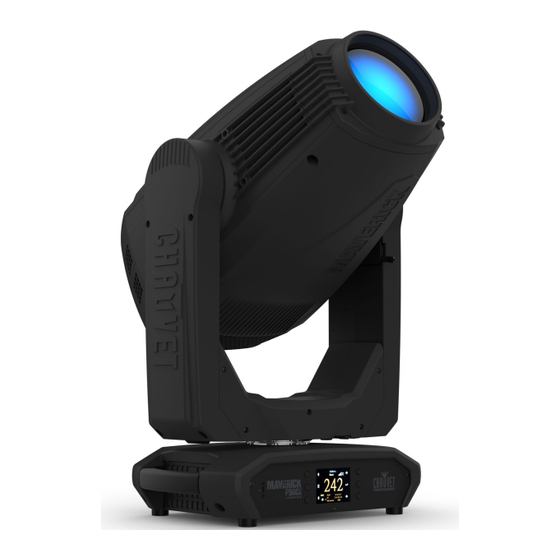

The Maverick Force 3 Profile is a lightweight, tour-grade moving head which features an output of over 40,000 lumens and a myriad of speedy effects. The Maverick Force 3 Profile features CMY + CTO color- mixing, a color wheel, 2 stackable gobo wheels, and a zoom range of 5 to over 50 degrees that maintains a flat field of focus even when fully wide. -
Page 9: Product Dimensions
12.28 in 10.98 in 312 mm 279 mm 22.93 in 582.45 mm 30.47 in 774 mm 17.44 in 442.98 mm 4.17 in 106.04 mm 10.31 in 16.73 in 261.81 mm 425 mm Maverick Force 3 Profile User Manual Rev. 1... -
Page 10: Setup
3. Setup AC Power The Maverick Force 3 Profile has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 11: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Maverick Force 3 Profile comes with 2 omega brackets to which the user can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. -
Page 12: Signal Connections
DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking The Maverick Force 3 Profile can link to a DMX controller using a 3-pin or 5-pin DMX connection or a WDMX connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf. -
Page 13: Operation
4. Operation Touchscreen Control Panel The Maverick Force 3 Profile has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly. -
Page 14: Menu Map
Operation Menu Map Refer to the Maverick Force 3 Profile product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address Manual Manually set IP address IP Mode DHCP Network sets IP address... - Page 15 USB Update Update firmware via USB C Pan/Tilt Iris/Prism Color/CMY/ Blade Reset Reset individual functions or all Gobo/Gobo Function functions from start-up Rotate Frost/ Animation Factory Reset to factory default settings Settings Maverick Force 3 Profile User Manual Rev. 1...
- Page 16 Blade3- 1 Blade3- 1 Fine Blade3- 2 Blade3- 2 Fine Blade4- 1 Blade4- 1 Fine Blade4- 2 Blade4- 2 Fine Blade Rotate Blade. Rota Fine Focus Focus Fine Focus Auto Zoom Zoom Fine Maverick Force 3 Profile User Manual Rev. 1...
- Page 17 Information Frequency Pan Fine Tilt Tilt Fine P/T Speed Dimmer Dimmer Fine Channel Shutter Shows all current values from input 000–255 Information signals Virtual Shaking Cyan Magenta Yellow Color Gobo Gobo Rotate Maverick Force 3 Profile User Manual Rev. 1...
- Page 18 Blade4- 2 Fine (cont.) Blade Rotate Blade. Rota Fine Focus Focus Fine Focus Auto Zoom Zoom Fine Prism Prism Rotate Prism2 Prism2 Rotate Iris Frost Frost2 CMY Macro CMY Macro Speed Control Maverick Force 3 Profile User Manual Rev. 1...
-
Page 19: Configuration (Dmx, Art-Net™, Sacn)
Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The Maverick Force 3 Profile works with wired DMX, WDMX, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Settings main level. -
Page 20: Control Channel Assignments And Values
Color 6 (CTB) 048 059 060 187 Color wheel indexing 188 219 Color scroll, fast to slow 220 223 Stop 224 255 Reverse color scroll, slow to fast Maverick Force 3 Profile User Manual Rev. 1... - Page 21 112 117 Gobo 1 shaking, slow to fast 118 127 Open 128 191 Gobo scroll, fast to slow 192 255 Reverse gobo scroll, slow to fast Animation wheel 000 255 0–100% Maverick Force 3 Profile User Manual Rev. 1...
- Page 22 005 255 Prism insert 000 127 Prism index 128 189 Prism rotation, fast to slow Prism 2 rotation 190 193 Stop 194 255 Reverse prism rotation, slow to fast Maverick Force 3 Profile User Manual Rev. 1...
- Page 23 216 220 Fan mode TV25 221 225 Fan mode TV35 226 230 No function 231 235 Swap XY on 236 240 Swap XY off 241 255 No function Maverick Force 3 Profile User Manual Rev. 1...
-
Page 24: Gobo Wheels
2. Select from the BL. O. P/T Move (black out on pan/tilt movement), BL. O. ColorMove (black out on color wheel movement), or BL. O. GoboMove (black out on gobo wheel movement) options. 3. Select from NO or YES. Maverick Force 3 Profile User Manual Rev. 1... -
Page 25: Touchscreen Calibration
Dimmer Curve To set the dimmer curve: 1. Go to the Settings main level. 2. Select the Dimmer Curve option. 3. Select the dimmer curve, from Linear, Square, I Squa, SCurve or Linear2. Maverick Force 3 Profile User Manual Rev. 1... -
Page 26: Pulse Width Modulation
1. Connect the Maverick Force 3 Profile products to receive the Presets by a DMX daisy chain. 2. Make the Maverick Force 3 Profile with the Presets to transfer the first in the DMX daisy chain. 3. Power on all of the products. -
Page 27: Reset Function
3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Maverick Force 3 Profile automatically test all functions one after the other: 1. Go to the Test main level. 2. Select the Auto Test option. -
Page 28: Web Server
Operation Web Server The Maverick Force 3 Profile Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password. -
Page 29: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Maverick Force 3 Profile User Manual Rev. 1... -
Page 30: Technical Specifications
3-pin and 5-pin IXLR Amphenol XLR Net RJ45 37 or 53 Ordering Product Name Item Name Item Code UPC Number Maverick Force 3 Profile MAVERICKFORCE3PROFILE 08011745 781462220938 UL 1573 CSA C22.2 No. 166 E113093 Maverick Force 3 Profile User Manual Rev. 1... -
Page 31: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Maverick Force 3 Profile User Manual Rev. 1...
