  • Page 1 User Manual Model ID: OVATIONF415FC...
  • Page 2 Ovation F-415FC. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Ovation F-415FC are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    18Ch / 14Ch / 13Ch / 11Ch / 7Ch / 5Ch / 3Ch ............... 1Ch..........................HSV..........................Standalone Configuration................14 Static Mode ........................Auto Programs ....................... Zoom ..........................Master/Slave ........................Dimmer Curve ........................ Dimmer Profiles......................Ovation F-415FC User Manual Rev. 7...
  • Page 4 LED Frequency ......................Fan Mode ........................Back Light ........................System Information ......................Zoom Reset........................Factory Reset......................... 5. Technical Information ..............Product Maintenance ..................16 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................18 Ovation F-415FC User Manual Rev. 7...

  • Page 5: Before You Begin

    • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Ovation F-415FC User Manual Rev. 7...

  • Page 6: Safety Notes

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Ovation F-415FC User Manual Rev. 7...

  • Page 7: Introduction

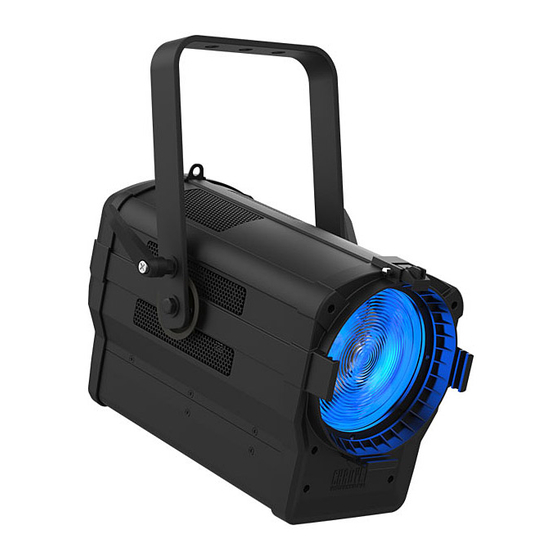

    2. Introduction Description The Ovation F-415FC is a RGBAL Fresnel-style LED system. It projects a bright, beautifully soft field of light, from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 27° to 68° field of angle allows users to add light where it is needed. Control of the virtual color wheel, zoom, and output can be via DMX or on-board dials.

  • Page 8: Product Dimensions

    Introduction Product Dimensions 11.22 in 285 mm 15.04 in 382 mm 13.90 in 353 mm 6.25 in 159 mm 6.25 in 6.25 in 159 mm 159 mm 9.53 in 242 mm Ovation F-415FC User Manual Rev. 7...

  • Page 9: Setup

    AC Ground Green/Yellow Green/Yellow Green Power Linking It is possible to power link Ovation F-415FC products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz...

  • Page 10: Master/Slave Connectivity

    Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation F-415FC comes with a double-bracketed yoke that can be used as a floor stand or to which mounting clamps can be attached for hanging. Mounting clamps must be purchased separately. Ensure that the clamps can support the weight of this product.

  • Page 11: Operation

    <Zoom> Push twice, then turn to increase or decrease the zoom Control Options Set the Ovation F-415FC starting address in the 001-512 DMX range. This enables control of up to 24 products in the 18-channel personality. Programming Refer to the Menu Map to understand the menu options.

  • Page 12: Menu Map

    Operation Menu Map Refer to the Ovation F-415FC product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (*highest channel 001–512* Address restricted to personality chosen) 1-channel: dimmer 3-channel: dimmer, virtual color wheel,...
  • Page 13 Uses factory default white setting Sets red LED maximum value Green Sets green LED maximum value White Balance Manual Blue 125–255 Sets blue LED maximum value Amber Sets amber LED maximum value Lime Sets lime LED maximum value Ovation F-415FC User Manual Rev. 7...
  • Page 14 Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects. When operating in Fan Mode: Off, output of the fixture will be reduced and will not reach the same levels as when using other fan modes. Ovation F-415FC User Manual Rev. 7...

  • Page 15: Virtual Color Wheel

    Operation Virtual Color Wheel The Ovation F-415FC includes a feature called the Virtual Color Wheel (VCW). It is available as a standalone control mode and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.

  • Page 16: Dmx Values

    – – 16 Zoom 000  255 Narrow to wide 000  200 No function – – – – – – 17 Motor reset 201  220 Motor reset 221  255 No function Ovation F-415FC User Manual Rev. 7...

  • Page 17: 1Ch

    221  255 No function Channel Function Value Percent/Setting Dimmer 000  255 0–100% (color set through menu) Channel Function Value Percent/Setting 000  255 0–100% Saturation 000  255 0–100% Value 000  255 0–100% Ovation F-415FC User Manual Rev. 7...

  • Page 18: Standalone Configuration

    2. Select the desired output level (0–255). Master/Slave The Master/Slave mode allows a group of Ovation F-415FC products (the slaves) to simultaneously duplicate the output of another Ovation F-415FC (the master) without a DMX controller. To set each of the slaves: 1.

  • Page 19: Dimmer Profiles

    Keep a safe distance from flammable objects. Back Light This setting allows for selection of the amount of time the backlight on the Ovation F-415FC’s display stays on after the last button is pressed on the control panel. 1. Go to the Back Light main level.

  • Page 20: Technical Information

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation F-415FC User Manual Rev. 7...

  • Page 21: Technical Specifications

    3- and 5-pin XLR 1, 3, 5, 7, 11, 13, 14, 18, and HSV Ordering Product Name Item Code UPC Number Ovation F-415FC 03031482 781462218300 UL 1573 CSA C22.2 No. 166 E113093 Page 17 of 18 Ovation F-415FC User Manual Rev. 7...

  • Page 22: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Page 18 of 18 Ovation F-415FC User Manual Rev. 7...
