- Page 1 User Manual Model ID: OVATIONREVEF3...
- Page 2 Ovation Rêve F-3 as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Ovation, and Ovation Rêve are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................FCC Statement of Compliance ..............Expected LED Lifespan................. 2. Introduction ................Description ....................Features ......................Product Overview..................Product Dimensions ..................3. - Page 4 Table of Contents Color X-Fade Speed ....................... Standalone Dimmer ......................Auto Show......................20 Zoom ........................20 Settings Configuration................... DMX Zoom Disable .................... 21 Reset Zoom with Power ..................21 Red Shift ......................21 Master/Slave ...................... 21 Dimmer Curve ....................21 Dimmer Speed Mode ..................
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Ovation Rêve F-3 • (1) 140mm omega bracket with mounting hardware • Seetronic Powerkon IP65 power cable • Quick Reference Guide • Gel frame Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. - Page 6 Before You Begin Safety Notes These Safety Notes include important information about installation, use, and maintenance of the Ovation Rêve F-3 . This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. Do not open the housing or attempt any repairs.
-
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction

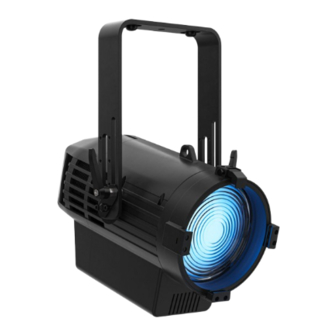

Introduction 2. Introduction Description The Ovation Rêve F-3 is a motorized fresnel that incorporates a full spectrum (RGBAM) Reve light engine. On-board control dials and quiet operation satisfy applications and market demand for soft controllable washes. The product’s innovative adjustable yoke allows mounting in low clearance areas. The extended zoom adjusts from 60 degrees to 10 degrees. -
Page 9: Product Overview
Introduction Product Overview Name Handle/mounting bracket LCD display Manual control knobs Fuse holder Power in/out Safety cable loop Bracket adjustment knob (x2) Menu buttons USB C port 3-pin DMX in/out 5-pin DMX in/out Ovation Rêve F-3 User Manual Rev. 2... -
Page 10: Product Dimensions
Introduction Product Dimensions 19.8 in 504 mm 13.5 in 16.1 in 342 mm 408 mm 5.7 in 146 mm Ovation Rêve F-3 User Manual Rev. 2... -
Page 11: Setup
Setup 3. Setup AC Power The Ovation Rêve F-3 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 12: Dmx Linking
Setup DMX Linking The Ovation Rêve F-3 can be linked to a DMX controller using a 3-pin or 5-pin DMX connection. If using other DMX-compatible products with this product, it’s possible to control each individually with a single DMX controller. DMX Personalities The Ovation Rêve F-3 uses a 3-pin or 5-pin DMX data connection for the 1 Ch, 5 Ch, 6 Ch, 8 Ch, 12 Ch, 14 Ch1, 14 Ch2, and 18 Ch DMX personalities. -
Page 13: Usb Software Update
Setup USB Software Update The Ovation Rêve F-3 allows for software update through USB using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product and plug the flash drive into the USB port. 2. -
Page 14: Mounting
The Ovation Rêve F-3 comes with an omega bracket. The user can directly attach a mounting clamp (sold separately) to that bracket. Make sure the clamp is capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. Mounting Diagram... -
Page 15: Operation
Operation 4. Operation Control Panel Description Button Function <Menu> Exits from the current menu or function <Enter> Enables the currently displayed menu or sets the selected value into the function Navigates upwards through the menu list or increases the numeric value when in a <Up>... - Page 16 Operation Main Level Programming Levels Description C3050–Md Yellow C3040–Lt Yellow C3240–Amb Yellow C2340–VLt Amber C2040–Lt Amber C2050–Md Amber C2060–Dk Amber C1050–Lt Red C1080–Md Red C1020–NC Pink C1030–Md Pink C1630–Dk Pink C1250–Md Red Amber C1060–Dk Red Amber C1650– Magenta Virtual Virtual Color Wheel simulates the output of each Dimmer Static Color...
- Page 17 Operation Main Level Programming Levels Description 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K Dimmer Preset white color temperatures. Emulates a 4400K 0–255 Color tungsten lamp at the specified color temperature. 4500K Temp.
- Page 18 Operation Main Level Programming Levels Description 0-255 Sets the zoom level Enable zoom in DMX mode Zoom Disable zoom in DMX mode Disable Zoom Reset Zoom Sets whether zoom will reset at power on Power Red Shift Enables or disables red shift Master Standalone mode Master/...
-
Page 19: Dmx Configuration
Operation Main Level Programming Levels Description Shows total hours the product has been powered Fixture Hours <_ _ _ _H> Shows total hours the LEDs have been powered LED Hours <_ _ _ _ _H> Information DISP1 <V _. _ . _> Shows current display version DISP2 <V _. -
Page 20: Virtual Color Wheel
Operation Virtual Color Wheel The Ovation Rêve F-3 includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 21: Color Temperature Chart
Operation Color Temperature Chart DMX Value Temperature DMX Value Temperature 000 005 No function 4500K 167 216 145 255 207 2800K 255 007 032 255 207 126 131 4501–4599K 007 012 2801–2899K 4600K 162 223 151 255 207 2900K 237 012 037 255 207 133 ... -
Page 22: Control Channel Assignments And Values
Operation Control Channel Assignments and Values 18 Ch / 14 Ch2 / 14 Ch1 / 12 Ch / 8Ch / 6Ch / 5 Ch 12 14-1 14-2 18 Function Value Percent/Setting – 1 Dimmer 000 255 0–100% – – –... - Page 23 Operation 12 14-1 14-2 18 Function Value Percent/Setting 000 007 No function 008 015 Dimmer reset 016 023 Red shift on 024 031 Red shift off 032 039 S-curve dimmer 040 047 Linear dimmer 048 ...
-
Page 24: Standalone Configuration
Operation Standalone Configuration Static Mode The static mode options under Virtual Color Wheel also include preset color temperatures and a manual color mixer. Virtual Color Wheel To select from the Virtual Color Wheel: 1. Go to the Static main level. 2. -
Page 25: Settings Configuration
Operation Settings Configuration DMX Zoom Disable To enable or disable zoom control via DMX: 1. Go to the Zoom main level. 2. Select the DMX Zoom Disable option. 3. Select from Off (enable) or On (disable). Reset Zoom with Power To set whether the zoom motor will reset when powering on the product: 1. -
Page 26: Fan Mode
Operation Fan Mode To set the fan speed mode: 1. Go to the Fan Mode main level. 2. Select Auto (fan speed will increase or decrease based on product temperature), Off (fan will stay off. Product output will decrease based on product temperature), Silent (fan will maintain a constant silent speed), or On (fan speed will always be at maximum). -
Page 27: Maintenance
Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean each lighting product at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 28: Technical Specifications
Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 15 in (381 mm) 13.5 in (342 mm) 15.7 in (399 mm) 26.2 lb (11.9 kg) Note: Dimensions in inches are rounded. Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging... -
Page 29: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd., Suite 509 Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K.
