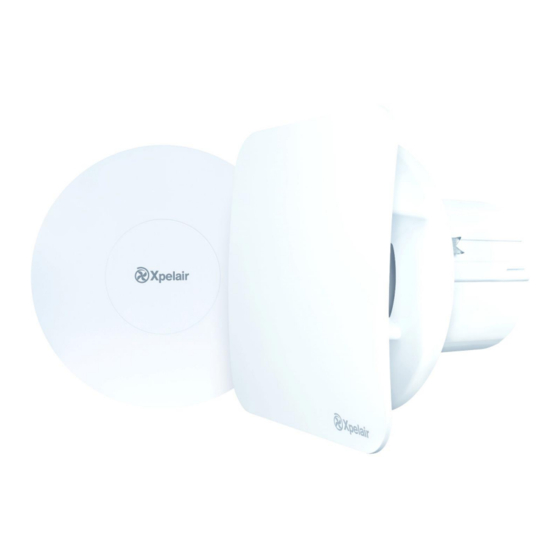

100mm contour fan

Advertisement

Quick Links

Simply Silent
Installation and Maintenance Instructions
C4SR (078339)
C4TSR (078346)
C4PSR (078353)
C4HTSR (078360)
D
o read the entire instruction leaflet before commencing installation.
Do install each fan with a means for disconnection in all poles in the fixed wiring.
Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any
maintenance or cleaning.
Please leave this leaflet with the fan for the benefit of the user.
TM
100mm Contour Fan
Standard
Timer
Pull Cord
Humidistat, Timer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simply Silent C4SR and is the answer not in the manual?

Questions and answers

Summary of Contents for Xpelair Simply Silent C4SR

  • Page 1 Simply Silent 100mm Contour Fan Installation and Maintenance Instructions C4SR (078339) Standard C4TSR (078346) Timer C4PSR (078353) Pull Cord C4HTSR (078360) Humidistat, Timer  o read the entire instruction leaflet before commencing installation.  Do install each fan with a means for disconnection in all poles in the fixed wiring. ...
  • Page 2 THE APPLIANCE IS DOUBLE INSULATED AND DOES NOT REQUIRE AN EARTH CONNECTION. All installations must be supervised by a qualified electrician. Installations and wiring must conform to current IEE Regulations (UK), local or appropriate regulations (other countries). All Xpelair Simply Silent Contour AC fans have the following features: ...
  • Page 3 Wall tube quickfix clamps Back plate fixing positions Front Cover Removal Factory settings: Timer 15 minutes, RH 75% Depress Cover Latch with tool & remove Cover and Baffle Complete Minimum 30 seconds Maximum 30 minutes Front Cover and duct breakouts Break-outs...
  • Page 4 Wiring and setting up Square Baffle removal Round Baffle fitting...
  • Page 5  A 100mm diameter prepared hole.  Appropriate ancillaries for termination. These items are available from Xpelair: 3m flexible ducting Ref: 89663AA. If the duct passes through a cold space use insulated duct ref: 89847AA. Soffit Grille Ref: 89742AW XCT100 – Condensation Trap. Ref: 89749AA. Fitted immediately above the fan, this prevents water ingress due to condensation forming in the duct above the fan and running down.
  • Page 6 Wet Rooms: On/Off switch must be situated so that it cannot be touched by persons making use of the bath or shower. For Australia Only - C4SR / C4PSR Connection to the supply can be made by a flexible 2-core cable complete with 3 pin plug for insertion into an approved 10A GPO or directly wired through an approved 10A wall mounted surface switch with at least 3mm clearance between contacts.
  • Page 7 Fan Settings. SPEED SETTING The fans are factory set to low speed, but have two speed settings for different applications. Select either high or low speed by connecting the jumper between the centre and high or low speed pin on the jumper (see Figure F) C4TSR Only.
  • Page 8 • You must provide to Xpelair or its authorised agents on request the original receipt as proof of purchase and - if required by Xpelair - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
