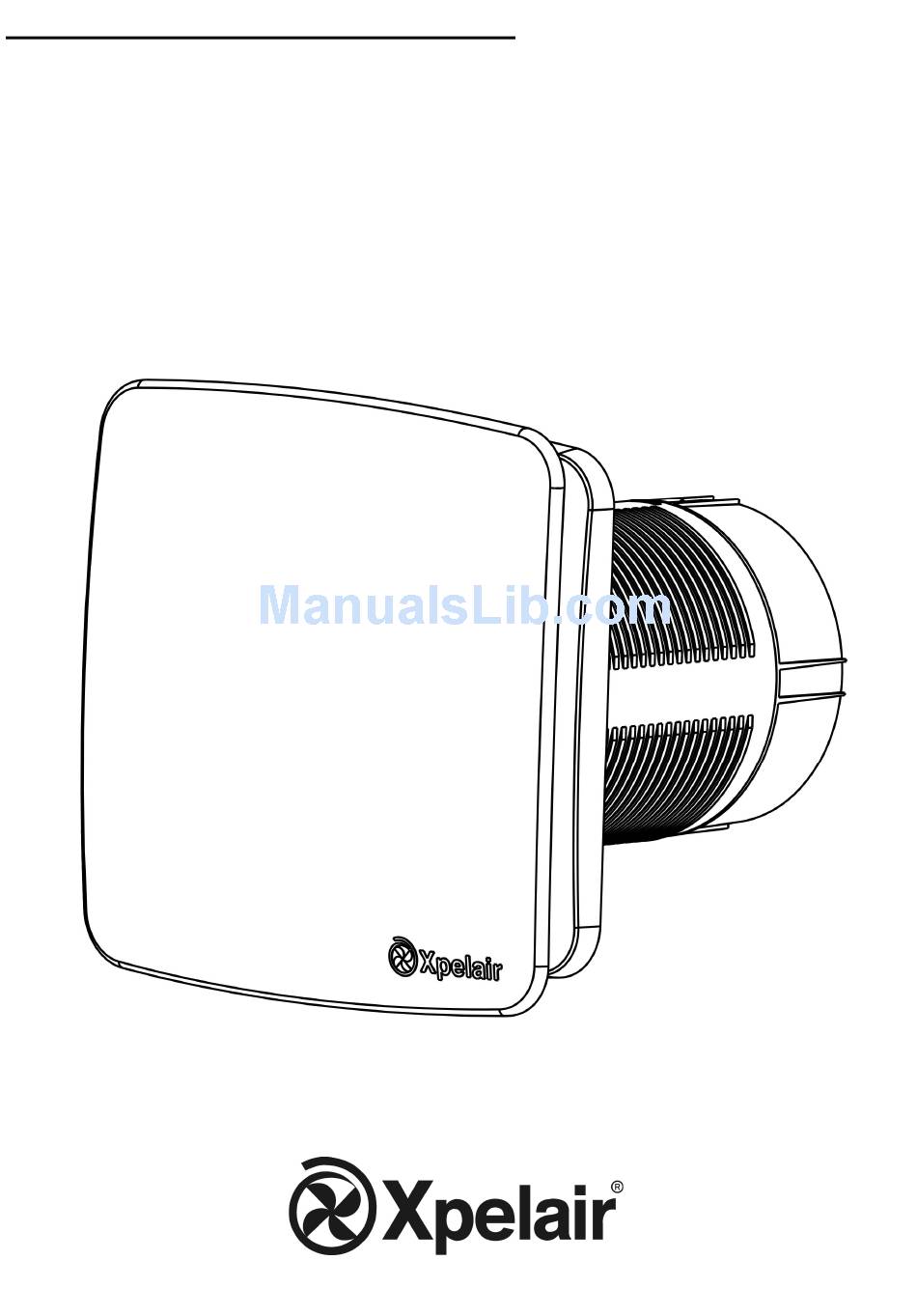

Installation and Maintenance Instructions
Xpelair C100P
Xpelair C100T
Xpelair C100HT
Contour Range of Toilet / Bathroom Fans with AC motors
Pull Cord
Timer
Humidistat, Timer and Pull Cord
[1]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xpelair C100T and is the answer not in the manual?

Questions and answers

Summary of Contents for Xpelair Xpelair C100T

  • Page 1 Installation and Maintenance Instructions Xpelair C100P Pull Cord Xpelair C100T Timer Xpelair C100HT Humidistat, Timer and Pull Cord Contour Range of Toilet / Bathroom Fans with AC motors...
  • Page 4 If you have any queries before installing these products or after they have been installed, call the Xpelair Technical Hotline +44 (0) 844 372 7766. Our engineers are there to help you during normal office hours (UK only) and may be faxed at all other times on +44 (0) 844 372 7767.
  • Page 5 Mortar to make good the hole around the ducting.  FOR C100 Range: If ceiling mounting the fan, You will need the use of appropriate ancillaries for termination. These items are available from Xpelair: 1. WT10 – Termination ducting kit. 2. FD100 – Flexible Ducting.
  • Page 6 Preparing the hole. If working above ground floor level, safety precautions must be observed. WARNING: EYE PROTECTION MUST BE WORN DURING ALL DRILLING AND CHISELLING OPERATIONS. If installing in a Wall. 1. Check there are no buried pipes or cables in the wall or obstructions on the outside e.g. electricity, gas, water. If in doubt, seek professional advice.
  • Page 7 Setting the fan. C100T Only.  To adjust the over-run period turn the control (T) clockwise to increase and anti-clockwise to decrease – see Figure C100HT Only – see figures E and F.  The pre-set humidity operation is factory set at approximately 75% Relative Humidity (RH), but can be adjusted between 65% and 85% RH by control H.
  • Page 8 UK only: We, Redring Xpelair Group Limited, provide a guarantee against faulty parts and manufacture for a period of 2 years from the date of purchase. In the unlikely event of a product breakdown during the guarantee period please call our technical helpline on 0844 372 7766 for advice and assistance.
