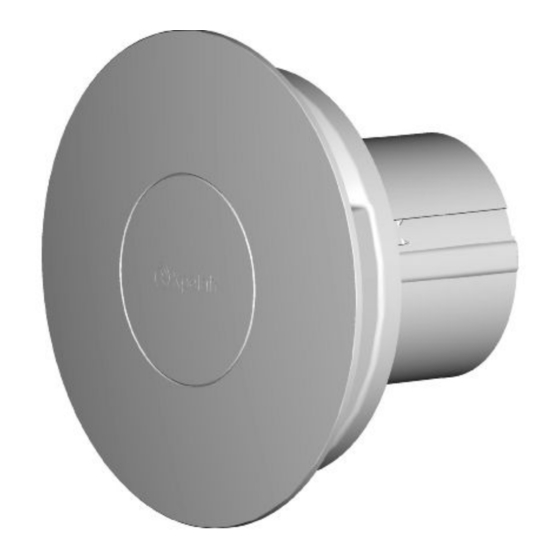

Xpelair Simply Silent
Installation and Maintenance Instructions
CV4S (92968AW) / CV4R (92969AW)
CV Round Fan
D
•
o read the entire instruction leaflet before commencing installation.
•
Do install each fan with a means for disconnection in all poles in the fixed wiring.
•
Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any
maintenance or cleaning.
Please leave this leaflet with the fan for the benefit of the user.
UK customers:
If you have any queries before or after installing this product call the Xpelair Technical Hotline+44 (0) 344 879 3588 or
e-mail customer.services@glendimplex.com. Our engineers are there to help you during normal office hours.
Customers outside the UK should contact your local Xpelair distributor.
Volume Fan Range
TM
CV Constant
Humidistat, Timer.

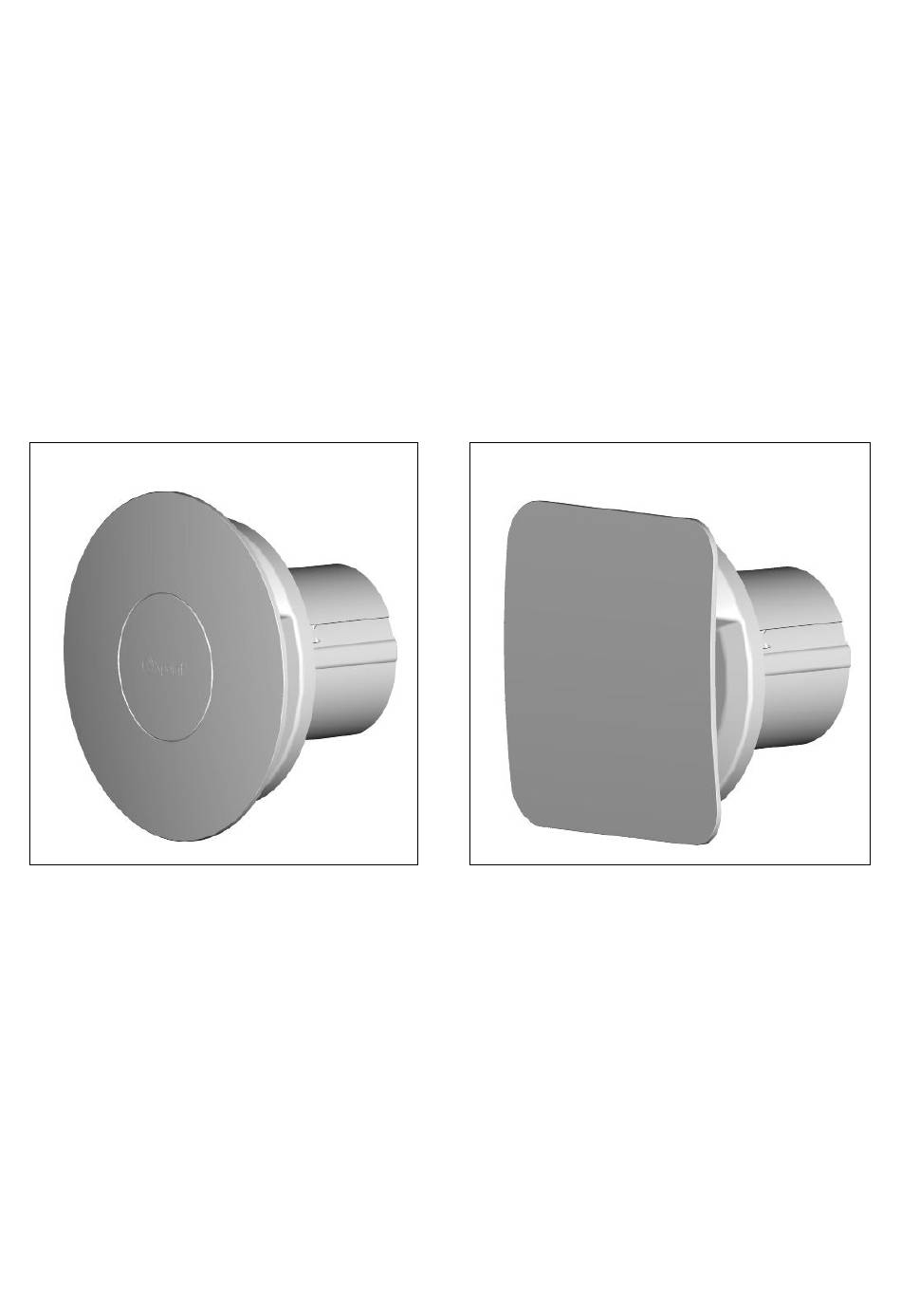

CV Square Fan
Advertisement
Table of Contents
Related Manuals for Xpelair Simply Silent CV Series
Summary of Contents for Xpelair Simply Silent CV Series
- Page 1 Please leave this leaflet with the fan for the benefit of the user. UK customers: If you have any queries before or after installing this product call the Xpelair Technical Hotline+44 (0) 344 879 3588 or e-mail customer.services@glendimplex.com. Our engineers are there to help you during normal office hours.
- Page 2 Children shall not play with the appliance. Cleaning and maintenance of the appliance shall not be made by children. All Xpelair Simply Silent CV Constant Volume fans have the following features: • Constant Volume fan that automatically adjusts itself to maintain installed air flow rates.
- Page 3 Back plate fixing positions Wall tube quickfix clamps Front Cover Removal Factory settings: Timer 15 minutes, RH 75% Depress Cover Latch with tool & remove Cover and Baffle Complete Minimum 30 seconds Maximum 30 minutes...
- Page 4 Wiring and setting up Where to locate the fan. • Locate it as high as possible. • At least 110mm from the edges of the mounting surface to the centre of the hole. • As far away as possible from and opposite to the main source of air replacement to ensure airflow across the room (e.g.
- Page 5 A 100mm diameter prepared hole. • Appropriate ancillaries for termination. These items are available from Xpelair: 1. 3m flexible ducting Ref: 89663AA. If the duct passes through a cold space use insulated duct ref: 89847AA. 2. Soffit Grille Ref: 89742AW 3.
- Page 6 9. Fasten the back-plate to the wall/ceiling using appropriate fasteners. See figure A. 10. If using screws, do not over tighten. The fan may also be fixed to a wall tube using the clamping brackets. Tighten the screws until the fan is firmly secured to the tube – see figure B. Wire the electrical connections.
- Page 7 LED flash sequence to indicate hour run: • LED off for 2 seconds to indicate the start of the count, then : • 0 to 2000 hours : LED on for 1 short flash (0.5s on / 0.5s off) • 2000 to 3000 hours : LED on for 2 short flashes •...
- Page 8 The Xpelair Warranty Period is 2 years with 5 years on the motor from the date of purchase of your Xpelair product, or the date of delivery of the product, if later. The Xpelair Warranty is conditional upon you providing the original purchase receipt as proof of purchase. Please therefore retain your receipt as proof of purchase.
