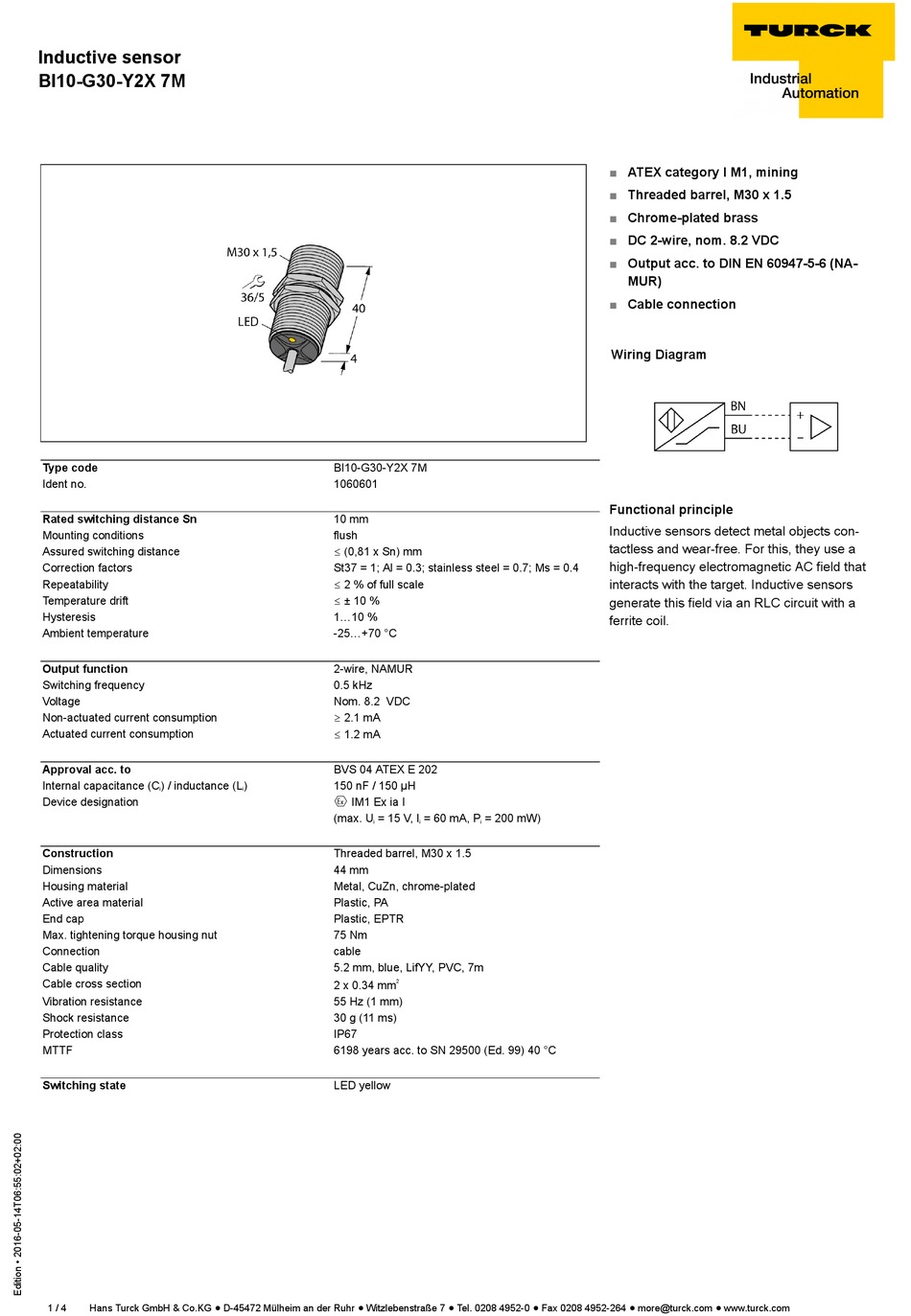

turck BI10-G30-Y2X 7M Manual

Inductive sensor
BI10-G30-Y2X 7M
Type code
Ident no.
Rated switching distance Sn
Mounting conditions
Assured switching distance
Correction factors
Repeatability
Temperature drift
Hysteresis
Ambient temperature
Output function
Switching frequency
Voltage
Non-actuated current consumption
Actuated current consumption
Approval acc. to
Internal capacitance (C ) / inductance (L
i
Device designation
Construction
Dimensions
Housing material
Active area material
End cap
Max. tightening torque housing nut
Connection
Cable quality
Cable cross section
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
1 / 4 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
BI10-G30-Y2X 7M
1060601
10 mm
flush
ð (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð 2 % of full scale
ð ± 10 %
1...10 %
-25...+70 °C
2-wire, NAMUR
0.5 kHz
Nom. 8.2 VDC
ï 2.1 mA
ð 1.2 mA
BVS 04 ATEX E 202
) 150 nF / 150 µH
i
É IM1 Ex ia I
(max. U = 15 V, I
i
Threaded barrel, M30 x 1.5
44 mm
Metal, CuZn, chrome-plated
Plastic, PA
Plastic, EPTR
75 Nm
cable
5.2 mm, blue, LifYY, PVC, 7m
2 x 0.34 mm
2
55 Hz (1 mm)
30 g (11 ms)
IP67
6198 years acc. to SN 29500 (Ed. 99) 40 °C
LED yellow
= 60 mA, P = 200 mW)
i i
■ ATEX category I M1, mining
■ Threaded barrel, M30 x 1.5
■ Chrome-plated brass
■ DC 2-wire, nom. 8.2 VDC
■ Output acc. to DIN EN 60947-5-6 (NA-
MUR)
■ Cable connection
Wiring Diagram

Functional principle

Inductive sensors detect metal objects con-
tactless and wear-free. For this, they use a
high-frequency electromagnetic AC field that
interacts with the target. Inductive sensors
generate this field via an RLC circuit with a
ferrite coil.
