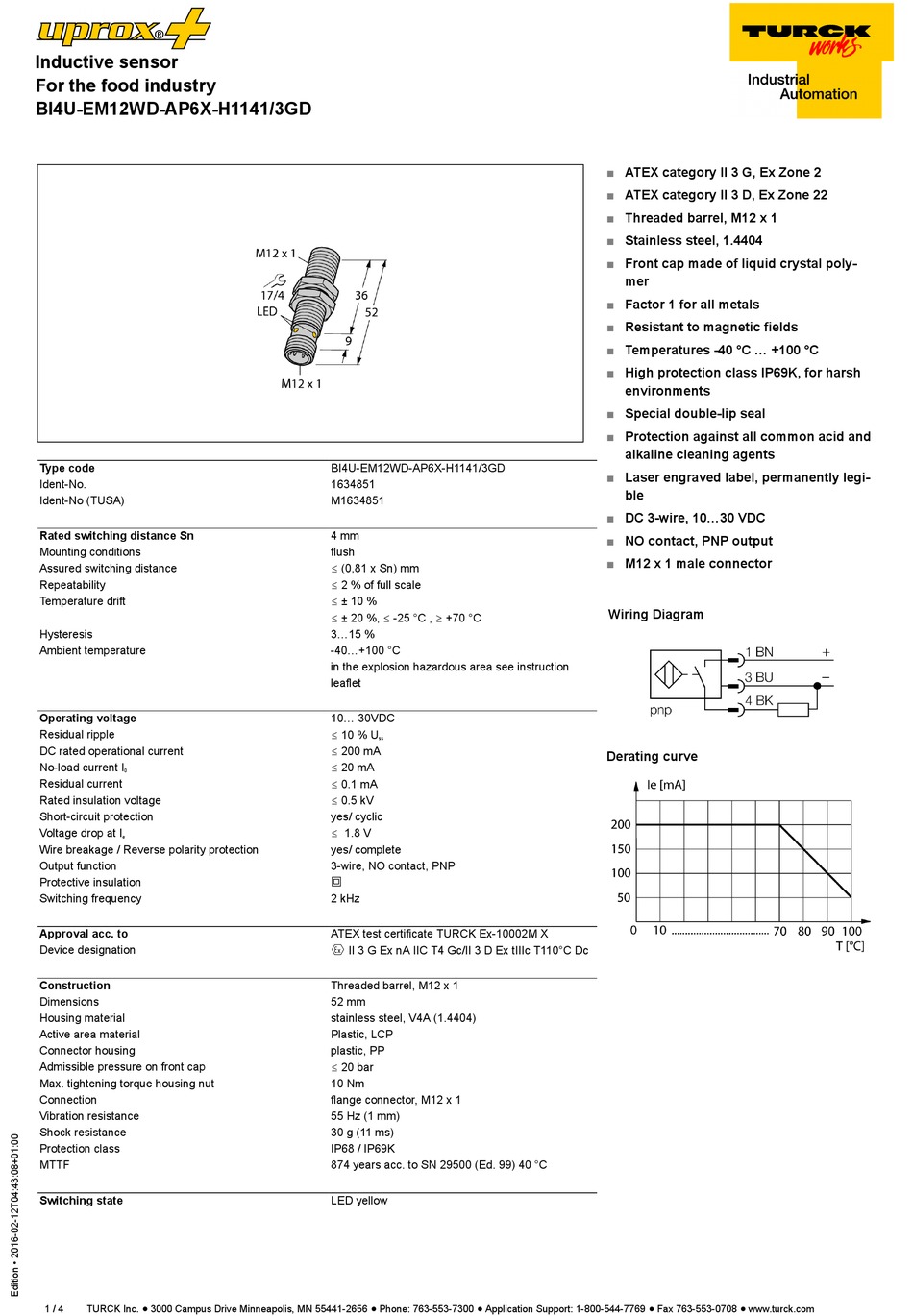

turck uprox + BI4U-EM12WD-AP6X-H1141/3GD Manual

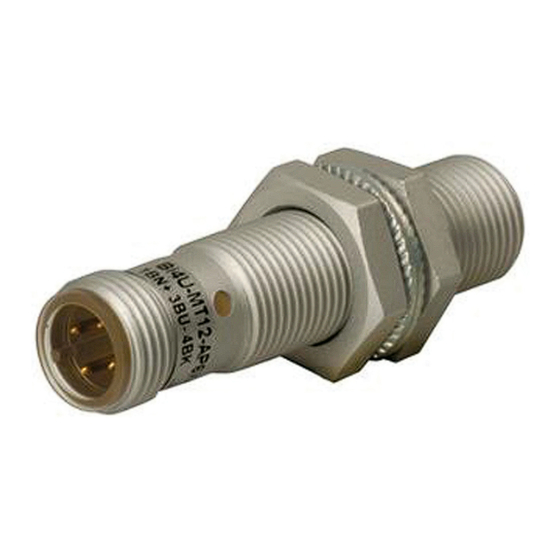

Inductive sensor
For the food industry
BI4U-EM12WD-AP6X-H1141/3GD
Type code
Ident-No.
Ident-No (TUSA)
Rated switching distance Sn
Mounting conditions
Assured switching distance
Repeatability
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Residual current
Rated insulation voltage
Short-circuit protection
Voltage drop at I
e
Wire breakage / Reverse polarity protection
Output function
Protective insulation
Switching frequency
Approval acc. to
Device designation
Construction
Dimensions
Housing material
Active area material
Connector housing
Admissible pressure on front cap
Max. tightening torque housing nut
Connection
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
1 / 4 TURCK Inc. ñ 3000 Campus Drive Minneapolis, MN 55441-2656 ñ Phone: 763-553-7300 ñ Application Support: 1-800-544-7769 ñ Fax 763-553-0708 ñ www.turck.com
BI4U-EM12WD-AP6X-H1141/3GD
1634851
M1634851
4 mm
flush
ð (0,81 x Sn) mm
ð 2 % of full scale
ð ± 10 %
ð ± 20 %, ð -25 °C , ï +70 °C
3...15 %
-40...+100 °C
in the explosion hazardous area see instruction
leaflet
10... 30VDC
ð 10 % U
ss
ð 200 mA
ð 20 mA
ð 0.1 mA
ð 0.5 kV
yes/ cyclic
ð 1.8 V
yes/ complete
3-wire, NO contact, PNP
÷
2 kHz
ATEX test certificate TURCK Ex-10002M X
É II 3 G Ex nA IIC T4 Gc/II 3 D Ex tIIIc T110°C Dc
Threaded barrel, M12 x 1
52 mm
stainless steel, V4A (1.4404)
Plastic, LCP
plastic, PP
ð 20 bar
10 Nm
flange connector, M12 x 1
55 Hz (1 mm)
30 g (11 ms)
IP68 / IP69K
874 years acc. to SN 29500 (Ed. 99) 40 °C
LED yellow
■ ATEX category II 3 G, Ex Zone 2
■ ATEX category II 3 D, Ex Zone 22
■ Threaded barrel, M12 x 1
■ Stainless steel, 1.4404
■ Front cap made of liquid crystal poly-
mer
■ Factor 1 for all metals
■ Resistant to magnetic fields
■ Temperatures -40 °C ... +100 °C
■ High protection class IP69K, for harsh
environments
■ Special double-lip seal
■ Protection against all common acid and
alkaline cleaning agents
■ Laser engraved label, permanently legi-
ble
■ DC 3-wire, 10...30 VDC
■ NO contact, PNP output
■ M12 x 1 male connector
Wiring Diagram
Derating curve
