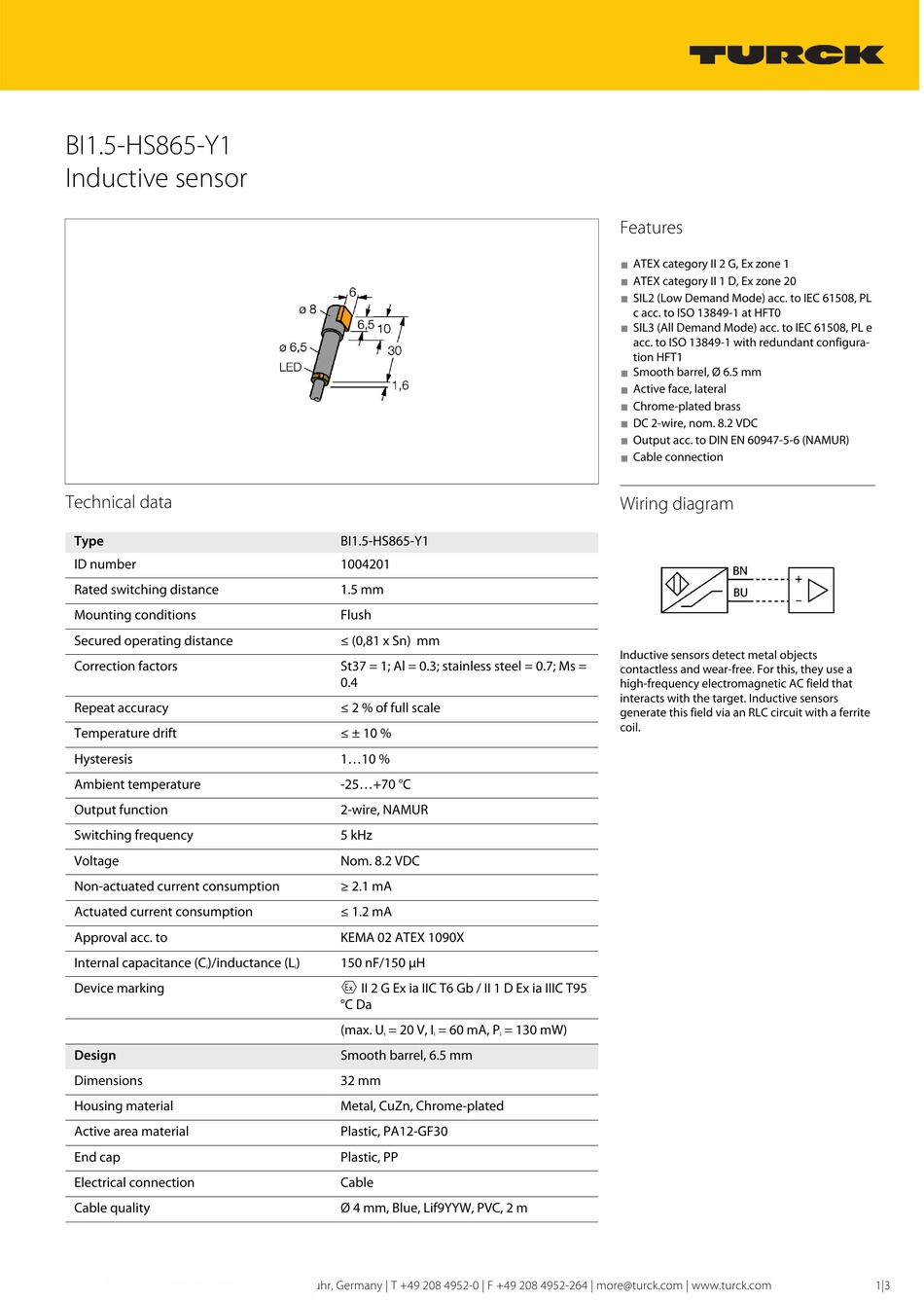

BI1.5-HS865-Y1
Inductive sensor
Technical data
Type
ID number
Rated switching distance
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Output function
Switching frequency
Voltage
Non-actuated current consumption
Actuated current consumption
Approval acc. to
Internal capacitance (C
)/inductance (L
i
Device marking
Design
Dimensions
Housing material
Active area material
End cap
Electrical connection
Cable quality
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
BI1.5-HS865-Y1
1004201
1.5 mm
Flush
≤ (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms =
0.4
≤ 2 % of full scale
≤ ± 10 %
1...10 %
-25...+70 °C
2-wire, NAMUR
5 kHz
Nom. 8.2 VDC
≥ 2.1 mA
≤ 1.2 mA
KEMA 02 ATEX 1090X
)
150 nF/150 µH
i
É II 2 G Ex ia IIC T6 Gb / II 1 D Ex ia IIIC T95
°C Da
(max. U
= 20 V, I
= 60 mA, P
i
i
Smooth barrel, 6.5 mm
32 mm
Metal, CuZn, Chrome-plated
Plastic, PA12-GF30
Plastic, PP
Cable
Ø 4 mm, Blue, Lif9YYW, PVC, 2 m
Features
■
ATEX category II 2 G, Ex zone 1
■
ATEX category II 1 D, Ex zone 20
■
SIL2 (Low Demand Mode) acc. to IEC 61508, PL
c acc. to ISO 13849-1 at HFT0
■
SIL3 (All Demand Mode) acc. to IEC 61508, PL e
acc. to ISO 13849-1 with redundant configura-
tion HFT1
■
Smooth barrel, Ø 6.5 mm
■
Active face, lateral
■
Chrome-plated brass
■
DC 2-wire, nom. 8.2 VDC
■
Output acc. to DIN EN 60947-5-6 (NAMUR)
■
Cable connection
Wiring diagram
Inductive sensors detect metal objects
contactless and wear-free. For this, they use a
high-frequency electromagnetic AC field that
interacts with the target. Inductive sensors
generate this field via an RLC circuit with a ferrite
coil.
= 130 mW)
i
1|3
