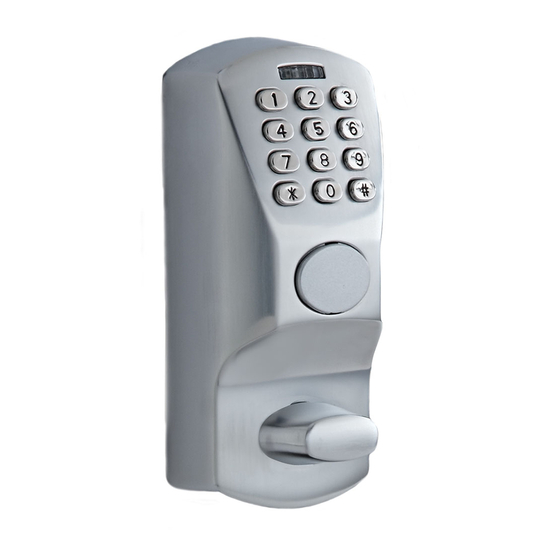

- Page 1 Oracode 480-480i Series Installation Instructions PK3700 - 05/2023 Original document...
-
Page 2: Tools Required
2. This lock is not designed to be used on emergency exit doors. 3. Carefully inspect glass, door frame, door etc. to ensure the recommended procedure will not cause damage. dormakaba standard warranty does not cover damages cause by installation. 4. Wear safety glasses when making the holes. - Page 3 Parts list Outside Housing Assembly (1) 2. Bar Code Label (1) 3. Outside Housing Gasket (1) 4. Dead Bolt (1) 5. Inside Trim Assembly (1) 6. Machine Screw, Pan Head, SS, PH #3, 12-24 (1) Machine Screw, Pan Head, ZP, PH #2, 8-32 (2) 8.
- Page 4 Key override cylinder If cylinder is not already assembled in the lock, proceed as follow. Wire must not Remove 4 screws get pinched. Wire shall not be pinched when Remove back plate re-installing back plate Override Re-assemble back plate using switch screws as shown WARNING...
- Page 5 Install inside trim assembly Connect w1 to w2 (communication if applicable) Connect v1 to v2 (power) Use short 8-32 screws on door thickness 1 3/8" up to 1 21/32". Use long 8-32 screws on door thickness 1 21/32 up to 2.0" Use short 6-32 screws on door thickness 1 3/8"...
- Page 6 IMPORTANT Make sure that the door is programmed properly and a valid code is accepted. If a valid code is not accepted, contact the dormakaba Technical Support Hotline. Testing the operation of the lock WARNING Perform all the following with the door open.
- Page 7 Testing the mechanical override (with door open) Cover the key hole Groove facing down Fig. 6 Fig. 4 Fig. 5 Project the dead bolt from outside or inside. 2. Insert key and rotate it clockwise until it stops. See Fig. 4 & Fig. 5. 3.
- Page 8 ORACODE 480i SERIES - Wireless Lock with Smart Controller Oracode smart controller installation Smart Controller Front Smart controller positioning • Avoid placing the Smart Controller in close proximity (< 5 feet / 2 m) to a Wi-Fi device. • Position the Smart Controller within 33 ft / 10 meters of the lock. •...
- Page 9 Wireless lock activation (put on-line) 2. Activation process (with Oracode Live) • Once the Activation number is provided, a new field will be presented where the Smart Controller’s MAC address is to be entered. • Enter the controller’s MAC address (located on Bottom Label), and then click the “Enable Discovery Mode”...
- Page 10 Key Systems Systems Entrance Safe Systems Locks Service dormakaba USA Inc. 6161 E. 75th Street Indianapolis, IN 46250 T: 1 888 217 5654 T: +1 514 340 9025 (international) dormakaba.us Full service from 8:30 am to 7:00 pm Eastern Time, Emergencies 24/7 Email: techsupport.lgs.ca@dormakaba.com...
