QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• Available with 3.6 or 2.8mm Fixed Lens
• 2 Matrix IRs (up to 165' IR Range)
• True Wide Dynamic Range
• 1 Ch. Audio In*
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Abnormal Video, Face Detection, Regional Intrusion Detection,
Regional Entrance / Exiting Detection, Line Crossing, Target
Counting Detection
• H.265, H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (128GB)
• IP67 Weather Resistance
• Wall Mount Included & Junction Boxes (VT-TJB07, VT-TJB08)
Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTC-TNB4RMA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.

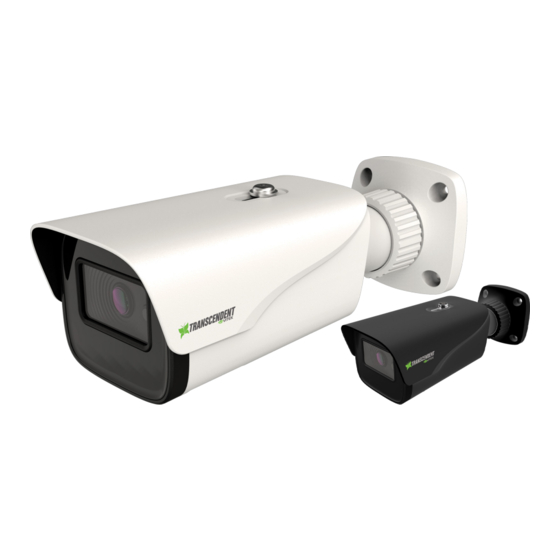

VTC-TNB4RFA3
4 MegaPixel Indoor/Outdoor
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
WDR IP Fixed Bullet
Camera with Matrix IR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTC-TNB4RFA3
Summary of Contents for Vitek Transcendent VTC-TNB4RFA3

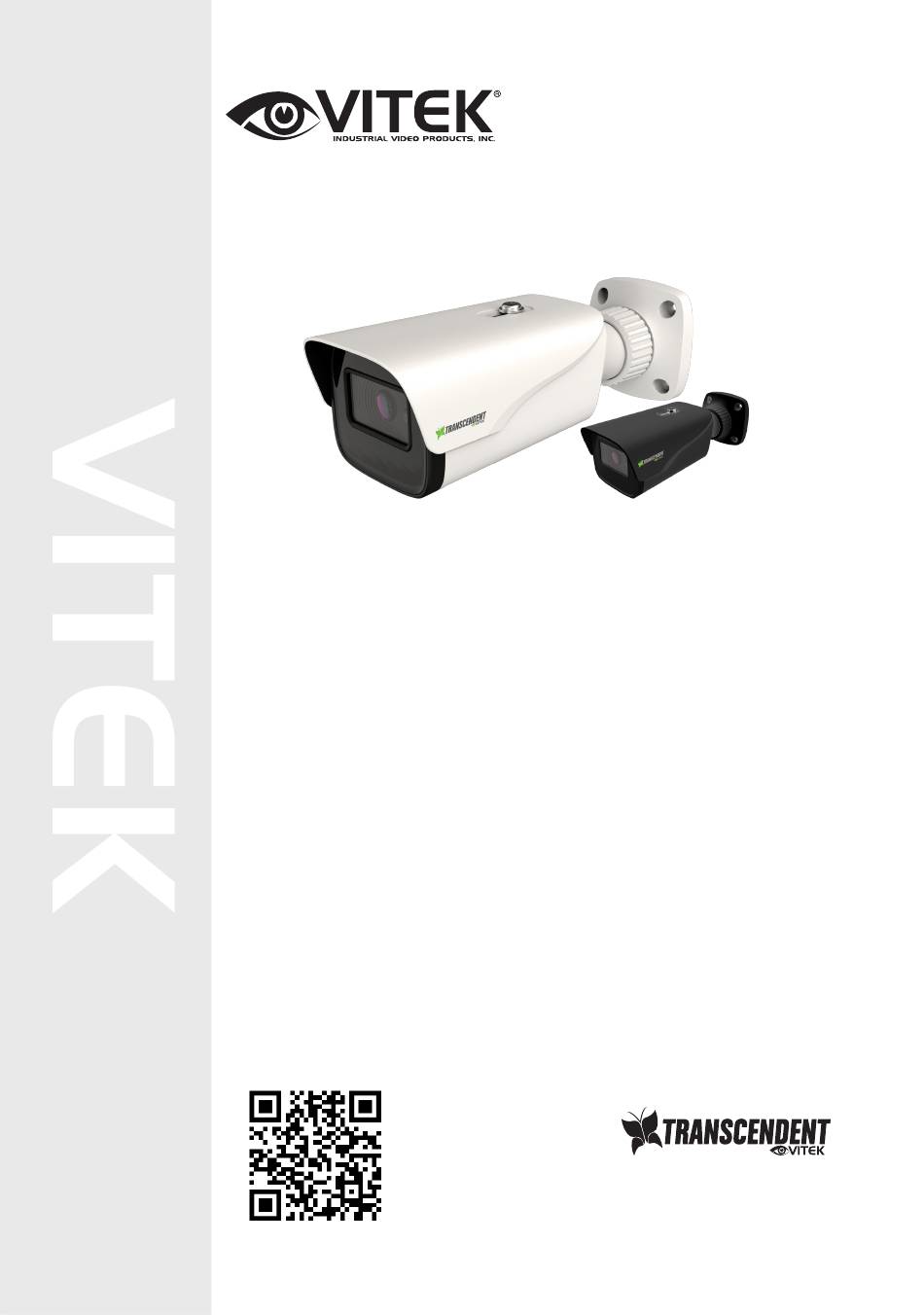

- Page 1 VTC-TNB4RFA3 Transcendent Series 4 MegaPixel Indoor/Outdoor WDR IP Fixed Bullet Camera with Matrix IR QUICK START GUIDE FEATURES: • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • Available with 3.6 or 2.8mm Fixed Lens •...
- Page 2 Components and Accessories Camera 4 tapping screws PA 4×2 Quick start guide Rubber plug × 4 Screwdriver Plastic plug Drill template Overview Fixed Ring Power connector* Mounting Base Micro SD card slot Network connector* Reset Audio Input Sunshield First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if routing the cables through the mounting base) according to the drill template 2. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base, then secure the mounting base to the ceiling or wall with screws.
- Page 5 LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
- Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
