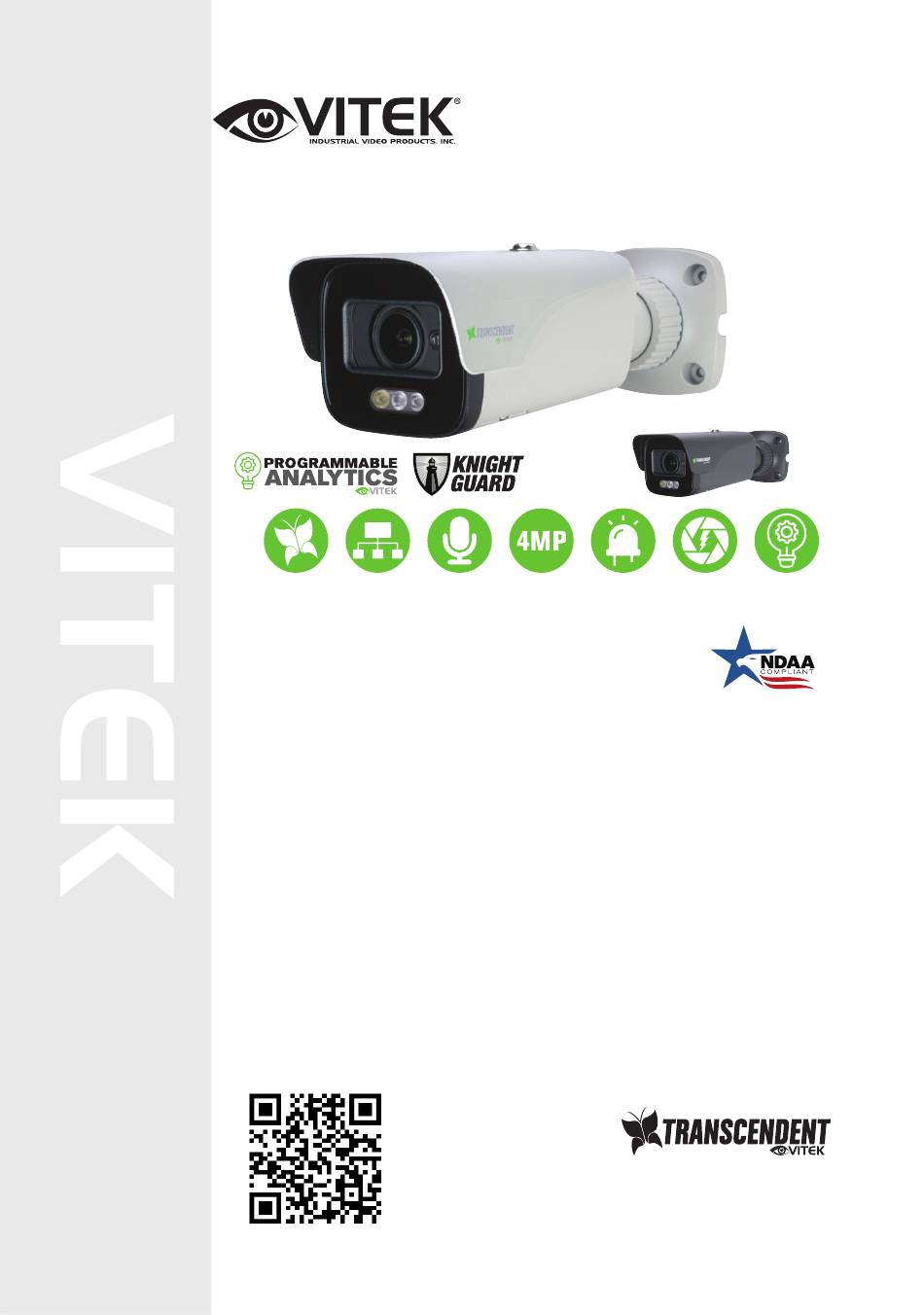

QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES:
• 1/3.0" 4.0 Megapixel Progressive Scan CMOS Image Sensor
• Up to 30fps@4MP (2560 × 1440)
• 2.8~12mm Motorized Iris Lens
• Matrix IR (up to 165' IR Range), White Light (up to 130')
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line
Crossing, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Available in Ivory or Charcoal (VTC-TNB4MEAB)
• IP67 Weather Resistance
• Wall Mount Included & Optional Junction Box (VT-TJB08) Available
See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation
of audio surveillance.
VTC-TNB4MEA
Transcendent Series 4 MegaPixel
Motorized IP WDR Bullet Camera
BUILT-IN AUDIO 4 MEGAPIXEL
WHITE LIGHT /
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
MOTORIZED
PROGRAMMABLE
MATRIX IR
LENS
ANALYTICS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTC-TNB4MEA
Summary of Contents for Vitek Transcendent VTC-TNB4MEA
- Page 1 VTC-TNB4MEA Transcendent Series 4 MegaPixel Motorized IP WDR Bullet Camera QUICK START GUIDE TRANSCENDENT NETWORK BUILT-IN AUDIO 4 MEGAPIXEL WHITE LIGHT / MOTORIZED PROGRAMMABLE MATRIX IR LENS ANALYTICS FEATURES: • 1/3.0” 4.0 Megapixel Progressive Scan CMOS Image Sensor • Up to 30fps@4MP (2560 × 1440) •...
- Page 2 Components and Accessories Camera Quick Start Guide 4 Tapping Screws PA 4×2 Rubber Plug Plastic Plugs × 4 Allen Key Dri l l templ ate Overview 1. Locking Ring 5. Power Connector 2. Mounting Base 6. MicroSD Card Slot 3. Network Connector 7.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if routing the cables through the mounting base) according to the drill template 2. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base, then secure the mounting base to the ceiling or wall with screws.
- Page 5 1. Make sure the camera and PC are connected to the LAN. 2. Locate the IP-Tool installer at https://vitekcctv.com/vitek-tech-sup- port/vitek-software-downloads/, then install on the PC. Open the installed application. 3. Modify the IP address. The default IP address is 192.168.226.201.
- Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
- Page 7 2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login dialog box will appear. 4.
- Page 8 DETAILED SPECIFICATIONS - VTC-TNB4MEA Image Sensor 1/3.0” Progressive Scan Sensor CMOS Image Size 2560 × 1440 Electronic Shutter 1/1s ~ 1/100000s Lens Type Motorized AutoFocus Varifocal Min. Illumination 0.004 lux @F1.4, AGC ON, 0 lux with illumination On Lens 2.8~12mm Motorized Varifocal Field of View Horizontal: 92 °~31°, Vertical: 48 °~17.2°, Diagonal: 112 °~ 35.6 °...
- Page 9 2.8~12mm(W) 218ft (66m) 87ft (27m) 44ft (13m) 23ft (7m), 2.8~12mm(T) 669ft D.O.R.I. (204m) 269ft (82m) 135ft (41m) 66ft (20m) Power Supply DC12V/PoE Power Consumption ≤9.5W BREAKDOWN OF MODEL NUMBERS EXAMPLE: VTC-TNB4MEA [VTC] VITEK TRANSCENDENT Network Bullet Motorized Entry Second Camera Level Iteration...
- Page 11 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4MEA VT-TJB08 VT-TPLMT VT-TCNMT Optional Junction box for Universal Pole Mount Universal Corner Mount Cable Management Adapter (Req Adapter VT-TJB08) (Req VT-TJB08) 8.47” 6.43”...
- Page 12 NOTES...
- Page 13 NOTES...
- Page 14 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with Programmable Analytics and NDAA Compliance! • 12MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Programmable Analytic Support Including Line Crossing, Region, Area Detection, and More! •...
- Page 15 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
- Page 16 LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
