EMG PJ5 Installation Information

EMG-P5
INSTALLATION INFORMATION

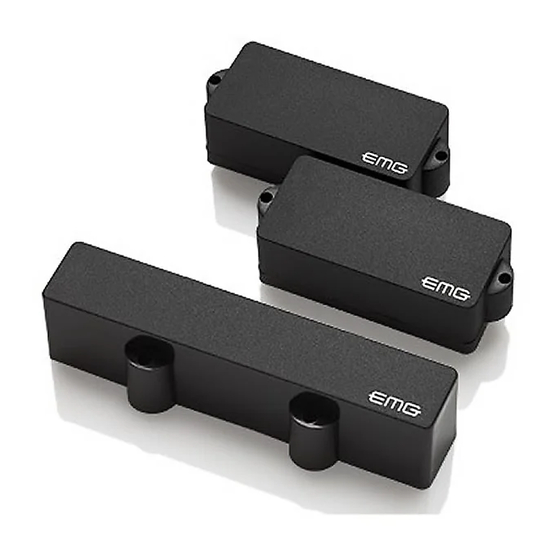

EMG MODELS: EMG PJ5 AND PJA5 SETS
SPECIFICATIONS:
Logo Color
Magnet Type *
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Thump)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
*Note: Magnet Type: A (Alnico) C (Ceramic) CS (Ceramic and Steel)
Installation notes:
All EMG Pickups are compatible with each other. EMG accessories, the VLPF, EXG, SPC or RPC Controls can be added to any EMG Pickup System
without requiring an extra battery. DO NOT reconnect the bridge ground wire, EMG Pickups do not require string grounding. Use the 25K Ohm
controls that are included for best results. If your output jack is a long panel style you will need a stereo jack, use a SwitchCraft 152B , soldering
will be required (see the bottom of page 2). Adjust the pickup level to the strings, and at a distance that works for you, experiment. Alternate
wiring diagrams are available at; emgpickups.com.
Included with each SET:
2 VOLUME CONTROLS (25K)
.235 (6)
SOLID
.390
(10)
ADJUSTMENT SCREWS (8)
BATTERY
BUSS
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2019 Copyright EMG INC. All Rights Reserved.
2.250 2.250
(57.15) (57.15)
1.100 1.100
(27.94) (27.94)
2.450 2.450
(62.23) (62.23)
1.650 1.650
(41.91) (41.91)
B/E/A SIDE
MODEL:
P5 LJ
Silver Silver
C C
3.20 3.95
2.00 1.00
4.50 450
-106 -101
10 10
80 80
3000 3000
27 27
1 TONE CONTROL
2 PICKUP IN/ OUT
BATTERY BUSS
B245
R .125 R .125
(3.17) TYP (3.17) TYP
R .234 R .234
(5.94) TYP (5.94) TYP
.920 (23.4)
1.200 1.200
(30.48) (30.48)
D/G SIDE
MAXIMUM RECOMMENDED STRING WIDTH 2.725" (69.2)
P5A LJA
Gold Gold
A A
2.61 3.20
2.00 1.00
4.50 4.50
-101 -99
10 10
80 80
3000 3000
27 27
STEREO OUTPUT
JACK
- 9V +
LONG J HOUSING
(LJ)
3.700
(93.98)
3.100
(78.74)
1.560
(39.6)
#4 WOOD SCREW
FOR MOUNTING
FOR BOTH SJ AND LJ PICKUPS
PICKUP CABLE 13.5" (34cm)
PICKUP CABLE 9" (23cm)
4 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY CABLE 7" (18cm)
.730 (18.54)
R .093
(2.36) TYP
R .250
(6.35) TYP
